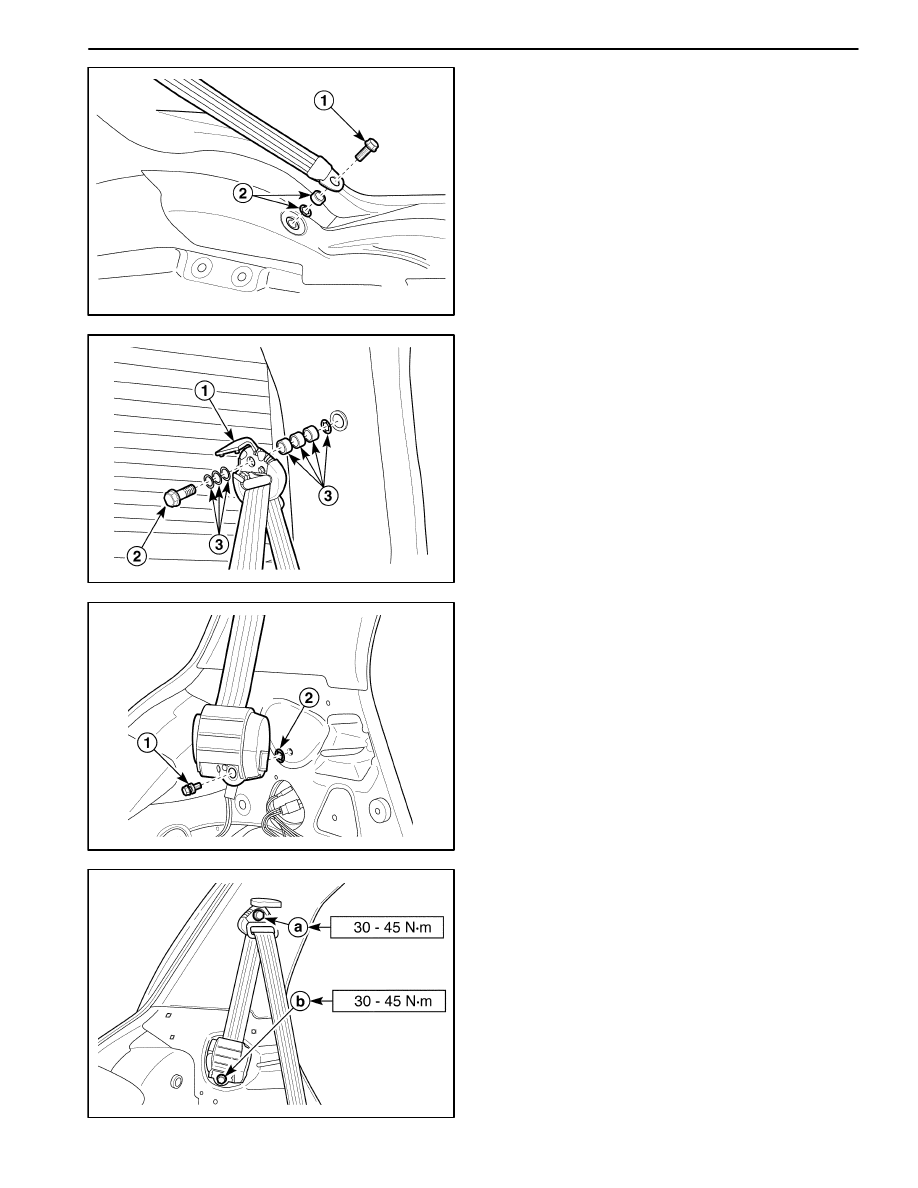

SEAT BELTS  8A – 9

D110A508

3. Remove the bolt on the floor.

D

Remove the bolt (1).

D

Remove the spacer and the fiber washer (2).

D

Remove the plastic protector on the seat belt an-
chor.

D110A509

4. Pry off the luggage compartment trim panel.

Refer to section 9G, Interior Trim.

5. Remover the bolt on the C–pillar trim panel (1).

D

Open the bolt cap using a flathead screw driver.

D

Remove the bolt (2).

D

Remove the plastic washers, the spacers and the
fiber washer (3).

D110A510

6. Remove the seat belt retractor bolt.

D

Remove the bolt (1).

D

Remove the fiber washer (2).

D

Remove the rear seat belt.

D1AA511B

Installation Procedure

1. Install in the reverse order of removal.

2. Install the seat belt retractor bolt and the upper bolt.

Tighten

D

Tighten the seat belt upper bolt to 30–45 N

S

m

(22–33 lb-ft).

a. Seat belt upper bolt.

D

Tighten the seat belt retractor bolt to 30–45 N

S

m

(22–33 lb-ft).

b. Retractor bolt.

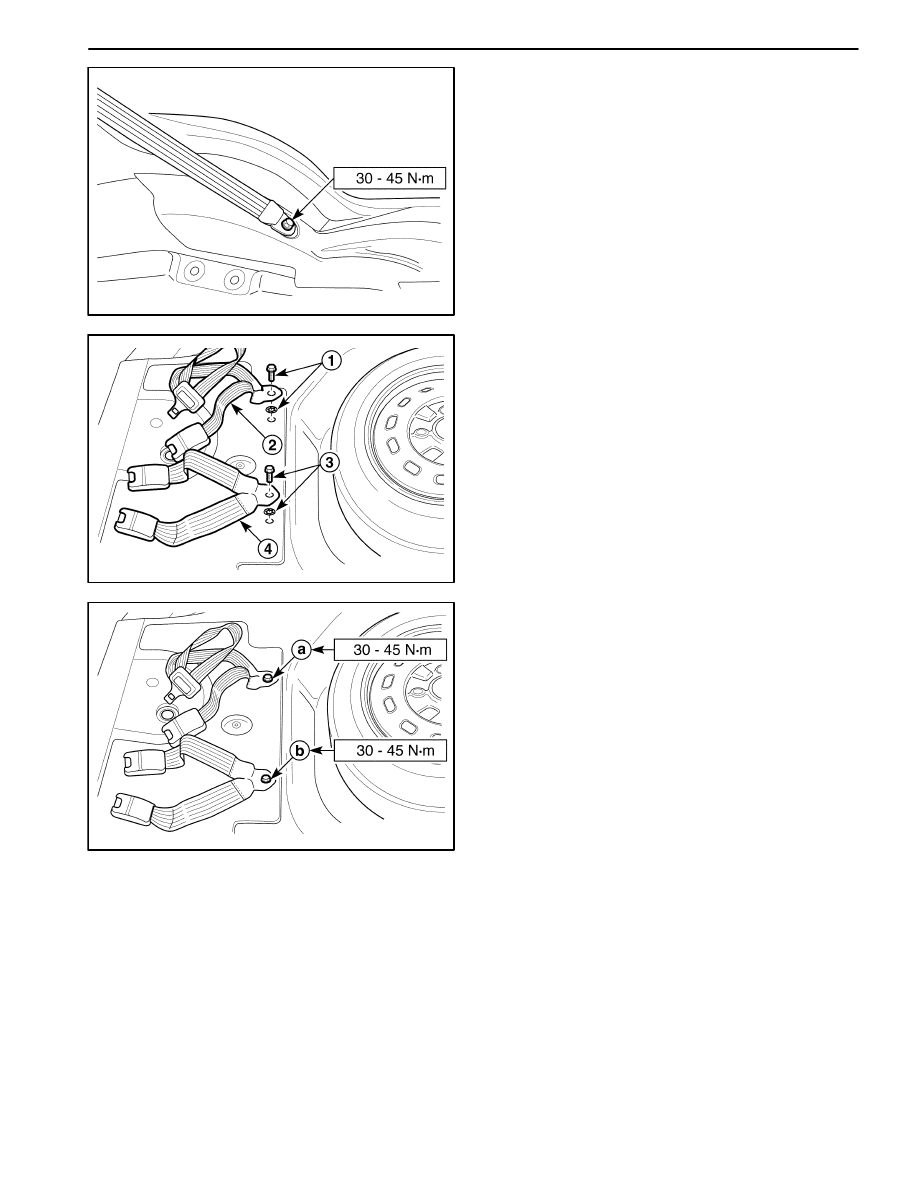

8A – 10  SEAT BELTS

D1AA512B

3. Install the bolt on the floor.

Tighten

Tighten the bolt on the floor to 30–45 N

S

m (22–33 lb-

ft).

D110A513

TWO–POINT LAB REAR CENTER
SEAT BELT

Removal Procedure

1. Remove the rear seat cushion.

2. Remove the two–point rear seat belt and the buckle.

D

Remove the bolt and the fiber washer (1).

D

Remove the seat belt (two–point) and the buckle
(three–point) (2).

D

Remove the bolt and the fiber washer (3).

D

Remove the buckle (two–point and three–point)
(4).

D1AA514B

Installation Procedure

1. Install in the reverse order of removal.

2. Install the three–point rear seat belt buckle with the

bolt.

Tighten

Tighten the three–point rear seat belt buckle bolt and
the two–point rear seat belt bolt to 30–45 N

S

m

(22–33 lb-ft).

a. Two–point rear seat belt and three–point rear seat

belt buckle bolt.

3. Install the two–point rear seat belt with the bolt.

Tighten

Tighten the two–point and three–point rear seat belt
buckle bolt to 30–45 N

S

m (22–33 lb-ft).

b. Two–point and three–point rear seat belt buckle

bolt.

SEAT BELTS  8A – 11

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Application

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

N

S

m

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

Lb-Ft

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

Lb-In

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Seat Belt Upper Bolt

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

30 – 45

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

22 – 33

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

–

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Seat Belt Lower Bolt

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

30 – 45

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

22 – 33

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

–

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Seat Belt Retractor Bolt

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

30 – 45

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

22 – 33

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

–

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Seat Belt Buckle Bolt

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

30 – 45

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

22 – 33

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

–

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Rear Seat Belt Buckle Bolt

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

30 – 45

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

22 – 33

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

–

8A – 12  SEAT BELTS

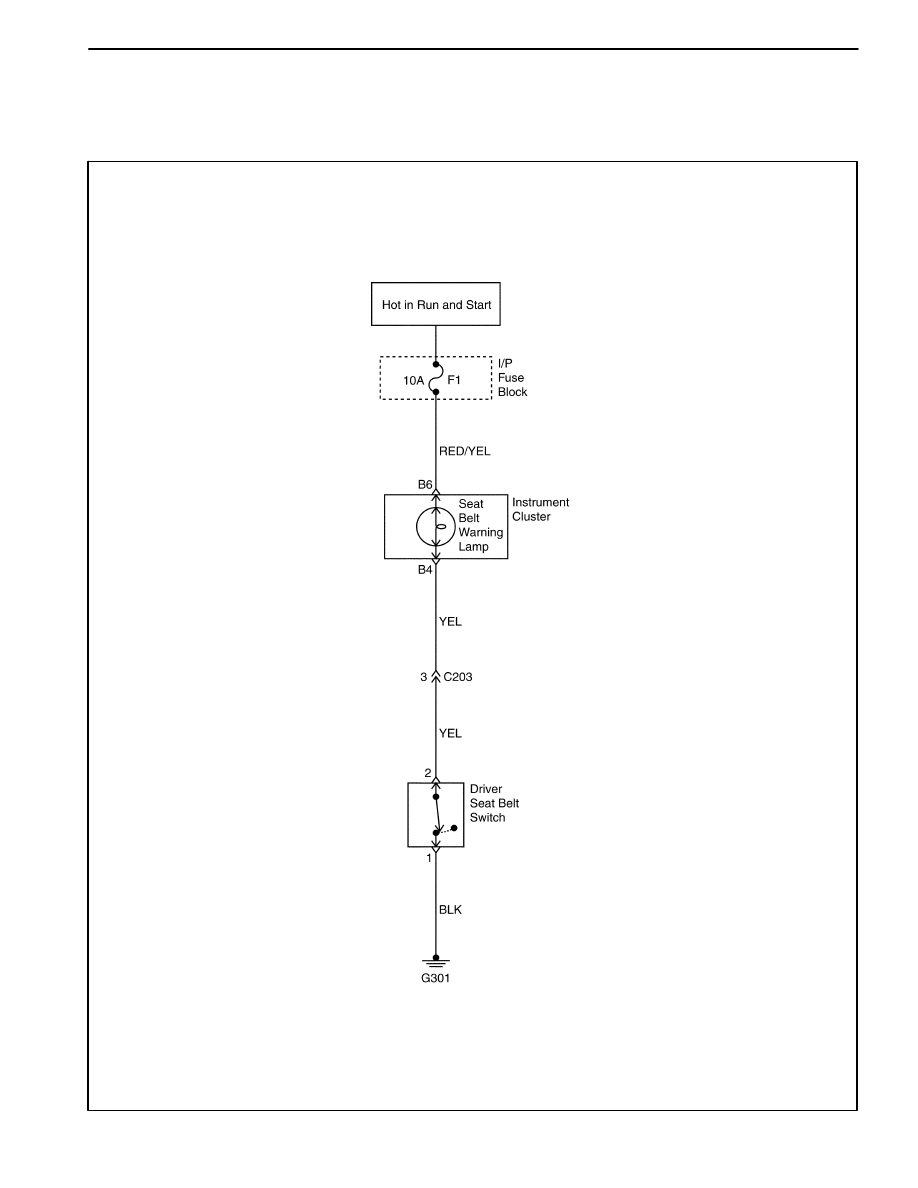

SCHEMATIC AND ROUTING DIAGRAMS

DRIVER SEAT BELT WARNING

D1AA201A
