Daewoo Matiz (2003 year). Manual - part 171





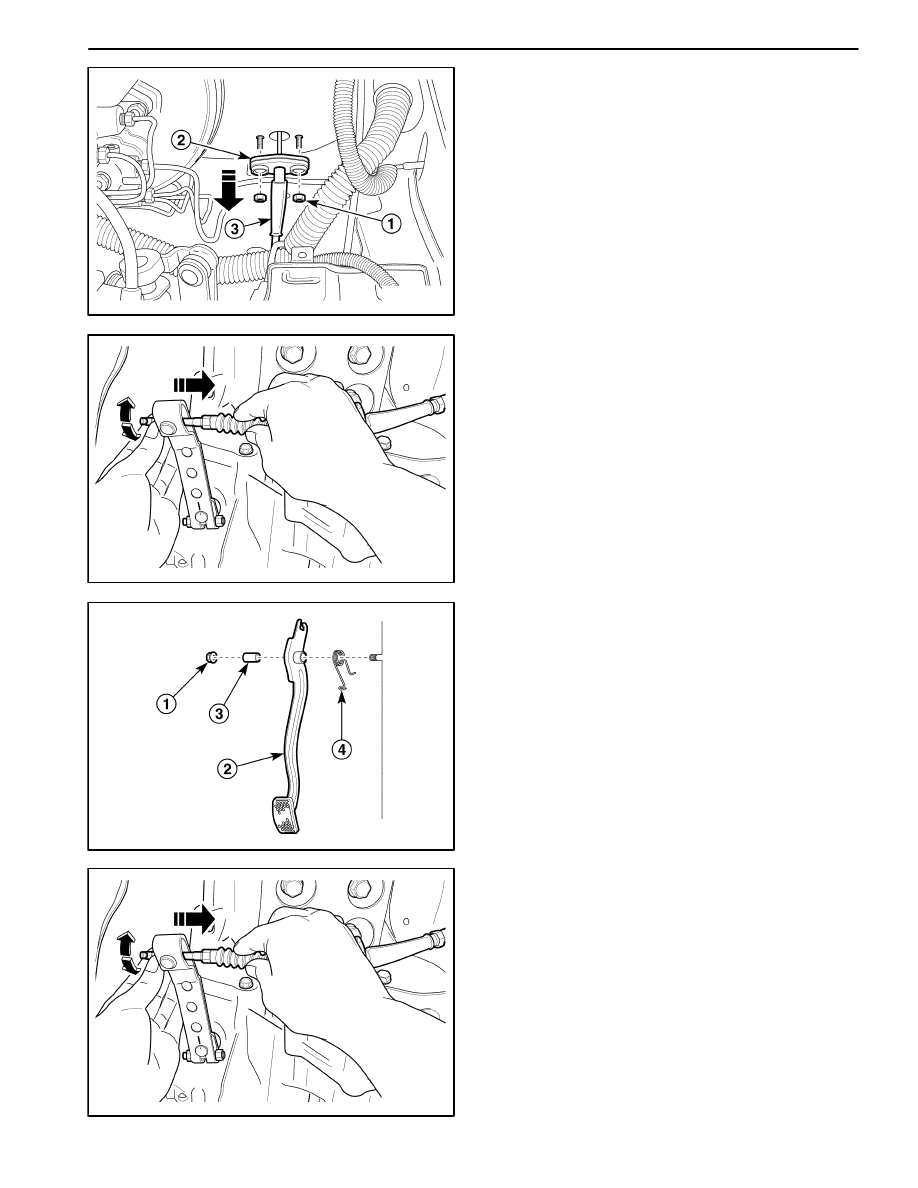

5C – 12  CLUTCH

D103C522

3. Remove the battery. Refer to Section 1E, Engine

Electrical.

4. Remove the clutch cable.

D

Remove the nuts (1).

D

Remove the cable grommet (2).

D

Remove the cable from the pedal (3).

D103C302

Installation Procedure

1. Install the clutch cable.

2 Install the battery.

3. Connect the clutch cable to the pedal.

4. Connect the clutch cable to the transaxle.

5. Adjust the clutch cable. Refer to “Diagnosis” in this

section.

D103C524

CLUTCH PEDAL

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure

1. Disconnect the clutch cable. Refer to “Clutch Cable”

in this section.

2. Remove the clutch pedal.

D

Release the pedal return spring.

D

Remove the nut (1).

D

Remove the clutch pedal (2).

D

Remove the bushing (3).

D

Remove the pedal return spring (4).

D103C302

Installation Procedure

1. Install the pedal return spring.

2. Install the bushings.

3. Install the clutch pedal.

4. Install the nut.

5. Fix the pedal return spring.

6. Connect the clutch cable.

7. Adjust the clutch cable. Refer to “Diagnosis” in this

section.

CLUTCH  5C – 13

SPECIFICATIONS

GENERAL SPECIFICATIONS

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

Application

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Description

ÁÁÁÁÁ

ÁÁÁÁÁ

Unit

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

Standard

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

Limit

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Type

ÁÁÁÁÁ

ÁÁÁÁÁ

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

Single Dry Plate

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Outside Diameter

ÁÁÁÁÁ

ÁÁÁÁÁ

mm (in.)

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

170 (6.7)

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Inside Diameter

ÁÁÁÁÁ

ÁÁÁÁÁ

mm (in.)

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

110 (4.3)

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

Clutch Disc

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Thickness

ÁÁÁÁÁ

ÁÁÁÁÁ

mm (in.)

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

7.15 (0.281)

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Rivet Head Depth

ÁÁÁÁÁ

ÁÁÁÁÁ

mm (in.)

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

1.2 (0.047)

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

0.5 (0.020)

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Disc Runout Limit in Rotational Direction

ÁÁÁÁÁ

ÁÁÁÁÁ

mm (in.)

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

0.7 (0.028)

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Pedal Free Travel

ÁÁÁÁÁ

ÁÁÁÁÁ

mm (in.)

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

0 (0)

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

Clutch Pedal

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Pedal Travel

ÁÁÁÁÁ

ÁÁÁÁÁ

mm (in.)

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

100 – 110

(3.9 – 4.3)

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

Clutch Pedal

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Clearance between pedal and floor just
before clutch connection

ÁÁÁÁÁ

ÁÁÁÁÁ

ÁÁÁÁÁ

mm (in.)

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

30 – 40

(1.2 – 1.6)

FASTENER TIGHTENING SPECIFICATIONS

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Application

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

N

S

m

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

Lb-Ft

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

Lb-In

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Pressure Plate Bolt

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

18 – 28

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

13 – 21

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Clutch Release Arm Bolt and Nut

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

10 – 16

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

7.5 – 12

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

5C – 14  CLUTCH

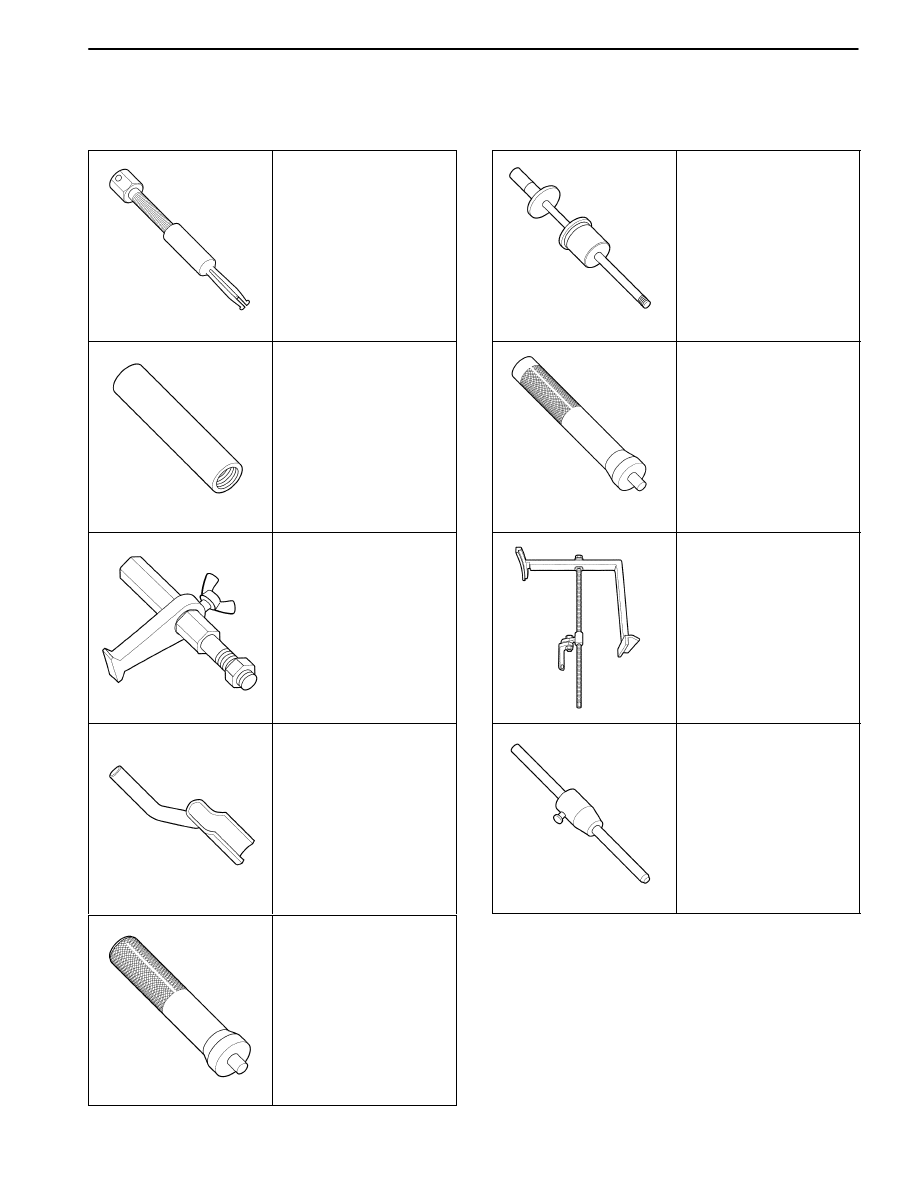

SPECIAL TOOLS

SPECIAL TOOLS TABLE

D103C101

09917–58010

Input Shaft Bearing

Remover

D103C105

09923–46040

Bushing Joint Pipe

D102B116

09924–17810

Fly Wheel Holder

D103C104

09925–48220

Bushing Remover/

Installer

D103C102

09925–98210

Input Shaft Bearing

Installer

D103C106

09930–30102

Sliding Shaft

D103C107

09943–88211

Bushing, Bearing

Installer

D103B103

DW110–021

Engine Assembly

Support Fixture

D103C103

DW210–010

Clutch Center Guide

SECTION 6B

POWER STEERING PUMP

TABLE OF CONTENTS

Description and Operation

6B-2

. . . . . . . . . . . . . . . . . .

Power Steering Pump

6B-2

. . . . . . . . . . . . . . . . . . . . . .

Diagnostic Information and Procedures

6B-3

. . . . .

Power Steering Pump

6B-3

. . . . . . . . . . . . . . . . . . . . . .

Repair Instructions

6B-4

. . . . . . . . . . . . . . . . . . . . . . . . .

On-Vehicle Service

6B-4

. . . . . . . . . . . . . . . . . . . . . . . . . .

Pump Drive Belt

6B-4

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Pump Drive Pulley

6B-5

. . . . . . . . . . . . . . . . . . . . . . . . .

Pump Assembly

6B-5

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Unit Repair

6B-7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pump

6B-7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications

6B-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Specifications

6B-8

. . . . . . . . . . . . . . . . . . . . .

Fastener Tightening Specifications

6B-8

. . . . . . . . . . .

Special Tools and Equipment

6B-9

. . . . . . . . . . . . . . .

Special Tools Table

6B-9

. . . . . . . . . . . . . . . . . . . . . . . .
