ANTILOCK BRAKE SYSTEM 4F – 49

intrusion exists, replace the wheel speed sensor har-
ness. If replacing a wheel speed sensor harness, in-
spect the sensor terminals. If you find evidence of
corrosion or water intrusion, replace the wheel speed
sensor. Refer to “Rear Wheel Speed Sensor” in this sec-
tion.

Important: Wheel speed sensor intermittent malfunc-
tions may be difficult to locate. Take care not to disturb
any electrical connections before performing an indi-
cated step of this table. That will ensure that an intermit-
tent connection will not be corrected before the source
of the malfunction is found.

DTC 0506 – Right Rear Wheel Speed Sensor Circuit Intermittent Shorted

ÑÑÑÑ

Step

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Action

ÑÑÑÑÑ

Value(s)

ÑÑÑÑÑÑÑ

Yes

ÑÑÑÑÑÑ

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Turn the ignition switch to OFF.
2. Disconnect the EBCM harness connector from

the EBCM.

3. Use a digital voltmeter (DVM) to measure the

resistance between terminals 9 and 10 of
connector on the EBCM harness.

Is the resistance within the specified value?

ÑÑÑÑÑ

1.0 k

1.5 k

ÑÑÑÑÑÑÑ

Go to Step 4

ÑÑÑÑÑÑ

Go to Step 2

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Disconnect the harness from the right rear wheel

speed sensor.

2. Use a DVM to measure the resistance between

terminals 1 and 2 of the right rear wheel speed
sensor connector.

Is the resistance within the specified value?

ÑÑÑÑÑ

1.0 k

1.5 k

ÑÑÑÑÑÑÑ

Go to Step 4

ÑÑÑÑÑÑ

Go to Step 3

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Replace the wheel speed sensor.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the resistance between
ground and terminal 9 of the EBCM connector.
Does the DVM show the specified value?

ÑÑÑÑÑ

ÑÑÑÑÑÑÑ

Go to Step 6

ÑÑÑÑÑÑ

Go to Step 5

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to ground between terminal 2 of the
connector C202 and terminal 9 of the EBCM con-
nector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the resistance between
ground and terminal 2 of the connector C202.
Does the DVM show the specified value?

ÑÑÑÑÑ

ÑÑÑÑÑÑÑ

Go to Step 8

ÑÑÑÑÑÑ

Go to Step 7

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to ground between terminal 2 of the
connector C202 and terminal 2 of the right rear
wheel speed sensor harness connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the resistance between
ground and terminal 10 of the EBCM connector.
Does the DVM show the specified value?

ÑÑÑÑÑ

ÑÑÑÑÑÑÑ

Go to Step 10

ÑÑÑÑÑÑ

Go to Step 9

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to ground between terminal 10 of
the connector C202 and terminal 10 of the EBCM
connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the resistance between
ground and terminal 10 of the connector C202.
Does the DVM show the specified value?

ÑÑÑÑÑ

ÑÑÑÑÑÑÑ

Go to Step 12

ÑÑÑÑÑÑ

Go to Step 11

4F – 50 ANTILOCK BRAKE SYSTEM

DTC 0506 – Right Rear Wheel Speed Sensor Circuit Intermittent Shorted (Cont’d)

ÑÑÑÑ

Step

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Action

ÑÑÑÑÑ

Value(s)

ÑÑÑÑÑÑÑ

Yes

ÑÑÑÑÑÑ

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to ground between terminal 10 of
the connector C202 and terminal 1 of the right rear
wheel speed sensor harness connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Turn the ignition switch to ON.
2. Use a DVM to measure the voltage between

ground and terminal 9 of the EBCM connector.

Is the voltage within the specified value?

ÑÑÑÑÑ

0 v

ÑÑÑÑÑÑÑ

Go to Step 14

ÑÑÑÑÑÑ

Go to Step 13

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to voltage between terminal 2 of the
connector C202 and terminal 9 of the EBCM con-
nector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Turn the ignition switch to ON.
2. Use a DVM to measure the voltage between

ground and terminal 2 of the connector C202.

Is the voltage within the specified value?

ÑÑÑÑÑ

0 v

ÑÑÑÑÑÑÑ

Go to Step 16

ÑÑÑÑÑÑ

Go to Step 15

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to voltage between terminal 2 of the
connector C202 and terminal 2 of the right rear
wheel speed sensor harness connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Turn the ignition switch to ON.
2. Use a DVM to measure the voltage between

terminal 10 of the connector C202 and terminal
10 of the EBCM connector.

Is the voltage within the specified value?

ÑÑÑÑÑ

0 v

ÑÑÑÑÑÑÑ

Go to Step 18

ÑÑÑÑÑÑ

Go to Step 17

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to voltage between terminal 10 of
the connector C202 and terminal 10 of the EBCM
connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Turn the ignition switch to ON.
2. Use a DVM to measure the voltage between

ground and terminal 10 of the connector C202.

Is the voltage within the specified value?

ÑÑÑÑÑ

0 v

ÑÑÑÑÑÑÑ

Go to Step 20

ÑÑÑÑÑÑ

Go to Step 19

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to voltage between terminal 10 of
the connector C202 and terminal 1 of the right rear
wheel speed sensor harness connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Replace the EBCM.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ANTILOCK BRAKE SYSTEM 4F – 51

BLANK

4F – 52 ANTILOCK BRAKE SYSTEM

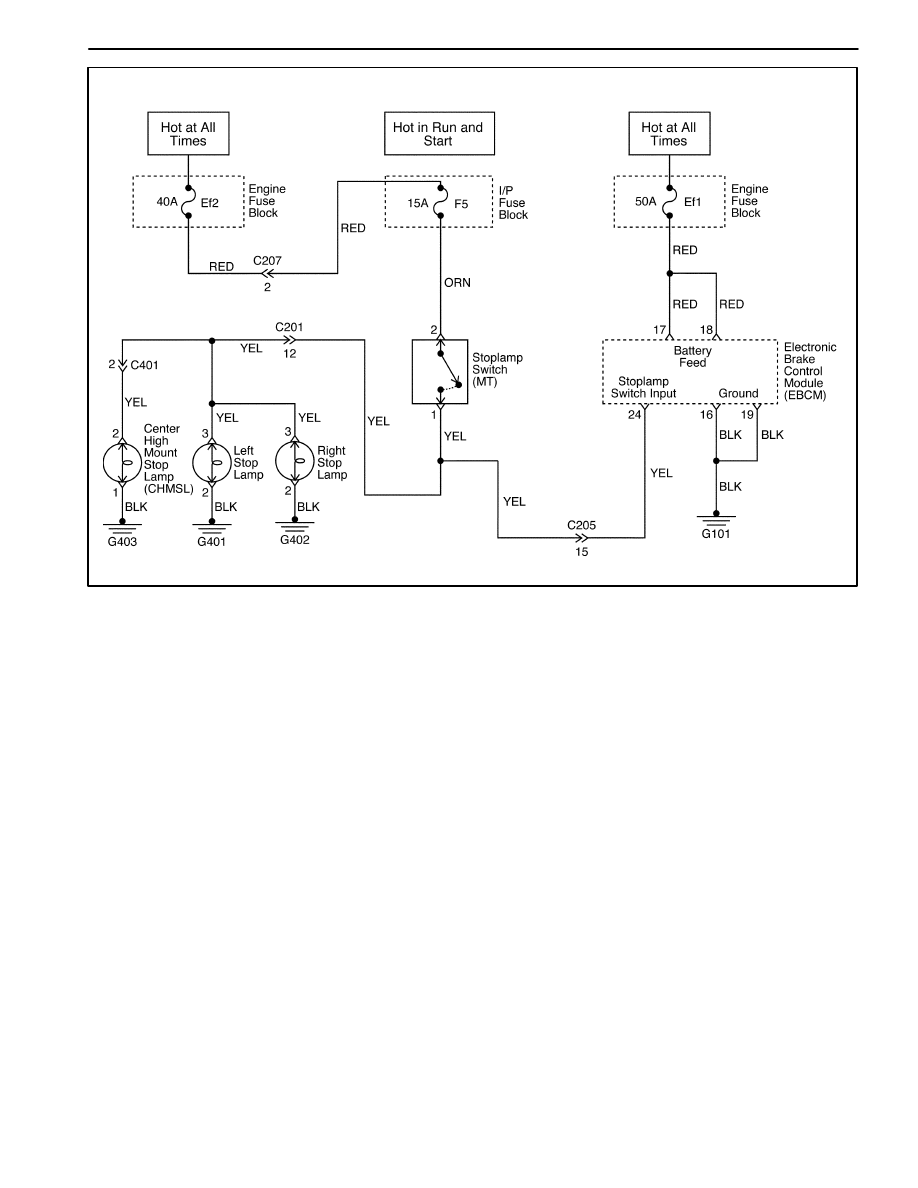

D17E305B

DIAGNOSTIC TROUBLE CODE (DTC) 0601

LEFT FRONT DUMP SHORTED OR DRIVER OPEN

Circuit Description

EBCM proceeds the self–test about the dump valve or
the motor driver, if the EBCM senses the brake signal.

Diagnosis

If the EBCM proceeds the self–test about the dump
valve or the motor driver and senses the fault, the
EBCM may make the fault code.

Cause(s)

EBCM internal fault (Left front dump voltage shorted
or ground open).

Warning Lamp Operation

ABS warning lamp ON.

ABS warning lamp OFF if the ignition switch ON/OFF.

Fail Action

This is a critical operational fault. The ABS is disabled
and the ABS warning lamp is turned on. The proportion-
ing is operation.
