4A – 10  HYDRAULIC BRAKES

D107A525

BRAKE PEDAL
(LEFT–HAND DRIVE)

Removal Procedure

1. Remove the stoplamp switch. Refer to “Stoplamp

Switch” in this section.

2. Disconnect the brake pedal from the power booster.

Refer to Section 4C, Power Booster.

3. Remove the brake pedal.

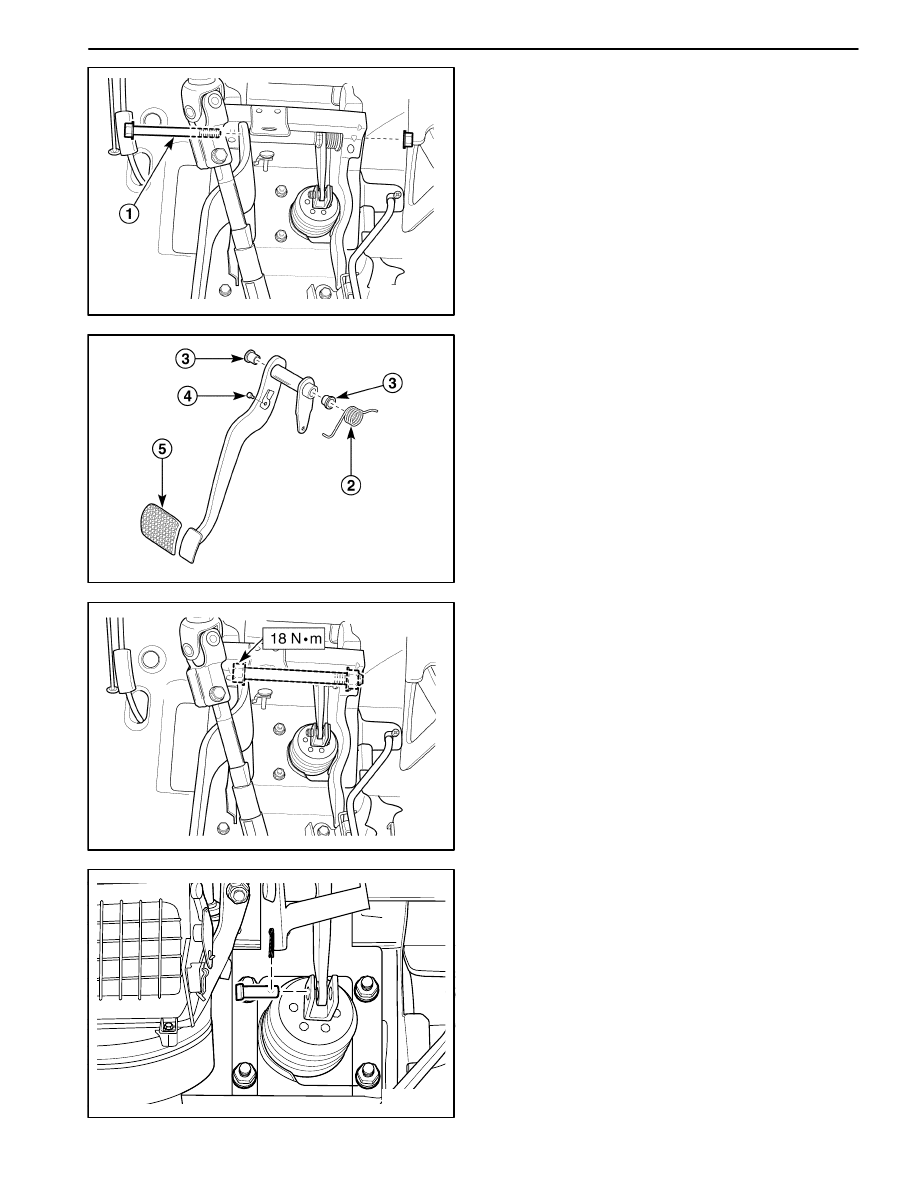

D

Remove the bolt (1).

D107A526

D

Remove the brake pedal spring (2).

D

Remove the bushing (3).

D

Remove the cushion (4).

D

Remove the brake pedal pad (5).

D17A527A

Installation Procedure

1. Install the pad to the brake pedal.

2. Install the brake pedal with spring, bushing, and cush-

ion.

3. Connect the brake pedal to the power booster.

Tighten

Tighten the brake pedal–to–pedal bracket bolt to 18
N

S

m (13 lb-ft).

4. Install the stoplamp switch. Refer to “Stoplamp

Switch” in this section.

D24C001A

BRAKE PEDAL
(RIGHT–HAND DRIVE)

Removal Procedure

1. Remove the instrument panel assembly. Refer to

Section 9E, Instrument/Driver Information.

2. Disconnect the brake pedal rod from the power

booster. Refer to Section 4C, Power Booster.

HYDRAULIC BRAKES  4A – 11

D24D001

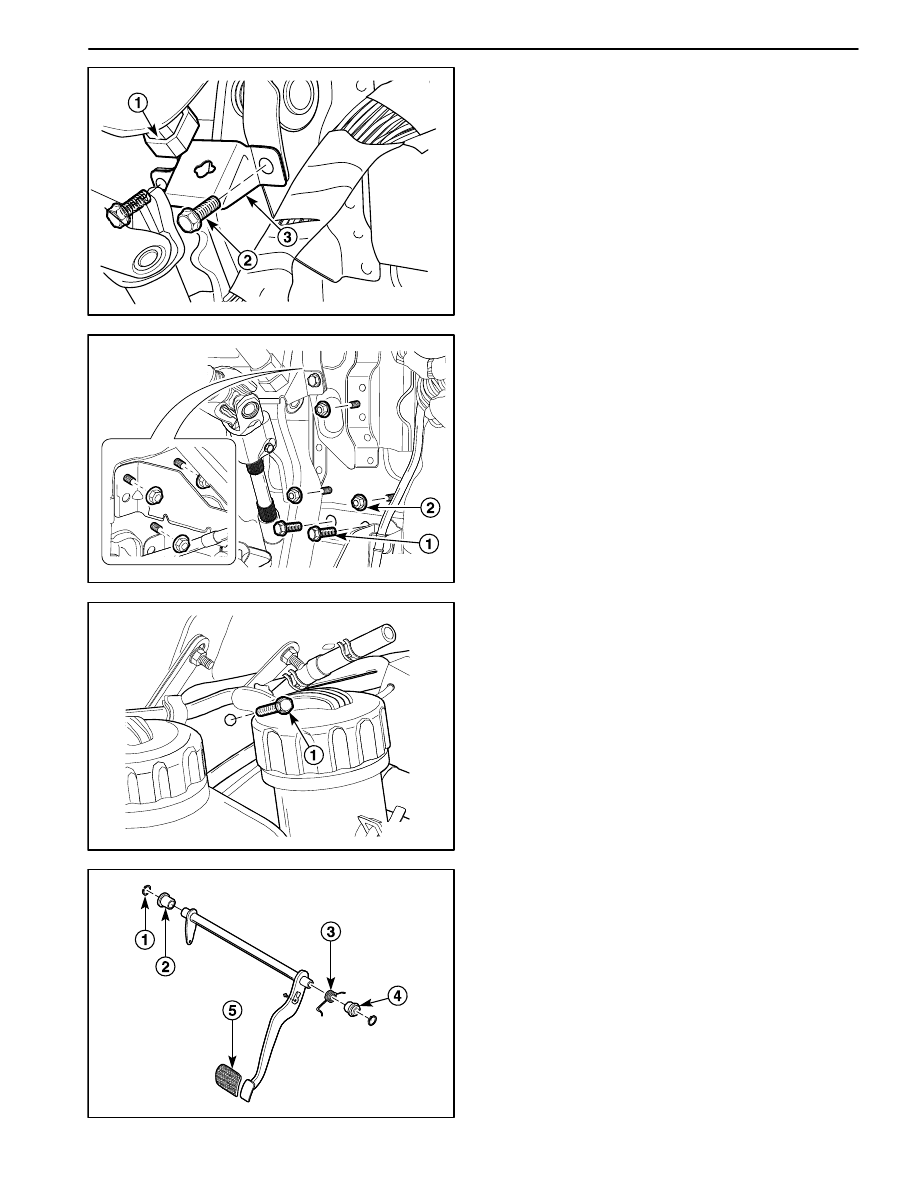

3. Remove the stoplamp switch.

D

Remove the stoplamp switch (1).

D

Remove the bolts (2).

D

Remove the stoplamp switch bracket (3).

D24D002

4. Remove the bolts mounting brake pedal bracket (1).

5. Remove the nuts mounting brake pedal bracket (2).

D24D003

6. Remove the canister. Refer to Section 1F, Engine

Controls.

7. Remove the bolt mounting brake pedal bracket in the

engine compartment (1).

D24D004

8. Remove the brake pedal.

D

Remove the snap rings (1).

D

Remove the bushings (2).

D

Remove the brake pedal spring (3).

D

Remove the cushion (4).

D

Remove the brake pedal pad (5).

4A – 12  HYDRAULIC BRAKES

D24D005

Installation Procedure

1. Install the brake pedal with pad, spring, bushings, and

cushion.

2. Install the bolt mounting brake pedal bracket in the

engine compartment.

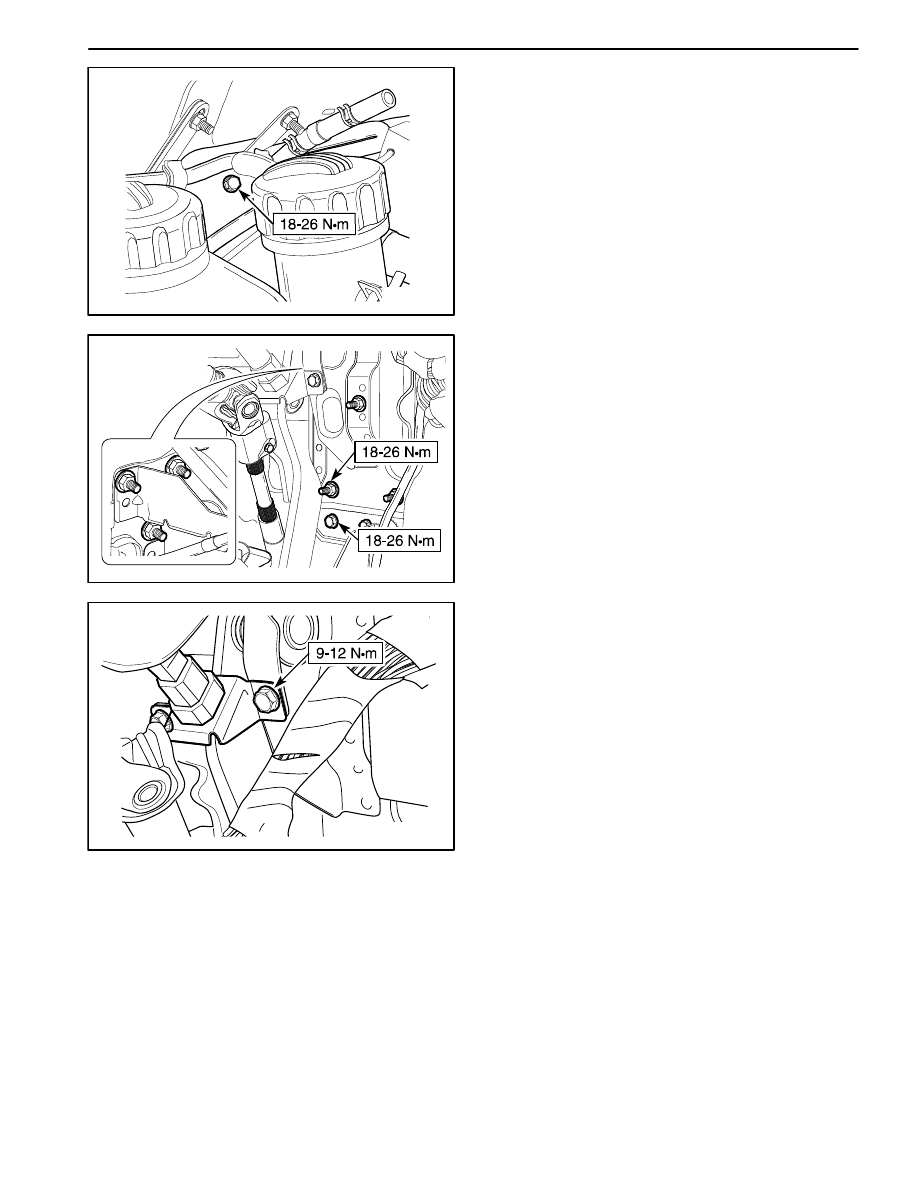

Tighten

Tighten the bolt to 18–26 N

S

m (13–20 lb-ft).

3. Install the canister. Refer to Section 1F, Engine Con-

trols.

D24D006

4. Install the brake pedal with the snap rings.

5. Install the bolts and nuts mounting brake pedal brack-

et.

Tighten

D

Tighten the bolts mounting brake pedal bracket to
18–26 N

S

m (13–20 lb-ft).

D

Tighten the nuts mounting brake pedal bracket to
18–26 N

S

m (13–20 lb-ft).

D24D007

6. Install the stoplamp switch with the bracket and the

bolts.

Tighten

Tighten the mounting bolts to 9–12 N

S

m (80–106 lb-

in.)

7. Connect the brake pedal rod to the power booster.

Refer to Section 4C, Power Booster.

8. Install the instrument panel assembly. Refer to Sec-

tion 9E, Instrument/Driver Information.

HYDRAULIC BRAKES  4A – 13

SPECIFICATIONS

GENERAL SPECIFICATIONS

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

0.8 SOHC Engine

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Application

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

Millimeters

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

Inches

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Brake Drums:

Inside Diameter
Maximum Rebore Diameter
Out-of-Round

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

180
182

0.04

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

7.09
7.17

0.0016

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Brake Rotors:

Discard Thickness
Lateral Runout (Installed)
Rotor Diameter
Rotor Thickness (New)

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

10

0.05

236

12.7

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

0.4

0.002

9.3
0.5

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Master Cylinder:

Bore Diameter

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

20.64

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

0.81

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Caliper:

Piston Diameter

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

48

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

1.89

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Wheel Cylinder Diameter:

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

17.46

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

0.69

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Brake Pedal:

Free Play
Height
Stroke

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁ

6 – 10

200

30

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

0.24 – 0.31

7.87
1.18

ÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

Type

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

DOT–3 or DOT–4

ÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁ

Brake Fluid

ÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁ

Capacity

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

0.45 L (0.48 qt.)

FASTENER TIGHTENING SPECIFICATIONS

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Application

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

N

S

m

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

Lb-Ft

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

Lb-In

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Brake Pipe Fittings

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

16

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

12

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Front Brake Hose-to-Caliper Bolt

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

25.5

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

19.1

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Brake Pedal–to–Pedal Bracket Hex Bolt

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

18

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

13

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Brake Pedal Bracket Mounting Bolts

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

18 – 26

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

13 – 20

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Brake Pedal Bracket Mounting Nuts

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

18 – 26

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

13 – 20

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Stoplamp Switch Mounting Bracket Bolts

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

9 – 12

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

80 – 106
