Daewoo Matiz (2003 year). Manual - part 63

1F – 162  ENGINE CONTROLS

MAA1F200

DIAGNOSTIC TROUBLE CODE (DTC) – P0352 IGNITION SIGNAL COIL B FAULT

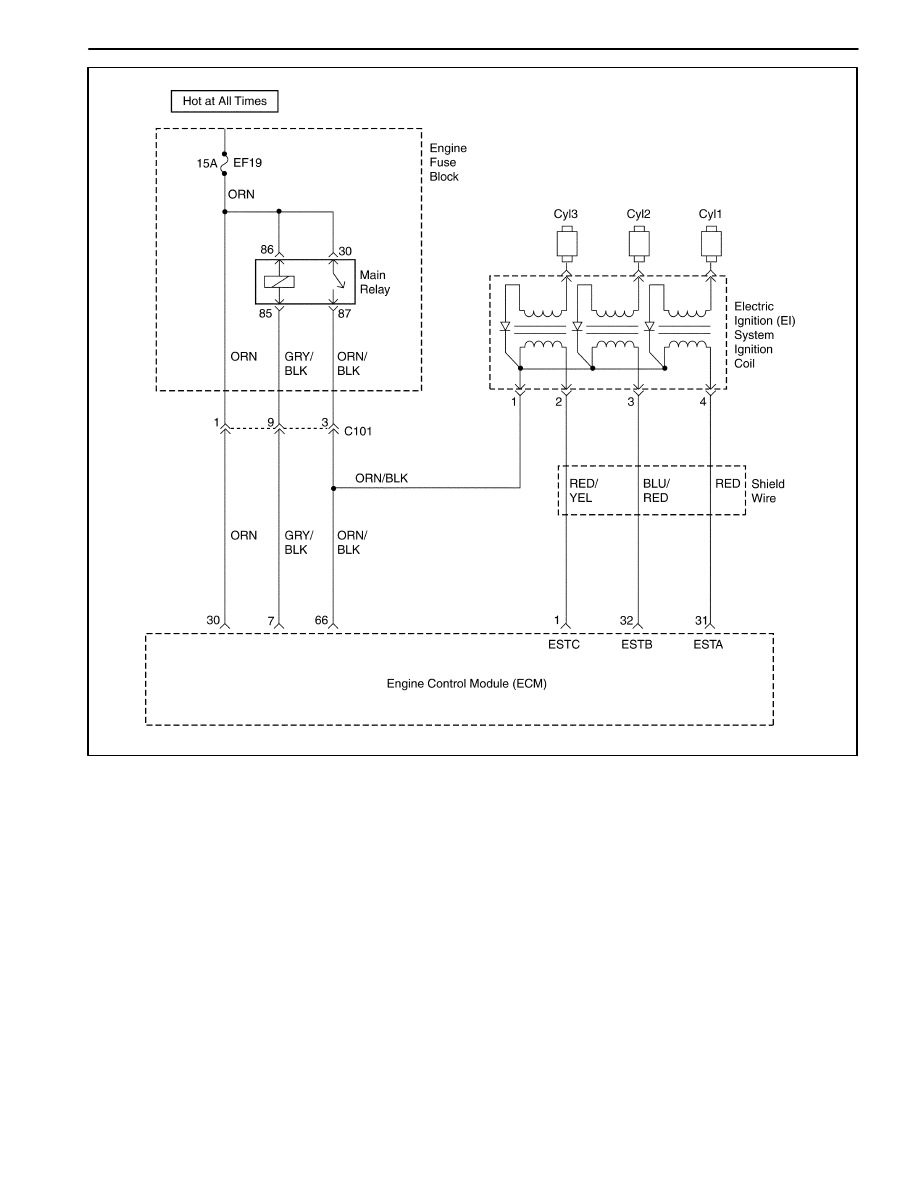

Circuit Description

The engine control module (ECM) provides a ground for
the electronic spark timing 3 circuit. When the ECM re-
moves the ground path of the ignition primary coil, the
magnetic field produced by the coil collapses. The col-
lapsing magnetic field produces a voltage in the secon-
dary coil, which fires the spark plug. The circuit between
the ECM and the electronic ignition system is monitored
for an open circuit, short to voltage, and low voltage.
When the ECM detects a problem in the spark timing 3
circuit, it will set DTC P0352.

Conditions for Setting the DTC

D

This DTC can be stored in “key-on” status.

D

Time of fault fall occurrence is greater than time of the
DIS fall occurrence.

D

Must receive more than 40 failure within 80 test
cycles.

Action Taken When The DTCs Sets

D

The Malfunction Indicator Lamp (MIL) will illuminate.

D

The ECM will record operating conditions at the time
the diagnostic fails. This information will be stored in
the Freeze Frame and failure records buffers.

D

A history DTC is stored.

D

The ECM will default to 6 degree timing.

Conditions for Clearing the MIL/DTC

D

The MIL will turn off after four consecutive ignition
cycles in which the diagnostic runs without a fault.

ENGINE CONTROLS  1F – 163

D

A history DTC will clear after 40 consecutive warm up
cycles without a fault.

D

Using the scan tool can clear DTC(s).

D

Disconnecting the ECM battery feed for 10 seconds.

DIAGNOSTIC AIDS

Check and correct any abnormal engine noise before
using the diagnostic table.

Any circuitry that is suspected as causing engine noise
complaint should be thoroughly checked for the follow-
ing conditions :

D

Backed-out terminals.

D

Improper mating.

D

Broken locks.

D

Improperly formed.

D

Damaged terminals.

D

Poor terminal-to-wire connections.

D

Physical damage to the wiring harness.

DTC P0352 – Ignition Signal Coil B Fault

Step

Action

Value(s)

Yes

No

1

Perform an Euro On-Board Diagnostic (EOBD)
System Check.
Is the system check complete?

–

Go to Step 2

Go to

“On-Board
Diagnostic

System Check”

2

Check for a faulty connection or a damaged terminal
3 at the ignition coil.
Is a problem found?

–

Go to Step 8

Go to Step 3

3

Check for a faulty connection or a damaged terminal
32 at the engine control module(ECM) connector.
Is the problem found?

–

Go to Step 8

Go to Step 4

4

1. Turn the ignition switch to LOCK.
2. Disconnect the ECM.
3. Check the ignition control circuit for a short to

ground

Is the problem found?

–

Go to Step 8

Go to Step 5

5

Check the ignition control circuit for a short to
battery voltage.
Is the problem found?

–

Go to Step 8

Go to Step 6

6

Check for an open in the ignition control.
Is the problem found?

–

Go to Step 8

Go to Step 7

7

Replace the ECM.
Is the replacement complete?

–

Go to Step 8

–

8

1. Using the scan tool, clear the Diagnostic Trouble

Codes(DTCs).

D

Start the engine and Idle at normal operating
temperature.

D

Operate the vehicle within the conditions for
setting this DTC as specified in the supporting
text.

Does the scan tool indicate that this diagnostic ran
and passed?

–

Go to Step 9

–

9

Check if any additional DTCs are set.
Are any DTCs displayed that have not been
diagnosed?

–

Go to

Applicable DTC

table

System OK

1F – 164  ENGINE CONTROLS

MAA1F200

DIAGNOSTIC TROUBLE CODE (DTC) – P0353 IGNITION SIGNAL COIL C FAULT

Circuit Description

The engine control module (ECM) provides a ground for
the electronic spark timing 3 circuit. When the ECM re-
moves the ground path of the ignition primary coil, the
magnetic field produced by the coil collapses. The col-
lapsing magnetic field produces a voltage in the secon-
dary coil, which fires the spark plug. The circuit between
the ECM and the electronic ignition system is monitored
for an open circuit, short to voltage, and low voltage.
When the ECM detects a problem in the spark timing 3
circuit, it will set DTC P0352.

Conditions for Setting the DTC

D

This DTC can be stored in “key-on” status.

D

Time of fault fall occurrence is greater than time of the
DIS fall occurrence.

D

Must receive more than 40 failure within 80 test
cycles.

Action Taken When The DTCs Sets

D

The Malfunction Indicator Lamp (MIL) will illuminate.

D

The ECM will record operating conditions at the time
the diagnostic fails. This information will be stored in
the Freeze Frame and failure records buffers.

D

A history DTC is stored.

D

The ECM will default to 6 degree timing.

Conditions for Clearing the MIL/DTC

D

The MIL will turn off after four consecutive ignition
cycles in which the diagnostic runs without a fault.

ENGINE CONTROLS  1F – 165

D

A history DTC will clear after 40 consecutive warm up
cycles without a fault.

D

Using the scan tool can clear DTC(s).

D

Disconnecting the ECM battery feed for 10 seconds.

DIAGNOSTIC AIDS

Check and correct any abnormal engine noise before
using the diagnostic table.

Any circuitry that is suspected as causing engine noise
complaint should be thoroughly checked for the follow-
ing conditions :

D

Backed-out terminals.

D

Improper mating.

D

Broken locks.

D

Improperly formed.

D

Damaged terminals.

D

Poor terminal-to-wire connections.

D

Physical damage to the wiring harness.

DTC P0353 – Ignition Signal Coil C Fault

Step

Action

Value(s)

Yes

No

1

Perform an Euro On-Board Diagnostic (EOBD)
System Check.
Is the system check complete?

–

Go to Step 2

Go to

“On-Board
Diagnostic

System Check”

2

Check for a faulty connection or a damaged terminal
3 at the ignition coil.
Is a problem found?

–

Go to Step 8

Go to Step 3

3

Check for a faulty connection or a damaged terminal
32 at the engine control module(ECM) connector.
Is the problem found?

–

Go to Step 8

Go to Step 4

4

1. Turn the ignition switch to LOCK.
2. Disconnect the ECM.
3. Check the ignition control circuit for a short to

ground

Is the problem found?

–

Go to Step 8

Go to Step 5

5

Check the ignition control circuit for a short to
battery voltage.
Is the problem found?

–

Go to Step 8

Go to Step 6

6

Check for an open in the ignition control.
Is the problem found?

–

Go to Step 8

Go to Step 7

7

Replace the ECM.
Is the replacement complete?

–

Go to Step 8

–

8

1. Using the scan tool, clear the Diagnostic Trouble

Codes(DTCs).

D

Start the engine and Idle at normal operating
temperature.

D

Operate the vehicle within the conditions for
setting this DTC as specified in the supporting
text.

Does the scan tool indicate that this diagnostic ran
and passed?

–

Go to Step 9

–

9

Check if any additional DTCs are set.
Are any DTCs displayed that have not been
diagnosed?

–

Go to

Applicable DTC

table

System OK
