GLASS AND MIRRORS  9L-3

COMPONENT LOCATOR

GLASS

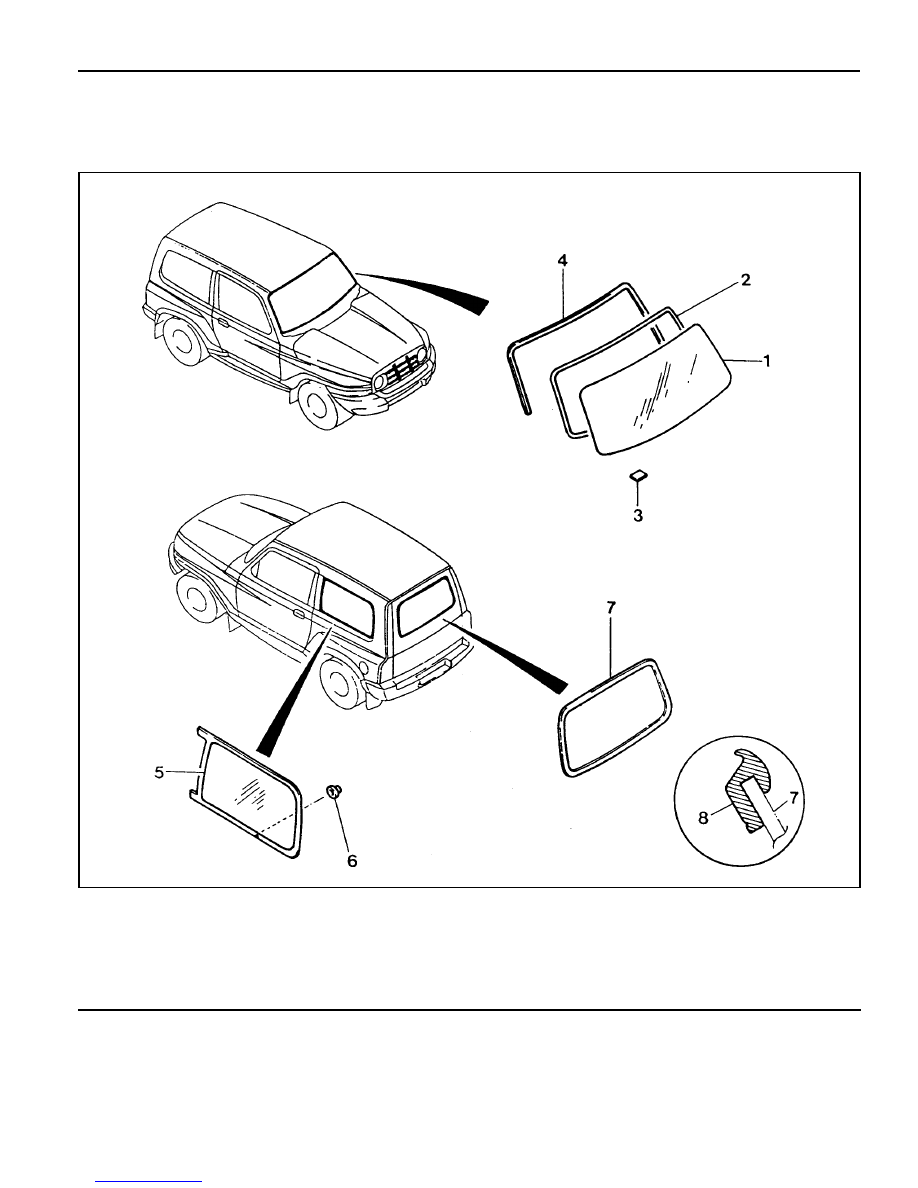

1 Wind Shield Tinted Glass
2 Wind Shield Dam
3 Spacer Pad
4 Wind Shield Upper Mounlding

5 Side Fixed Glass
6 Side Glass Nut
7 Tailgate Tinted Glass Assembly
8 Tailgate Glass Moulding

9L-4  GLASS AND MIRRORS

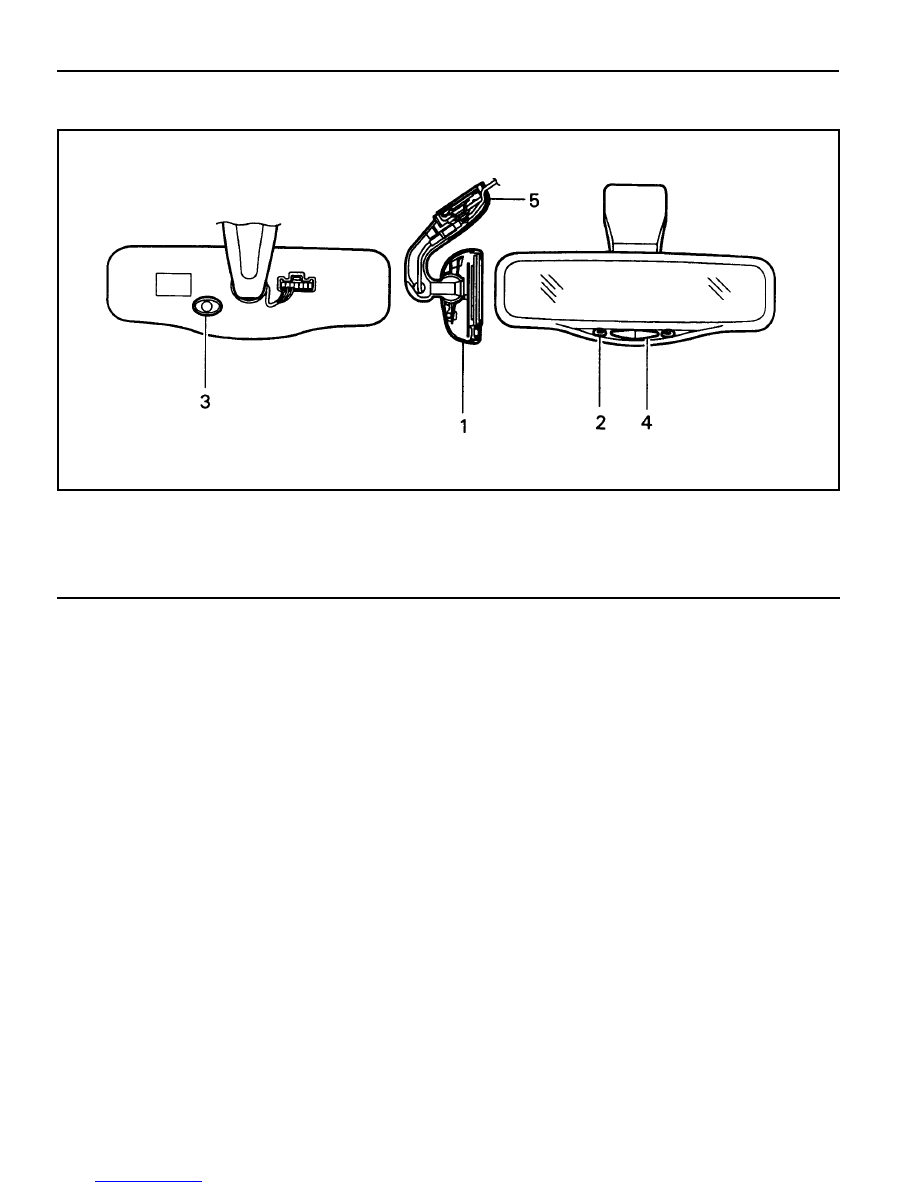

1 Auto Dimming Room Mirror Assembly
2 Sensor (Front)
3 Sensor (Rear)

AUTO DIMMING ROOM MIRROR

4 Switch
5 Cover
6 Lamp

GLASS AND MIRRORS  9L-5

Check & Service

If reflection ratio is not adjusted automatically during night
driving when AUTO switch is pressed, check each connectors
for proper connection and power flow to the auto dimming room
mirror using multi tester.

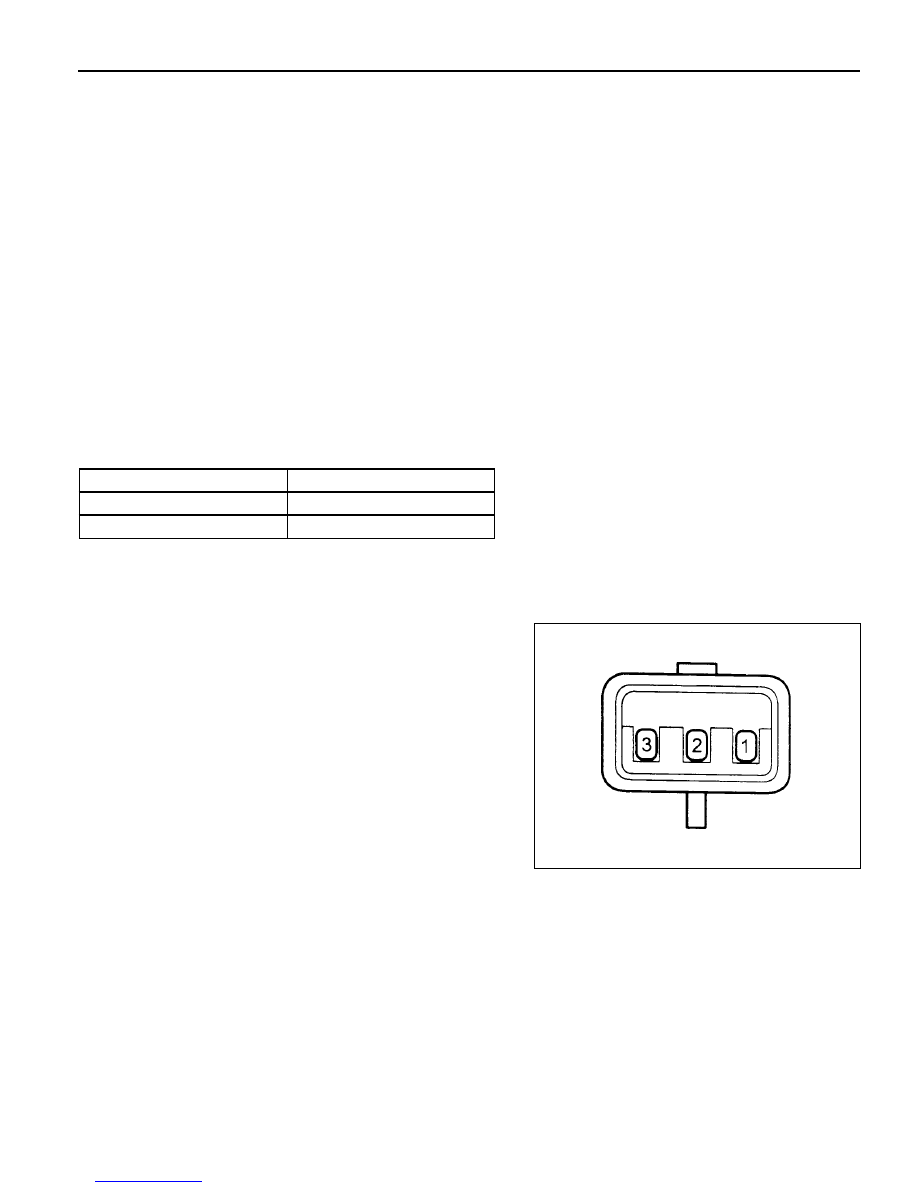

1. Yellow (Connected to back-up lamp)

2. Blue (Ground)

3. White (Power)

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

Voltage Rating

Operating Current

Over Current

DV 12V

1 A

3 A

AUTO DIMMING ROOM MIRROR

Function

When ignition switch is turned ON, green lamp on auto dimming
mirror will turn in and glare reflection ratio will be automatically
adjusted. By positioning AUTO switch to ON, 2Sensors will
automatically adjust refection ratio after sensing rear and
surrounding brightness to reduce driver’s eye fatigue during
driving though tunnel or in night.

When OFF switch is pressed, the lamp goes out and it will be
operated as a normal rear view mirror and shift lever is
positioned in reverse, the auto dimming function will be
automatically OFF.

Specifications

9L-6  GLASS AND MIRRORS

Removal & Installation Procedure

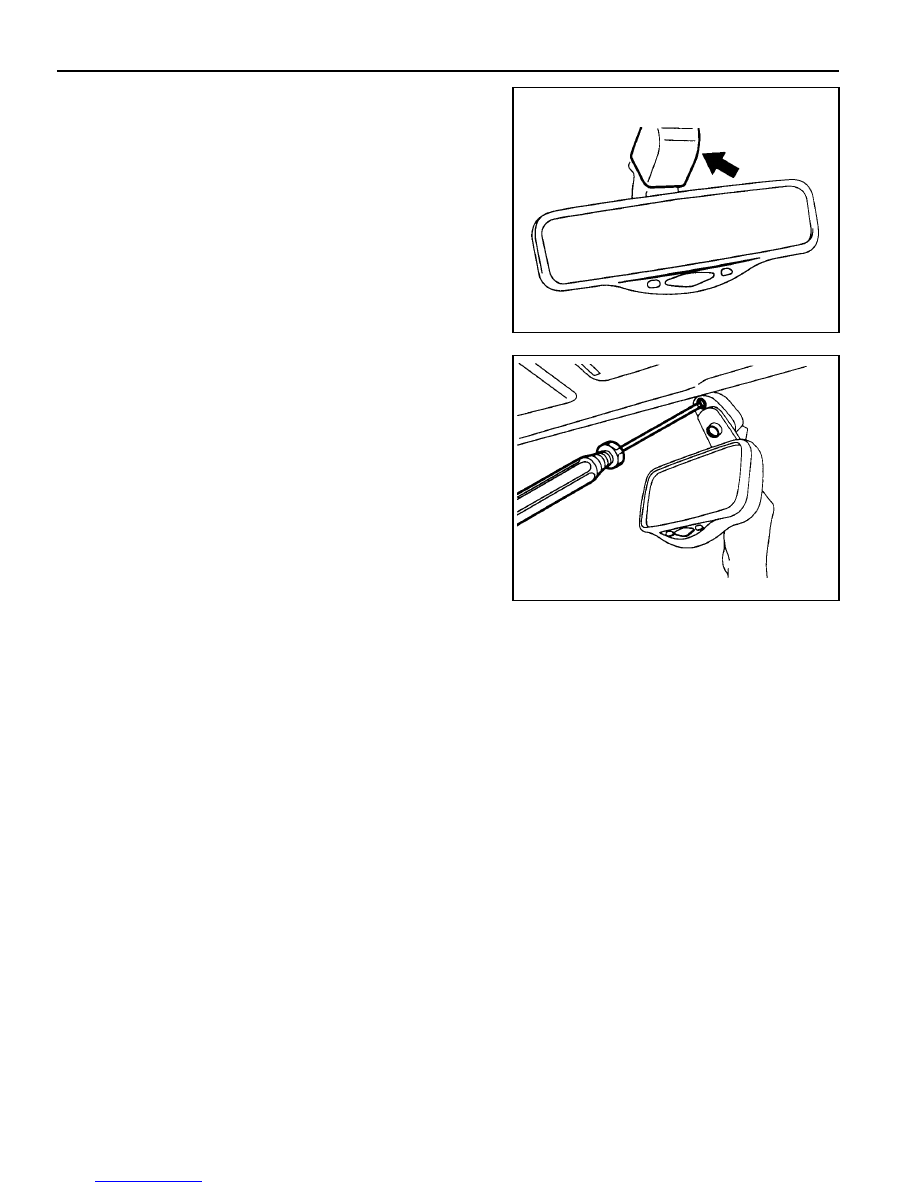

1. Removal the room mirror cover (arrow).

2. Disconnect 3-pin connector.

3. Removal the mirror assembly.

4. Installation should follow the removal procedure in the

reverse order.
