Daewoo Korando. Manual - part 272
Model
Type
Gear Ratio
Oil
Weight (Dry)
SECTION 5B
MANUAL TRANSMISSION
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 5B-1
General Specifications . . . . . . . . . . . . . . . . . . 5B-1
Fastener Tightening Specifications . . . . . . . . . 5B-2

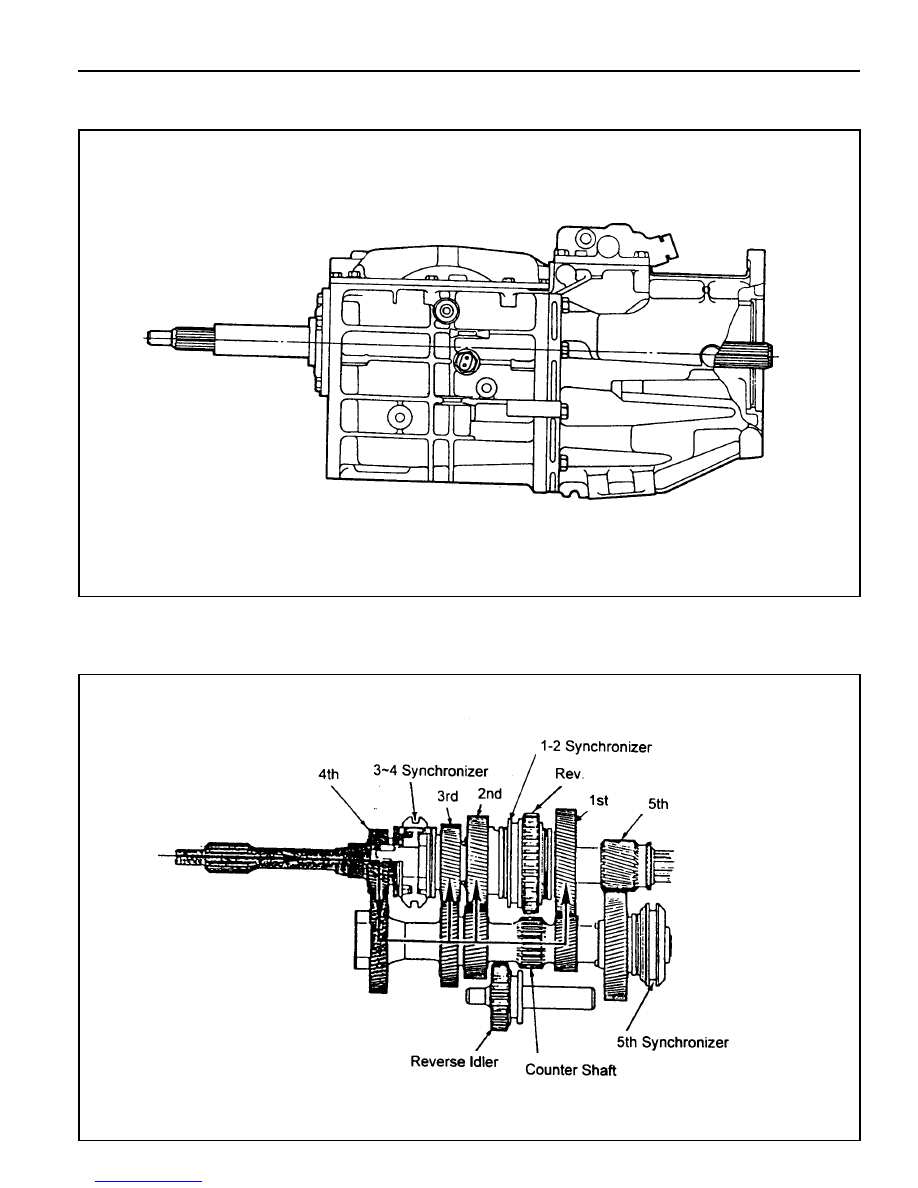

External View . . . . . . . . . . . . . . . . . . . . . . . . 5B-3
Gear Train . . . . . . . . . . . . . . . . . . . . . . . . . . 5B-3

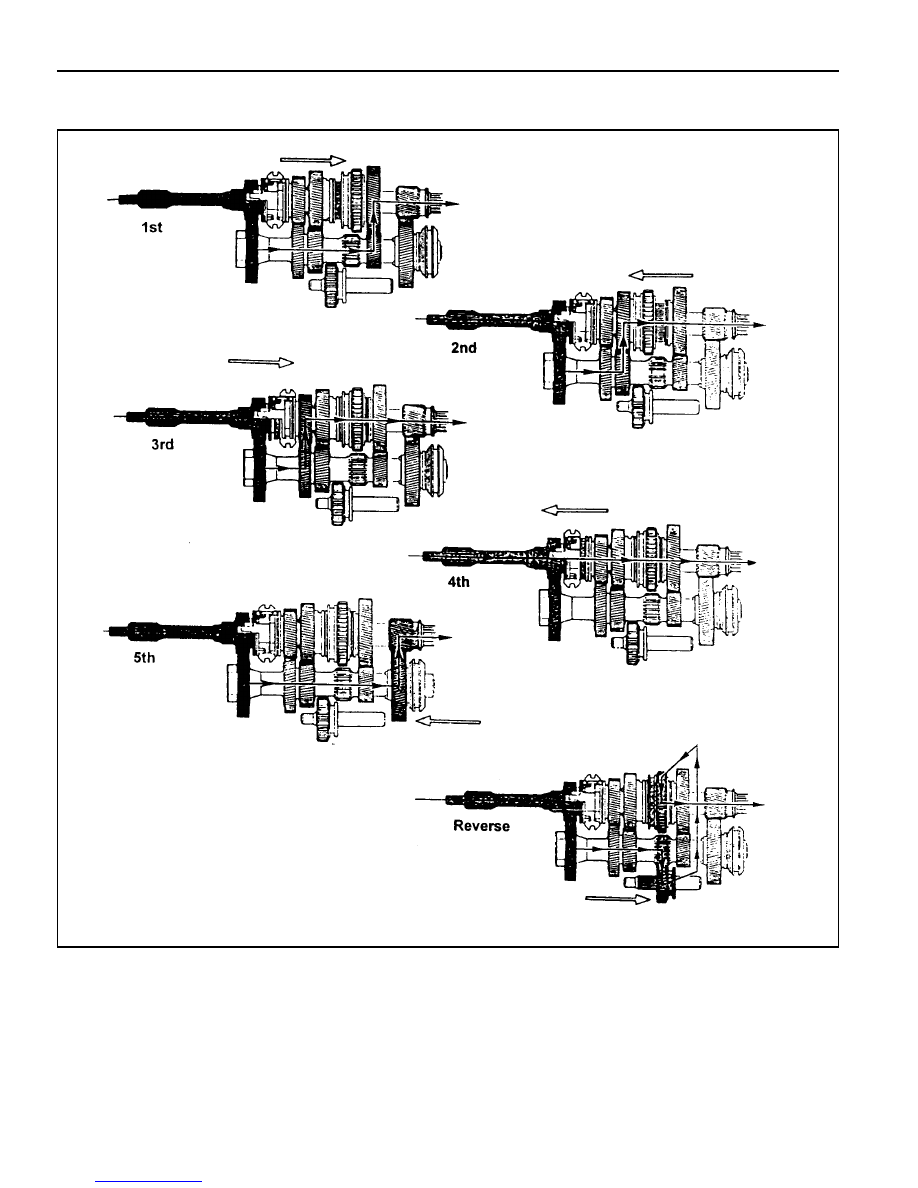

Power Flow . . . . . . . . . . . . . . . . . . . . . . . . . 5B-4
Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . 5B-5
Will not Shift (Control Lever Moves) . . . . . . . . 5B-5
Hard Shift or Control Lever
Will not Move Into Gear . . . . . . . . . . . . . . . . 5B-5
Gears Crash When Shifting . . . . . . . . . . . . . . 5B-5
Transmission Jumps Out . . . . . . . . . . . . . . . . . 5B-6
Transmission Locked in One Gear . . . . . . . . . 5B-6
Transmission Noise . . . . . . . . . . . . . . . . . . . . . 5B-6
Transmission Leakage . . . . . . . . . . . . . . . . . . 5B-7
Diagnosis Table . . . . . . . . . . . . . . . . . . . . . . . 5B-8
Component Locator . . . . . . . . . . . . . . . . . . . 5B-9
Maintenance and Repair . . . . . . . . . . . . . . 5B-11
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . 5B-11
Shift Control Cable . . . . . . . . . . . . . . . . . . . . 5B-11
Transmission . . . . . . . . . . . . . . . . . . . . . . . . 5B-14
Unit Repair . . . . . . . . . . . . . . . . . . . . . . . . . 5B-17
Major Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 5B-17
Main Shaft . . . . . . . . . . . . . . . . . . . . . . . . . . 5B-27
Input Shaft . . . . . . . . . . . . . . . . . . . . . . . . . . 5B-32
Counter Shaft . . . . . . . . . . . . . . . . . . . . . . . . 5B-34
Extension Housing . . . . . . . . . . . . . . . . . . . . 5B-35
Shift Cover . . . . . . . . . . . . . . . . . . . . . . . . . . 5B-36
Inspection of Components . . . . . . . . . . . . . . 5B-40
Pre-Installation Checks . . . . . . . . . . . . . . . . . 5B-45
SPECIFICATIONS
GENERAL SPECIFICATIONS
Application
Description
T5WC
Floor Change
3.97 : 1
2.34 : 1
1.46 : 1
1.00 : 1
0.85 : 1
3.71 : 1
ATF DEXRON II / III
3.4 L
Check : Every 15,000km, Replace : Every 50,000km
33kg
1st
2nd
3rd
4th
5th
Reverse
Specification
Capacity(litre)
Change Interval
Notice
Add LUBRIZOL (280cc) in oil after overhauling.
