15. Install the C1 bias valve spring, valve, plug and ‘O’ ring.

Refer to figure 8.40.

16. Install the retaining pin. Refer to figure 8.39.

17. Install the converter release check ball and spring and the

feed ball. Refer to figures 8.41,  8.42 and 8.43.

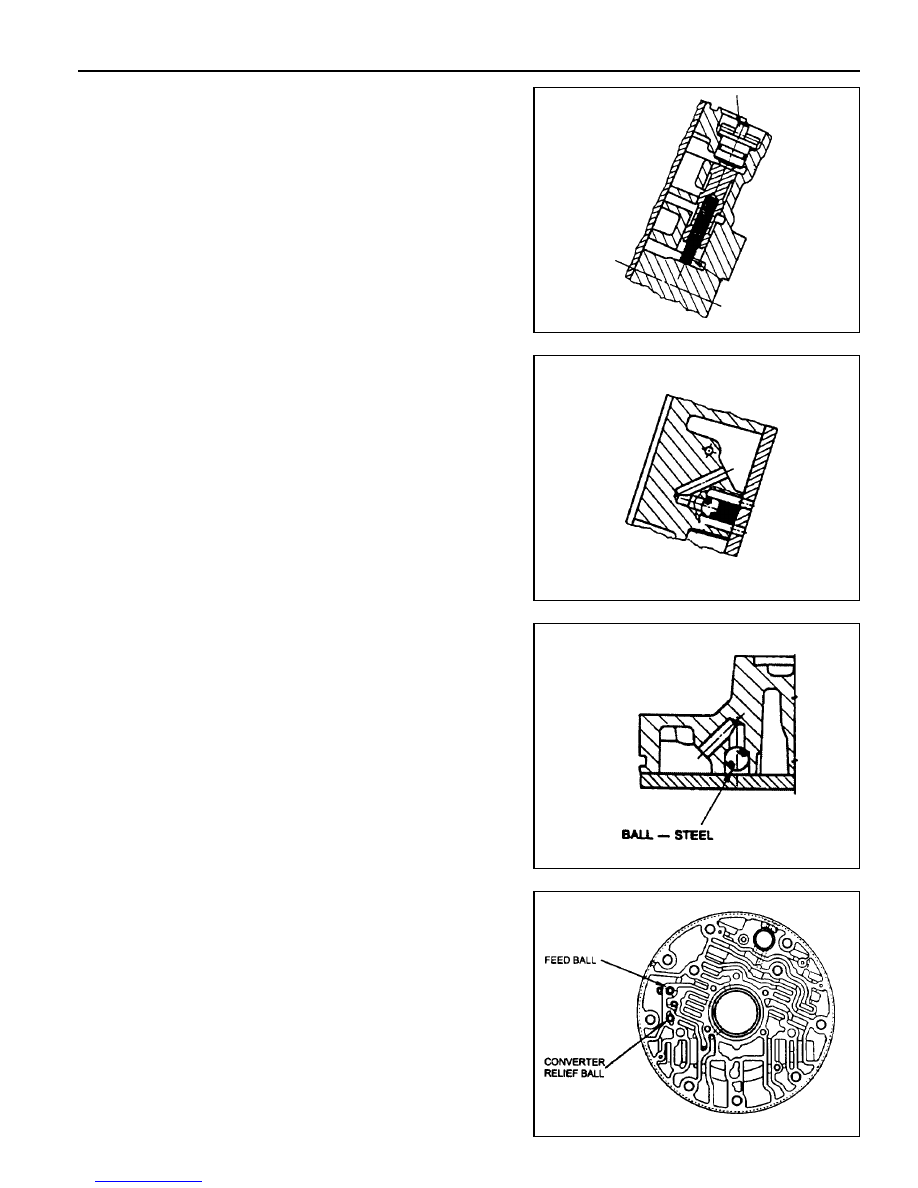

Figure 8.40 - C1 Bias Valve

Figure 8.41 - Converter Relief Ball and Spring

Figure 8.42 - Peed Ball

Figure 8.42 - Feed Ball

5A-116  AUTOMATIC TRANSMISSION

18.  Install the gasket on the pump cover.

19.  Install the cover plate, solenoid 7 with the retainer and the

solenoid wiring retainer to the pump cover, ensuring that
the periphery of the cover plate is flush with the periphery
of the pump cover. Refer to figure 8.34.

Tighten the screws to specification in the order (1-5), shown
in figure 8.44.

24. Install the pump and cover assembly over the input shaft

being careful not to damage the sealing rings. Tighten the
pump cover to case bolts to specification. Refer to figure
8.45.

20. Tighten the solenoid 7 screw. Refer to figure 8.39.

Notice

Check that neither the wiring nor the connector protrudes
excessively, in order that at assembly neither the wiring
and the connector contacts or rubs on the input shaft or
the C1/C2 clutch cylinder.

21. Assemble the pump to the pump cover.

Tighten all bolts and the crescent screw finger tight,
ensuring that the pump is flush against the pump cover.
Tighten the bolts and the screw to specification in the order
(A - F), shown in figure 8.44.

22. Install the pump to transmission case gasket onto the case.

23. Fit the ‘O’ ring to the pump cover outer diameter.

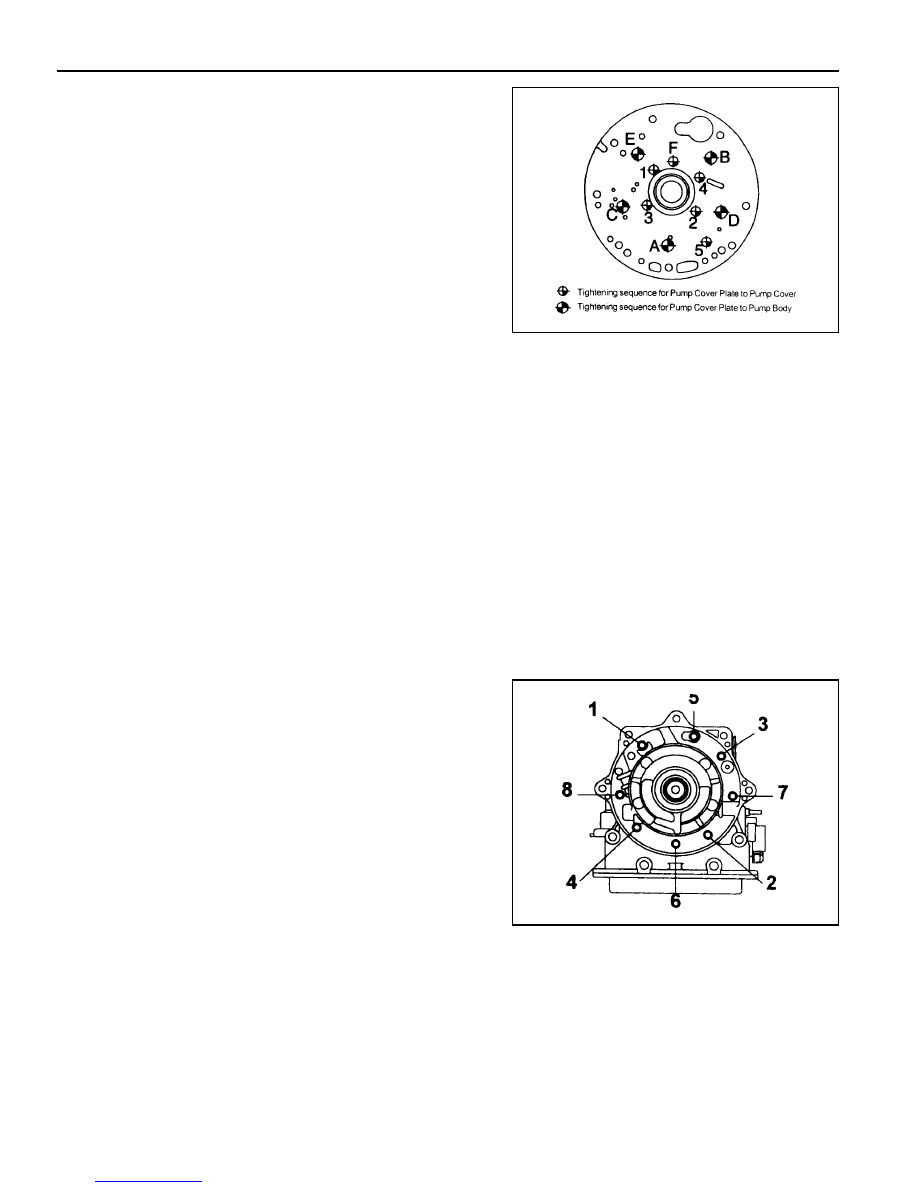

Figure 8.44 - Pump Bolt Tightening Sequence

Figure 8.45 - Tightening Sequence Pump to

      Case

AUTOMATIC TRANSMISSION  5A-117

25. Check that the transmission end float is set to the tolerance

stated in section 9.2. Refer to figure 8.46. If the unshimmed
end float clearance is greater than specification, shims
are to be placed between the No. 4 bearing and the input
shaft bearing surface. Refer to figure 8.19. If the end float
clearance is less than 0.5 mm then the transmission has
been assembled incorrectly or the parts are out of
specification.

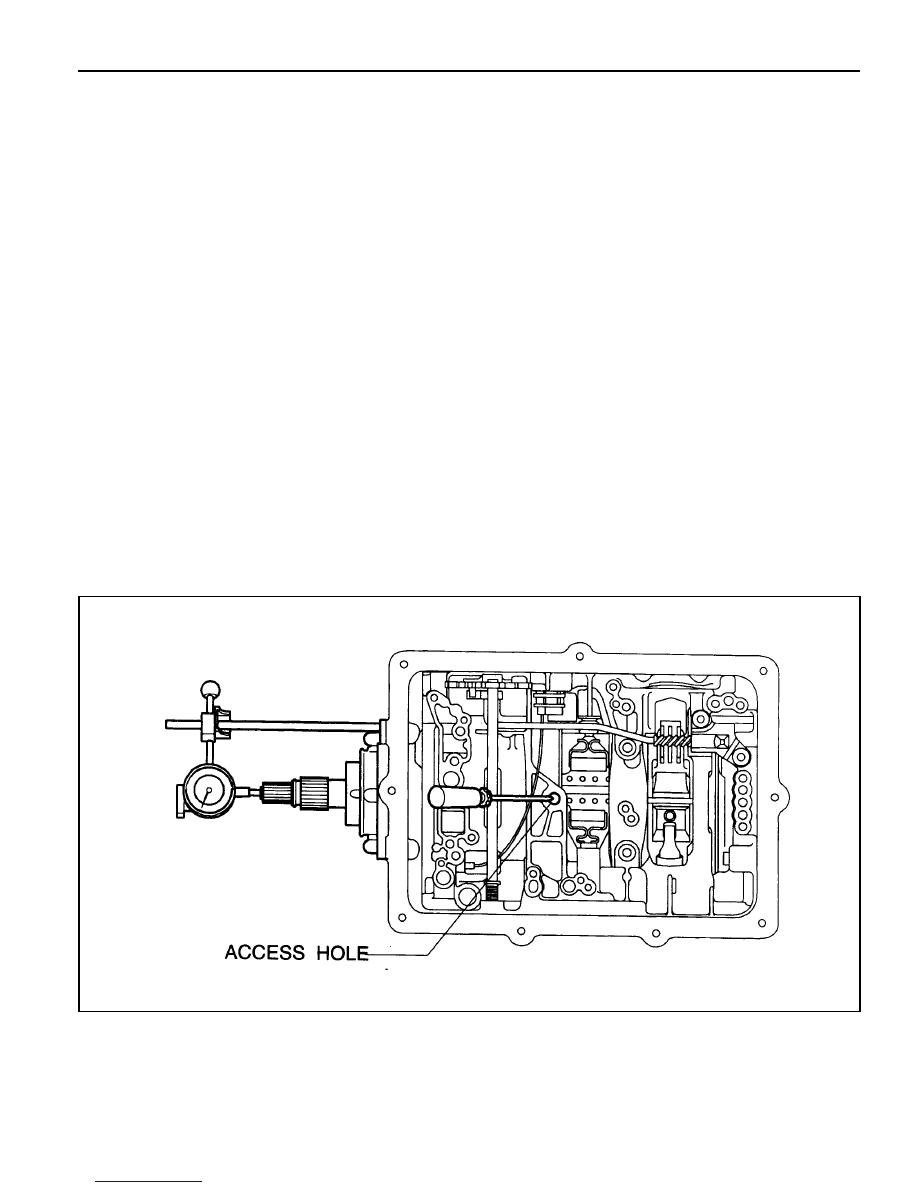

26. Perform the following steps to check the end float :

a. Attach a dial indicator to the front of the transmission

case with the stylus resting on the end of the input
shaft.

b.  Apply a force of approximately 250 newtons or 25 kg to

the input shaft.

c.  Zero the dial indicator.

d.  Place a small lever behind the forward clutch cylinder

and lever the cylinder forward.

e.  The measurement recorded on the dial indicator is the

transmission end float or clearance between the No.4
bearing and the converter support tube.

27. On completion of this procedure, adjust the front and rear

bands to specifications detailed in section 8.4.

Figure 8.46 - Gear Train End Float Check

5A-118  AUTOMATIC TRANSMISSION

Valve Bodies

Notice

1. Do not wash the nose of solenoids in solvent.

2. Be aware of ball positions in the upper valve body.

3. Be aware of 1-2 and 3-4 shift valve positions, they can be

swapped.

4. Check the 4-3 sequence valve and spring orientation.

5. Check that the 12 mm ball is in the lower body.

6. Do not mix up the low first blow-off and the torque converter

blow-off ball springs.

7. Check the line pressure relief valve for swarf, and be aware

of replacing the shims.

8. The orifices in the valve body are for stability and safeguard;

do not drill them any larger.

9. When servicing the transmission, ensure that the solenoid

5 damper spring is not broken.

10.  Locate the detent spring central to the detent lever.

To assemble the valve bodies, proceed as follows.

1. Wash the upper and lower valve bodies (refer to figures

8.47 and 8.48) thoroughly with cleansing solvent and blow
dry.

2. Check the valve body cavities, ports and holes for damage

or obstructions.

3. Install the detent lever locating pin.

4. Thoroughly wash all loose components.

5. Check that all valves slide freely in their location.

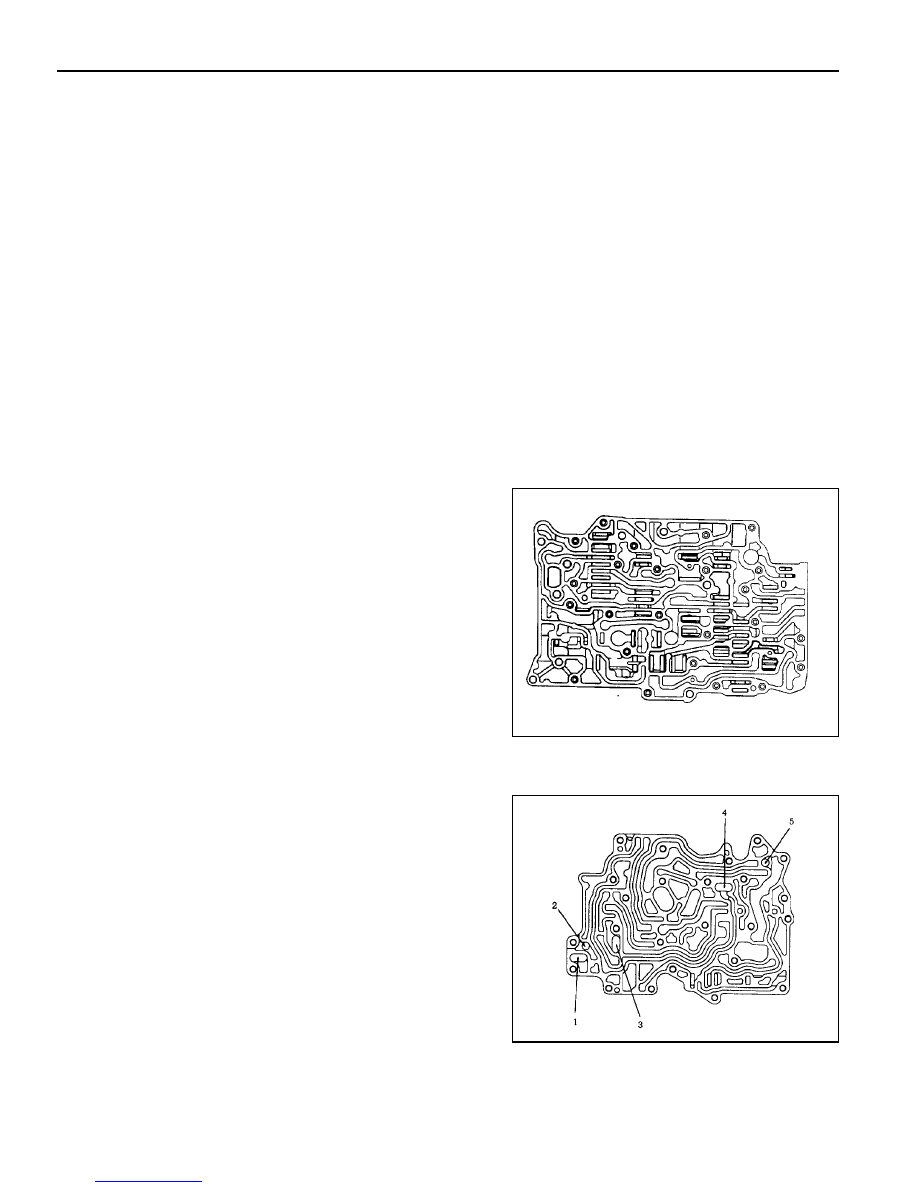

Figure 8.47 - Lower Valve Body

Figure8.48 - Upper Valve Body Showing Check

Ball Locations
