2C-2   FRONT SUSPENSION

Application

Torque Arm Bolt

N

l

m

40 - 60

60 - 80

FASTENER TIGHTENING SPECIFICATIONS

Stabilizer Bar

Application

Stabilizer Bar Retaining Nut

Stabilizer Bar Link Nut

Lower Arm Nut

N

l

m

30 - 45

60 - 80

16 - 22

Torsion Bar

Lower and Upper Arm

Application

Upper Arm Nut

Upper Arm End Castle Nut

Lower Arm Nut

Lower Arm End Castle Nut

N

l

m

120 - 140

80 - 150

150 - 180

120 - 180

Steering Knuckle and Drive Shaft

Application

Brake Caliper Hose Bolt

Brake Caliper Mounting Bolt

Tie Rod Retaining Nut

Upper Arm Retaining Nut

Lower Arm Retaining Nut

N

l

m

25 - 35

85 - 105

35 - 45

80 - 150

120 - 180

M10

M12

FRONT SUSPENSION  2C-3

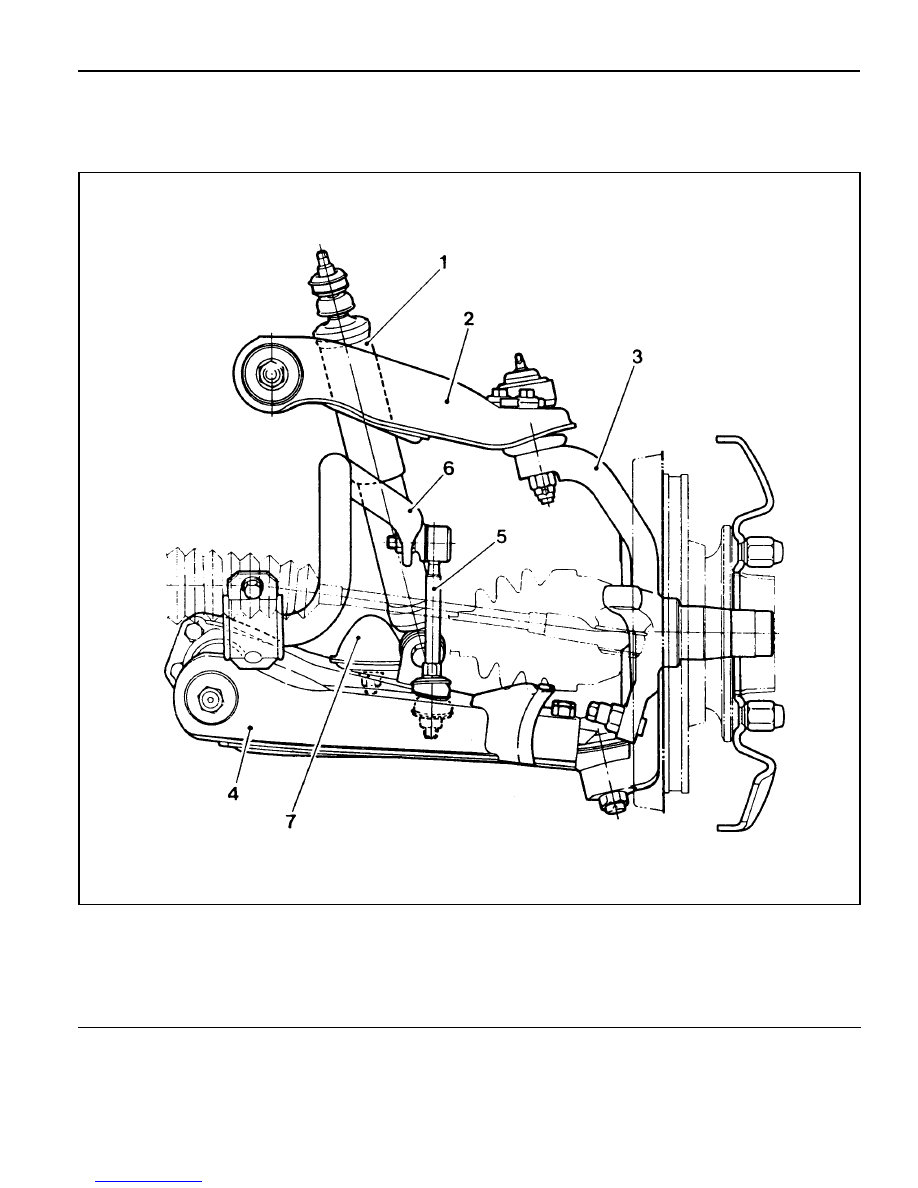

COMPONENT LOCATOR

FRONT SUSPENSION

1 Shock Absorber
2 Upper Arm
3 Steering Knuckle
4 Lower Arm

5 Stabilizer Bar Link
6 Stabilizer Bar
7 Suspension Bumper

2C-4   FRONT SUSPENSION

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

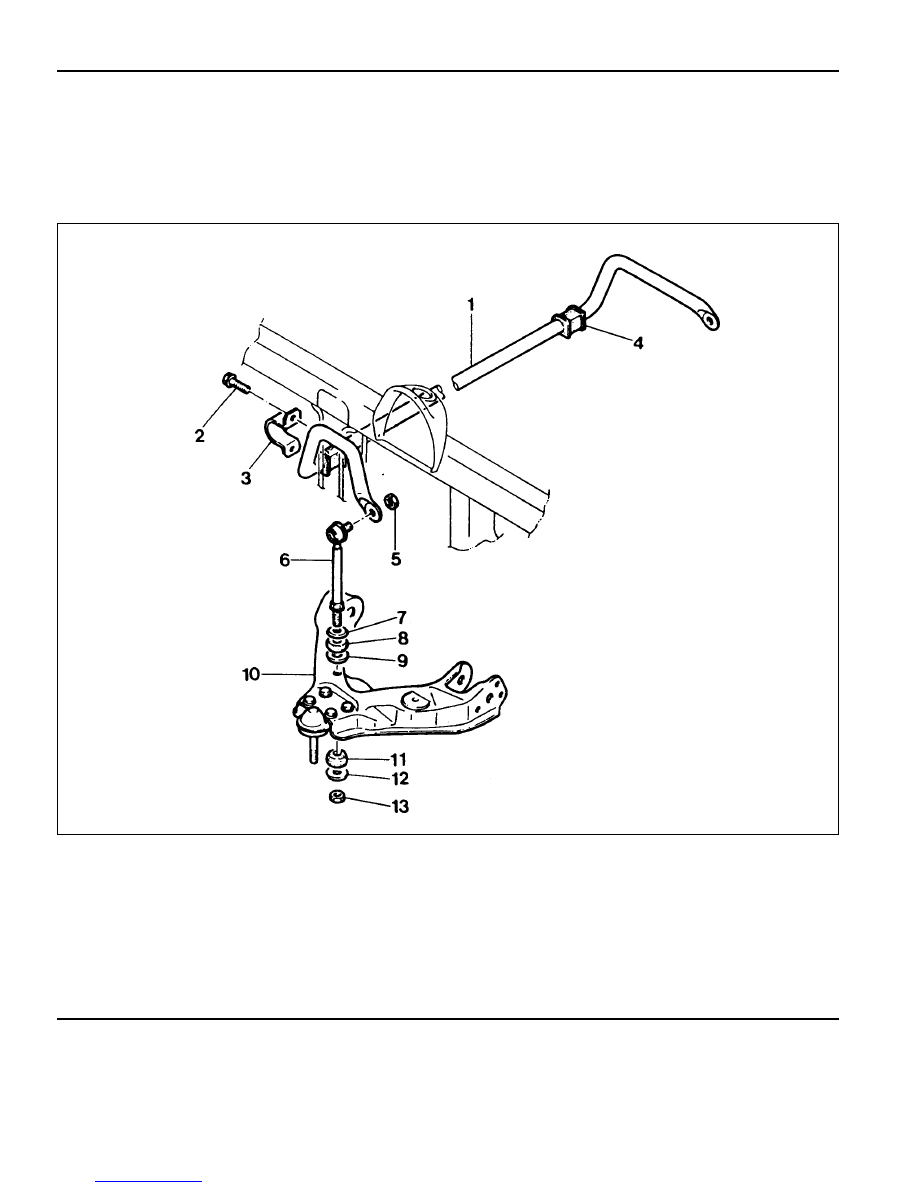

FRONT STABILIZER BAR

1 Front Stabilizer Bar
2 Bolt ...................................................... 30-45 Nm
3 Fixing Cap
4 Bushing
5 Nut ....................................................... 60-80 Nm
6 Stabilizer Bar Link Assembly

7 Outer Washer
8 Bushing
9 Center Washer

10 Lower Arm

11 Bushing

12 Outer Washer
13 Nut ....................................................... 16-22 Nm

 FRONT SUSPENSION  2C-5

Removal & Installation Procedure

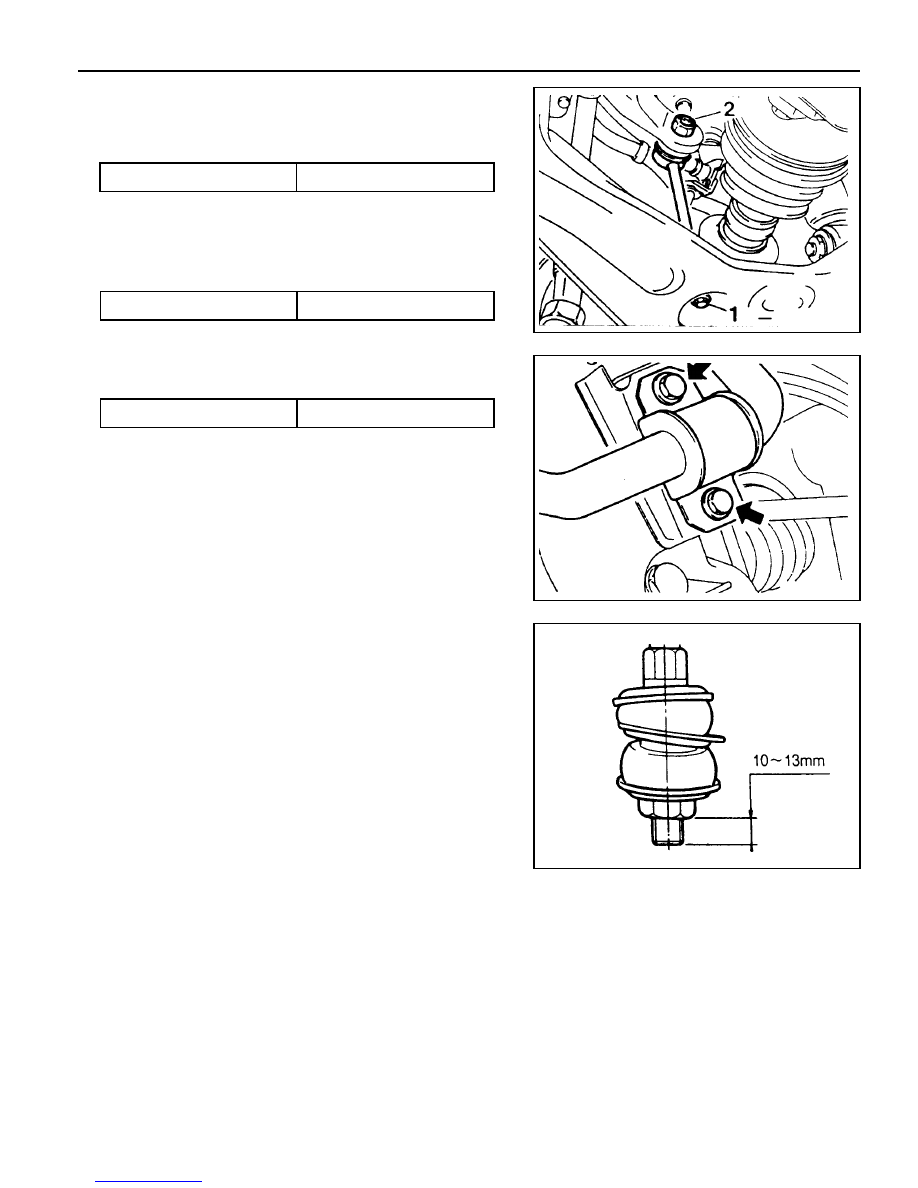

1. Remove the connecting nuts (1) from stabilizer bar link.

Installation Notice

2. Remove the connecting nuts (2) of the stabilizer bar and

link and then remove the link.

Installation Notice

3. Remove the stabilizer bar fixing cap bolts (arrow) and

Tightening  Torque

60 - 80 Nm

remove the stabilizer bar.

4. Installation should follow the removal precedure in the

reverse order.

Notice

The distance between the end of the nut and the end of the
link should be in 10-13 mm at the connection of the stabilizer
bar link and lower arm.

Tightening  Torque

30 - 45 Nm

Tightening  Torque

16 - 22 Nm
