REAR SUSPENSION

DAEWOO V–121 BL4

KNUCKLE

Disassembly Procedure

1.  Remove the knuckle from the vehicle. Refer to

”Knuckle Assembly” in this section.

2.  Remove the brake caliper and the brake rotor or

the brake drum. Refer to Section 4E, Rear Brakes.

3.  Remove the dust cap, the caulking nut, and the hub

and bearing assembly. Refer to ”Hub and Bearing
Assembly” in this section.

4.  On vehicles equipped with rear drum brakes, re-

move the rear drum brake assembly. On vehicles
equipped with rear disc brakes, remove the rear
disc brake assembly. Refer to Section 4E, Rear
Brakes.

5.  Remove the brake splash shield. Refer to Section

4E, Rear Brakes.

Assembly Procedure

1.  Install the brake splash shield. Refer to Section 4E,

Rear Brakes.

2.  On vehicles equipped with rear drum brakes, install

the rear drum brake assembly. On vehicles
equipped with rear disc brakes, install the rear disc
brake assembly. Refer to Section 4E, Rear Brakes.

3.  Install the wheel hub, the lock washer, the castel-

lated nut, the cotter pin, and the dust cap. Refer to
”Hub and Bearing Assembly” in this section.

4.  Install the brake caliper and brake rotor or the

brake drum. Refer toSection 4E, Rear Brakes.

5.  Install the knuckle into the vehicle. Refer to

”Knuckle Assembly” in this section.

HUB AND BEARING

Tools Required

KM–266–A Installer

Disassembly Procedure

1.  Raise and suitably support the vehicle.
2.  Remove the hub and bearing assembly from the

vehicle. Refer to”Hub and Bearing Assembly’” in
this section.

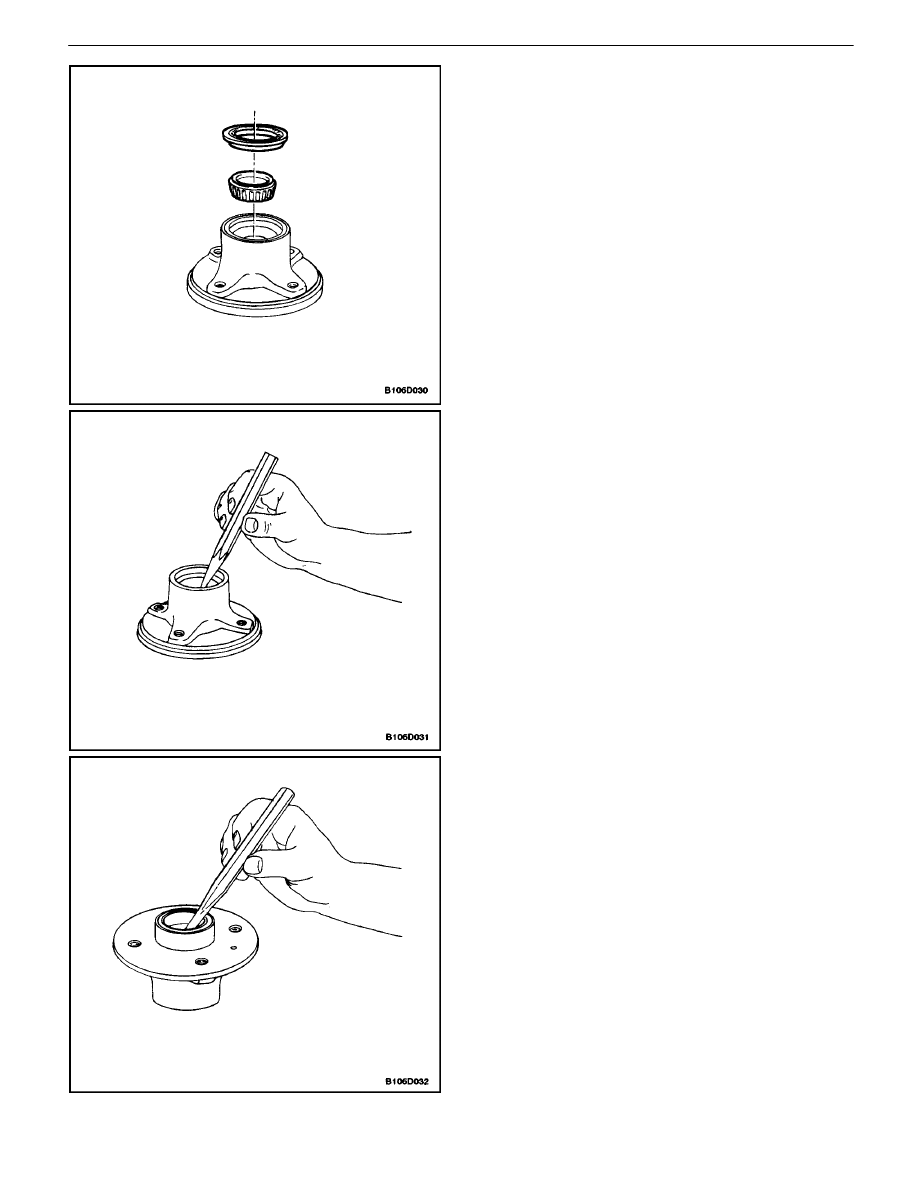

3.  Pry off the oil seal from the hub and bearing as-

sembly with a screwdriver.

REAR SUSPENSION  2D – 31

DAEWOO V–121 BL4

4.  Remove the oil seal and the inner tapered roller

bearing.

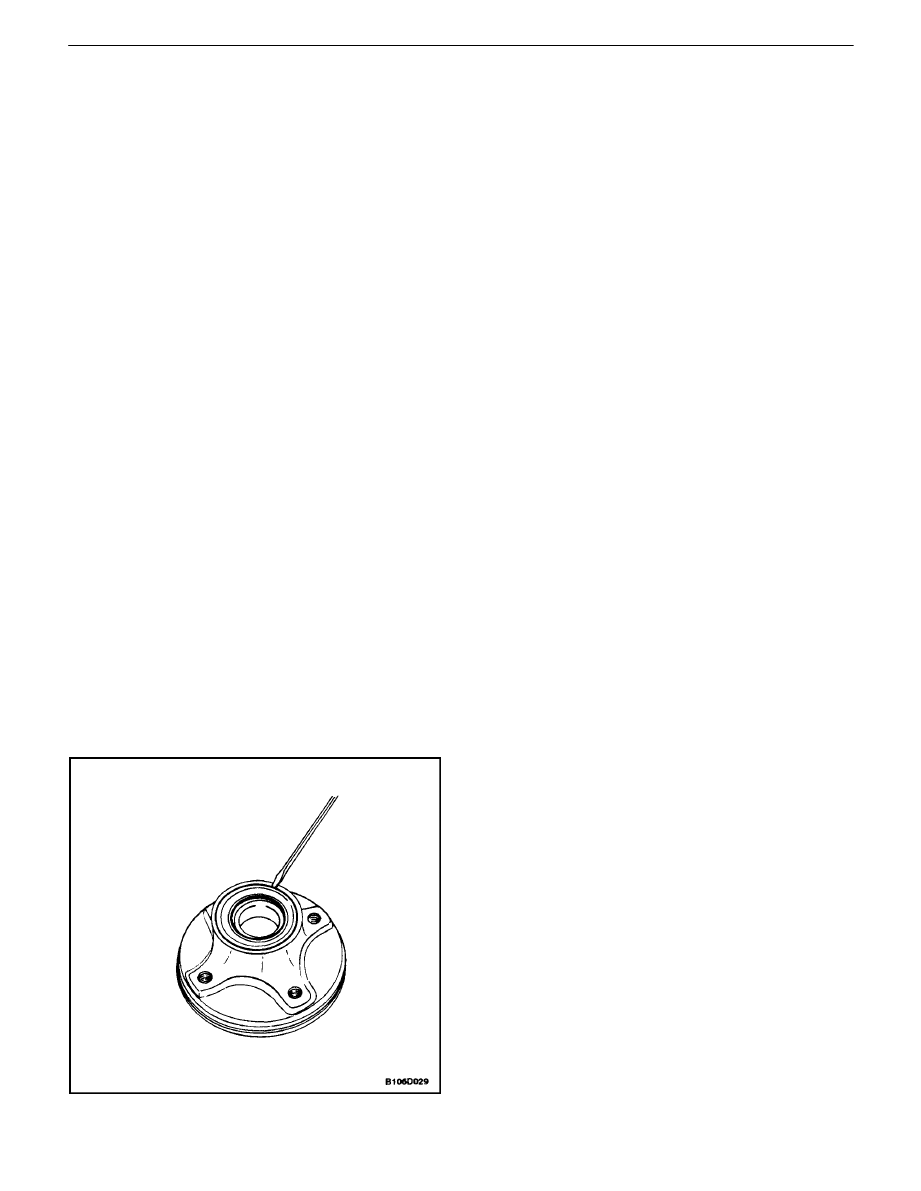

5.  Remove the inner race of the outer tapered roller

bearing.

6.  Remove the outer race of the inner tapered roller

bearing.

2D – 32

I

REAR SUSPENSION

DAEWOO V–121 BL4

Assembly Procedure

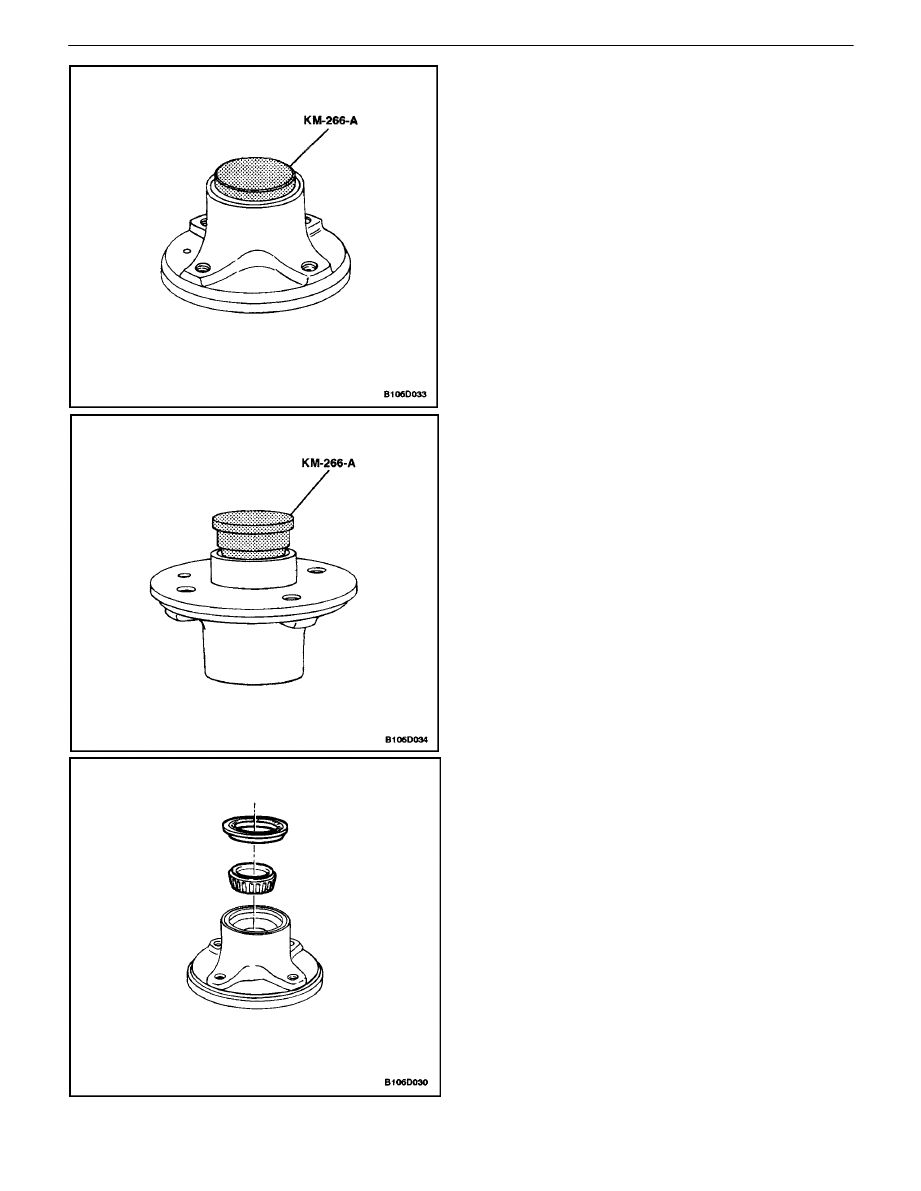

1.  Install the outer race of the inner tapered roller

bearing with the installer KM–266–A.

2.  Press the inner race of the outer tapered roller

bearing with the installer KM–266–A.

3.  Install the inner tapered roller bearing and the oil

seal.

4.  Install the hub and bearing assembly onto the ve-

hicle. Refer to”Hub and Bearing Assembly” in this
section.

5.  Lower the vehicle.

REAR SUSPENSION  2D – 33

DAEWOO V–121 BL4

GENERAL DESCRIPTION

AND SYSTEM OPERATION

REAR SUSPENSION

The rear suspension is fully independent and consists of
a crossmember with four parallel links, two trailing links,
two strut assemblies with coil springs and insulators, and
two knuckles containing the hub and bearing assemblies.
The strut assemblies support the weight of the vehicle us-
ing coil springs positioned around the strut dampeners.

The coil springs are seated on insulators attached to the
upper mount and the lower spring seat of the strut assem-
bly. The parallel links and the trailing link bracket have rub-
ber isolator bushings at each end and are attached to the
crossmember and the knuckle. The rear parallel link is at-
tached to the crossmember through adjustment cams that
are used to adjust rear toe. The trailing links are attached
to the body, through the trailing link bracket, and the bot-
tom of the knuckle. A forged knuckle bolts to each strut as-
sembly. Lateral movement of the knuckle is controlled by
the parallel links. Fore and aft movement of the knuckle is
controlled by the trailing link.
