2D – 14

I

REAR SUSPENSION

DAEWOO V–121 BL4

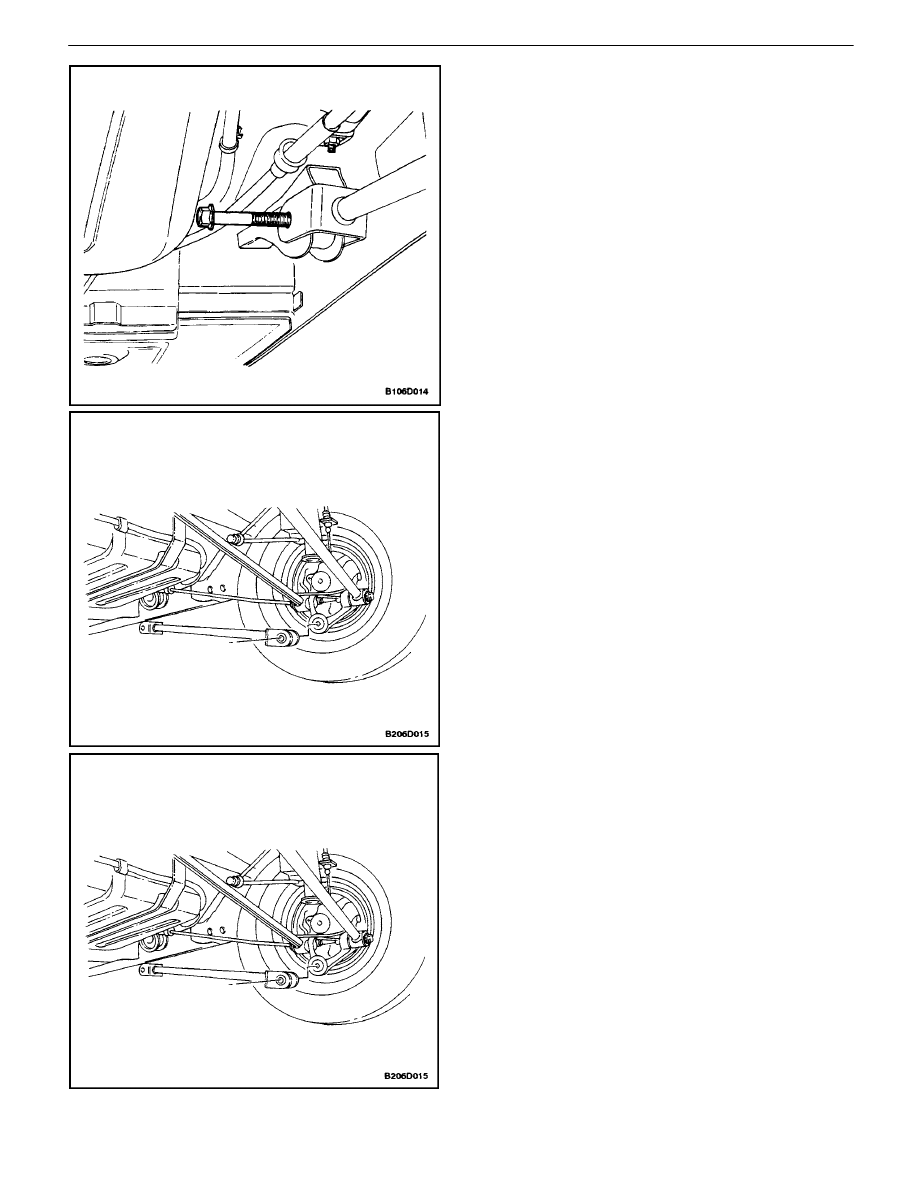

3.  Remove the rear trailing link–to–trailing link bracket

nut and the rear trailing link–to–knuckle bolt.

4.  Remove the rear trailing link.

Installation Procedure

1.  Install the rear trailing link.

REAR SUSPENSION  2D – 15

DAEWOO V–121 BL4

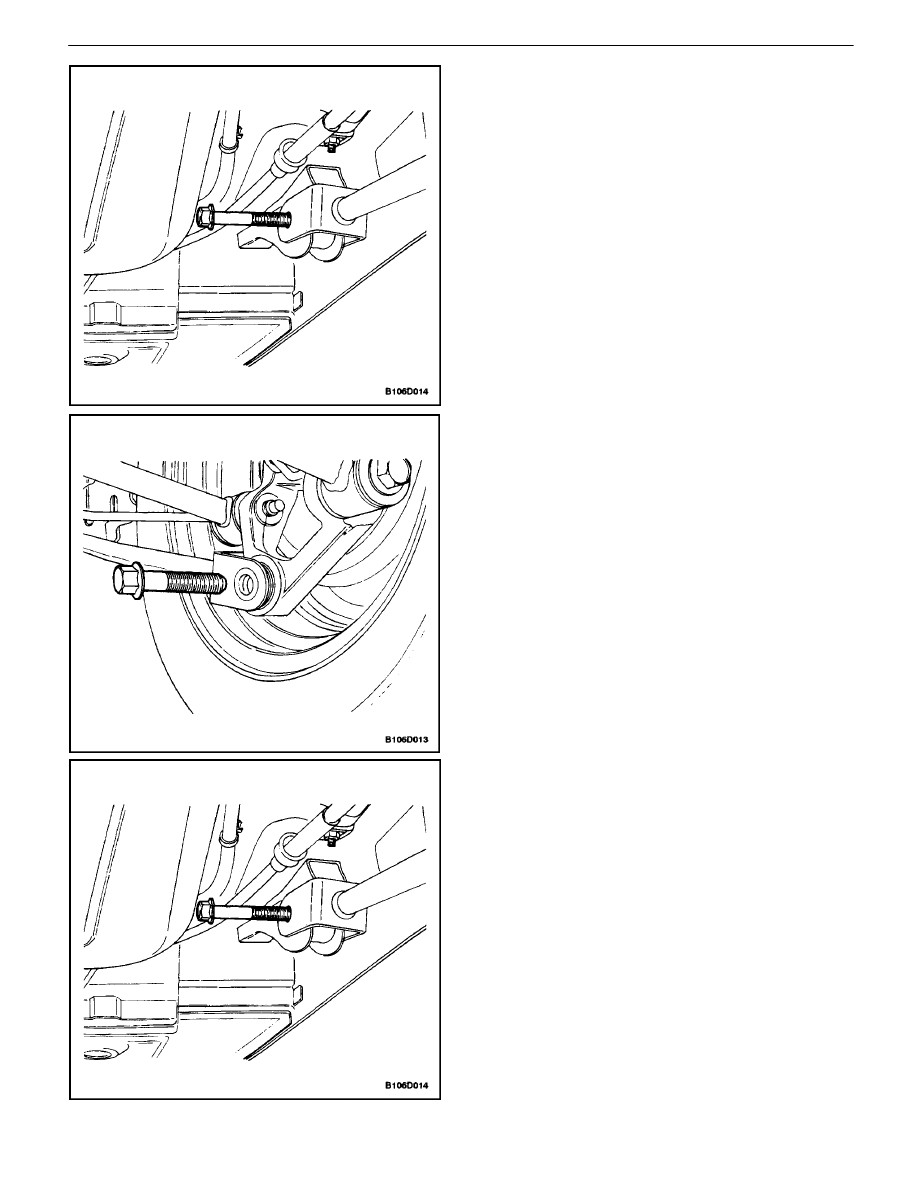

2.  Install the rear trailing link bracket nut and the bolt.

Tighten

Tighten the rear trailing link–to–trailing link bracket
nut to 100 N

S

m (74 lb–ft).

3.  Install the trailing link–to–knuckle bolt.

Tighten

Tighten the rear trailing link–to–knuckle bolt to 85
N

S

m (63 lb–ft).

4.  Lower the vehicle.

TRAILING LINK BRACKET

Removal Procedure

1.  Raise and suitably support the vehicle.
2.  Remove the trailing link–to–trailing link bracket nut

and the bolt.

2D – 16

I

REAR SUSPENSION

DAEWOO V–121 BL4

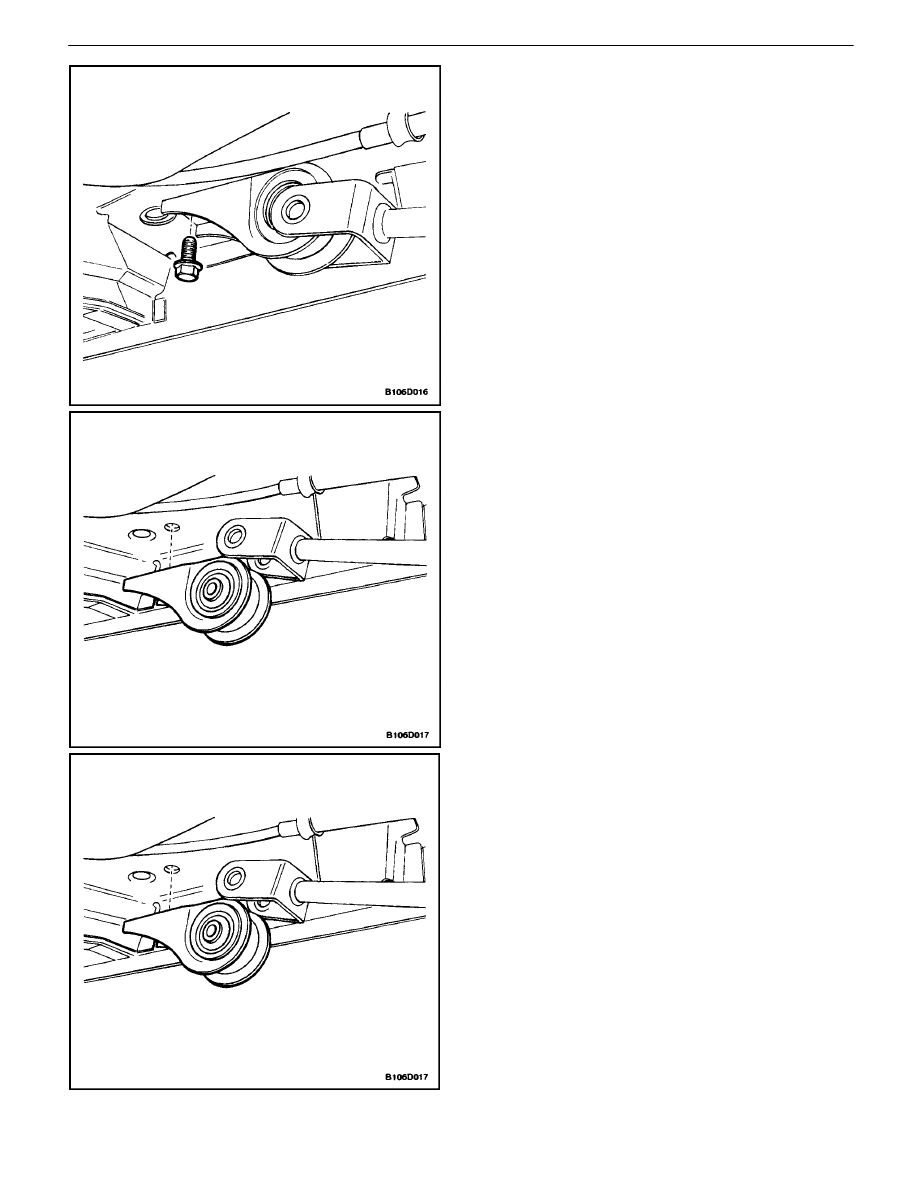

3.  Remove the trailing link bracket–to–body bolts.

4.  Remove the trailing link bracket.

Installation Procedure

1.  Install the trailing link bracket.

REAR SUSPENSION  2D – 17

DAEWOO V–121 BL4

2.  Install the trailing link bracket–to–body bolts.

Tighten

Tighten the trailing link bracket–to–body bolts to 93
N

S

m (69 lb–ft).

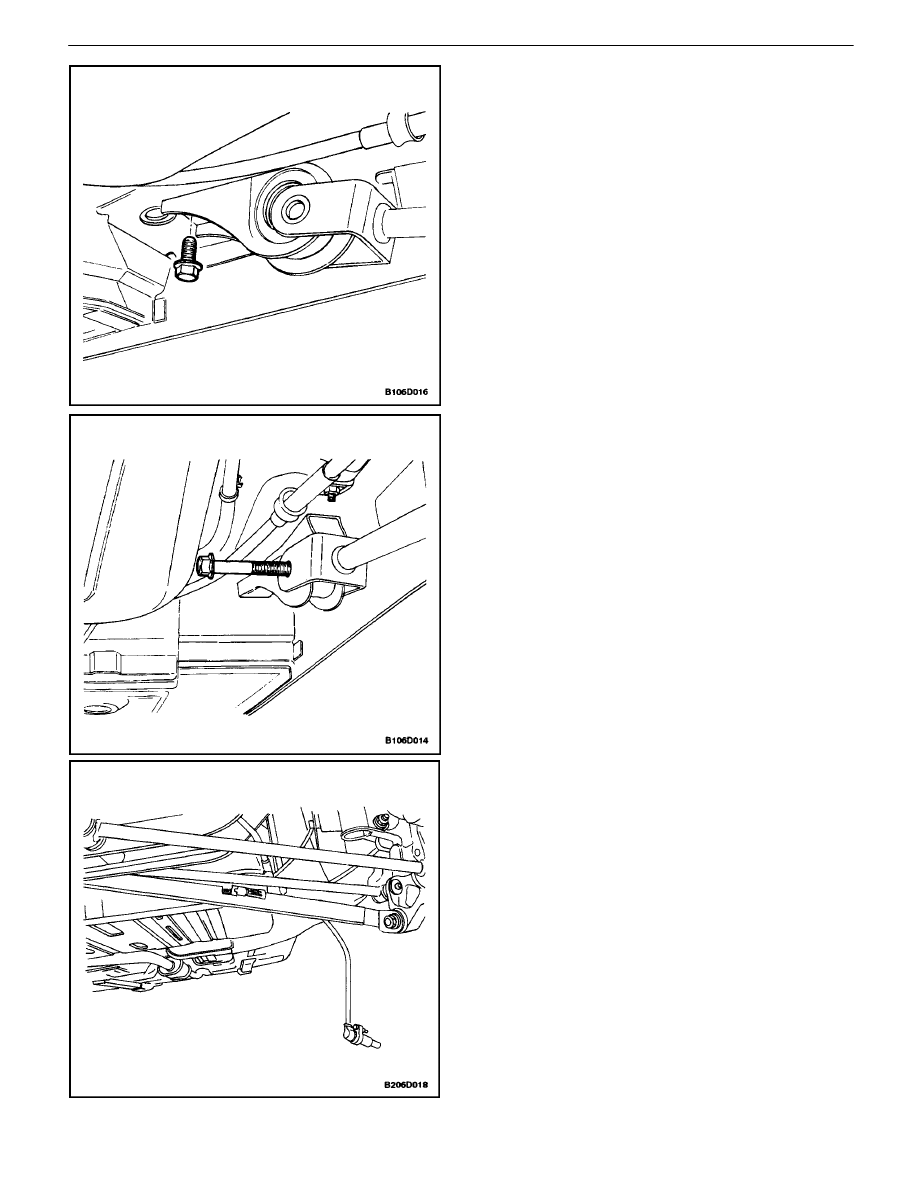

3.  Connect the trailing link to the trailing link bracket

by installing the trailing link–to–trailing link bracket
nut and bolt.

Tighten

Tighten the trailing link–to–trailing link bracket nut to
100 N

S

m (74 lb–ft).

4.  Lower the vehicle.

FRONT PARALLEL LINK

Removal Procedure

1.  Raise and suitably support the vehicle.
2.  Remove the wheel. Refer toSection 2E, Tires and

Wheels.

3.  For vehicles equipped with the antilock braking sys-

tem, remove the ABS sensor from the knuckle and
the ABS housing assembly from the front parallel
link.
