EXTERIOR TRIM

TABLE OF CONTENTS

SPECIFICATIONS

9M–1

. . . . . . . . . . . . . . . . . . . . . . . . . .

FASTENER TIGHTENING SPECIFICATIONS

9M–1

.

MAINTENANCE AND REPAIR

9M–2

. . . . . . . . . . . . . . .

ON–VEHICLE SERVICE

9M–2

. . . . . . . . . . . . . . . . . . . . .

B–PILLAR MOLDING

9M–2

. . . . . . . . . . . . . . . . . . . . . .

QUARTER WINDOW MOLDING (WAGON)

9M–2

. . .

ROOF MOLDING

9M–3

. . . . . . . . . . . . . . . . . . . . . . . . . .

MUD GUARDS

9M–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

GENERAL DESCRIPTION AND SYSTEM

OPERATION

9M–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EMBLEMS AND LETTERING

9M–5

. . . . . . . . . . . . . . .

MUD GUARDS

9M–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

N

S

m

Lb–Ft

Lb–In

B–Pillar Molding Screws

4

–

35

Mud Guard Bolts

1.5

–

13

Quarter Window Molding Screws

4

–

35

9M – 2

I

EXTERIOR TRIM

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

B–PILLAR MOLDING

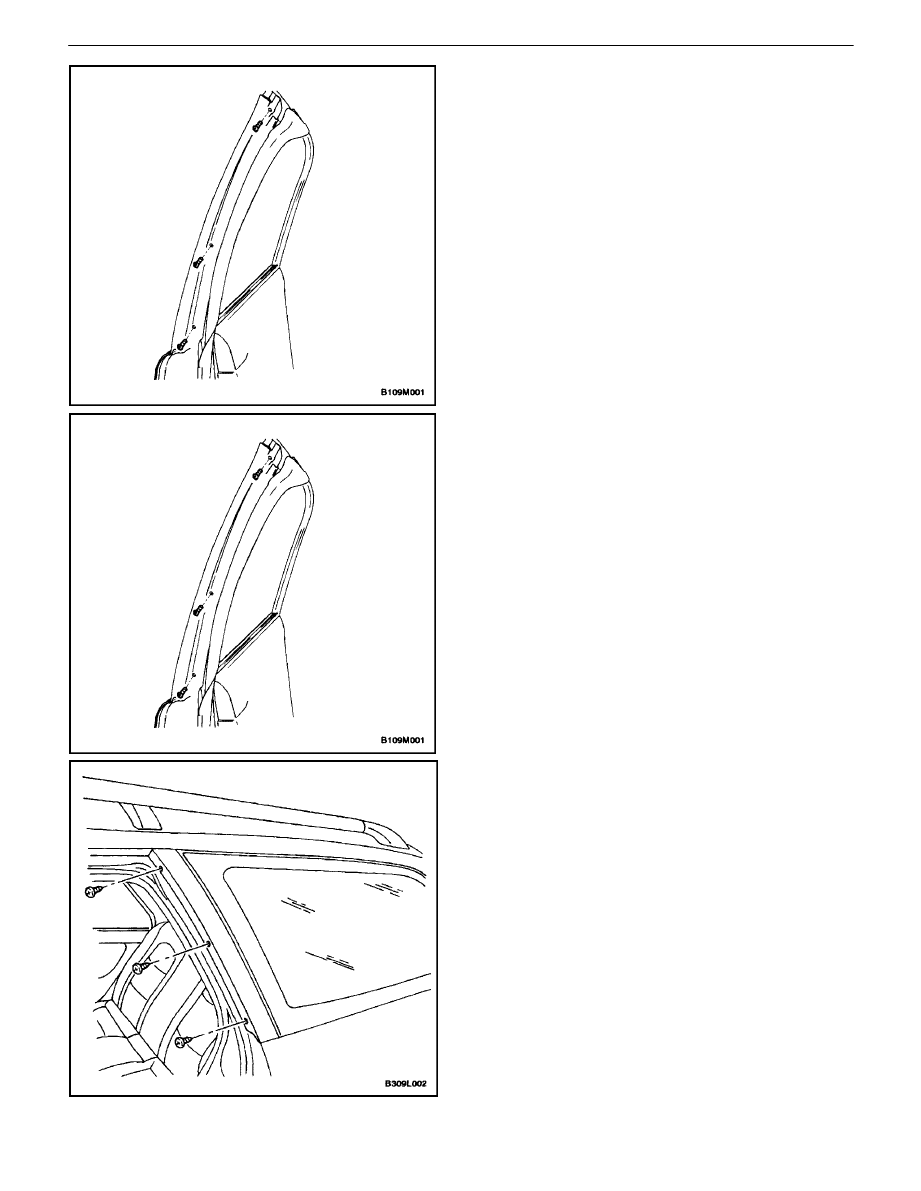

Removal Procedure

1.  Reposition the weatherstrip in order to access the

screws.

2.  Remove the screws and the B–pillar molding.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the screws and the B–pillar molding.

Tighten

Tighten the B–pillar molding screws to 4 N

S

m (35

lbin).

2.  Install the weatherstrip to its original position.

QUARTER WINDOW MOLDING
(WAGON)

Removal Procedure

1.  Open the rear passenger door.
2.  Remove the screws and the quarter window mold-

ing.

EXTERIOR TRIM  9M – 3

DAEWOO V–121 BL4

Installation Procedure

1.  Install the quarter window molding with the screws.

Tighten

Tighten the quarter window molding screws to 4 N

S

m

(35 lb–in).

2.  Close the rear passenger door.

ROOF MOLDING

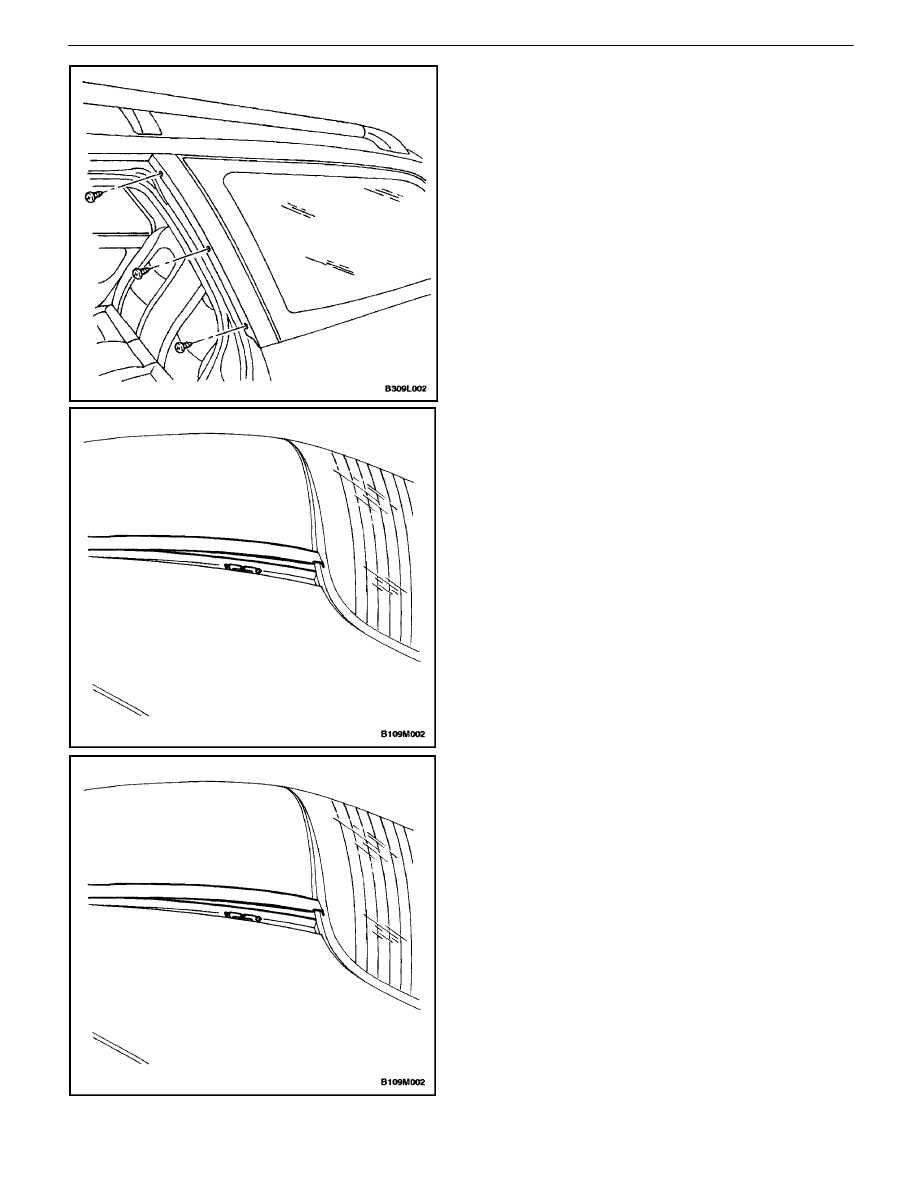

Removal Procedure

1.  Remove the roof molding from the metal clips.

Installation Procedure

1.  Press the roof molding onto the clips.

9M – 4

I

EXTERIOR TRIM

DAEWOO V–121 BL4

MUD GUARDS

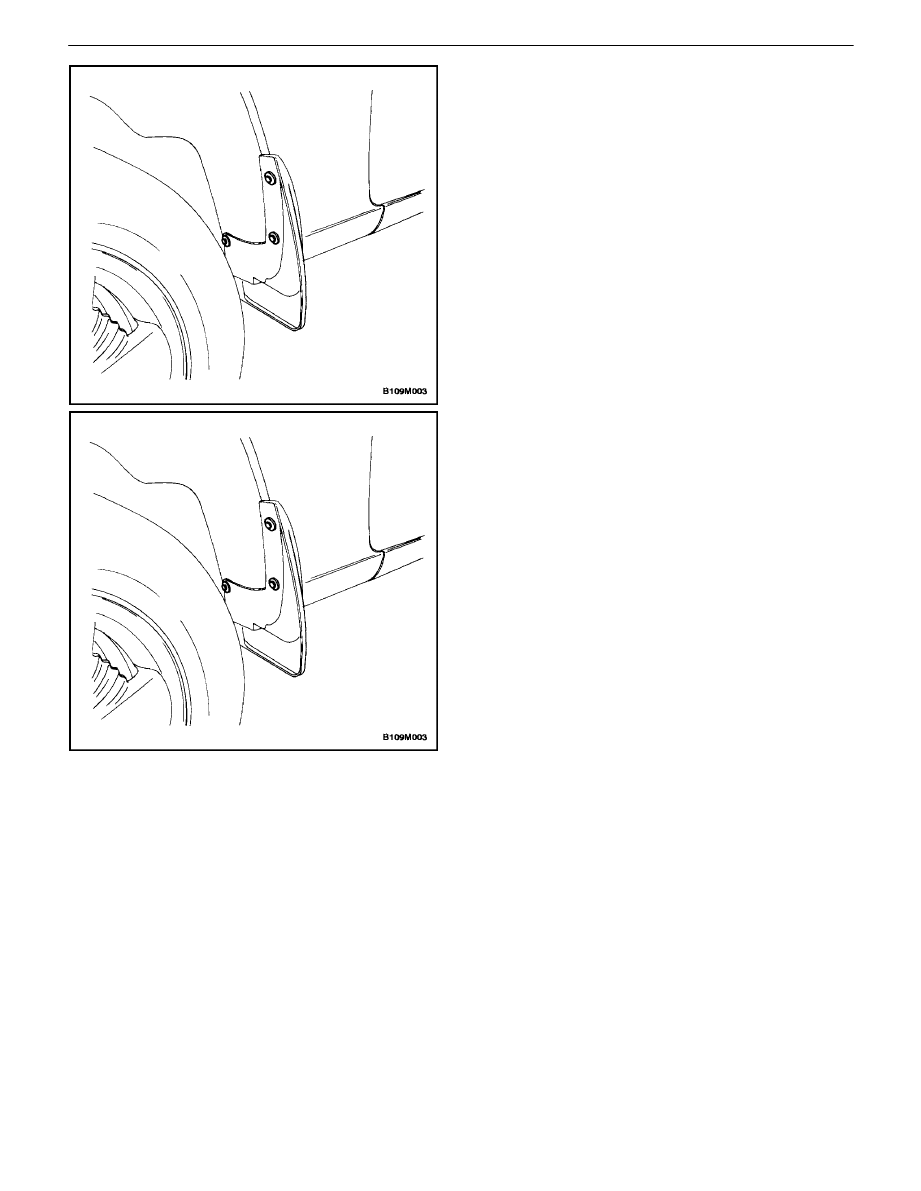

Removal Procedure

1.  Remove the bolts and the mud guard.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the mud guard with the bolts.

Tighten

Tighten the mud guard bolts to 1.5 N

S

m (13 lb–in).
