7B – 4

I

MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM

DAEWOO V–121 BL4

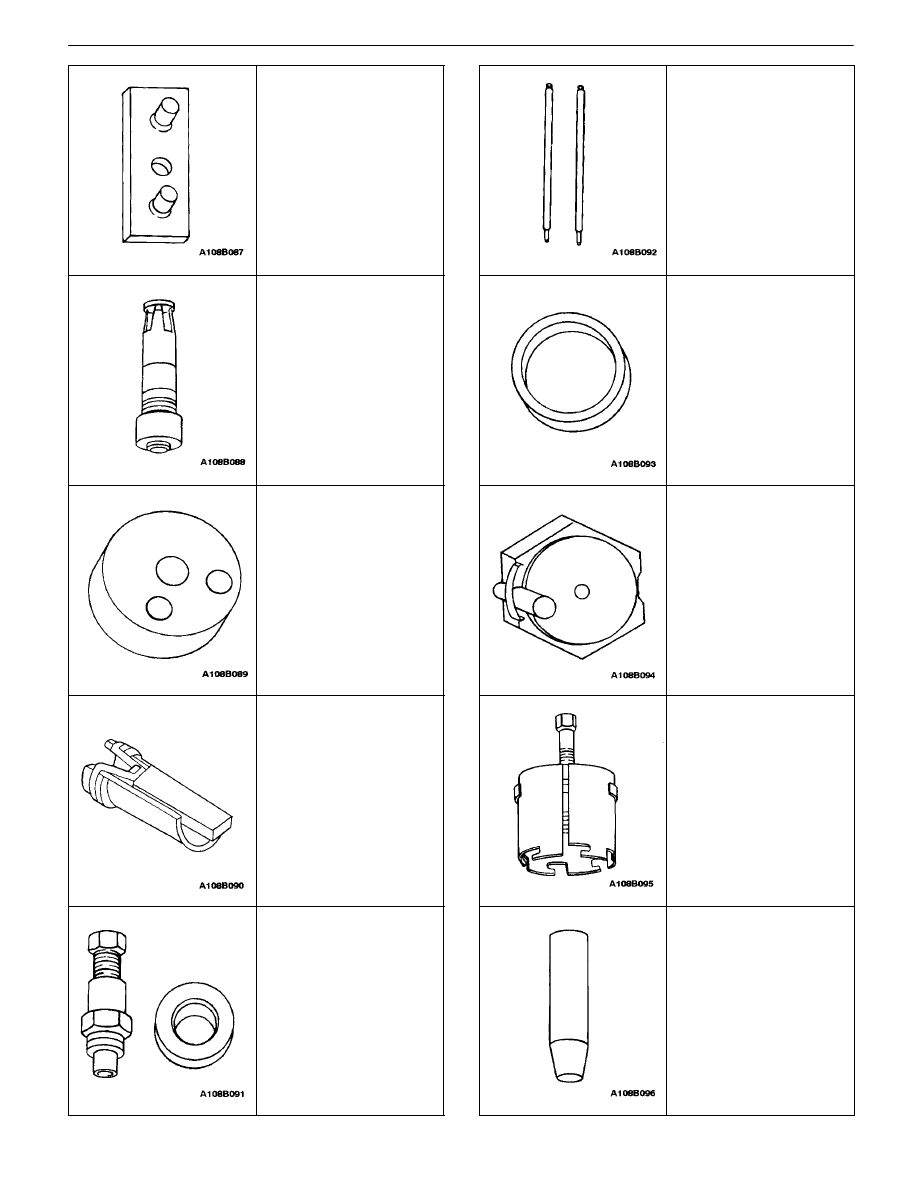

J–9625–A

Pressure Test Set Con-

nector

J–23128–A

Seal Seat Remover and

Installer

J–35372

Support Block

J–33011

O–Ring Installer

J–33013–B

Hub and Drive Plate Re-

mover and Installer

J–34993

Cylinder Alignment Rods

J–33017

Pulley Rotor and Bearing

Assembly Installer

J–33019

Bearing Staking Tool Set

Includes:

J–33019–1

Bearing Staking Guide

J–33019–2

Bearing Staking Pin

J–33020

Pulley Puller

J–34614

Shaft Seal Protector

MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM  7B – 5

DAEWOO V–121 BL4

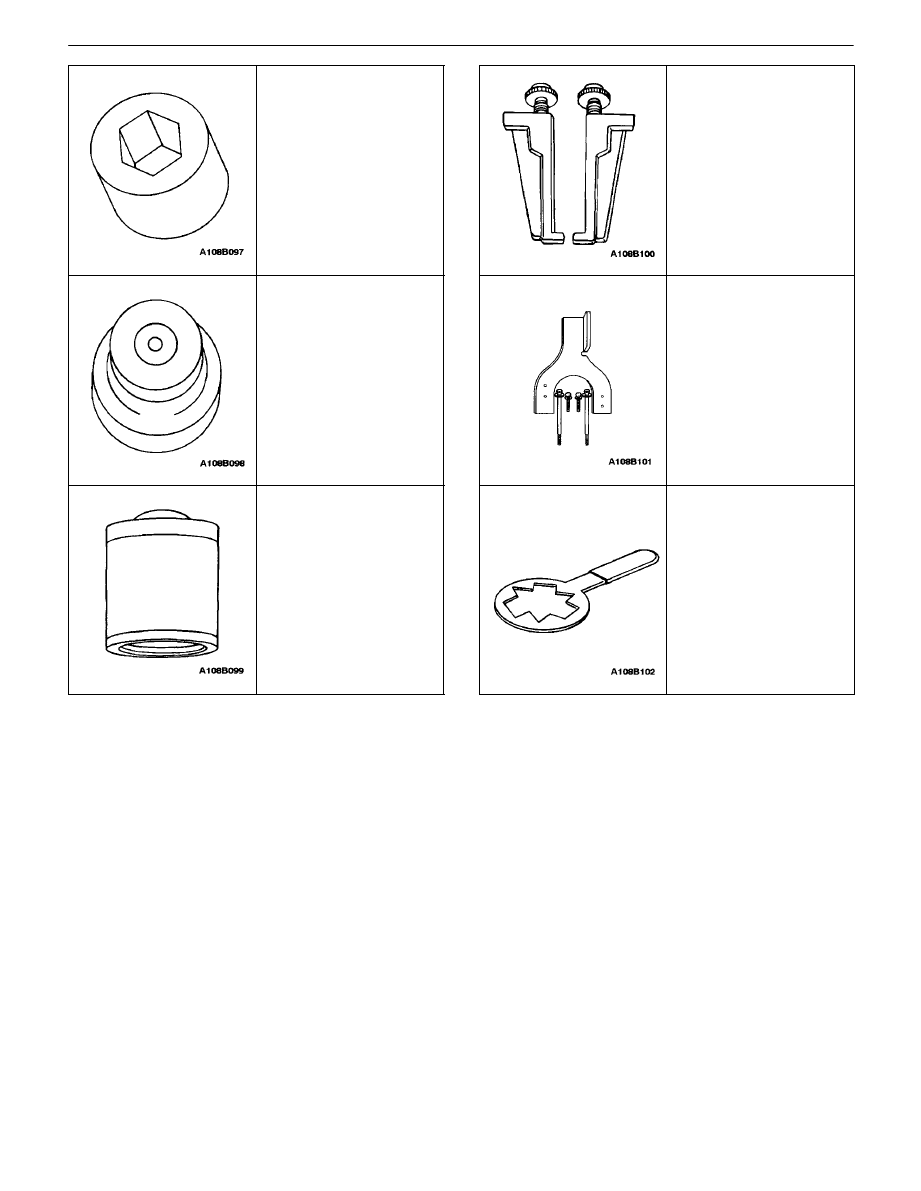

J–33022

Shaft Nut Socket

J–33023–A

Puller Pilot

J–33024

Clutch Coil Installer

Adapter

J–33025

Clutch Coil Puller Legs

J–34992

Compressor Holding Fix-

ture

J–33027

Clutch Hub Holding Tool

7B – 6

I

MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM

DAEWOO V–121 BL4

SCHEMATIC AND ROUTING DIAGRAMS

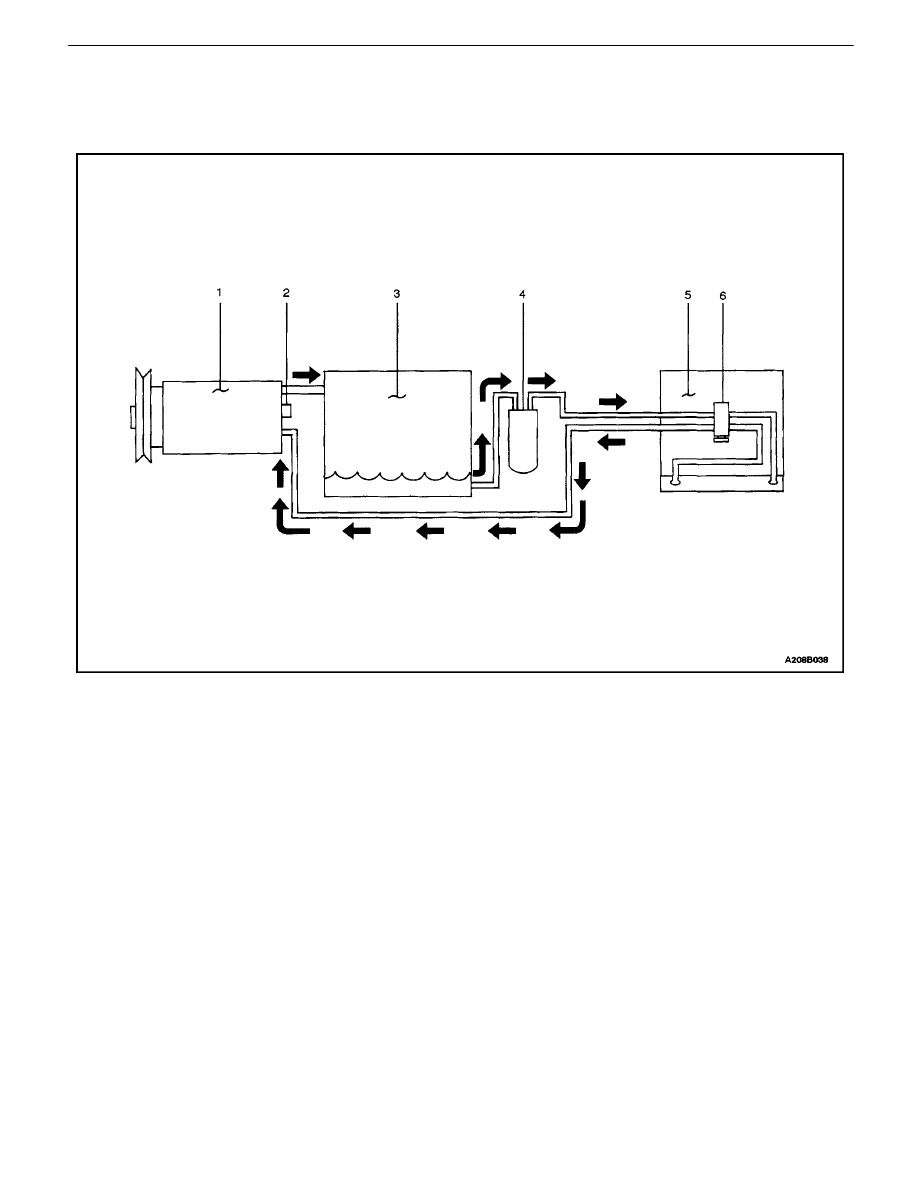

A/C SYSTEM – TYPICAL

1. Compressor
2.  Pressure Relief Valve
3. Condenser

4. Receiver–Dryer
5. Evaporator
6. Expansion

Valve

MANUAL CONTROL HEATING, VENTILATION, AND AIR CONDITIONING SYSTEM  7B – 7

DAEWOO V–121 BL4

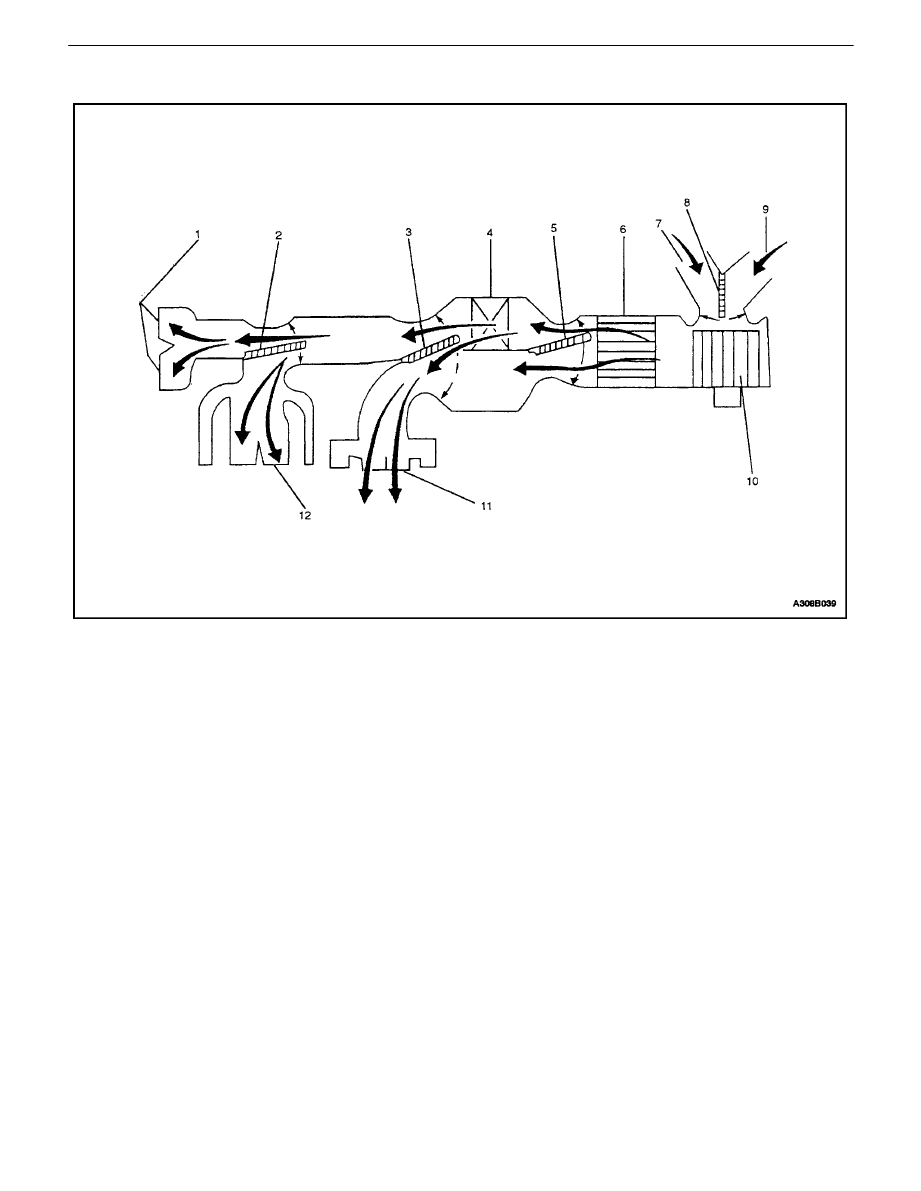

AIRFLOW – TYPICAL

1. Heater

Outlets

2. Heater/Defroster

Door

3. Mode

Door

4. Heater

Core

5.  Evaporator (A/C Only)
6. Expansion

Valve

7.  Outside Air Inlet
8.  Fresh Air/Recirculating Air Door
9.  Inside Air Inlet
10. Blower
11. Vent Outlets
12. Defroster Outlets
