GLASS AND MIRRORS  9L – 15

DAEWOO V–121 BL4

2.  Apply glass adhesive to the quarter window frame.
3.  Install the quarter window into the quarter window

frame.

4.  Reposition the tape over the quarter window and

the quarter window frame to hold the quarter win-
dow in place.

5.  Let the adhesive dry for 24 hours.
6.  Remove the tape.

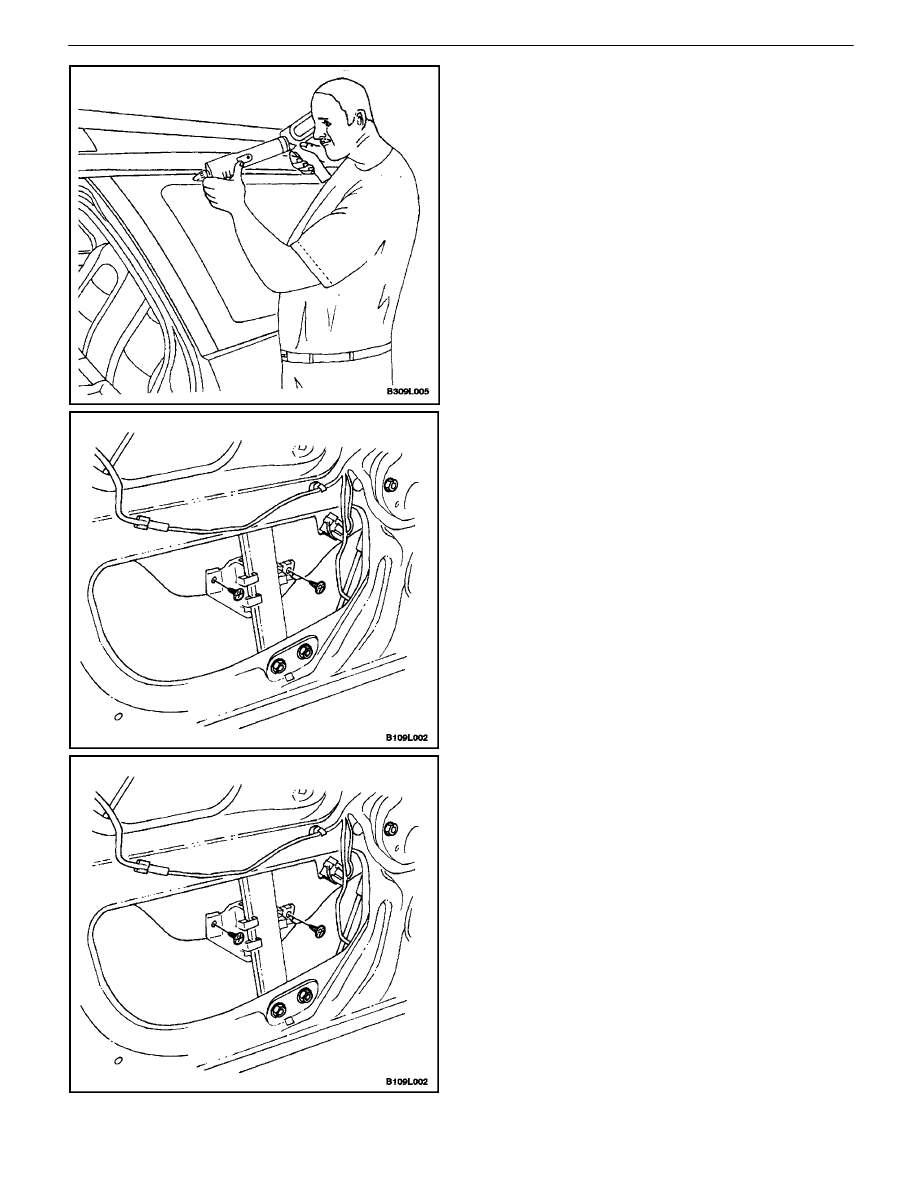

7.  Check for waterleaks by pouring water on the quar-

ter window. If a leak is found, dry the window and
fill the area that leaks with adhesive. If the leak per-
sists, remove the quarter window and repeat the
entire procedure.

FRONT DOOR GLASS

Removal Procedure

1.  Remove the door seal trim. Refer to Section 9P,

Doors.

2.  Remove the screws that secure the glass to the

window regulator.

3.  Remove the glass from the door.

Installation Procedure

1.  Install the glass in the door and position the glass

within the window regulator.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the glass to the window regulator with the

screws.

Tighten

Tighten the glass screws to 4.5 N

S

m (40 lb–in).

3.  Install the door seal trim. Refer to Section 9P,

Doors.

9L – 16

I

GLASS AND MIRRORS

DAEWOO V–121 BL4

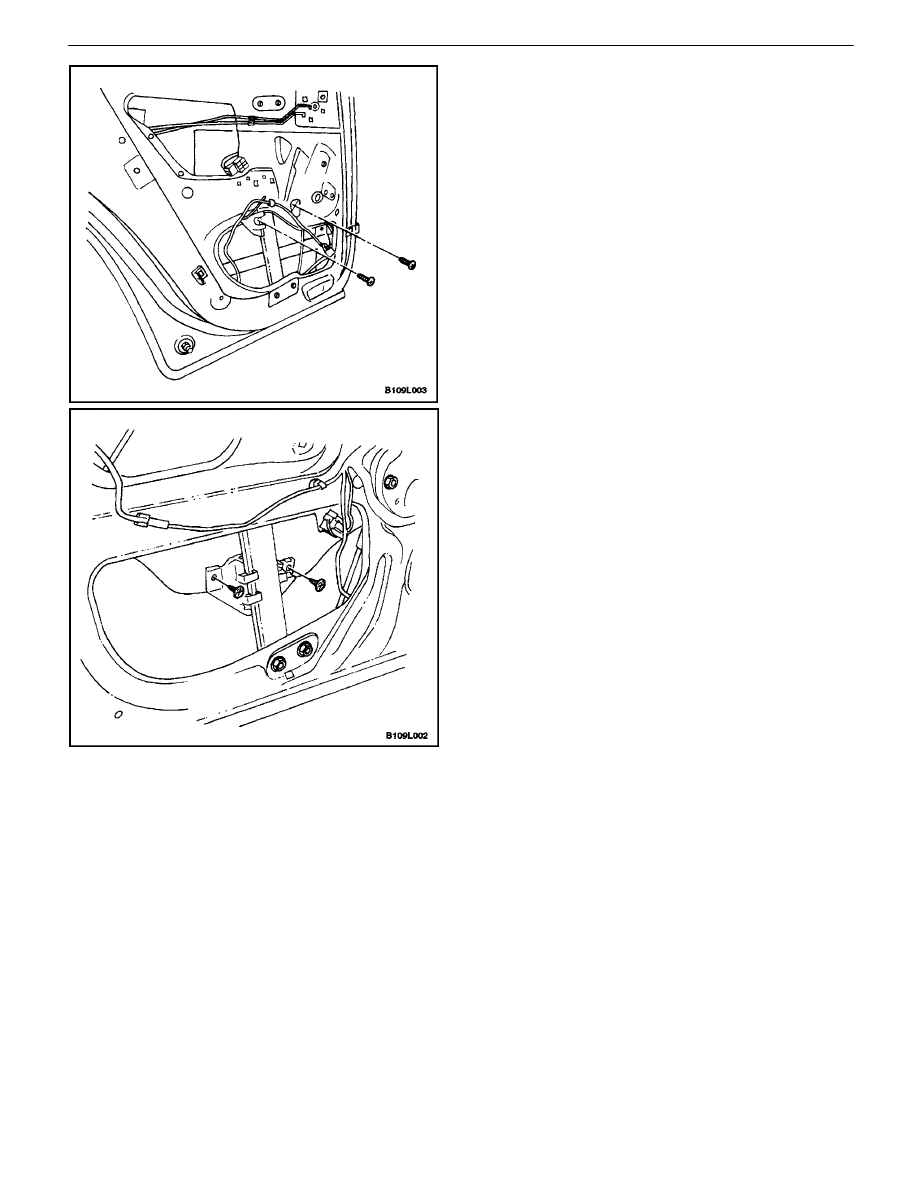

REAR DOOR GLASS

Removal Procedure

1.  Remove the door seal trim. Refer to Section 9P,

Doors.

2.  Remove the exterior B–pillar molding. Refer toSec-

tion 9M, Exterior Trim.

3.  Remove the screws that secure the glass to the

window regulator.

4.  Remove the glass from the door.

Installation Procedure

1.  Install the glass in the door and position the glass

within the window regulator.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the glass screws.

Tighten

Tighten the glass screws to 4.5 N

S

m (40 lb–in).

Install the exterior B–pillar molding. Refer toSection 9M,
Exterior Trim.

Install the door seal trim. Refer to Section 9P, Doors.

GLASS AND MIRRORS  9L – 17

DAEWOO V–121 BL4

INSIDE REARVIEW MIRROR

The inside rearview mirror is attached to a support which
is secured to the windshield glass. The support is installed
by the glass supplier using a plastic–polyvinyl butyl adhe-
sive.

Service replacement windshield glass has the mirror sup-
port bonded to the glass assembly. In order to install a de-
tached mirror support or to install a new part, the following
items will be needed:

S

 Loctite

±

 Minute–Bond Adhesive.

S



Original or replacement mirror support.

S



Wax marking pencil or crayon.

S

 Rubbing

alcohol.

S



Clean paper towel.

S



Fine grit sandpaper (grit #320 or #360).

S



2 mm allen wrench.

Installation Procedure

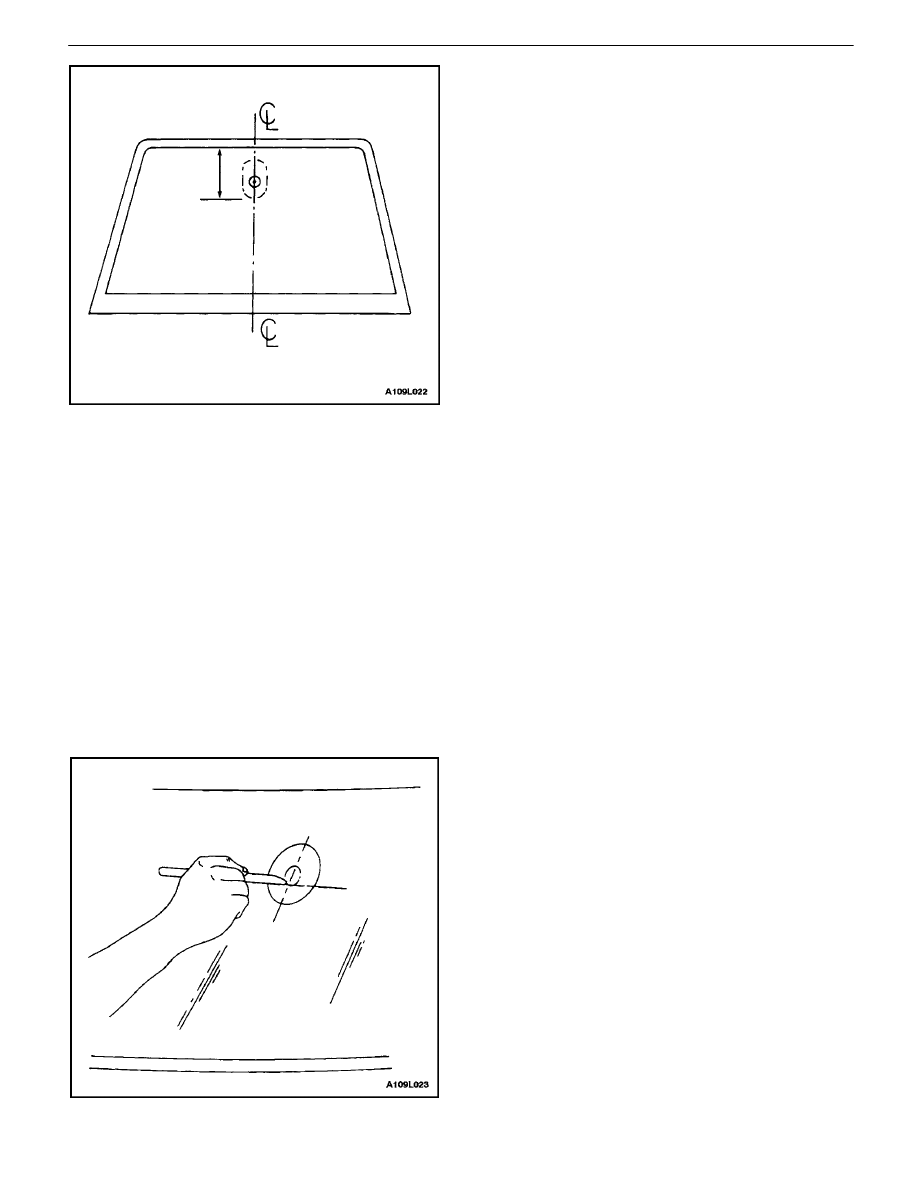

1.  Measure the distance from the headliner to the bot-

tom of the location where the mirror support will be
mounted on the windshield.

2.  Mark this position on the outside of the glass with a

wax pencil or crayon. Draw a large diameter circle
around the mirror support location on the outside of
the glass.

3.  Clean the inside surface of the glass with a domes-

tic scouring cleanser, a glass cleaning solution, or a
polishing compound and paper towels. Rub the
glass until the area is completely dry. When the
area is dry, clean the area with an alcohol–satu-
rated paper towel in order to remove any traces of
the scouring powder or the glass cleaning solution.

4.  If the mirror support is new, clean the bonding sur-

face with fine grit sandpaper #320 or #360. If the
original mirror support is being used, all traces of
factoryinstalled adhesive must be removed prior to
reinstallation.

5.  Wipe the sanded mirror support with a clean paper

towel saturated with rubbing alcohol. Allow the sup-
port to dry.

9L – 18

I

GLASS AND MIRRORS

DAEWOO V–121 BL4

6.  Follow the adhesive kit manufacturer

’

s directions

for adhesive application and mirror support prepa-
ration before installing the mirror support to the
glass.

7.  Position the mirror support to its premarked posi-

tion. Use steady pressure and press the support
against the glass for 30 to 60 seconds.

8.  After 5 minutes, remove the excess adhesive with

an alcohol–moistened towel or a glass–cleaning
solution.

9.  Install the inside rearview mirror to the mirror sup-

port with the mounting

Tighten

Tighten the rearview mirror mounting screw to 1.5
N

S

m (13 lb–in).

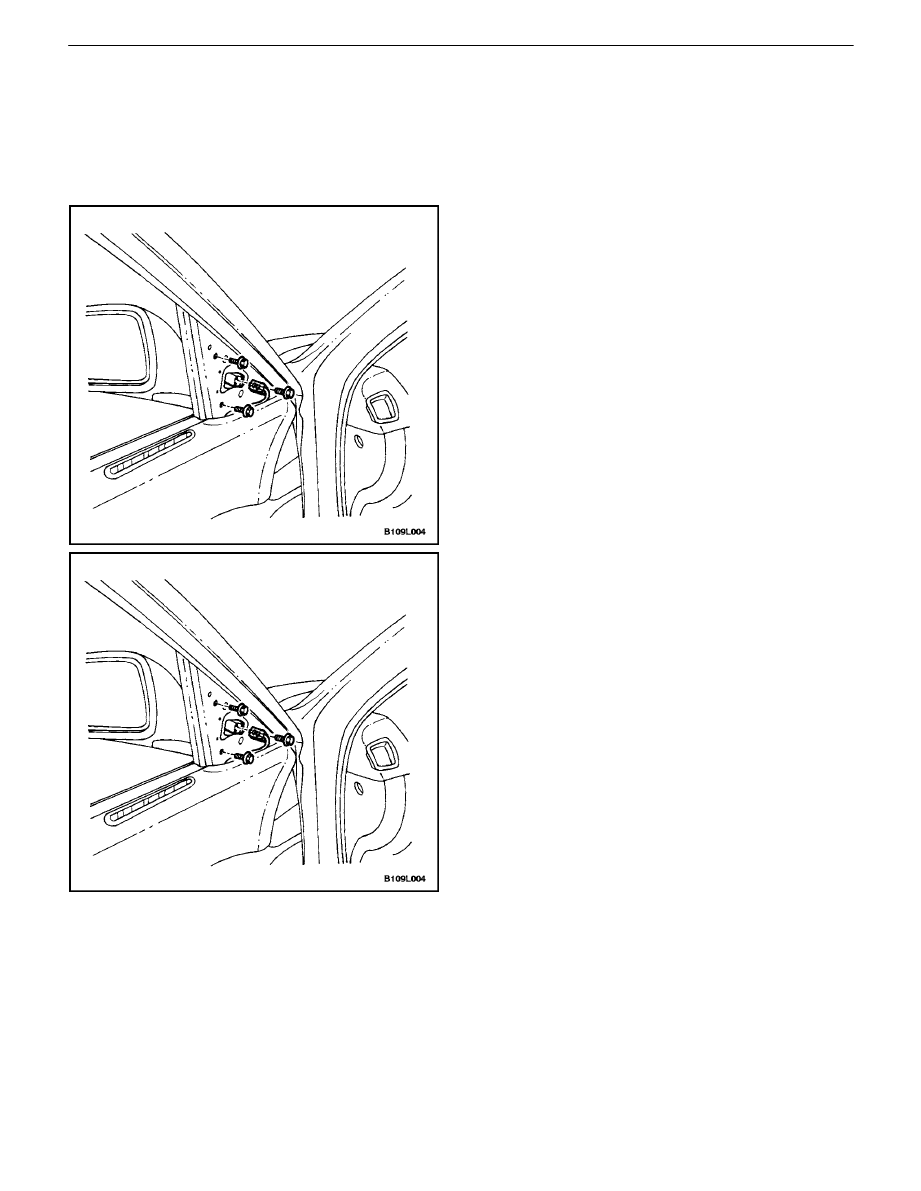

ELECTRIC CONTROL HEATED
OUTSIDE REARVIEW MIRRORS

Removal Procedure

1.  Remove the front door tweeter speaker and the

escutcheon.

2.  Disconnect mirror electrical connector, if equipped.
3.  Remove the screws and the outside rearview mirror

assembly from the door.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the outside rearview mirror assembly to the

door with the screws.

Tighten

Tighten the outside rearview mirror assembly screws
to 8 N

S

m (71 lb–in).

2.  Connect the mirror electrical connector.
3.  Install the escutcheon and the front door tweeter

speaker.
