5B – 12

I

FIVE–SPEED MANUAL TRANSAXLE

DAEWOO V–121 BL4

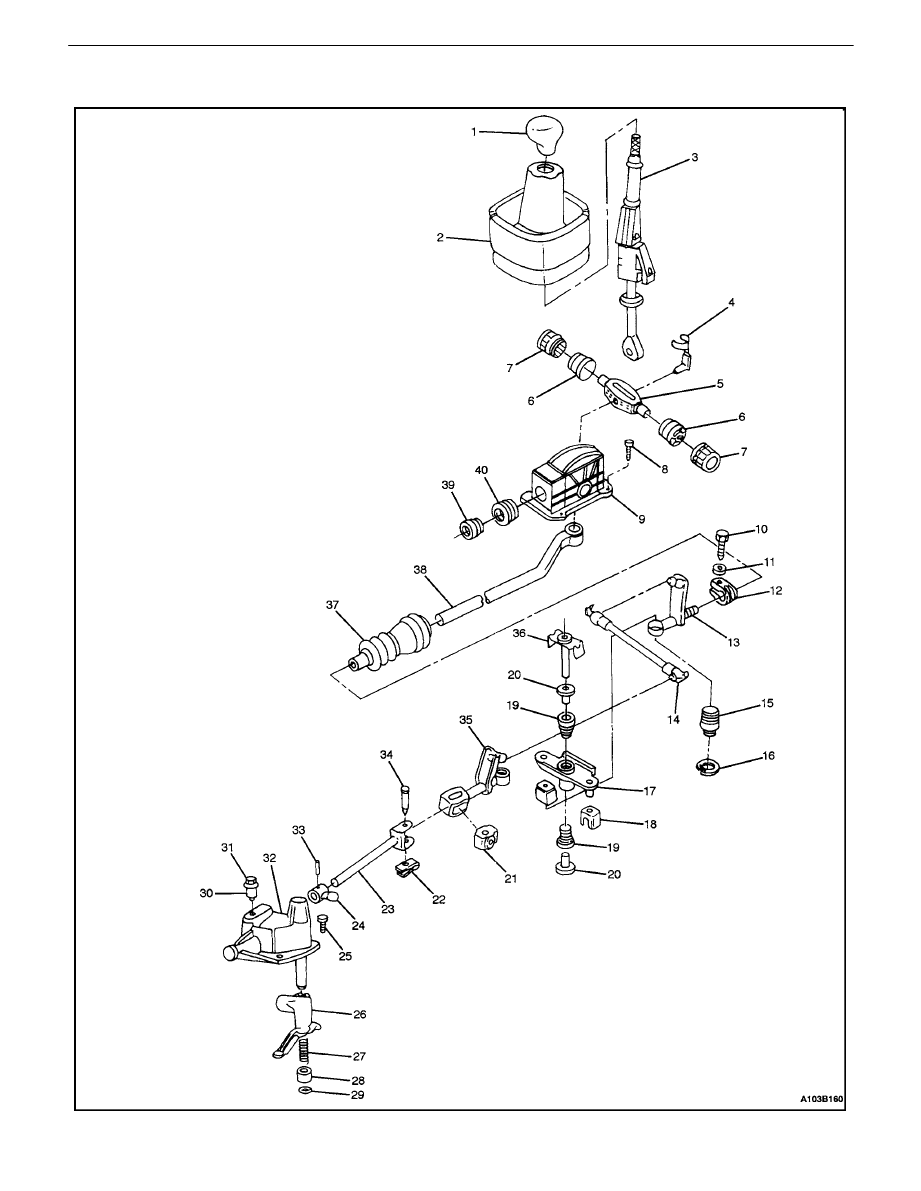

SHIFT LINKAGE

FIVE–SPEED MANUAL TRANSAXLE  5B – 13

DAEWOO V–121 BL4

1.  Gearshift Lever Knob
2.  Gearshift Lever Boot
3. Gearshift

Lever

4.  Gearshift Lever Stop Clamp
5.  Gearshift Lever Shaft
6.  Gearshift Lever Stop Bushing
7.  Gearshift Lever Stop Bushing
8. Bolt
9. Gearshift

Housing

10.  Shift Rod Clamp Bolt
11. Washer
12. Clamp
13.  Linkage Adjuster Bolt
14.  Gearshift Control Rod
15.  Linkage Ball Socket
16. Circlip Ring
17.  Linkage Reverse Lever
18. Gearshift Boot
19. Bushing
20. Bushing
21.  Rod U–Joint Bushing

22. Clip
23. Gearshift Rod
24.  Shift Finger Lever
25. Cover Bolt
26. Intermediate Lever
27.  Shift Lever Thrust Spring
28. Bushing
29. Snap Ring
30.  Oil Filler Plug
31.  Oil Plug Cap
32.  Gearshift Lever Cover
33. Pin
34. Bolt
35.  Gearshift Adjuster Linkage
36.  Shift Reverse Pivot Bolt
37. Boot
38. Gearshift Tube
39. Bushing
40. Gearshift Tube Bearing
