5A – 14

I

4T40–E AUTOMATIC TRANSAXLE

DAEWOO V–121 BL4

J 29569–2/J 29829–2

Turbine Shaft

Seal Sizer

J 21366

Torque Converter

Holding Strap

J 41103

Torque Converter

Seal Remover Set

J 28467–B

Engine Support

Fixture

4T40–E AUTOMATIC TRANSAXLE  5A – 15

DAEWOO V–121 BL4

SCHEMATIC AND ROUTING DIAGRAMS

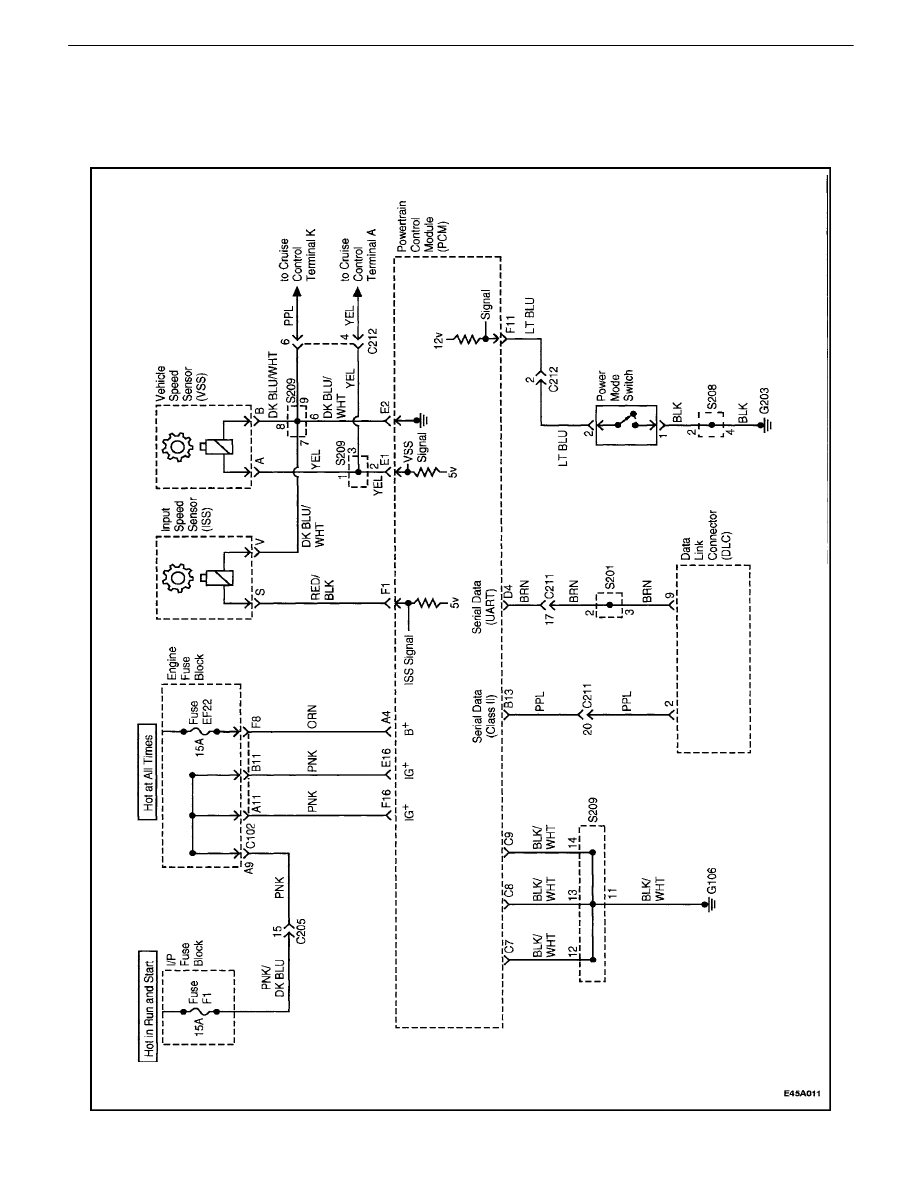

POWERTRAIN CONTROL MODULE (1 OF 3)

5A – 16

I

4T40–E AUTOMATIC TRANSAXLE

DAEWOO V–121 BL4

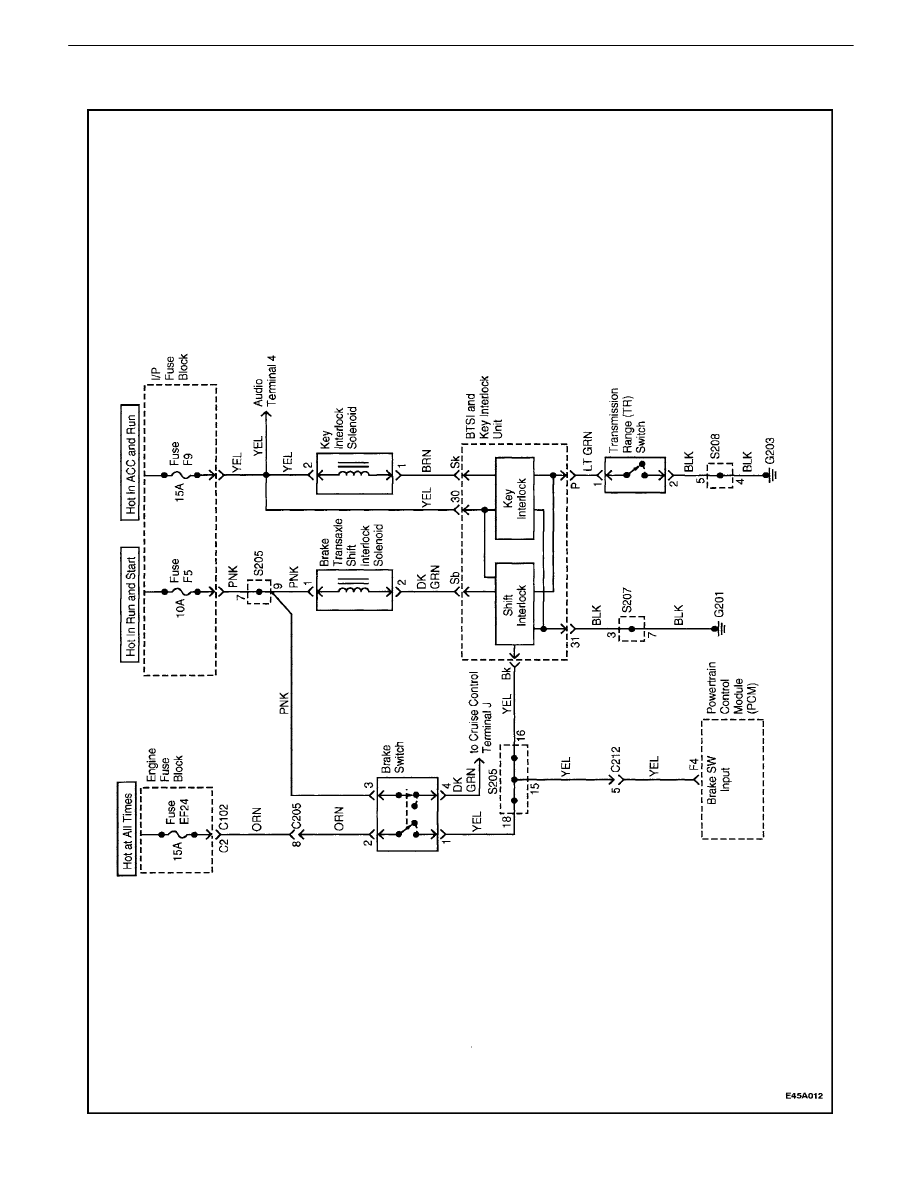

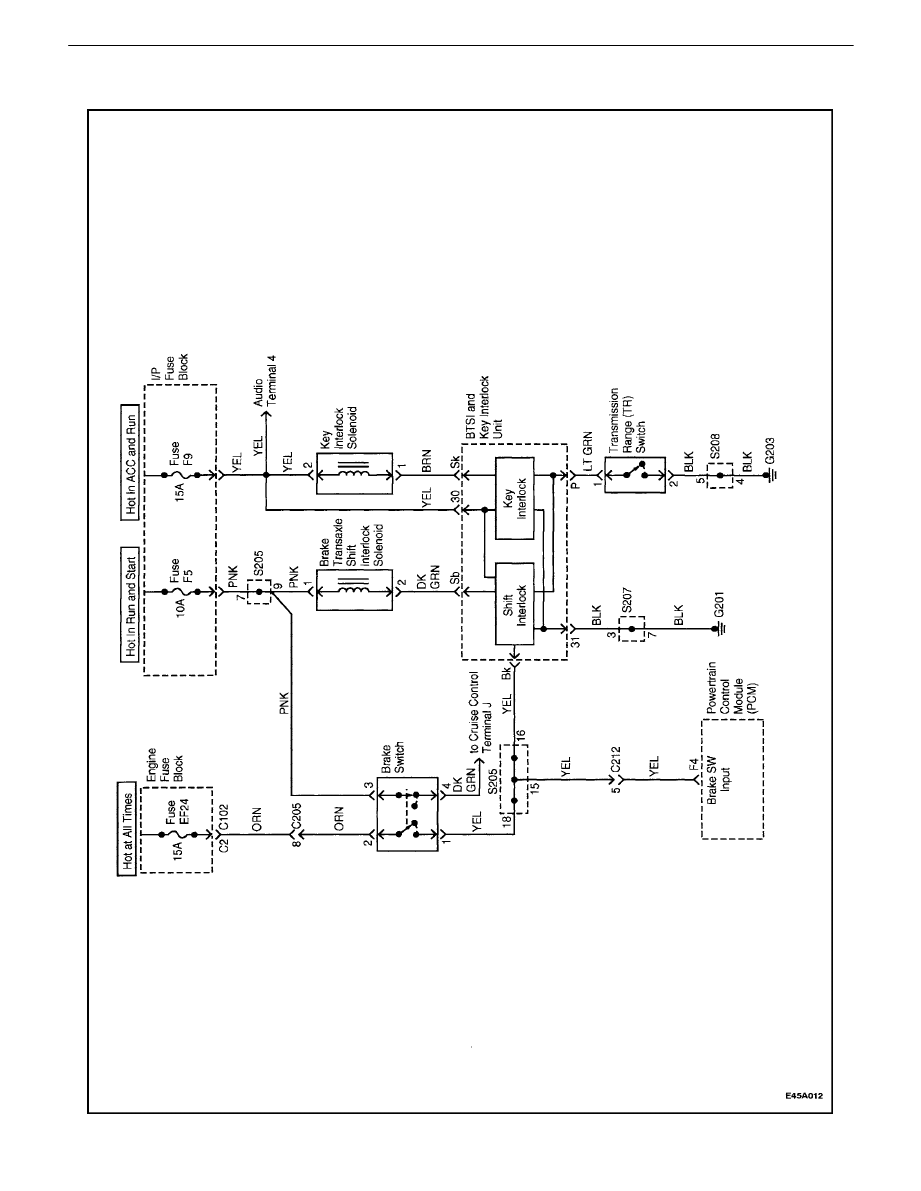

POWERTRAIN CONTROL MODULE (2 OF 3)

4T40–E AUTOMATIC TRANSAXLE  5A – 17

DAEWOO V–121 BL4

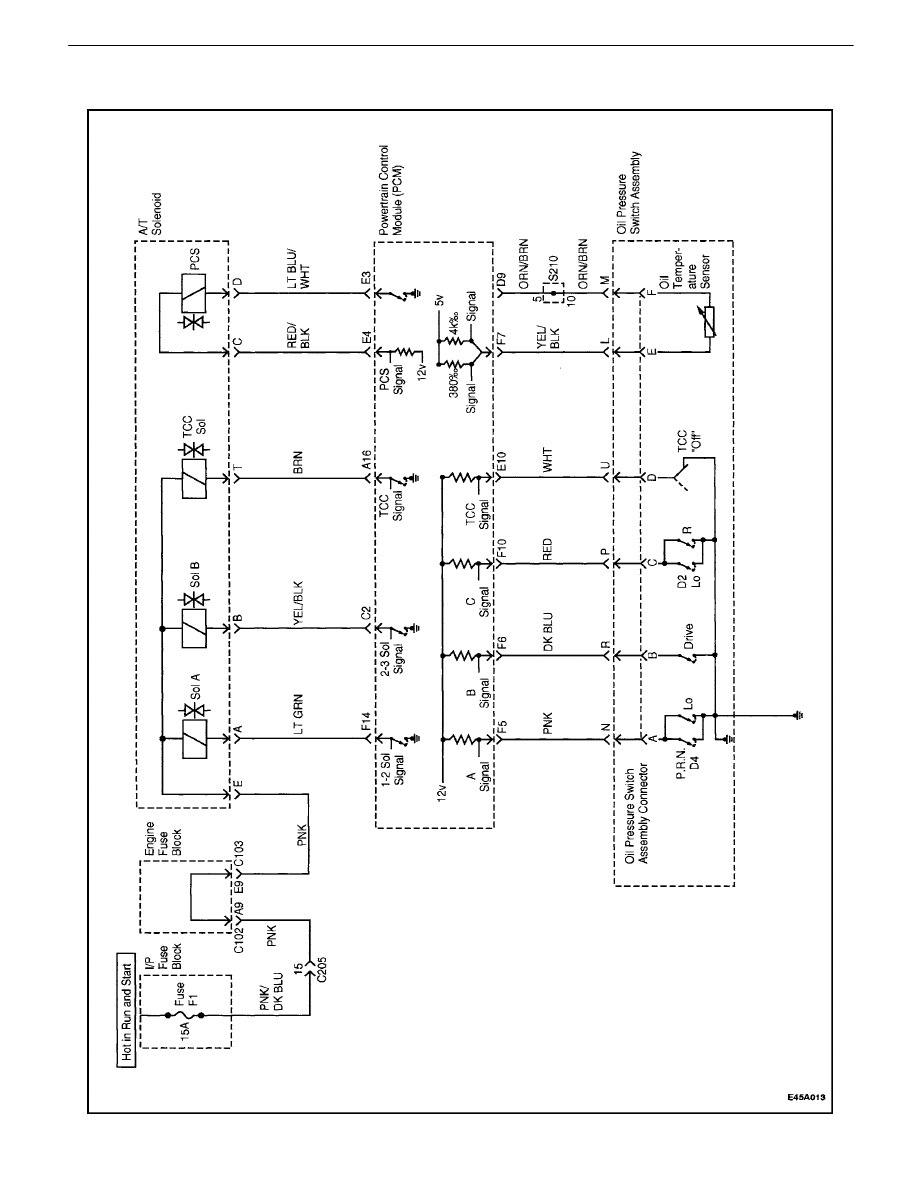

POWERTRAIN CONTROL MODULE (3 OF 3)
