DOHC ENGINE MECHANICAL 1C – 7

DAEWOO V–121 BL4

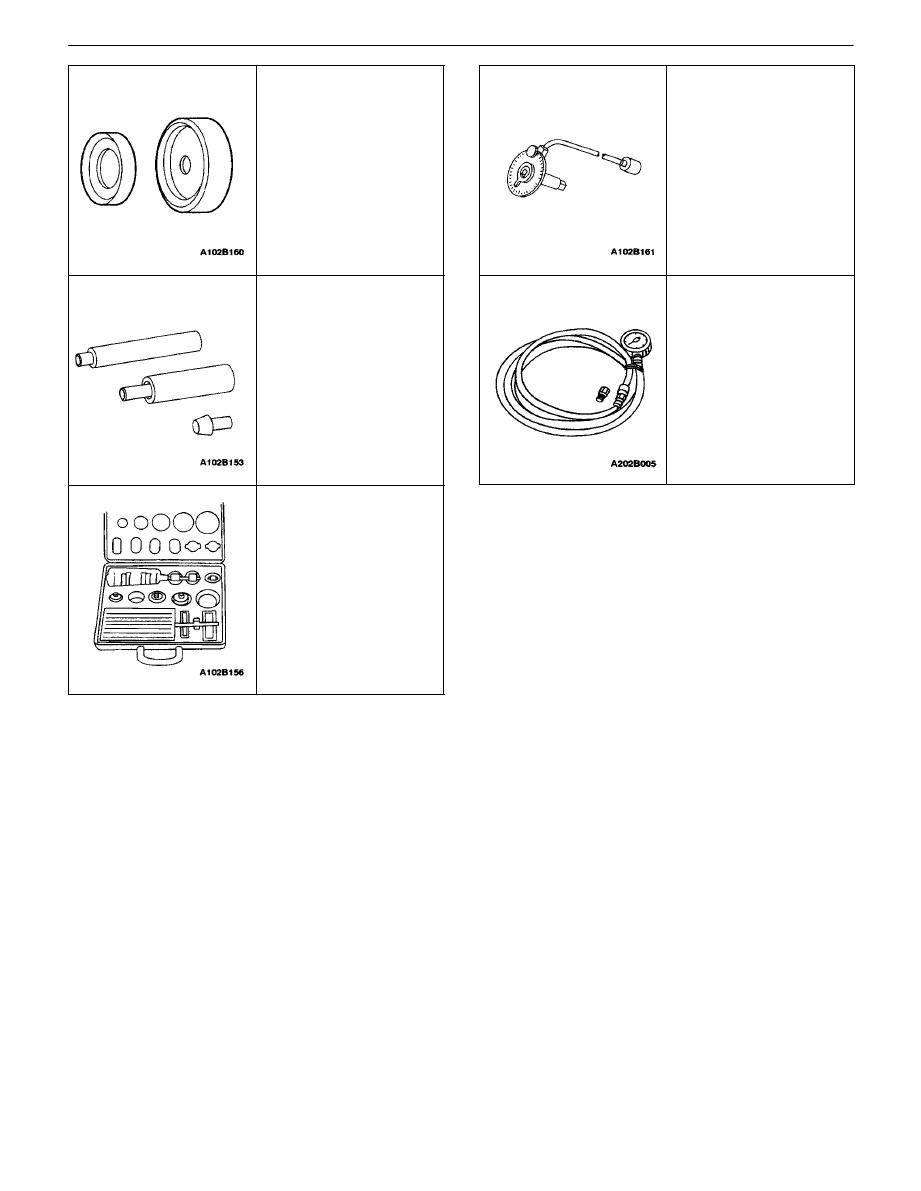

KM–635

Crankshaft Rear Oil Seal

Installer

KM–427

Piston Pin Service Set

KM–340–0

Cutter Set

Includes: KM–340–7

Guide Drift

KM–340–13

Cutters

KM–340–26

Cutters

KM–470–B

Angular Torque Gauge

KM–498–B

Pressure Gauge

1C – 8

DOHC ENGINE MECHANICAL

DAEWOO V–121 BL4

COMPONENT LOCATOR

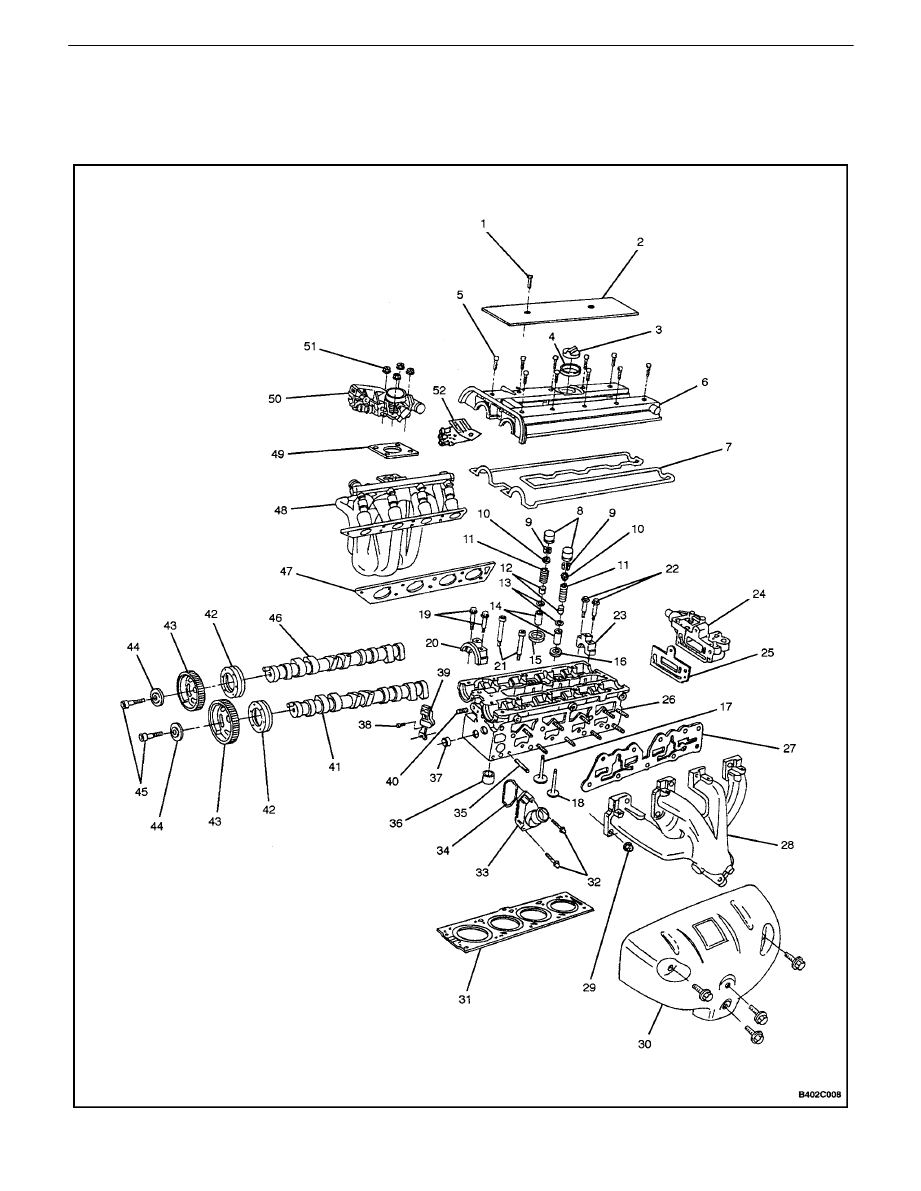

UPPER END

DOHC ENGINE MECHANICAL 1C – 9

DAEWOO V–121 BL4

1. Bolt
2. Spark Plug Cover
3. Oil

Cap

4. Oil Cap Seal
5. Bolt
6. Valve

Cover

7.  Valve Cover Gasket
8.  Value Lash Adjuster
9. Retainer
10. Valve Cab
11. Valve Spring
12.  Valve Stem Seal
13.  Valve Spring Seat
14. Valve Guide
15.  Valve Spring Seat
16. Exhaust Seat
17. Intake Valve
18. Exhaust Valve
19. Bolt
20.  Front Bearing Cap
21. Head Bolt
22. Bolt
23. Bearing Cap
24. EGR Adapter
25.  EGR Adapter Gasket
26. Cylinder Head

27.  Exhaust Manifold Gasket
28. Exhaust Manifold
29. Nut
30.  Exhaust Manifold Heat Shield
31.  Cylinder Head Gasket
32. Bolt
33. Thermostat Housing
34.  Thermostat Housing Gasket
35. Stud
36. Sleeve
37. Plug
38. Bolt
39.  Camshaft Position Sensor
40.  Oil Gallery Plug
41. Exhaust Camshaft
42.  Oil Seal Ring
43. Camshaft Gear
44. Washer
45.  Camshaft Gear Bolt
46. Intake Camshaft
47.  Intake Manifold Gasket
48. Intake Manifold
49.  Throttle Body Gasket
50. Throttle Body
51. Nut
52.  Exhaust Gas Recirculation Solenoid

1C – 10

DOHC ENGINE MECHANICAL

DAEWOO V–121 BL4

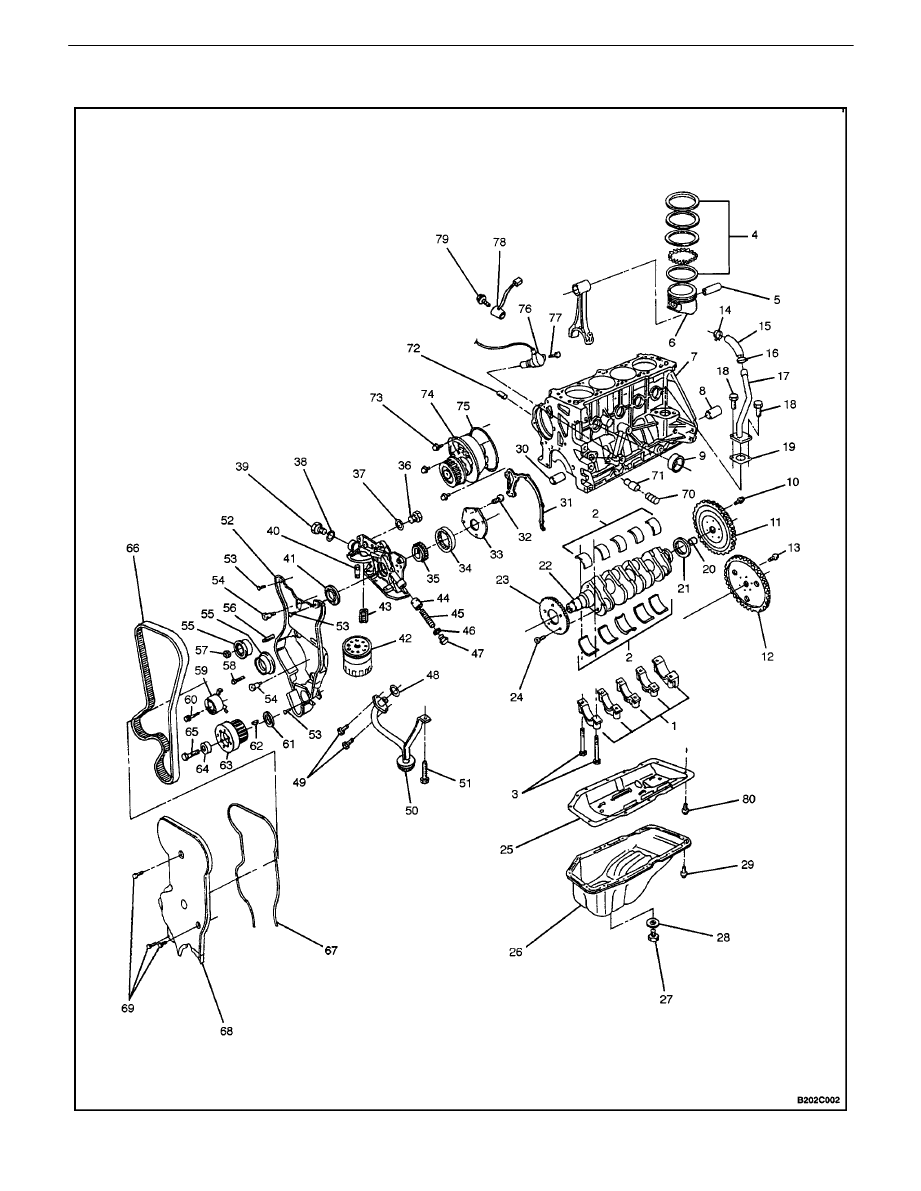

LOWER END
