GENERAL INFORMATION  0B – 5

DAEWOO V–121 BL4

Cooling System

Application

2.0L DOHC

Cooling Type

Forced Water Circulation

Radiator Type

Cross–flow

Water Pump Type

Centrifugal

Thermostat Type

Pellet Type

Coolant Capacity:

–

Manual:

7.0L (7.4 qt)

Automatic:

7.0L (7.4 qt)

Electric System

Application

2.0L DOHC

Battery (55 AH, M/F)

630 Cold Cranking Amps

Alternator:

85 Amps

Starter (1.4 kW) No Load Test

Minimum 40 Amps

Maximum 90 Amps

(at 12.2 volts)

VEHICLE DIMENSIONS AND WEIGHTS

Vehicle Dimensions – Manual and Automatic

Application

2.0L DOHC

Overall Length:

–

4–Door Notchback

4 470 mm (176.0 in.)

4–Door Wagon

4 514 mm (177.7 in.)

5–Door

4 248 mm (167.2 in.)

Overall Width

1 700 mm (66.9 in.)

Overall Height:

–

4–Door Notchback

1 425 mm (56.1 in.)

4–Door Wagon

1 432 mm (56.4 in.)

5–Door

1 425 mm (56.1 in.)

Overall Height:

Overall Height:

4–Door Notchback

1 430 mm (56.2 in.)

4–Door Wagon

1 470 mm (58.0 in.)

5–Door

1 430 mm (56.2 in.)

Minimum Ground Clearance

151 mm (5.9 in.)

Wheel Base

2 570 mm (101.2 in.)

Tread:

–

Front

1 464 mm (57.6 in.)

Rear

1 454 mm (57.2 in.)

0B – 6

I

GENERAL INFORMATION

DAEWOO V–121 BL4

Vehicle Weights – 4 Door Notchback

Application

2.0L DOHC

Manual:

–

Curb Weight:

–

Standard

1 164 kg (2,566 lb)

Optional

1 233 kg (2,718 lb)

Gross Vehicle Weight

1 720 kg (3,792 lb)

Automatic:

–

Curb Weight

–

Standard

1 200 kg (2,645 lb)

Optional

1 269 kg (2,797 lb)

Gross Vehicle Weight

1 720 kg (3,792 lb)

Passenger Capacity

5

Vehicle Weights – 4 Door Wagon

Application

2.0L DOHC

Manual:

–

Curb Weight:

–

Standard

1 222 kg (2,694 lb)

Optional

1 291 kg (2,846 lb)

Gross Vehicle Weight

1 860 kg (4,101 lb)

Automatic:

–

Curb Weight

–

Standard

1 258 kg (2,773 lb)

Optional

1 327 kg (2,925 lb)

Gross Vehicle Weight

1 860 kg (4,101 lb)

Passenger Capacity

5

Vehicle Weights – 5 Door

Application

2.0L DOHC

Manual:

–

Curb Weight:

–

Standard

1 155 kg (2,546 lb)

Optional

1 224 kg (2,698 lb)

Gross Vehicle Weight

1 720 kg (3,792 lb)

Automatic:

–

Curb Weight:

–

Standard

1 191 kg (2,625 lb)

Optional

1 260 kg (2,778 lb)

Gross Vehicle Weight

1 720 kg (3,792 lb)

Passenger Capacity

5

Optional Weight: Air Conditioning, Power Steering, ABS, Sunroof, Airbag.

GENERAL INFORMATION  0B – 7

DAEWOO V–121 BL4

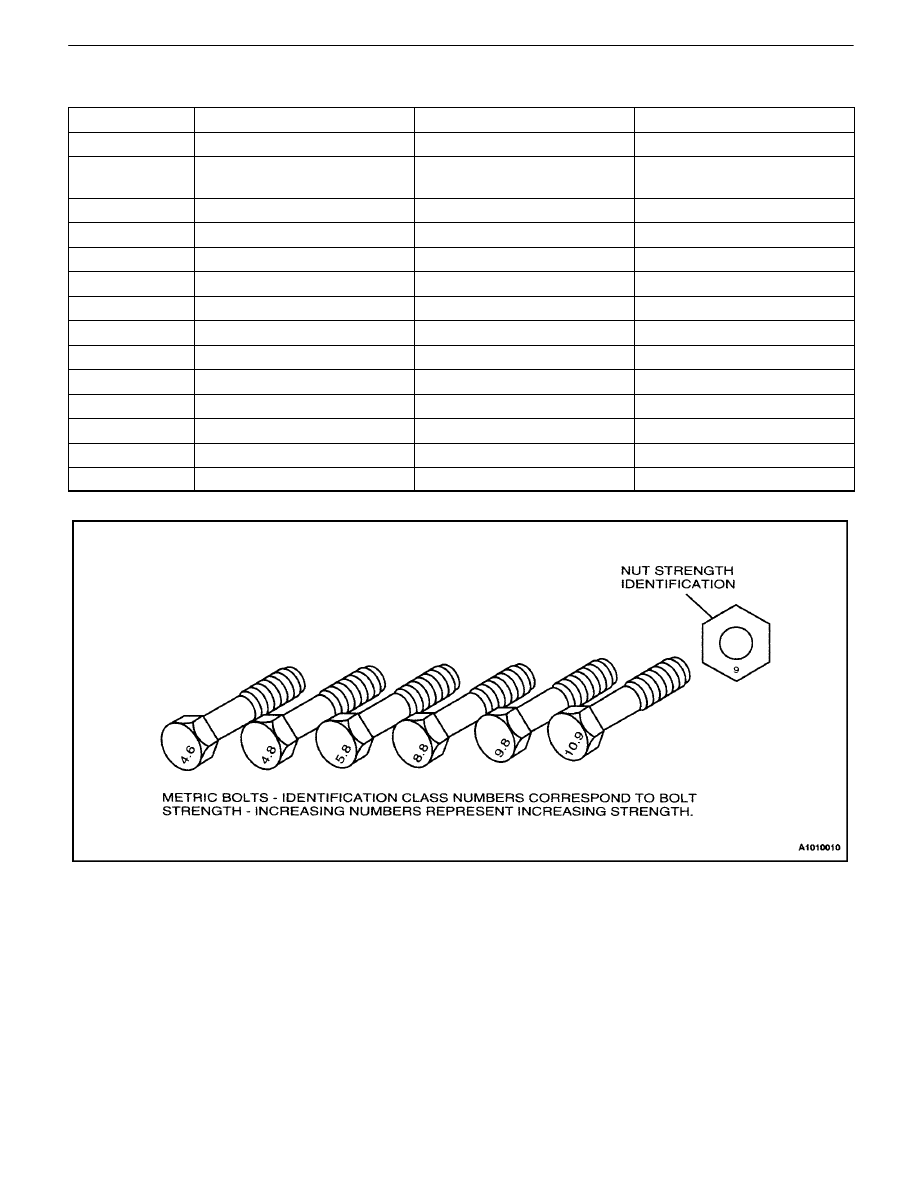

STANDARD BOLT SPECIFICATIONS

Bolt*

4T – Low Carbon Steel

7T – High Carbon Steel

7T – Alloy Steel

M6 X 1.0

4.1–8.1 N

S

m (36–72 lb–in)

5.4–9.5 N

S

m (48–84 lb–in)

–

M8 X 1.25

8.1–17.6 N

S

m (72–156 lb–in)

12.2–23.0 N

S

m (108–204 lb–
in)

16–30 N

S

m (12–22 lb–ft)

M10 X 1.25

20–34 N

S

m (15–25 lb–ft)

27–46 N

S

m (20–34 lb–ft)

37–62 N

S

m (27–46 lb–ft)

M10 X 1.5

19–34 N

S

m (14–25 lb–ft)

27–45 N

S

m (20–33 lb–ft)

37–60 N

S

m (27–44 lb–ft)

M12 X 1.25

49–73 N

S

m (36–54 lb–ft)

61–91 N

S

m (45–67 lb–ft)

76–114 N

S

m (56–84 lb–ft)

M12 X 1.75

45–69 N

S

m (33–51 lb–ft)

57–84 N

S

m (42–62 lb–ft)

72–107 N

S

m (53–79 lb–ft)

M14 X 1.5

76–115 N

S

m (56–85 lb–ft)

94–140 N

S

m (69–103 lb–ft)

114–171 N

S

m (84–126 lb–ft)

M14 X 2.0

72–107 N

S

m (53–79 lb–ft)

88–132 N

S

m (65–97 lb–ft)

107–160 N

S

m (79–118 lb–ft)

M16 X 1.5

104–157 N

S

m (77–116 lb–ft)

136–203 N

S

m (100–150 lb–ft)

160–240 N

S

m (118–177 lb–ft)

M16 X 2.0

100–149 N

S

m (74–110 lb–ft)

129–194 N

S

m (95–143 lb–ft)

153–229 N

S

m (113–169 lb–ft)

M18 X 1.5

151–225 N

S

m (111–166 lb–ft)

195–293 N

S

m (144–216 lb–ft)

229–346 N

S

m (169–255 lb–ft)

M20 X 1.5

206–311 N

S

m (152–229 lb–ft)

270–405 N

S

m (199–299 lb–ft)

317–476 N

S

m (234–351 lb–ft)

M22 X 1.5

251–414 N

S

m (185–305 lb–ft)

363–544 N

S

m (268–401 lb–ft)

424–636 N

S

m (313–469 lb–ft)

M24 X 2.0

359–540 N

S

m (265–398 lb–ft)

431–710 N

S

m (318–524 lb–ft)

555–831 N

S

m (409–613 lb–ft)

* Diameter X pitch in millimeters

0B – 8

I

GENERAL INFORMATION

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

MAINTENANCE AND LUBRICATION

NORMAL VEHICLE USE

The maintenance instructions contained in the mainte-
nance schedule are based on the assumption that the ve-
hicle will be used for the following reasons:

S



To carry passengers and cargo within the limitation
indicated on the Tire Placard located on the edge of
the driver’s side door.

S



To be driven on reasonable road surfaces and with-
in legal operating limits.

EXPLANATION OF SCHEDULED
MAINTENANCE SERVICES

The services listed in the maintenance schedule are fur-
ther explained below. When the following maintenance
services are performed, make sure all the parts are re-
placed and all the necessary repairs are done before driv-
ing the vehicle. Always use the proper fluid and lubricants.

Drive Belt Inspection

When a separate belt drives the power steering pump, the
air conditioning compressor, and the generator, inspect it
for cracks, fraying, wear, and proper tension. Adjust or re-
place the belt, as needed.

Engine Oil and Oil Filter Change

API Classifications of Engine Oil
The International Lubricant Standardization and Approval
Committee (ILSAC) and American Petroleum Institute
classifies engine oils according to their performance quali-
ty. Always use oil rated API–SJ (ILSAC GF–II) or better.

Engine Oil Viscosity

Engine oil viscosity (thickness) has an effect on fuel econ-
omy and cold weather operation. Lower viscosity engine
oils can provide better fuel economy and cold weather per-
formance; however, higher temperature weather condi-
tions require higher viscosity engine oils for satisfactory lu-
brication. Using oils of any viscosity other than those
viscosities recommended could result in engine damage.

Cooling System Service

Drain, flush and refill the system with new coolant. Refer
to ”Recommended Fluids and Lubricants”in this section.
