2–4

W

POSITION OF CONNECTORS AND GROUNDS

2. WIRING HARNESS & CONNECTOR & GROUND LOCATION

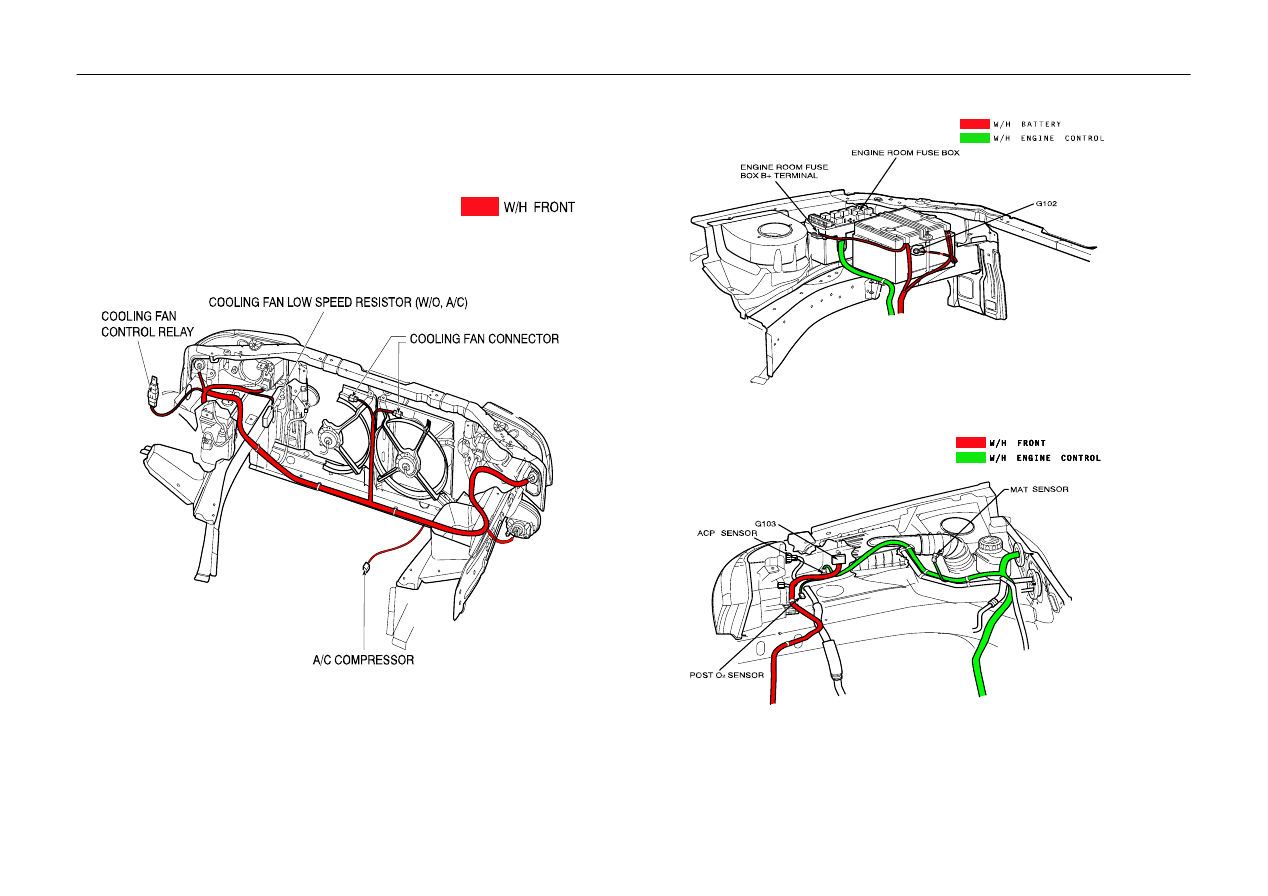

1) W/H FRONT, FRONT BUMPER

POSITION OF CONNECTORS AND GROUNDS

W

2–5

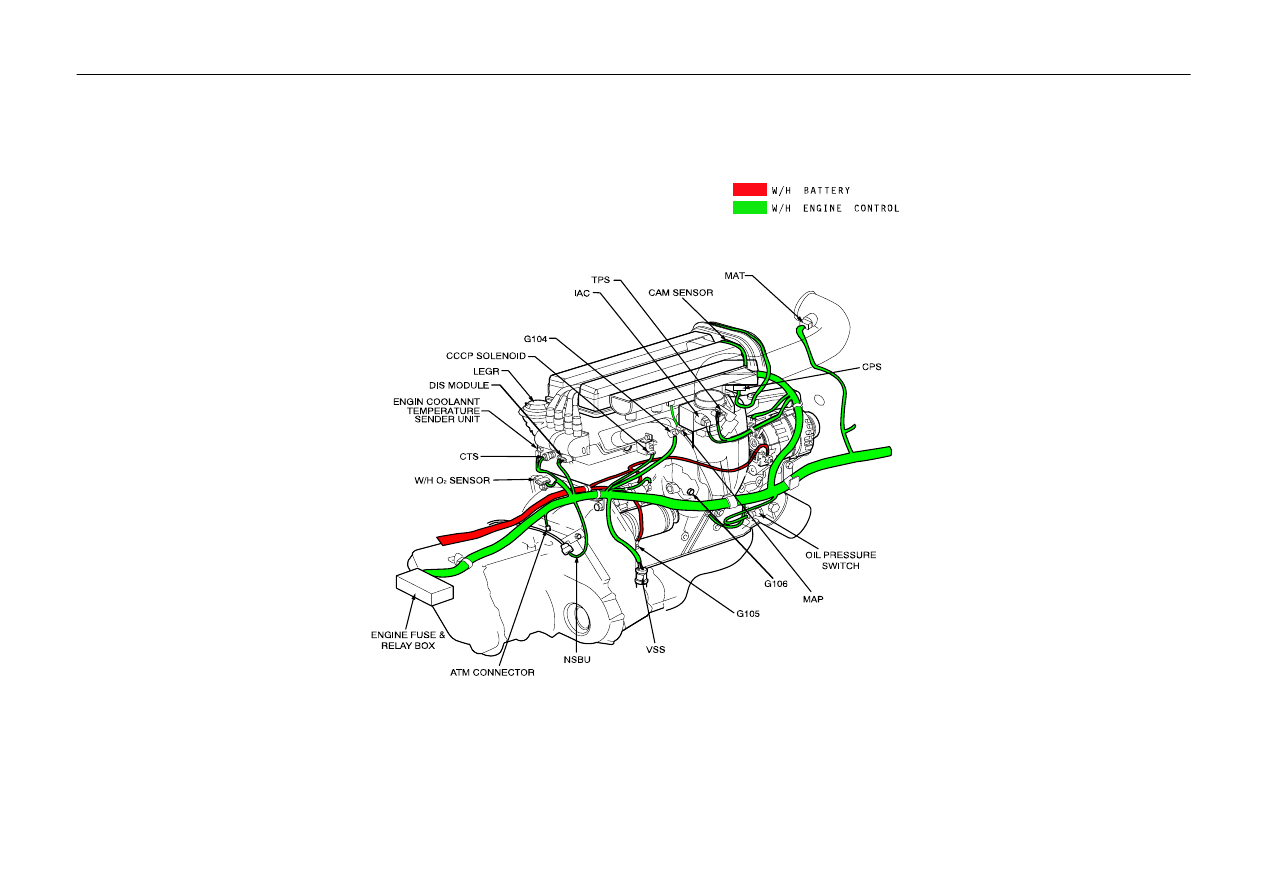

2) ENGINE CONTROL, BATTERY

S



2.0 DOHC ENGINE

2–6

W

POSITION OF CONNECTORS AND GROUNDS

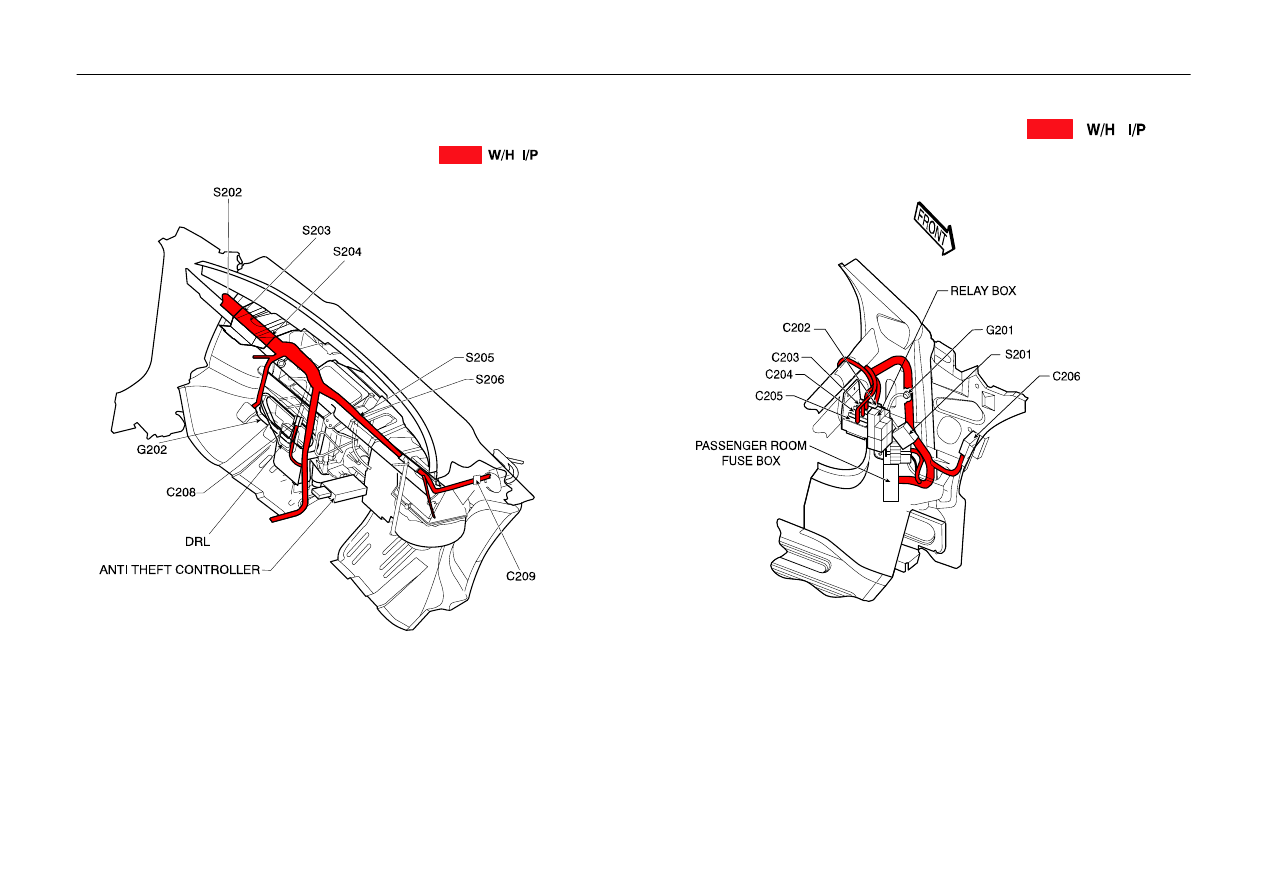

3) INSTRUMENT PANEL INSIDE

POSITION OF CONNECTORS AND GROUNDS

W

2–7

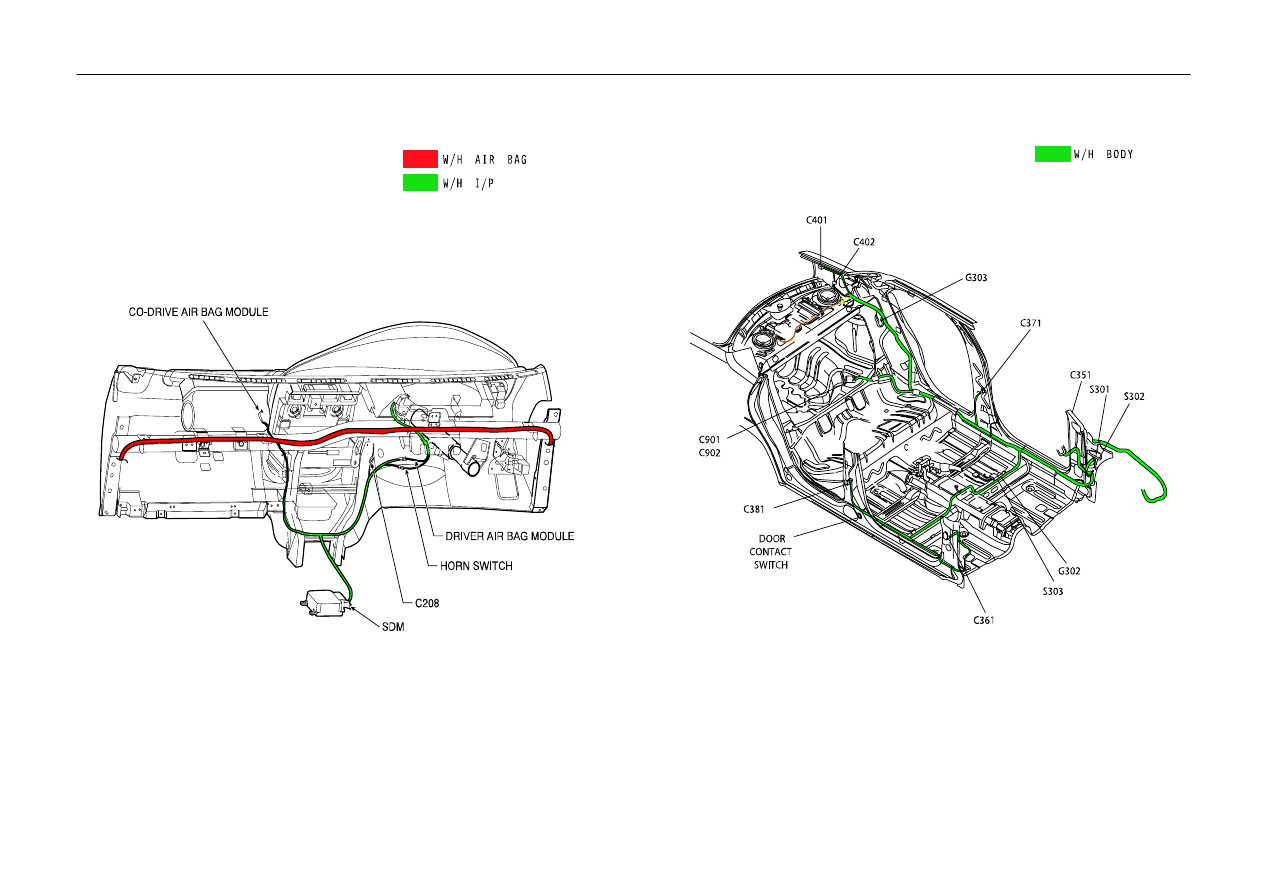

4) AIR BAG, INSTRUMENT PANEL

5) BODY
