CRUISE CONRTOL SYSTEM  9U – 15

DAEWOO V–121 BL4

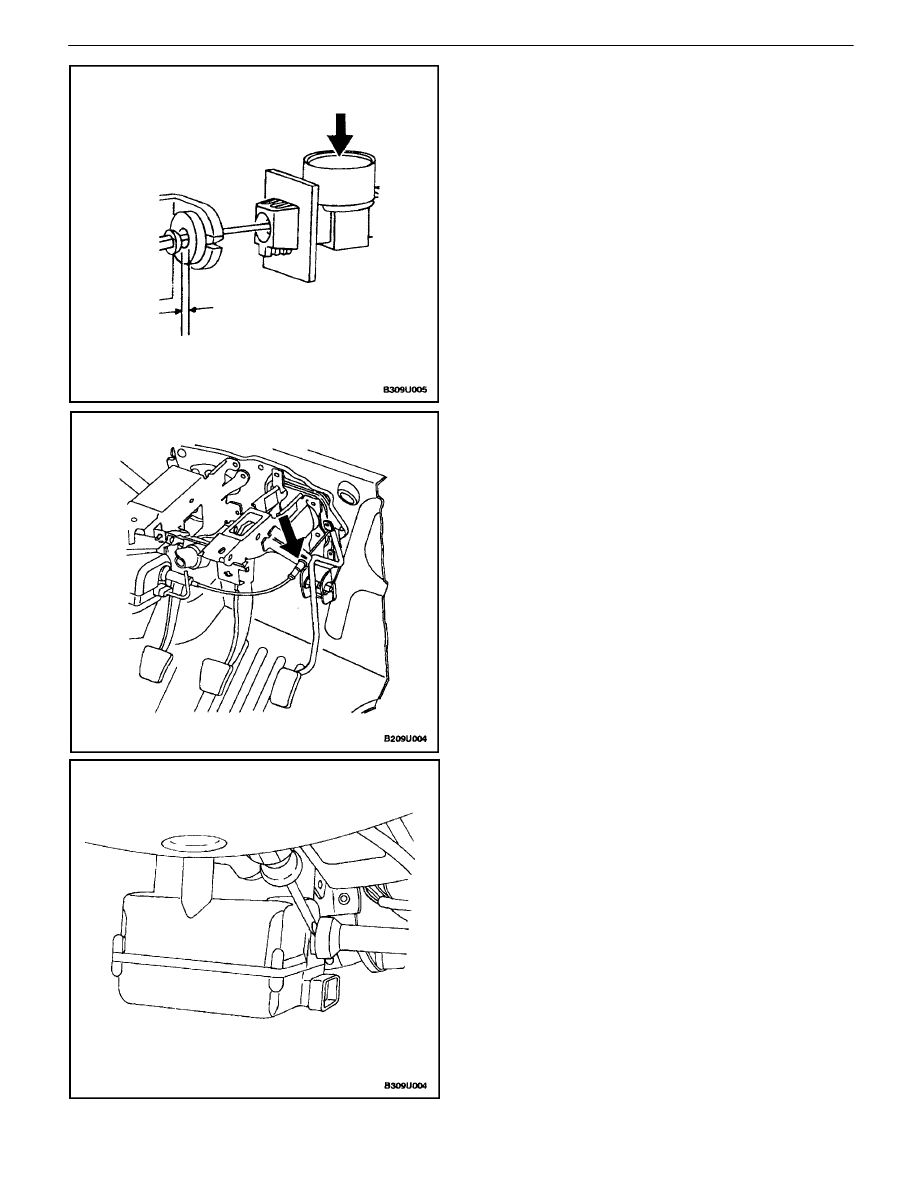

ACTUATOR CONTROL CABLE

Removal Procedure

1.  Press the release button on the cable adjuster, and

push the cable toward the adjuster until the adjuster
spring is compressed.

Notice : When the adjuster button is pressed, do not allow
the adjuster spring to expand to a length of more than 2 cm
(3/4 inch) or the adjuster rack will come out of the adjuster,
and will have to be re–inserted. To keep the adjuster in one
piece during adjustment, hold the cable when the adjuster
button is pressed.

2.  Press the retaining tabs of the cable adjuster, and

remove the adjuster from the mounting bracket.

3.  Tilt the cable housing and insert a flathead screw-

driver into one of the slots in the actuator.

4.  Tilt the cable housing toward the screwdriver, so

that the cable housing retainers will release.

9U – 16

I

CRUISE CONRTOL SYSTEM

DAEWOO V–121 BL4

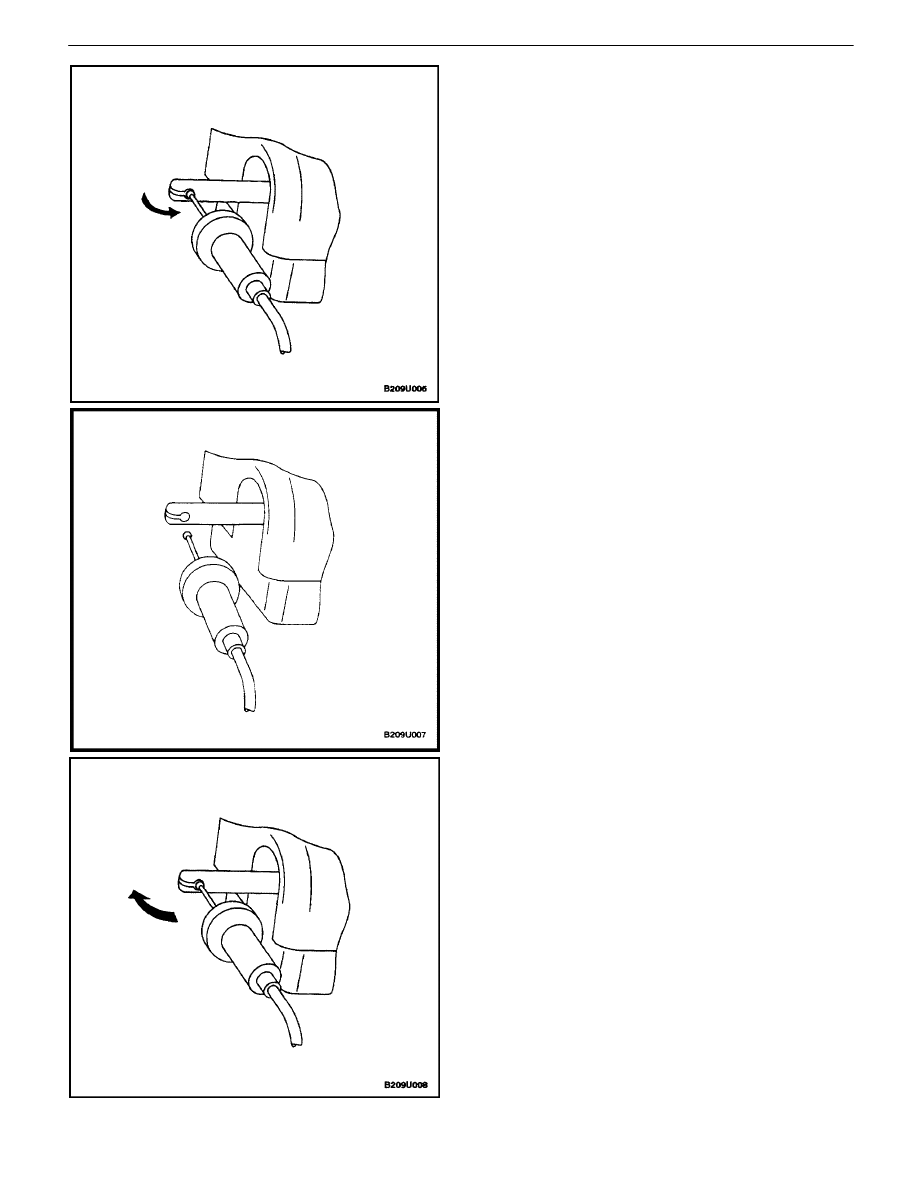

5.  Slide the sleeve and the cable out of the actuator

and rotate the cable so it can be removed from the
slot in the actuator rod.

6.  Remove the cable ball from the actuator rod.

Installation Procedure

1.  Insert the ball nipple of the cable assembly into the

slot in the actuator rod, and then rotate the cable 90
degrees.

CRUISE CONRTOL SYSTEM  9U – 17

DAEWOO V–121 BL4

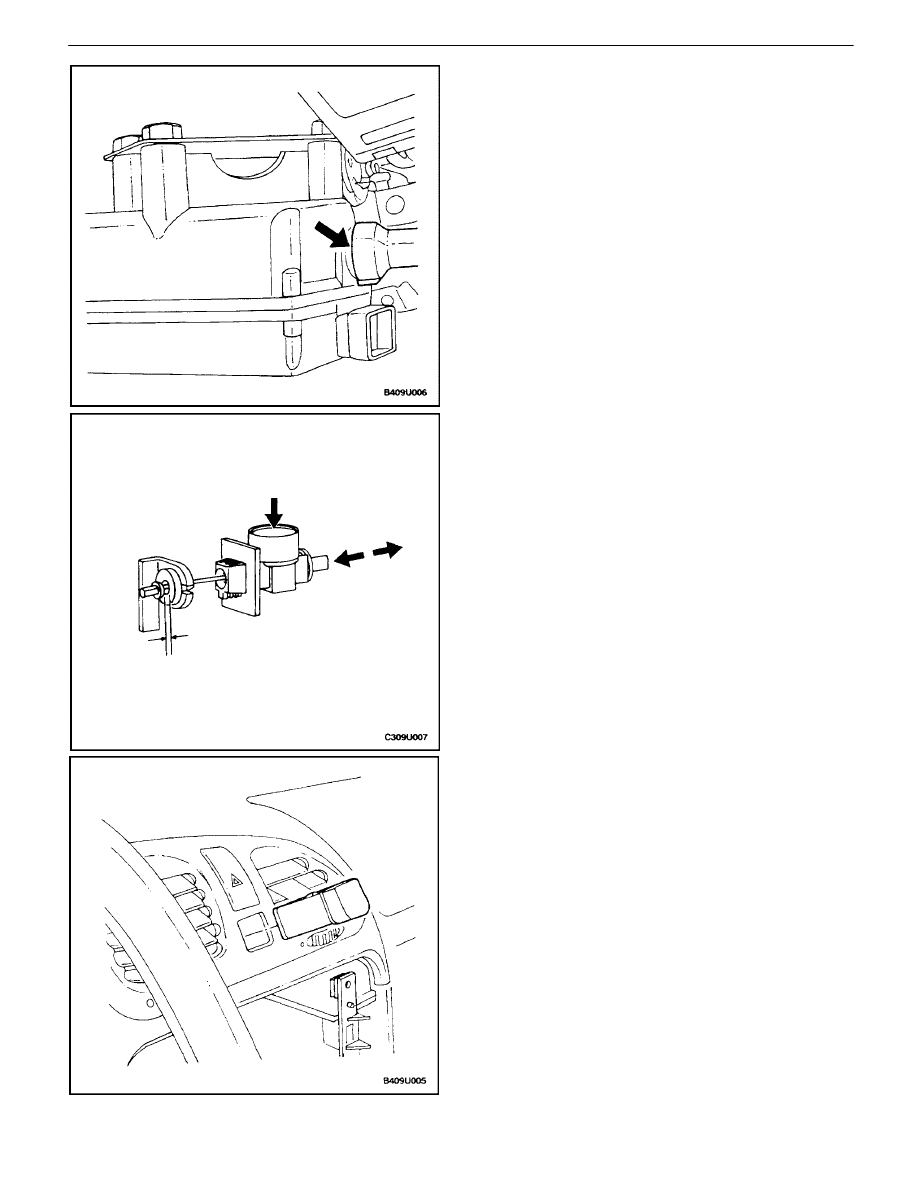

2.  Align the cable housing and push the cable housing

onto the actuator until it is locked in place by the
retainers.

3.  Insert the cable adjuster into the bracket of the ped-

al mount assembly.

4.  If the adjuster spring is not fully compressed, press

the cable release button and slide the cable into the
adjuster until the spring is fully compressed.

5.  Install the cable bushing into the pedal assembly.
6.  Press the cable release button and adjust the cable

to achieve a gap of 0.5 mm (0.02 inches) between
the bushing and the nipple of the ball.

MAIN SWITCH

Removal Procedure

1.  Remove the radio, taking care not to scratch the

instrument panel or trim with the corners of the ra-
dio case. Refer to Section 9F, Audio Systems.

2.  Reach through the radio opening in the instrument

panel and wiggle the cruise control main switch to
loosen it.

3.  Push the cruise control main switch out of the in-

strument panel.

4.  Disconnect the electrical connector from the cruise

control main switch.

9U – 18

I

CRUISE CONRTOL SYSTEM

DAEWOO V–121 BL4

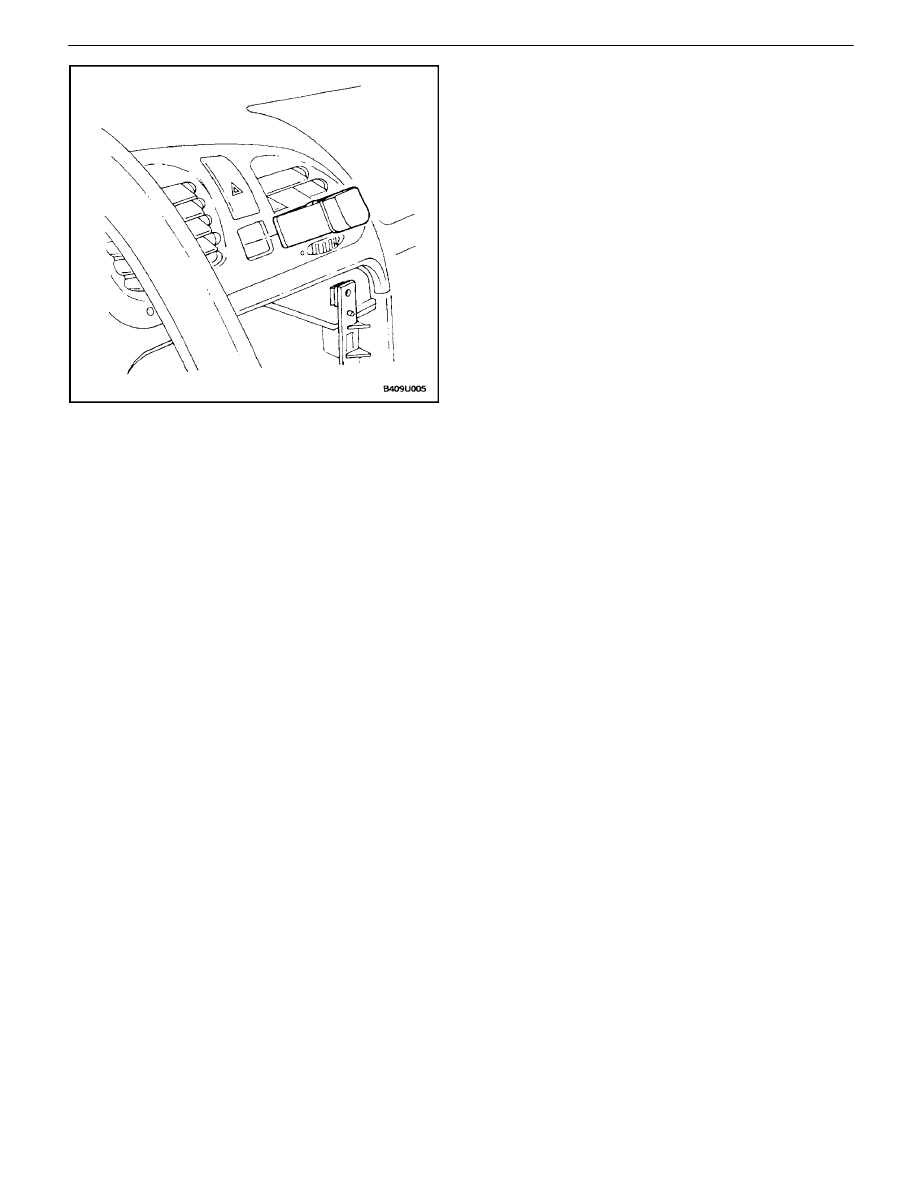

Installation

1.  Connect the electrical connector to the cruise con-

trol main switch.

2.  Push the cruise control main switch into the instru-

ment panel until it is locked in place by its retainers.

3.  Reinstall the radio, taking care not to scratch the

instrument panel or trim when installing the radio
case. Refer to Section 9F, Audio Systems.
