Daewoo Nubira. Manual - part 63

5C0 – 4

I

CLUTCH

DAEWOO V–121 BL4

COMPONENT LOCATOR

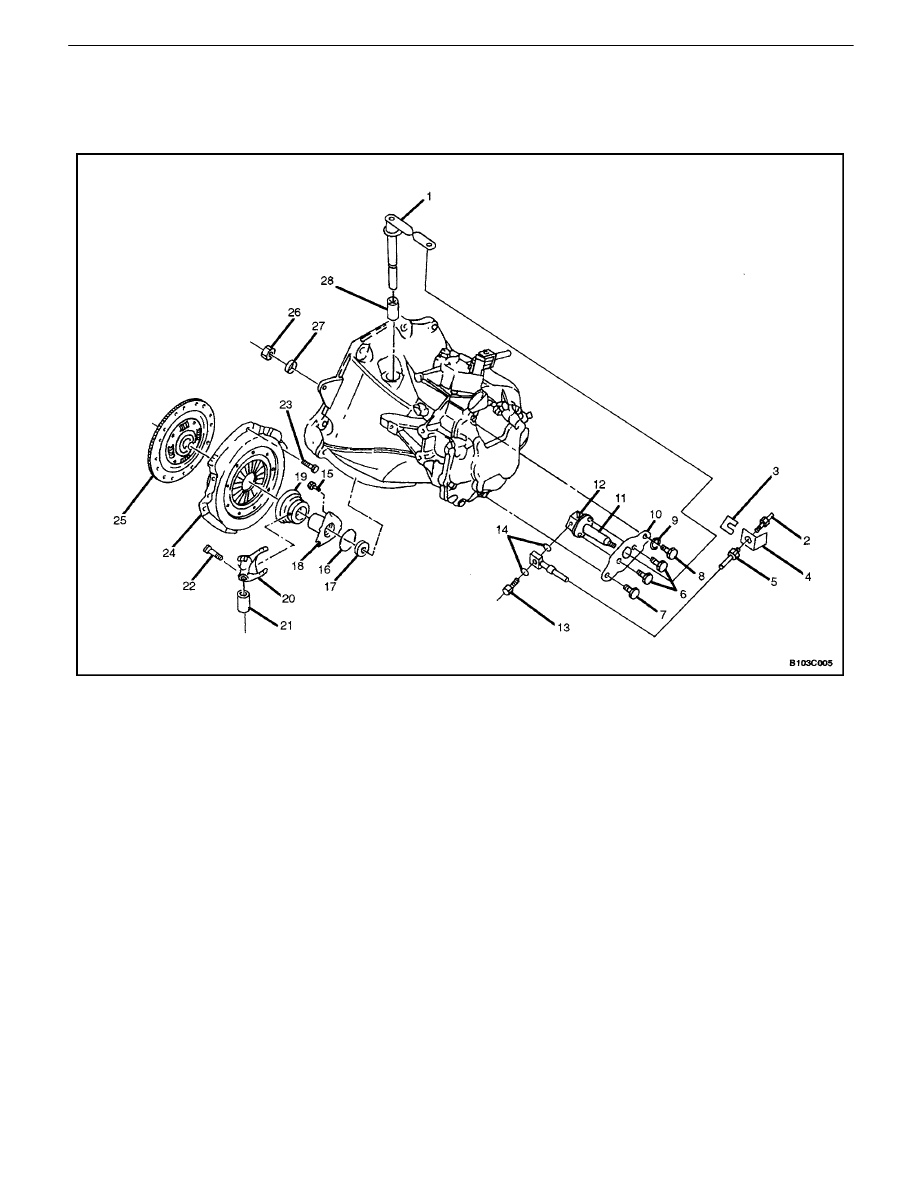

HYDRAULIC CLUTCH COMPONENTS

1. Release

Lever

2. Pipe
3. Clip
4. Clamp
5. Hose
6. Bolt
7. Bolt
8. Bolt
9. Spring

Washer

10.  Release Cylinder Bracket
11. Release Cylinder
12. Air Bleeder
13. Bolt
14. Copper Washer
15. Bolt

16. O–ring
17.  Input Shaft Seal
18. Bearing Guide Sleeve
19. Release Bearing
20. Fork
21. Bushing
22. Bolt
23. Bolt
24. Pressure Plate
25. Clutch Disc
26. Nut
27. Spring Washer
28. Bushing

CLUTCH  5C0 – 5

DAEWOO V–121 BL4

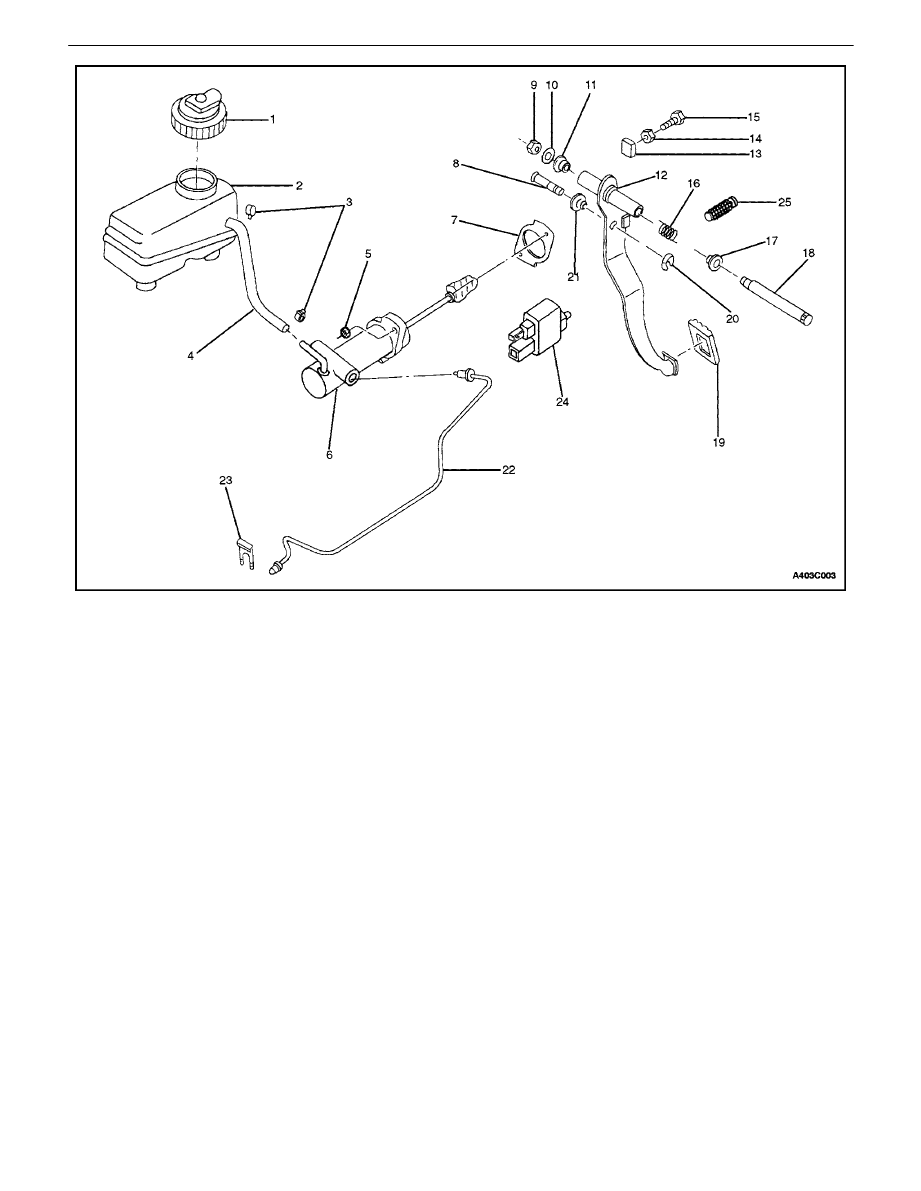

1. Reservoir

Cap

2. Clutch/Brake

Reservoir

3. Spring

Clamps

4. Reservoir

Hose

5. Nut
6. Master

Cylinder

7. Gasket
8.  Piston Rod Bolt
9. Nut
10. Washer
11.  Clutch Pedal Bushing
12. Clutch Pedal
13.  Clutch Pedal Buffer

14. Nut
15. Bolt
16. Return Spring
17.  Clutch Pedal Bushing
18.  Pedal Mounting Shaft
19.  Clutch Pedal Pad
20. Locking Washer
21.  Clutch Pedal Bushing
22.  Hydraulic Clutch Pipe
23. Clip
24.  Clutch Pedal Position Switch
25.  Clutch Pedal Position Switch Adjusting Screw

5C0 – 6

I

CLUTCH

DAEWOO V–121 BL4

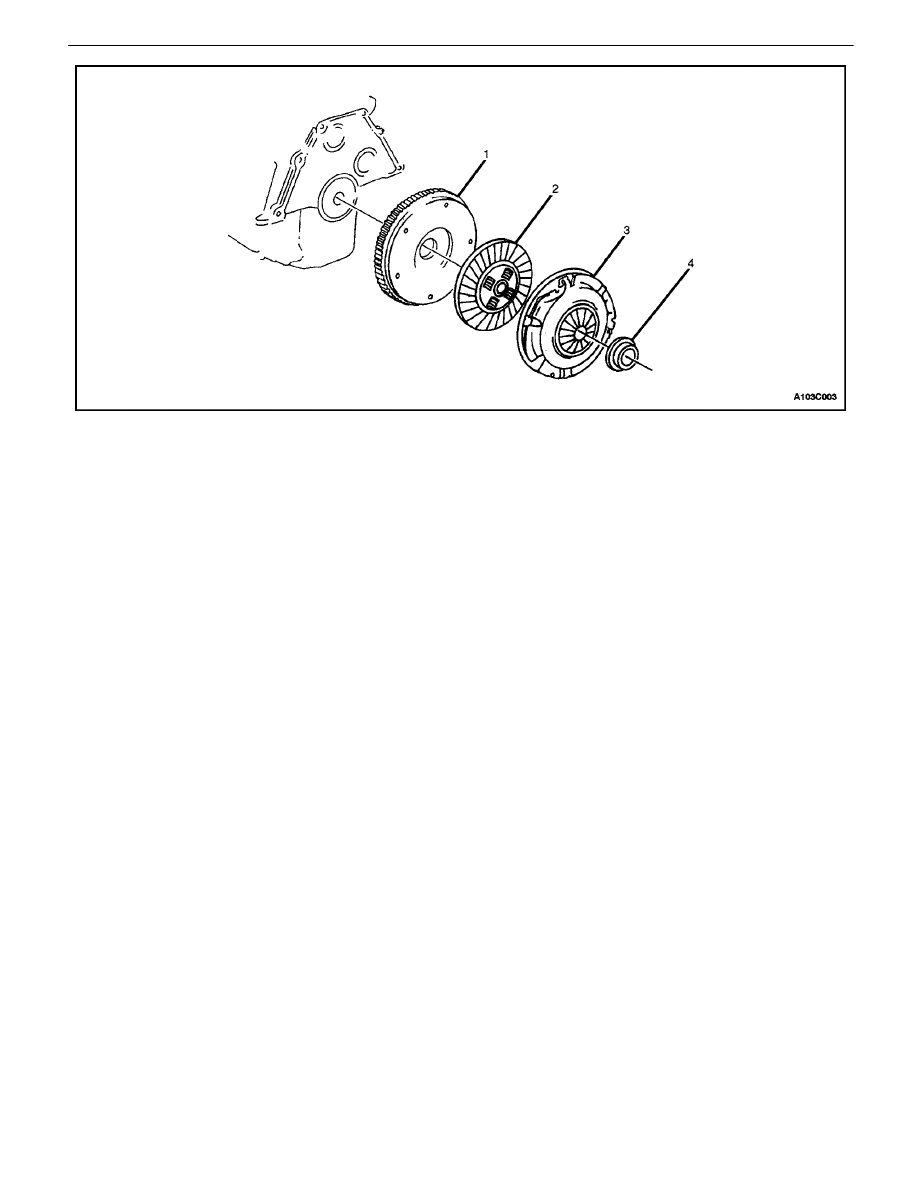

1. Flywheel
2. Clutch

Disc

3. Pressure

Plate

4. Release

Bearing

CLUTCH  5C0 – 7

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

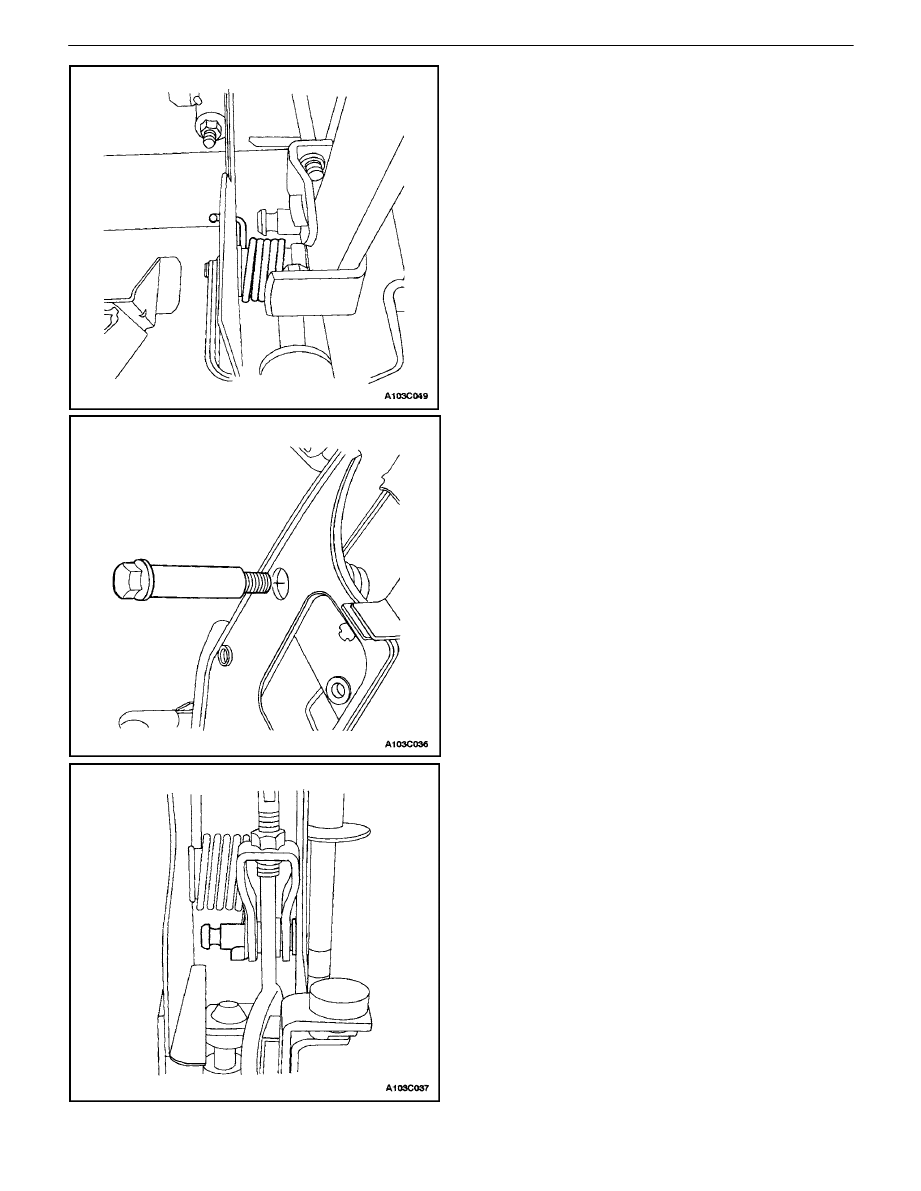

CLUTCH PEDAL

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Disconnect the return spring from the mount brace.

3.  Remove the nut, the washer, and the pedal mount-

ing shaft.

4.  Remove the locking washer and the piston rod bolt.
5.  Remove the clutch pedal with the return spring from

the vehicle.
