REAR DISC BRAKES

DAEWOO V–121 BL4

3.  Align the match marks that were made before re-

moval and install the rear wheels. Refer toSection
2E, Tires and Wheels.

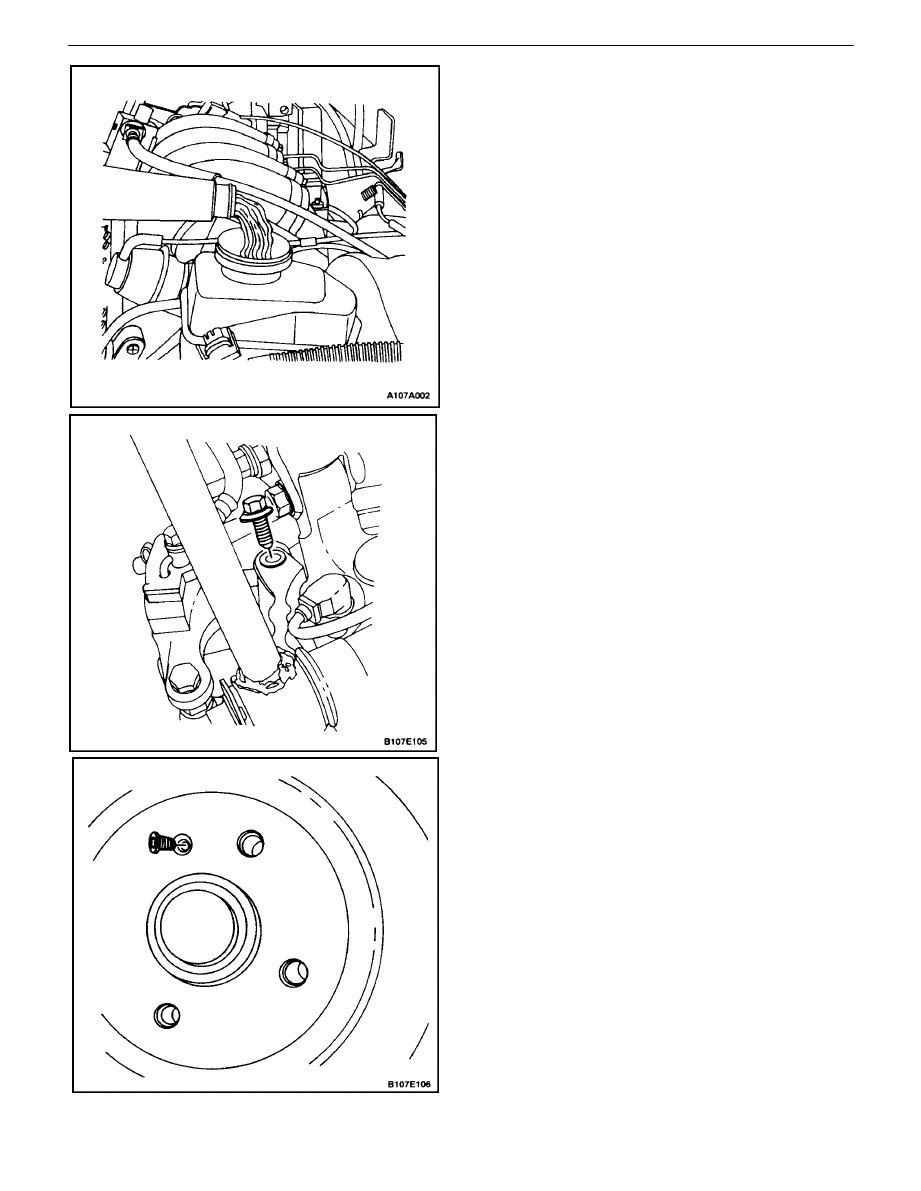

4.  Fill the master cylinder to the proper level with

clean brake fluid.

5.  Bleed the caliper. Refer toSection 4A, Hydraulic

Brakes.or Section 4F, Antilock Brakes,if applicable.

6.  Recheck the fluid level.
7.  Repeatedly press the brake pedal to bring the pads

into contact with the rotor. Do not move the vehicle
until a firm pedal is obtained.

ROTOR

Removal Procedure

1.  Raise and suitably support the vehicle.
2.  To preserve wheel balance, mark the position of the

rear wheels relative to the wheel hubs and remove
the wheels. Refer toSection 2E, Tires and Wheels.

Notice : To prevent damage to the brake hose, do not
hang the caliper from the brake hose.

3.  Remove the caliper. Refer to”Caliper”in this section.

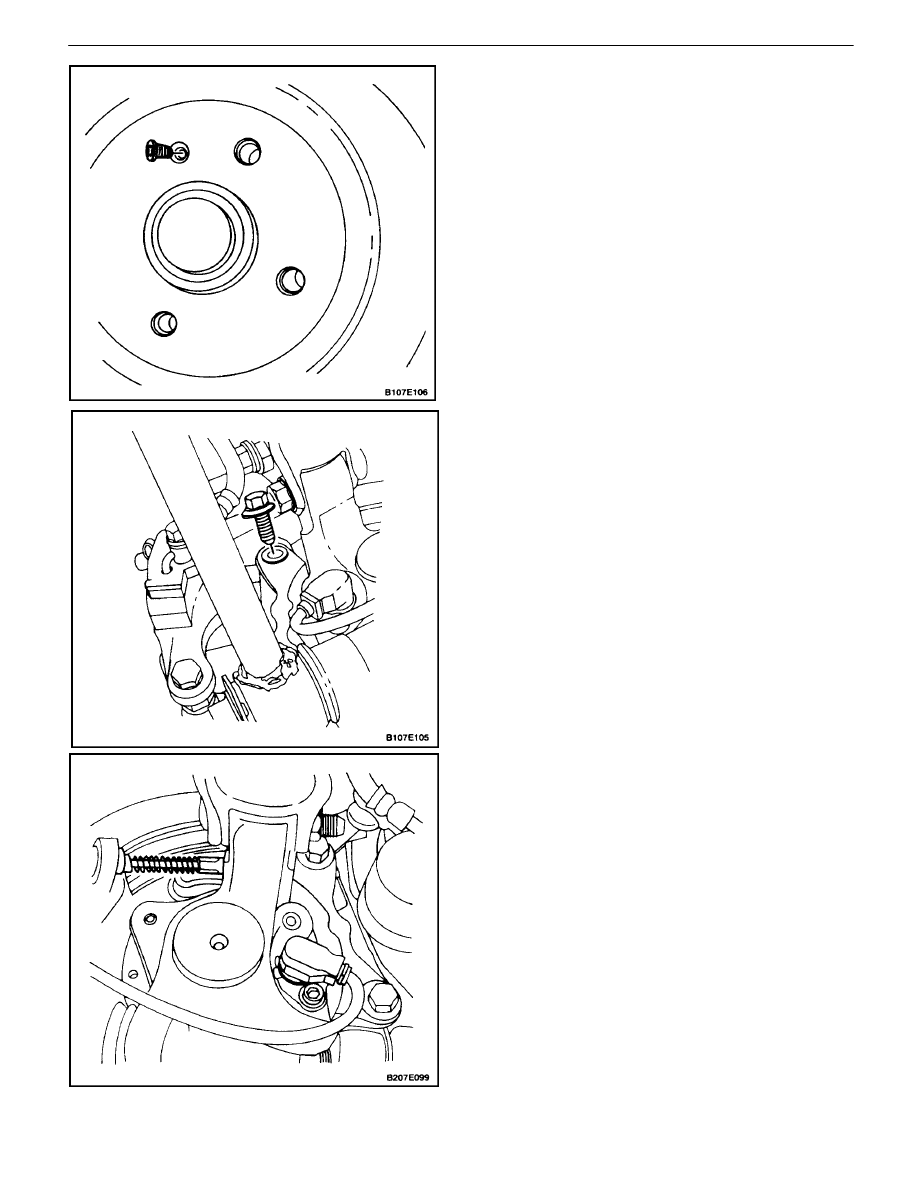

4.  Remove the caliper bracket.

5.  Remove the rotor detent screw.
6.  Remove the rotor.

REAR DISC BRAKES  4E – 7

DAEWOO V–121 BL4

Installation Procedure

1.  Inspect the rotor. Refer to”Rotor Inspection”in this

section.

2.  Install the rotor with the detent screw.

Tighten

Tighten the rotor detent screw to 4 N

S

m (35 lb–in).

3.  Install the caliper bracket.

Tighten

Tighten the caliper bracket mounting bolts to 56 N

S

m

(41 lb–ft).

4.  Install the caliper. Refer to”Caliper”in this section.
5.  Align the match marks that were made before re-

moval, and install the rear wheels. Refer toSection
2E, Tires and Wheels.

6.  Lower the vehicle.

SPLASH SHIELD/BACKPLATE AND
PARKING BRAKE LEVER

Removal Procedure

1.  Remove the rotor. Refer to”Rotor”in this section.
2.  Disconnect the parking brake cable from the brake

backplate operating lever.

4E – 8

I

REAR DISC BRAKES

DAEWOO V–121 BL4

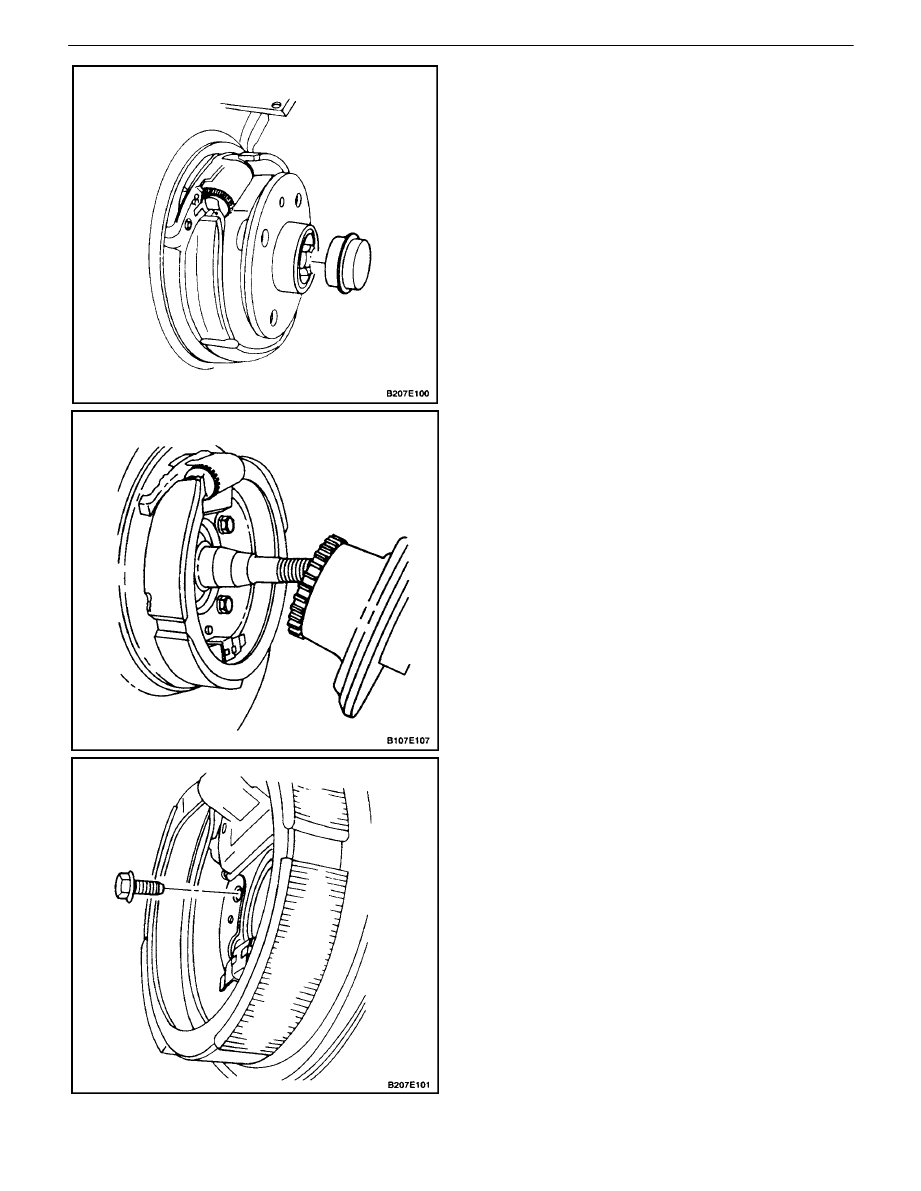

3.  Pry off the shaft dust cover.
4.  Remove the spindle shaft castle nut.

5.  Remove the wheel hub assembly from the spindle

shaft.

6.  Remove the bolts that secure the splash shield/

backplate/ parking brake shoe assembly to the
steering knuckle.

7.  Remove the splash shield/backplate/parking brake

shoe assembly from the steering knuckle.

REAR DISC BRAKES  4E – 9

DAEWOO V–121 BL4

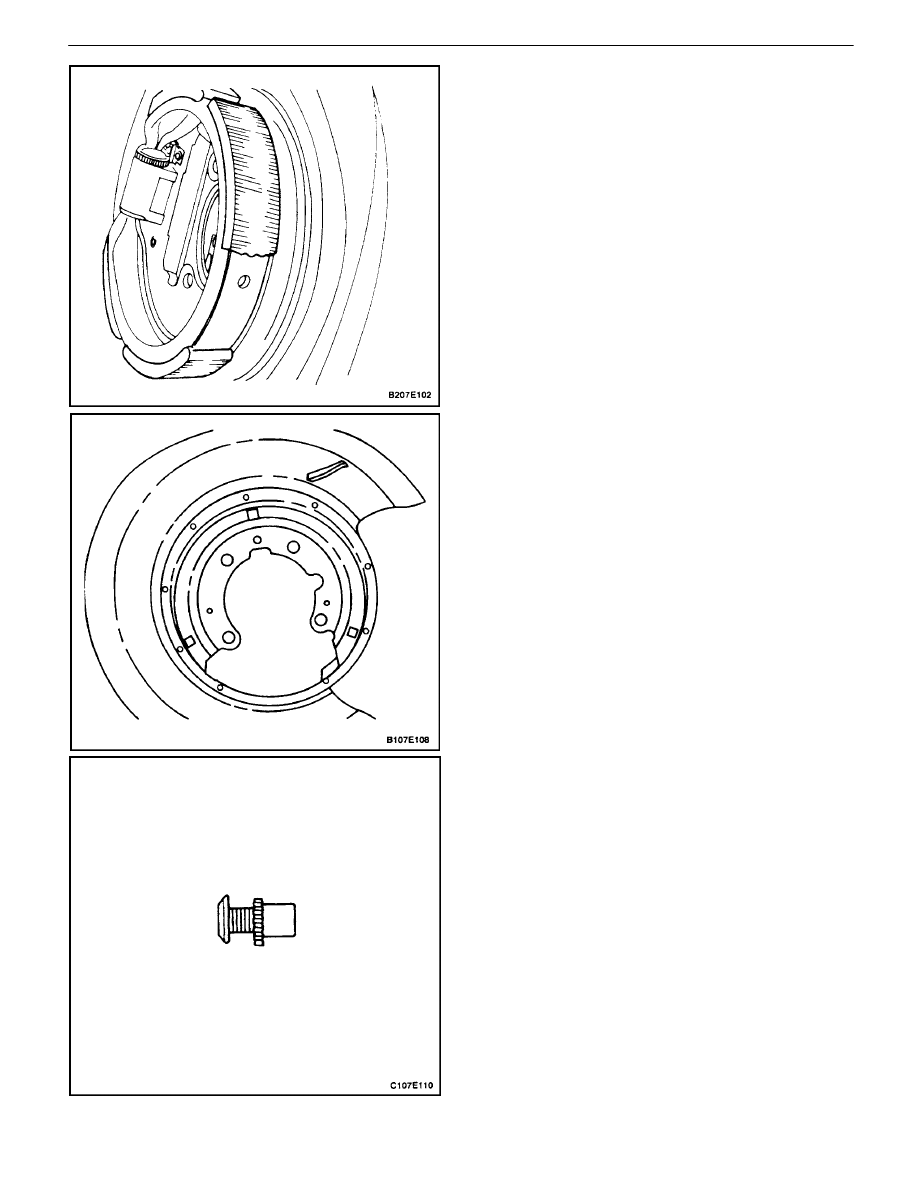

8.  Remove the screw that secures the parking brake

shoe hold–down spring assembly to the backplate.

9.  Remove the parking brake shoe, sliding it away

from the actuation mechanism.

10.  Remove the splash shield.

11.  Remove and discard the adjuster screw and the

nut.
