2.6 INSPECTION OF TOE-OUT WHEN TURNING

Measuring the toe-out while the vehicle is turning

(especially for vehicles with two steerable front

axles or a leading rear axle) is a method of

inspecting the setting of the steering gear.

During this measurement, the inside wheel of the

front steerable axle is turned 30

 inwards. The

wheel deflections of the other steerable wheels

are then measured.

Work safely and block the vehicle so

that it cannot slide off the turning

plates.

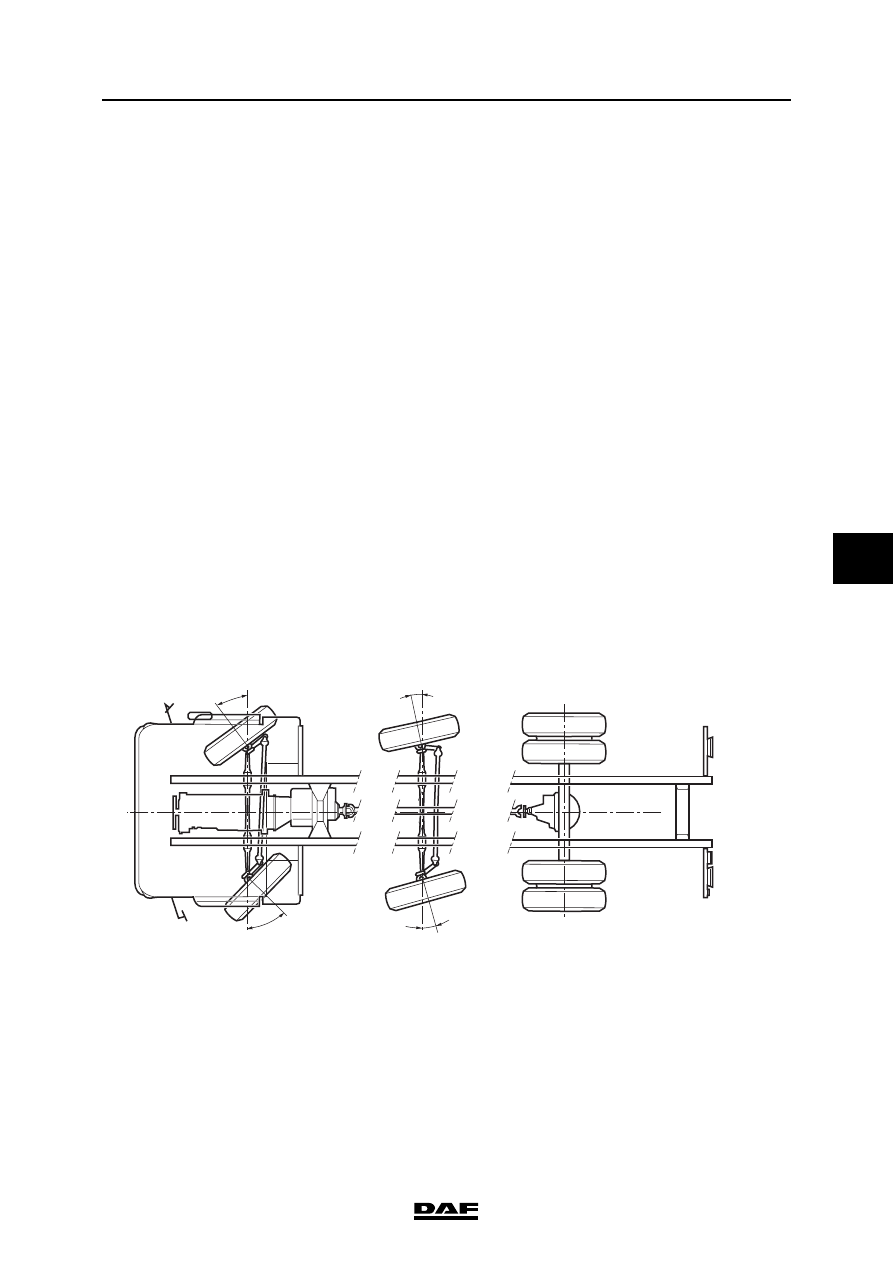

Inspection of toe-out when turning
1.

Engage the vehicle's parking brake and

place chocks in front of and behind the rear

wheels.

2.

Jack up the steerable axles and place

turning plates under the centre of the wheels.

Only use turning plates which allow for wheel

displacement caused by the wheel offset.

3.

Place the wheels in the "straight ahead"

position and lower them until they rest on the

turning plates. Set the turning plates to zero

degrees.

4.

Turn the steering wheel until the inside wheel

of the front steerable axle (wheel 1 in the

drawing) reaches a 30

 angle.

5.

Fix the steering wheel in this position and

note down the wheel deflections of the

remaining steerable wheels.

6.

Carry out this measurement on both the left

and the right side.

}

S7 00 124

1

3

4

2

FRONT AXLE/LEADING REAR AXLE

2-12

©

 200423

Inspection and adjustment

6

ΧΦ65/75/85 series

7

7.

For the correct values, see 'Technical data'.

If a large deviation is measured, the cause

should be traced. Inspect the wheel

deflection using wheel alignment equipment.

The deviation may, for example, have been

caused by a collision, during which

components were bent. If so, the remaining

steering gear components should be

inspected carefully.

©

 200423

2-13

Inspection and adjustment

FRONT AXLE/LEADING REAR AXLE

ΧΦ65/75/85 series

7

6

2.7 INSPECTION AND ADJUSTMENT, STEERING ROD

Work safely and block the vehicle so

that it cannot slide off the turning

plates.

Inspecting the steering rod adjustment
1.

Engage the vehicle's parking brake and

place chocks in front of and behind the rear

wheels.

2.

Jack up the steerable axle and place turning

plates under the wheels.

Only use turning plates which allow for wheel

displacement caused by the wheel offset.

3.

Place the wheels in the "straight ahead"

position and lower them until they rest on the

turning plates.

4.

Measure the (mis)alignment of the wheel to

which the steering rod is connected. This can

be done using wheel alignment equipment or

by measuring the distance from the wheel

rim to the spring leafs at the front and rear of

the wheel. The distances at the front and rear

of the wheel should be equal.

5.

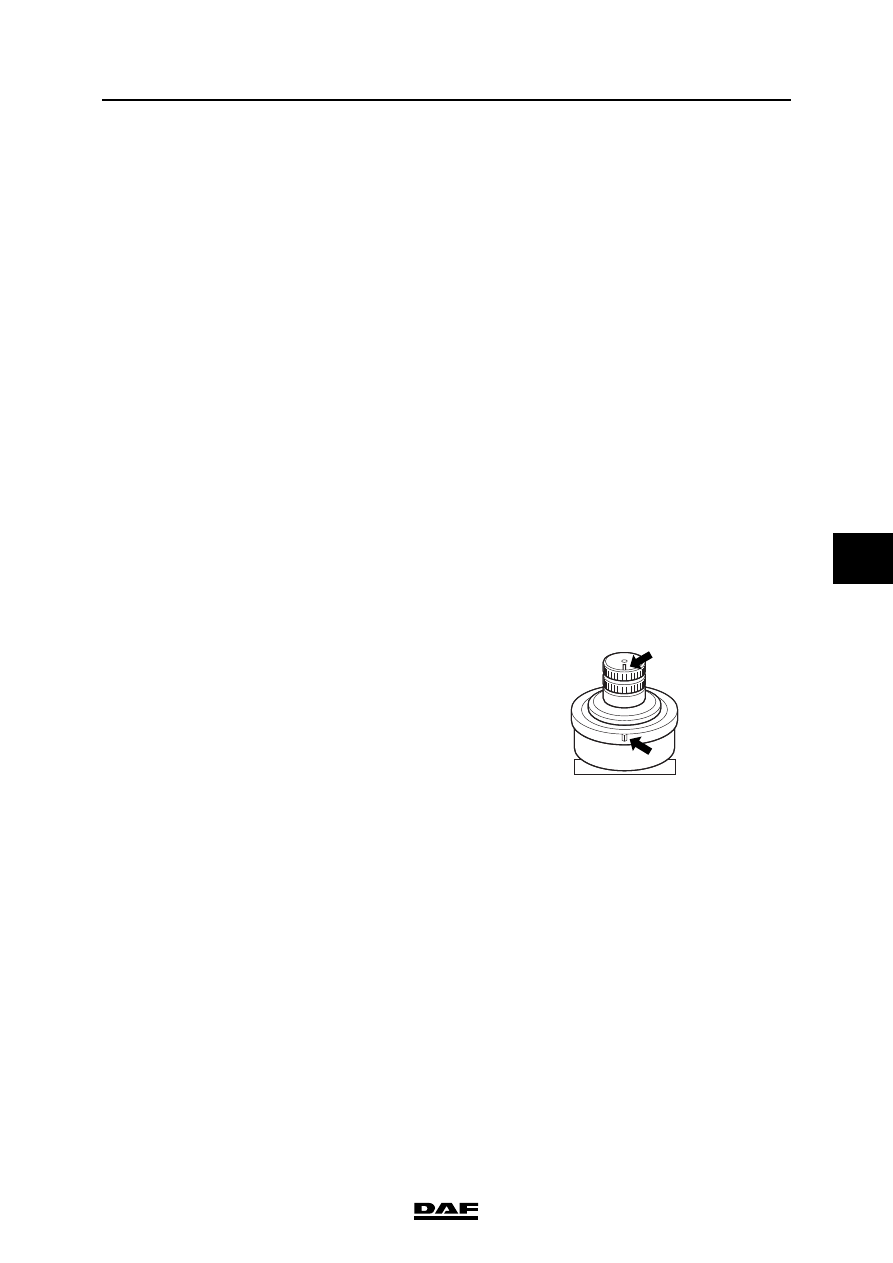

Check using the markings (A) and (B) on the

steering box that the input shaft of the

steering box is in the central position. For the

permitted deviation, see 'Technical data'.

6.

Adjust the steering rod length, if the values

deviate too much.

If a large deviation is measured, the cause

should be traced.

The deviation may, for example, have been

caused by a collision, during which

components were bent. If so, the remaining

steering gear components should be

inspected carefully.

Adjusting the steering rod
1.

Loosen the bolt of the clamping bracket on

the steering rod.

2.

Remove the steering rod from the steering

rod arm. See 'Removal and installation'.

}

S7 00 861

A

B

FRONT AXLE/LEADING REAR AXLE

2-14

©

 200423

Inspection and adjustment

6

ΧΦ65/75/85 series

7

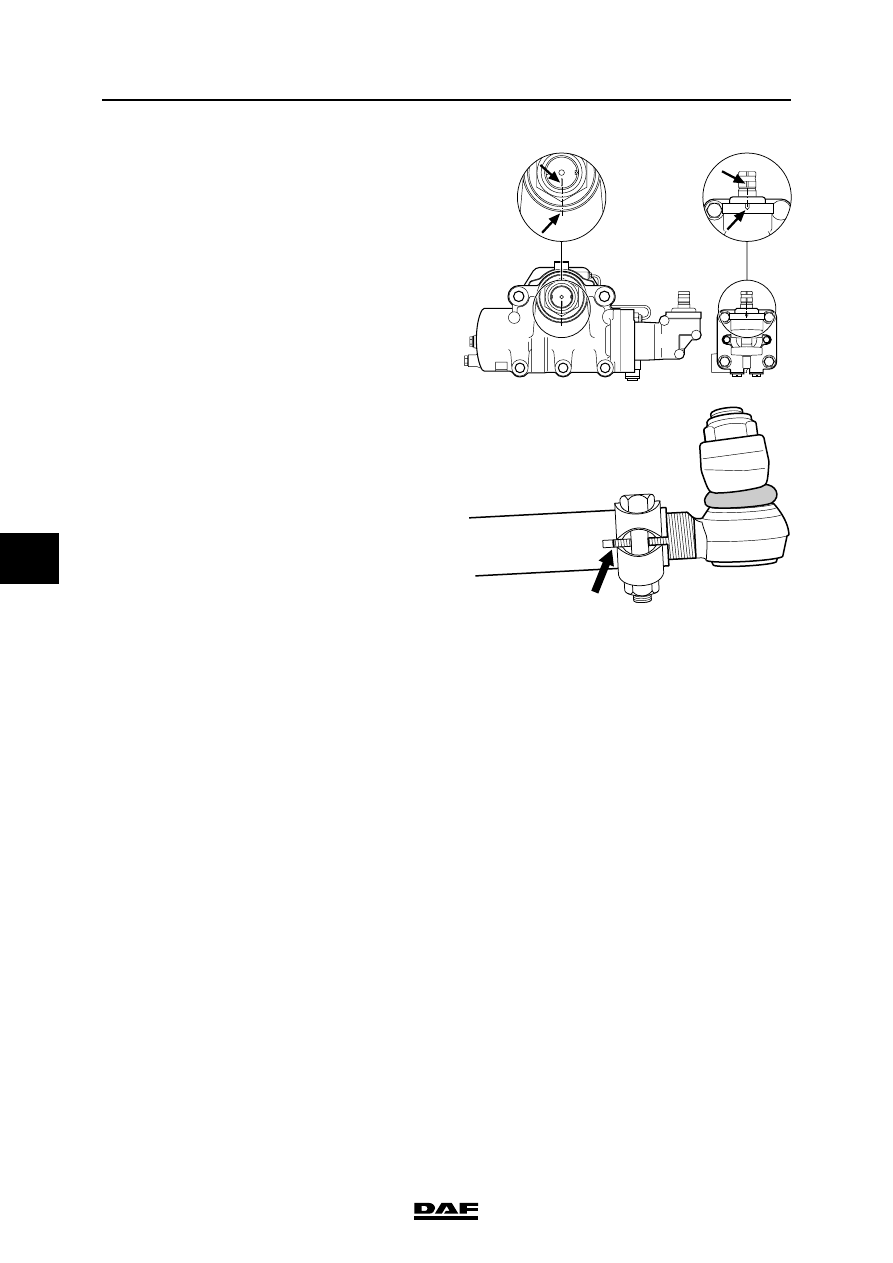

3.

Place the steering box in the centre position

by aligning the markings.

4.

Set the correct length of the steering rod by

screwing the ball end in or out.

If the vehicle is unloaded, turn the ball end

one additional turn.

Make sure that the threaded end of the ball

end is not pushed too far from the steering

rod. The clamping bracket should always

fully engage the screw thread of the ball end

(see drawing).

Note:

If the length is not correct because the ball

end can only be rotated one full turn, get as

close as possible to the correct length. A

steering rod that is too long is preferable to a

steering rod that is too short.

5.

Inspect the thread of the ball end for

damage.

Fitting a new self-locking nut to a

ball end with a damaged thread may

lead to dangerous situations.

6.

Install the steering rod in the steering rod

arm. See 'Removal and installation'.

7.

Thoroughly clean and check the clamping

bracket bolt. A corroded or damaged bolt

must be replaced.

Replace the self-locking nut.

8.

Tighten the clamping bracket bolt to the

specified tightening torque. See 'Technical

data'.

9.

Check the steering wheel position when it is

in the "straight ahead" position. If necessary,

adjust the position by changing the position

of the steering wheel on the steering shaft.

10. Calibrate the EMAS system in case of a

steered trailing swivel axle.

S7 00 024
