General

FRONT AXLE/LEADING REAR AXLE

ΧΦ65/75/85 series

7

6

To make certain that the toe-out when turning is

correct, the construction of the track rod and the

track rod arms should comply with a certain

principle: the Ackermann principle. According to

the Ackermann principle it should be possible to

draw an imaginary line from the centre of the king

pin right through the centre of the track rod ball

joint to the centre of the rear axle(s).

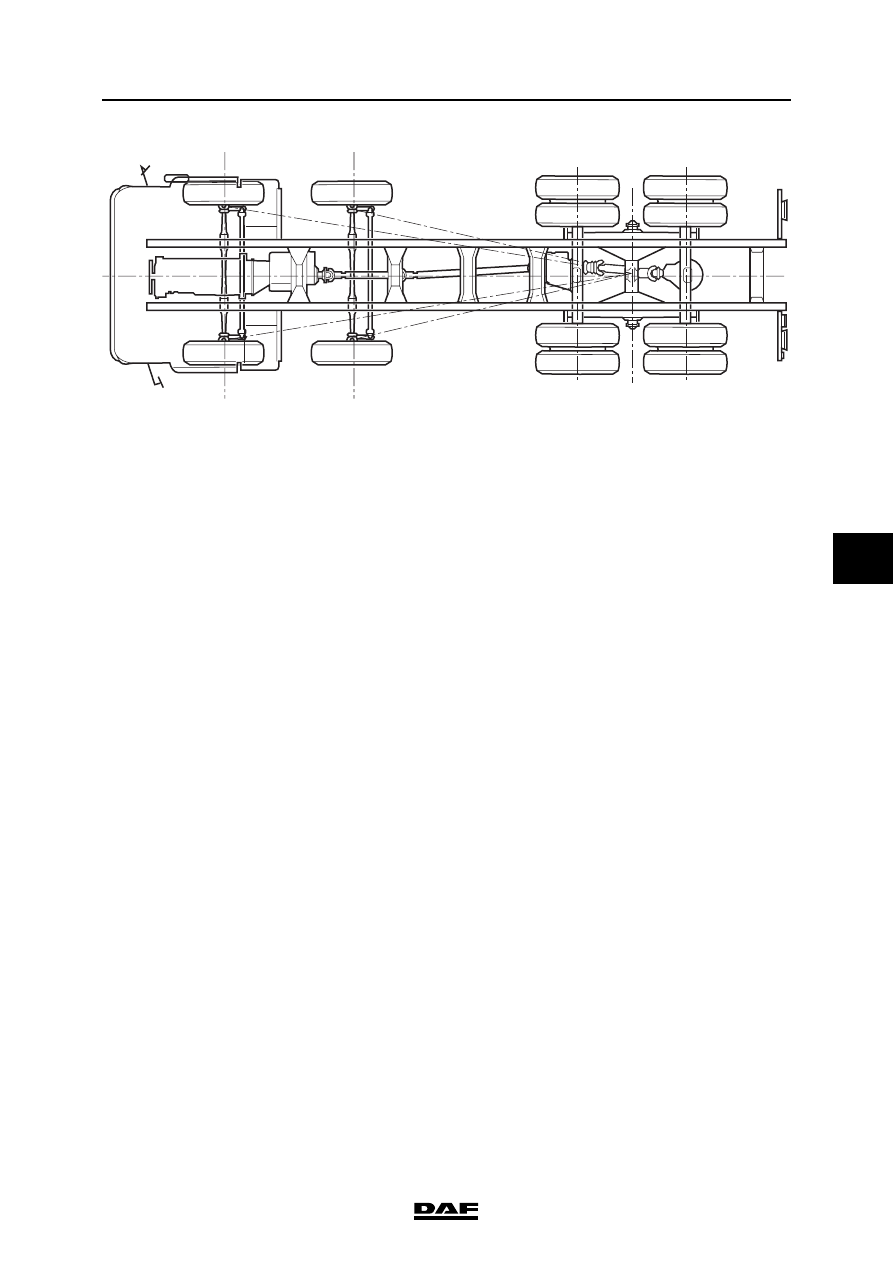

The drawing clearly shows that in vehicles with

two steerable axles, both axles should comply

with the Ackermann principle. By trying different

track rods and track arms, it is possible to comply

as closely as possible with the Ackermann

principle.

If the wheelbase has been shortened or extended

it may be necessary to adjust the track rod and

track arms in order to comply with the Ackermann

principle.

The toe-out when turning cannot be adjusted.

However, it is possible and necessary to check

and adjust the maximum wheel deflection of the

inside wheel, to prevent the tyres from chafing

against certain components.

Once the maximum wheel deflection is set, this

will also determine the deflection for the other

wheel or wheels, if the vehicle concerned has two

steerable axles.

S7 00 123

FRONT AXLE/LEADING REAR AXLE

1-10

©

 200423

General

6

ΧΦ65/75/85 series

7

Wheel alignment in vehicles with multiple
steerable axles
To prevent premature tyre wear, all wheels

should be aligned while the vehicle is driving

straight ahead. If the wheels are misaligned, the

wheels of vehicles with multiple steerable axles

will be particularly prone to abnormal and

premature wear. Misalignment of steerable

wheels can be caused by various factors.

It may happen, however, that the steerable

wheels are properly aligned but that other factors

have caused abnormal tyre wear.

The main cause of this phenomenon should be

sought in the axle suspension, especially

suspension of the rear axle(s).

©

 200423

2-1

Inspection and adjustment

FRONT AXLE/LEADING REAR AXLE

ΧΦ65/75/85 series

7

6

2. INSPECTION AND ADJUSTMENT

2.1 INSPECTION AND ADJUSTMENT, SWIVEL AXLE PLAY

Inspection of swivel axle play
1.

The vehicle should have its wheels on the

ground.

Note:

If the wheels have been removed from the

front axle, e.g. for overhaul purposes, the

swivel axle will hang at the axle end.

In that case, the swivel axle should be

supported by a jack, pushing the swivel axle

against the bottom of the axle end.

2.

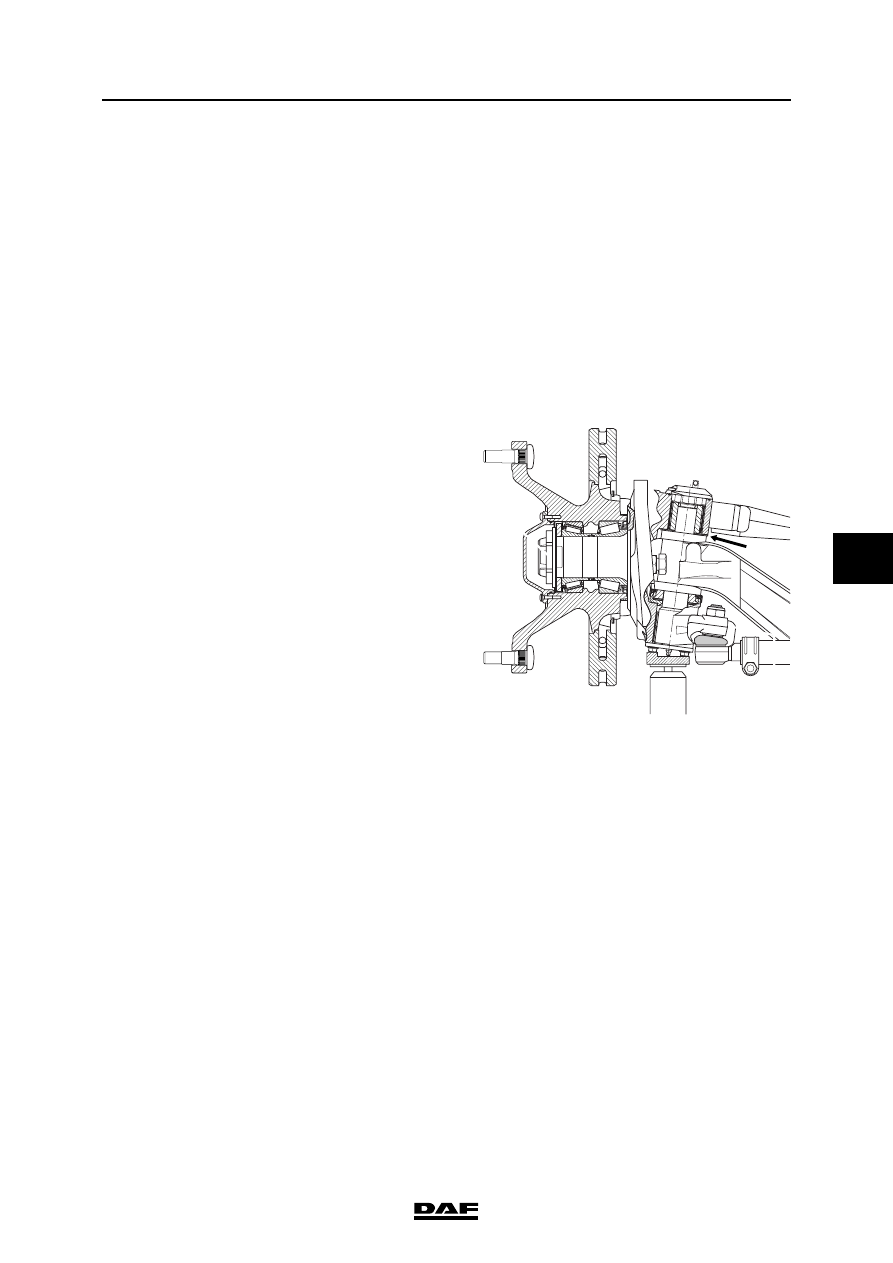

Using a feeler gauge measure the distance

between the shim and the swivel axle at (A).

Take measurements in several places.

Compare the reading with the admissible

play. See 'Technical data'.

Note:

The play should be about equal along the

entire circumference of the axle end. If the

play is not equal, this is caused by radial play

in the needle bearings. If the radial play of

one of the values measured along the

circumference differs from the specified

value, the needle bearings should be

replaced, see the chapter 'Removal and

installation'.

If an excessive axial play is measured along

the entire circumference of the axle end, this

is probably caused by a worn swivel axle

thrust bearing.

Adjusting the swivel axle play, thrust bearing,
split version
1.

Remove the swivel axle from the axle end.

See 'Removal and installation'.

2.

Degrease and clean the thrust bearing.

3.

Check the thrust bearing for wear or

damage. If in doubt, replace the thrust

bearing.

4.

Check the machined surfaces of the axle end

and the swivel axle for damage.

A

S7 00 579

FRONT AXLE/LEADING REAR AXLE

2-2

©

 200423

Inspection and adjustment

6

ΧΦ65/75/85 series

7

5.

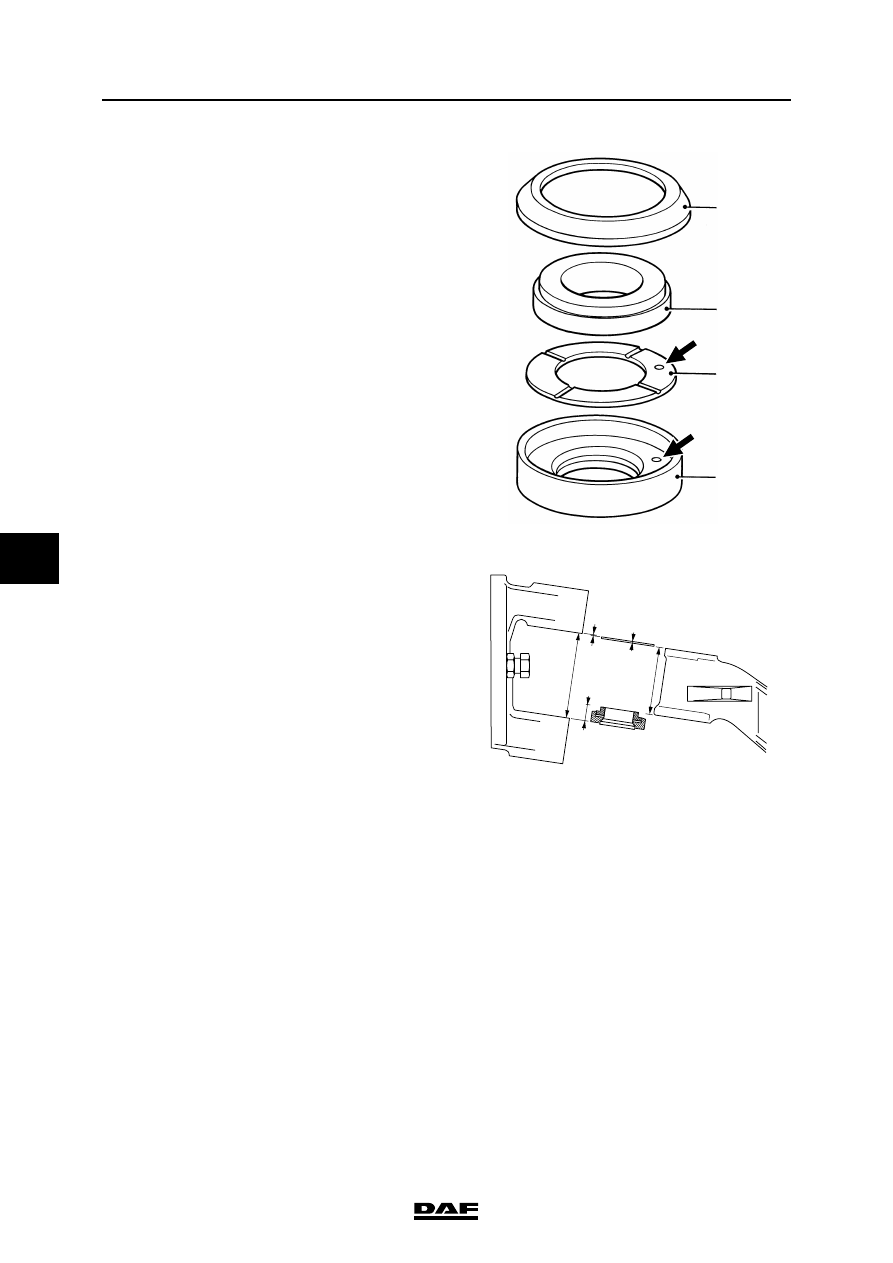

Remove the dust seal (1) from the thrust

washer (2).

6.

Assemble the thrust bearing without

greasing it and without the dust seal (1).

Make sure that the cam at the bottom of the

bearing ring (3) falls in the recess of shoulder

ring (4). See the arrows in the drawing.

7.

Fit the swivel axle with its original shim on the

axle end.

8.

Fit the king pin. Hand tighten the nut.

9.

Place a jack under the swivel axle, pushing

the thrust bearing against the axle end.

10. Using a feeler gauge measure the gap

between the shim and the swivel axle.

If necessary, use a shim with a different

thickness until the specified axial play is

achieved. See 'Technical data'.

Note:

The shim thickness can also be determined

using the formula in the drawing.

S7 00 114

3

2

1

4

S7 00 815

B

D

A

A=B-(C+D+E)

E

C

A

= shim thickness

B

= distance between the swivel axle

contact surfaces

C

= total thickness of the thrust bearing

without the dust seal

D

= axle end dimensions

E

= play
