DAF CF65, CF75, CF85 Series . Manual - part 916

©

 200423

3-13

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΧΦ65/75/85 series

6

5

9.

Fit the wheels and wheel nuts and
tighten the nuts evenly, in the correct order.
See group 7 of the workshop manual.

10. Adjust the brakes. See "Inspection and

adjustment".

11. Remove the jack and chocks from the rear

wheels. If the spring brake cylinder was
mechanically released, the release bolt
should be screwed back in and tightened to
the specified torque. See "Technical data".
The pressure in the spring brake cylinder
circuit should be at least 5 bar.

BRAKE SYSTEM AND COMPONENTS

3-14

©

 200423

Removal and installation

5

ΧΦ65/75/85 series

6

3.8 REMOVAL AND INSTALLATION, BRAKE SHOES 1354, 1355T REAR AXLE

Removal, brake shoes
1.

Remove the brake drum.

2.

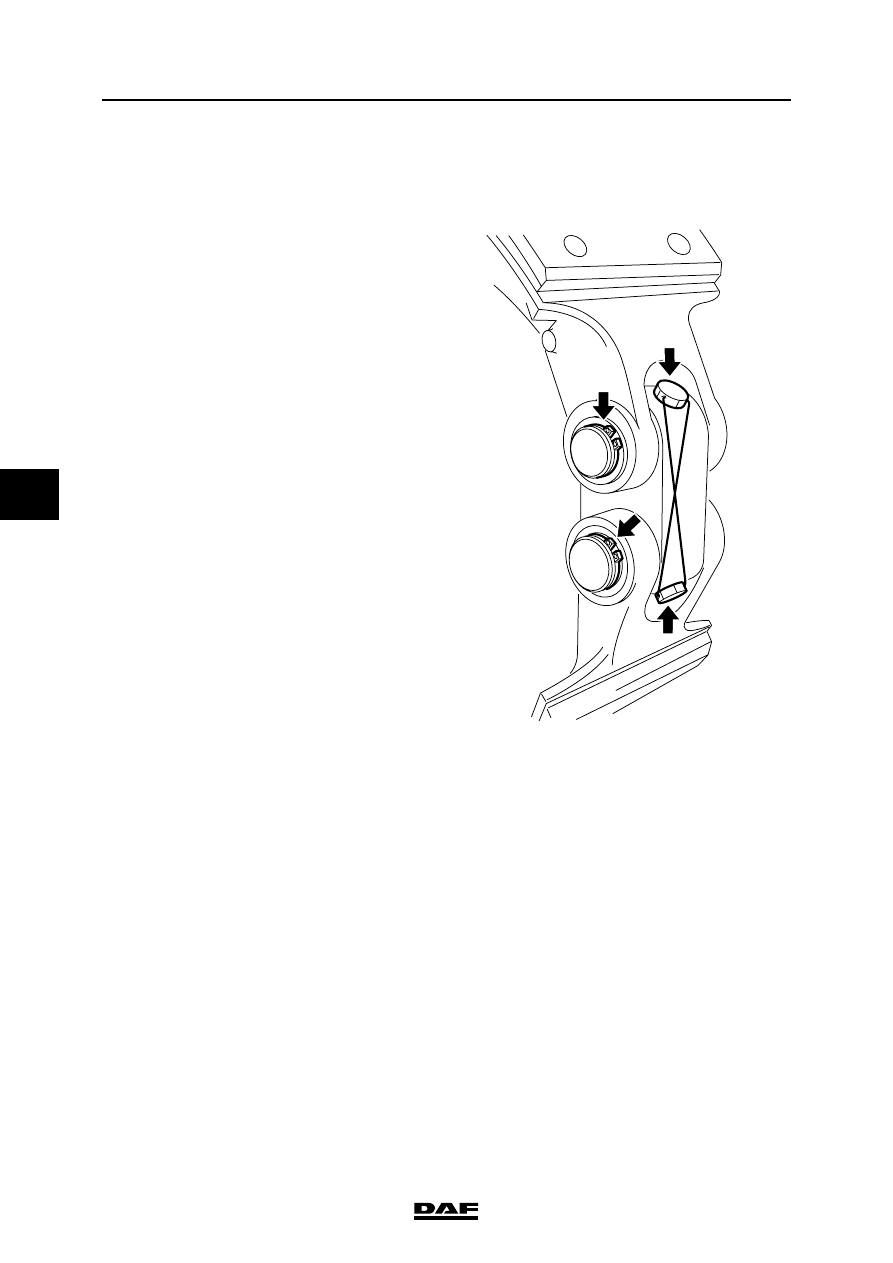

Remove the circlips, felt rings and sealing
rings from one side of the brake shoe.

3.

Remove the lock bolts or lock studs from the
anchor pins.

R600145

©

 200423

3-15

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΧΦ65/75/85 series

6

5

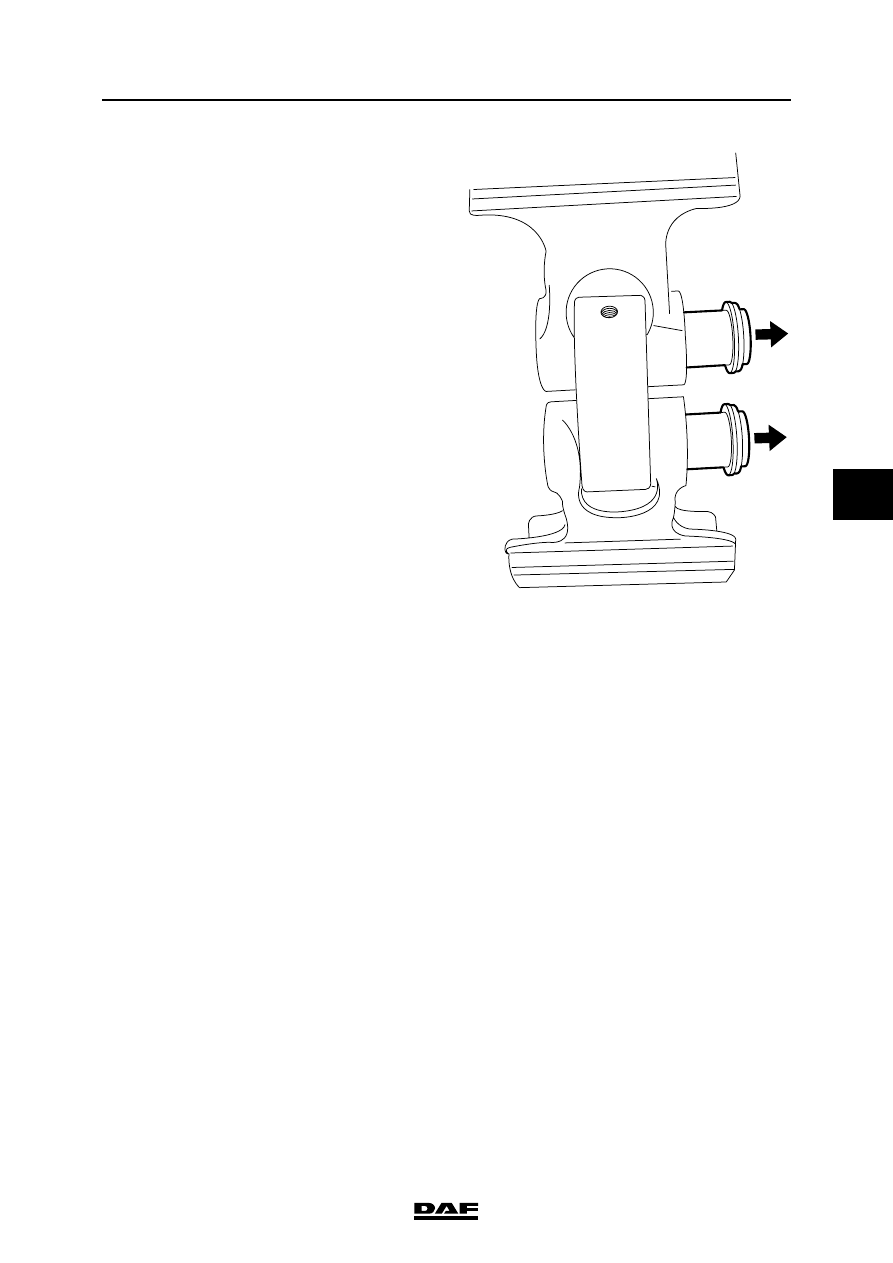

4.

Remove the anchor pins.

5.

First remove the bottom brake shoe
by moving it outwards from the anchor pin
holes.

6.

Unhook the return spring, and remove the
upper brake shoe.

Installation, brake shoes
1.

Clean all parts.

2.

Lubricate the anchor pins, cam rollers and
contact surfaces of the brake shoes with
Copaslip.

3.

Fit the return spring in the brake shoes.

4.

First fit the upper brake shoe in position,
then the lower shoe.

5.

Remove the anchor pins. Ensure that the
flattened section is placed beneath the bore
in the back plate.

6.

Fit the felt ring, sealing ring and circlip to the
anchor pin.

7.

Lock the anchor pins with the locking screw
and fit the locking wire, or lock the anchor
pins using a stud.

8.

Fit the dust plates.

9.

Fit the brake drum.

R600146

BRAKE SYSTEM AND COMPONENTS

3-16

©

 200423

Removal and installation

5

ΧΦ65/75/85 series

6

3.9 REMOVAL AND INSTALLATION, BRAKE SHOES FOR 09N044 LEADING

REAR AXLE

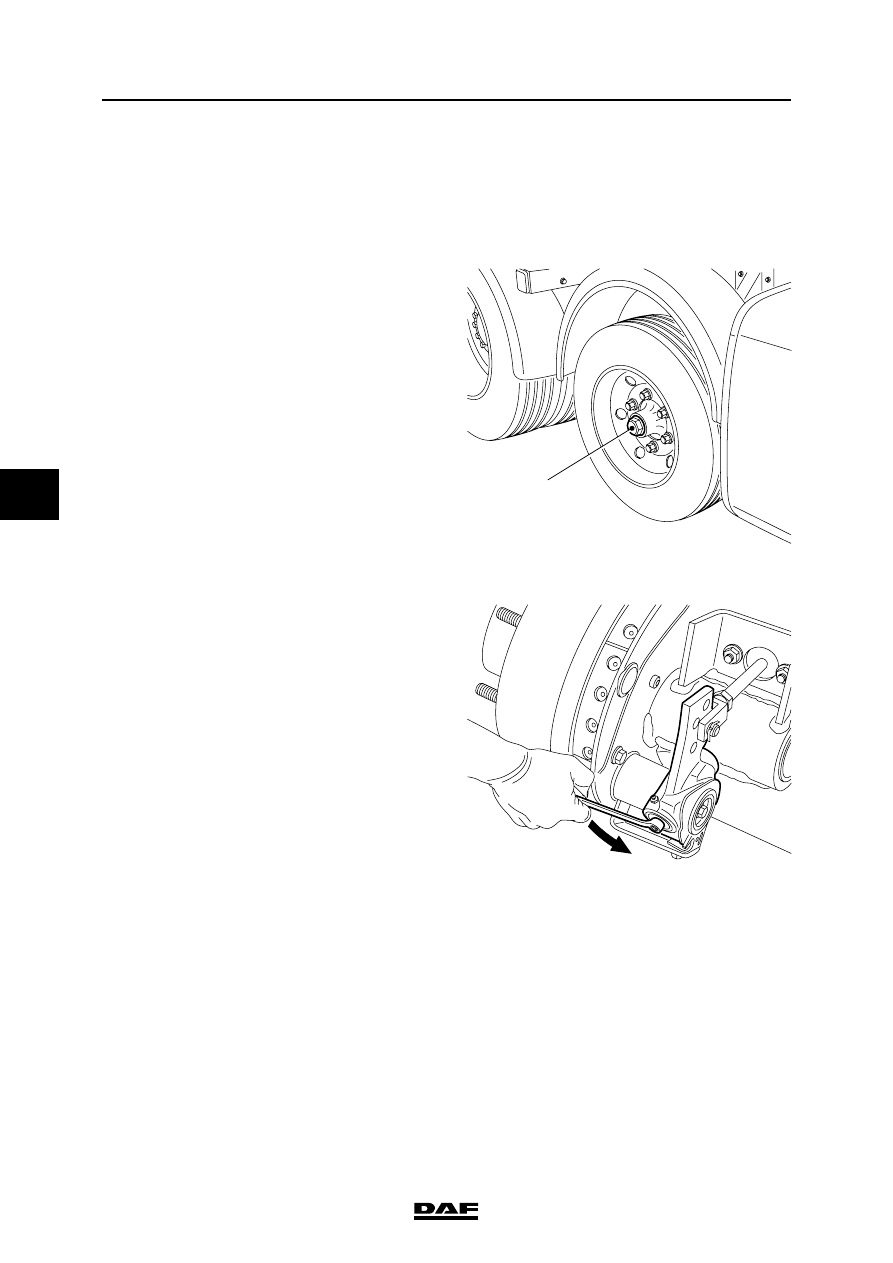

Removing brake shoes for 09N044 leading
rear axle
1.

Remove the hub cap.

2.

Turn the brake shoes back.

R600636

1

R600637
