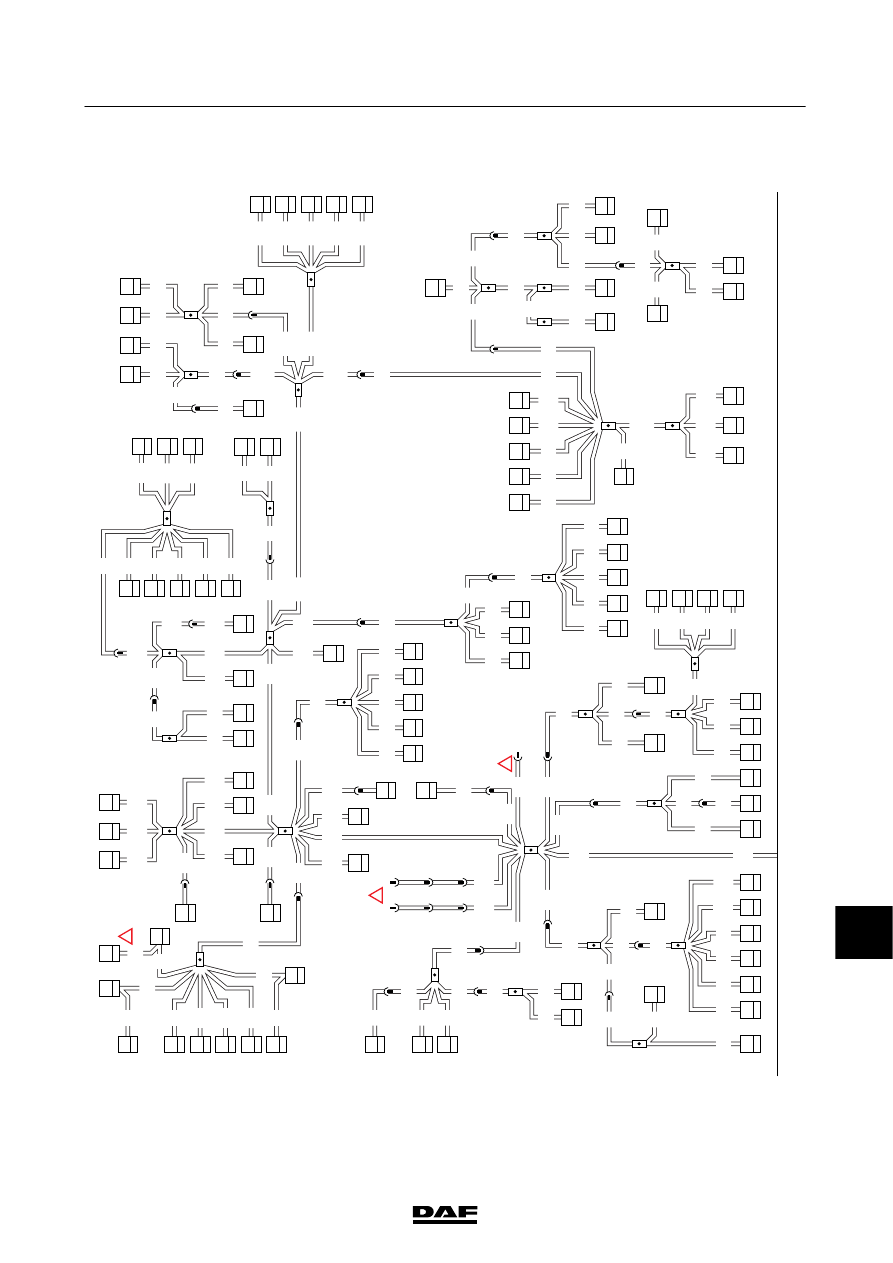

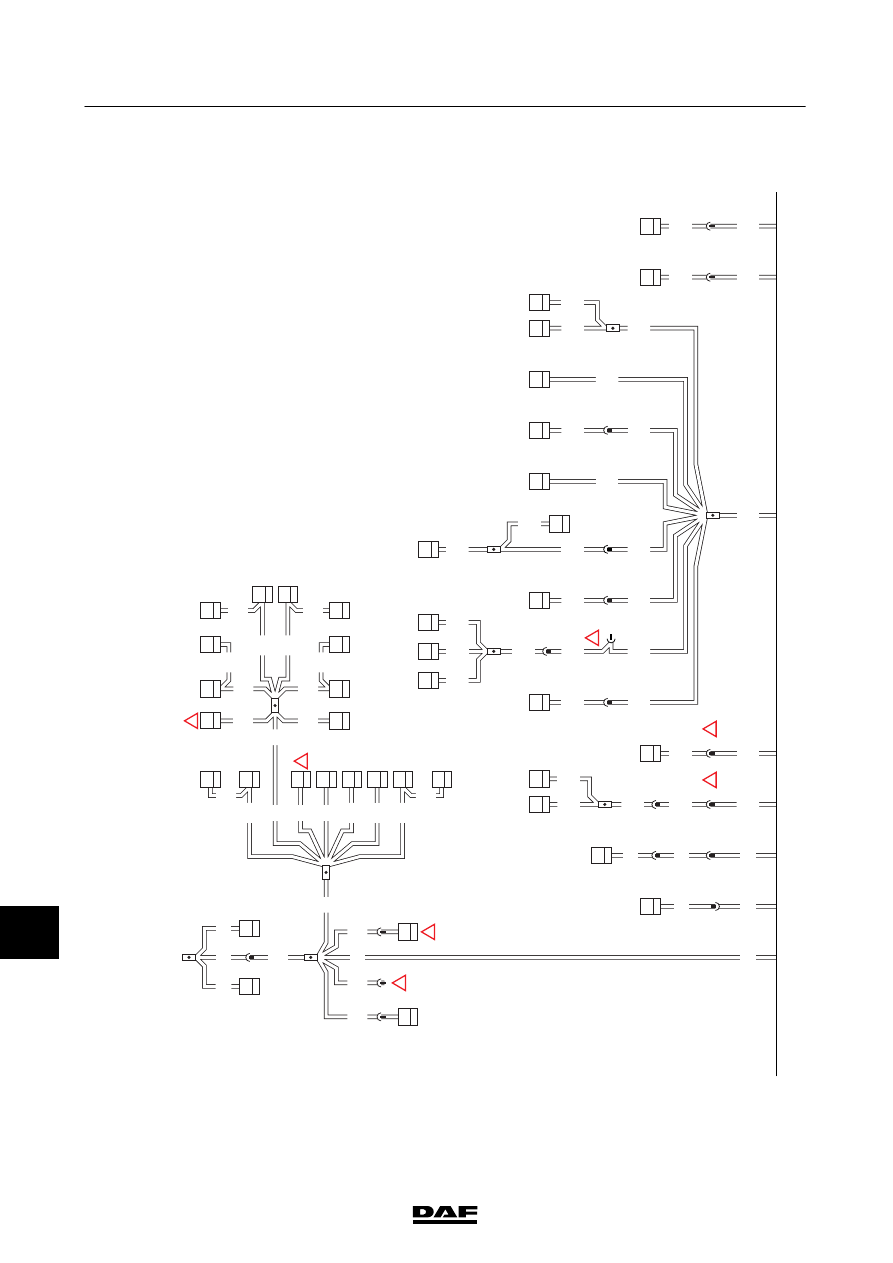

11 B O VER VIEW OF EARTHING POINTS This section diagram gives an overview of all the earth connections, w ith w ire m arkings and connector points. VARIANTS Location 10 C900 fo r E B S syst em C737 for ABS/ASR-D 12 Connector 658: superstructure connector (optional) 19 Connector 582 for cab heater ACH-EA. Connector 482 for cab heater ACH-EW 59 Connector 644: only for AGC 63 Only for A S Tronic 71 Connector 869: only for AS Tr onic 72 Connector 403 only for AS Tr onic 74 Connector 868 only for AS Tr onic 75 Earth connection to relay G 036 only for AS Tr onic 80 Connector 860: loop-through to ECAS 200520 3-24 5 CHANGES IN THE ELECTRICAL SYSTEM Changes in the electrical system from chassis number 0E646818 CF65/75/85 Serie ≥0E621376 |
