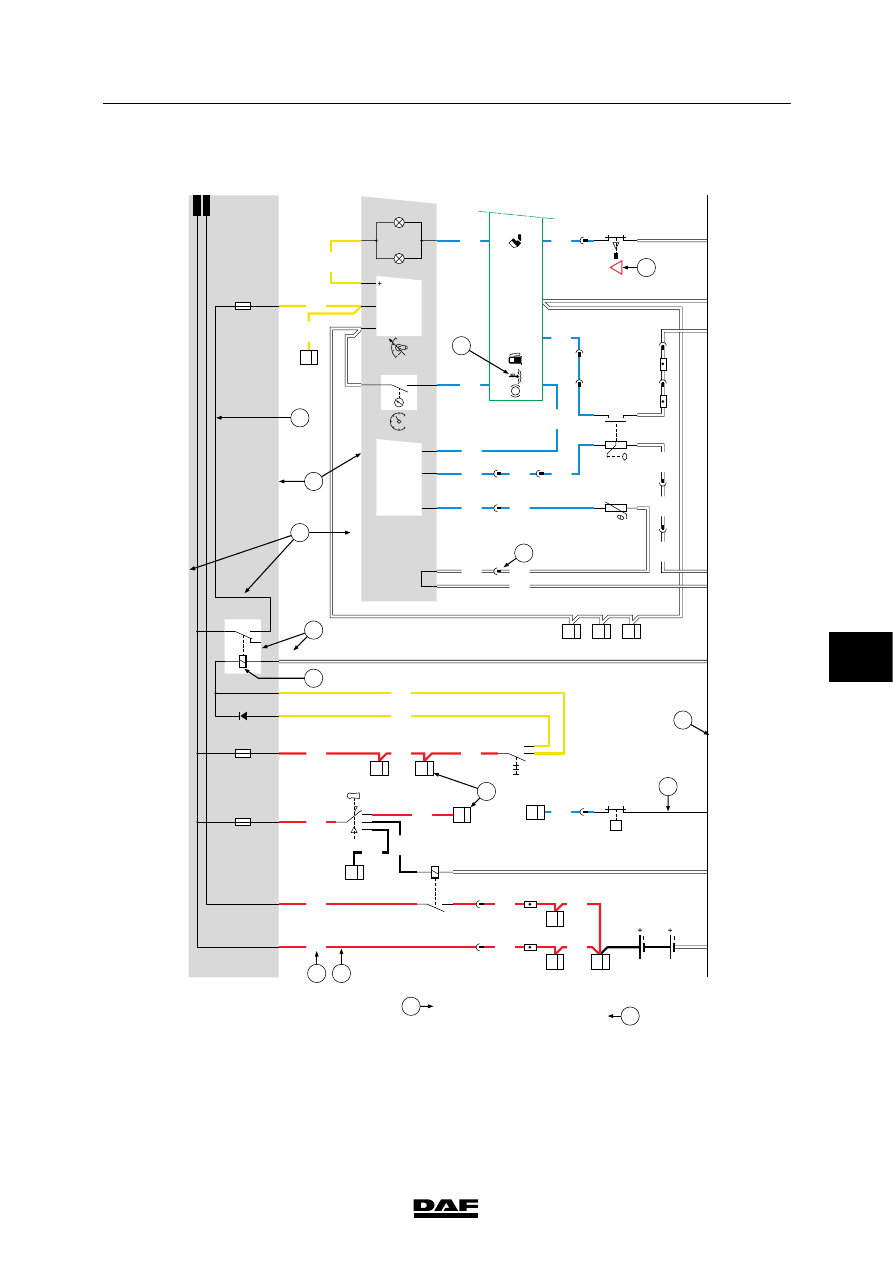

5 CF65/75/85 series ≥0E621376 Reading section diagrams READING DIAGRAMS 4-1 4. READING SECTION DIAGRAMS EXPLANATION OF THE ITEM NUMBERS IN THE SECTION DIAGRAMS In the section diagram only information functional in this section diagram is shown in detail. 1. The wiring is shown in the same colours as the wiring in the vehicle. 2. The wire numbers are as they are printed on the wiring in the vehicle. Suffixes to wire numbers, such as A, B, C etc., have been omitted. 3. Basic code of a component. For component descriptions, see the legend to the diagram. For more information, see the relevant section diagram. 4. Number of the wire connection point or the PCB track on the component. 5. The basic code of the connector and the connection point on this connector. 6. The symbols indicate which system or component is being referred to (in most cases, the symbol is also shown on the lens of the warning lamp or the switch). 7. PCB tracks. 8. The central box and the instrument panel PCBs are grey. 9. Removable components are shown in white. 7 200404 |
