ZF 6S-850 GEARBOX
4-7
6.
Drive the oil seal and dust seal out of the
selector shaft housing. If necessary, the
selector shaft bearing bushes now can be
replaced with special tool

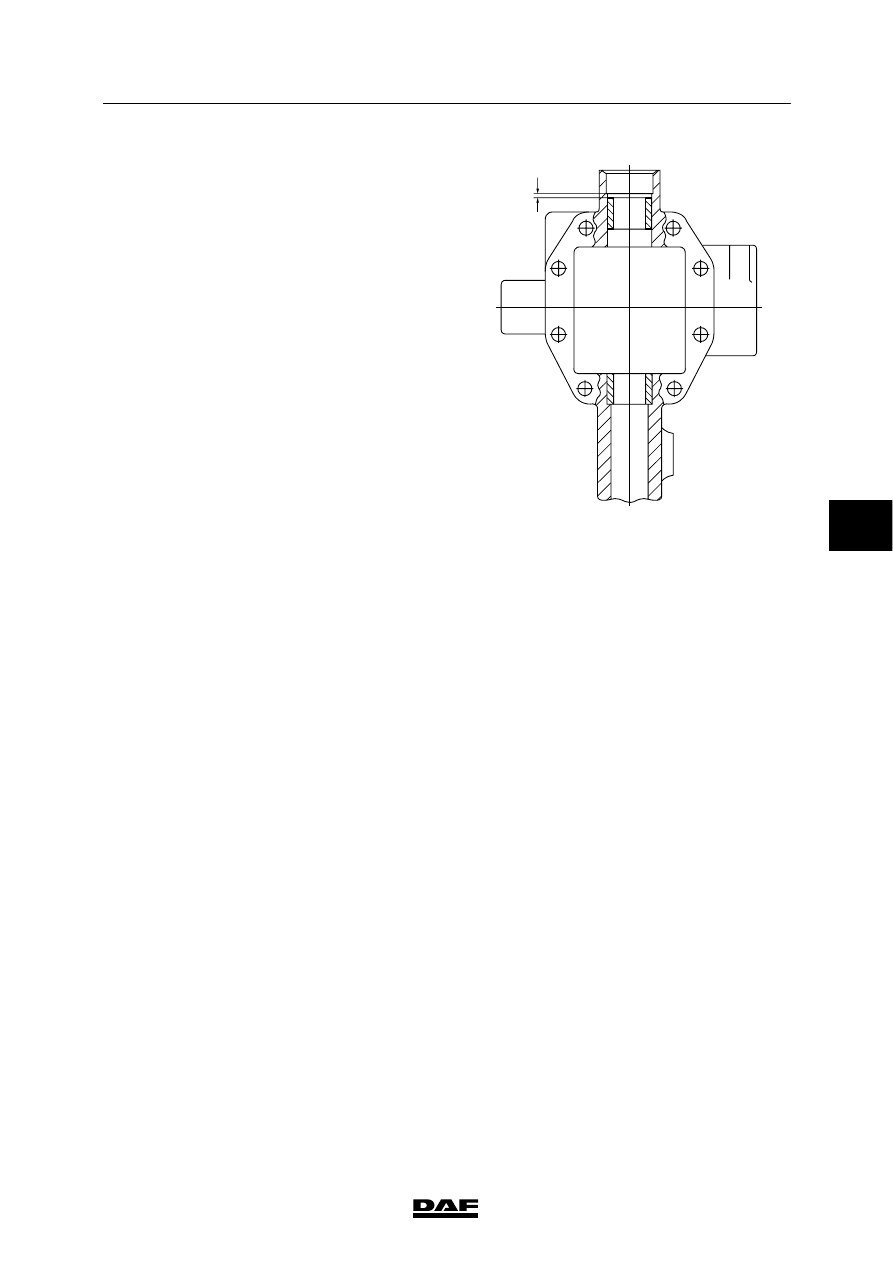

(DAF No. 0694818). Press the bearing bush
on the control side 2 mm under the edge.
LHD version
Installing the selector shaft oil seal
1.
Sparingly apply a liquid gasket to the oil
seal and fit it in the control cover using
special tool (DAF No. 0535659). Now fit the
dust seal in the control cover using special
tool (DAF No. 0535659). Apply grease to
the oil seal lips.
2.

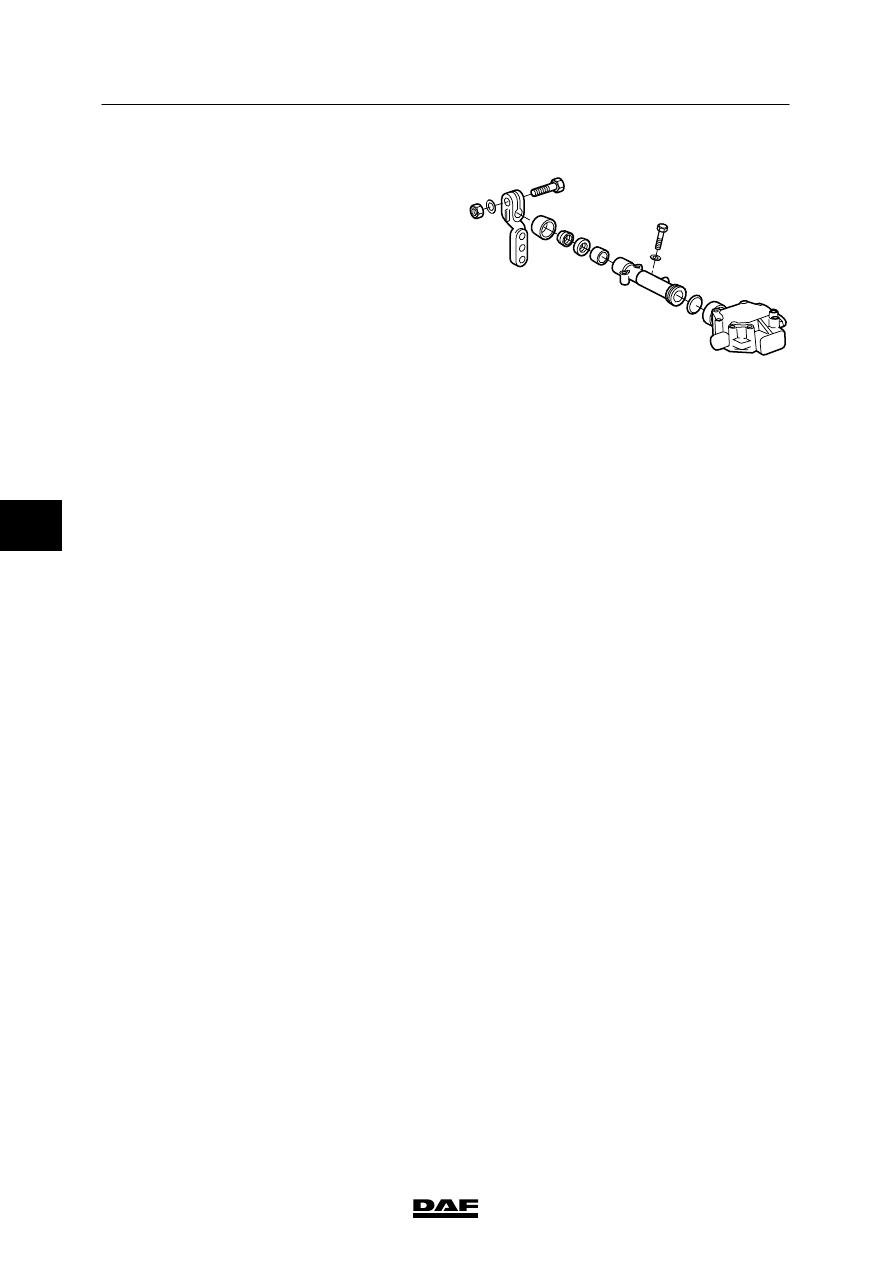

Fit special tool (DAF No. 0694817), a guide
sleeve, over the selector shaft and fit the
selector fingers and the gear lever lock into
the selector housing. Fit the selector shaft.
Watch the control bolt slot.
3.
First fit the control stop, before fitting the
spring pins.

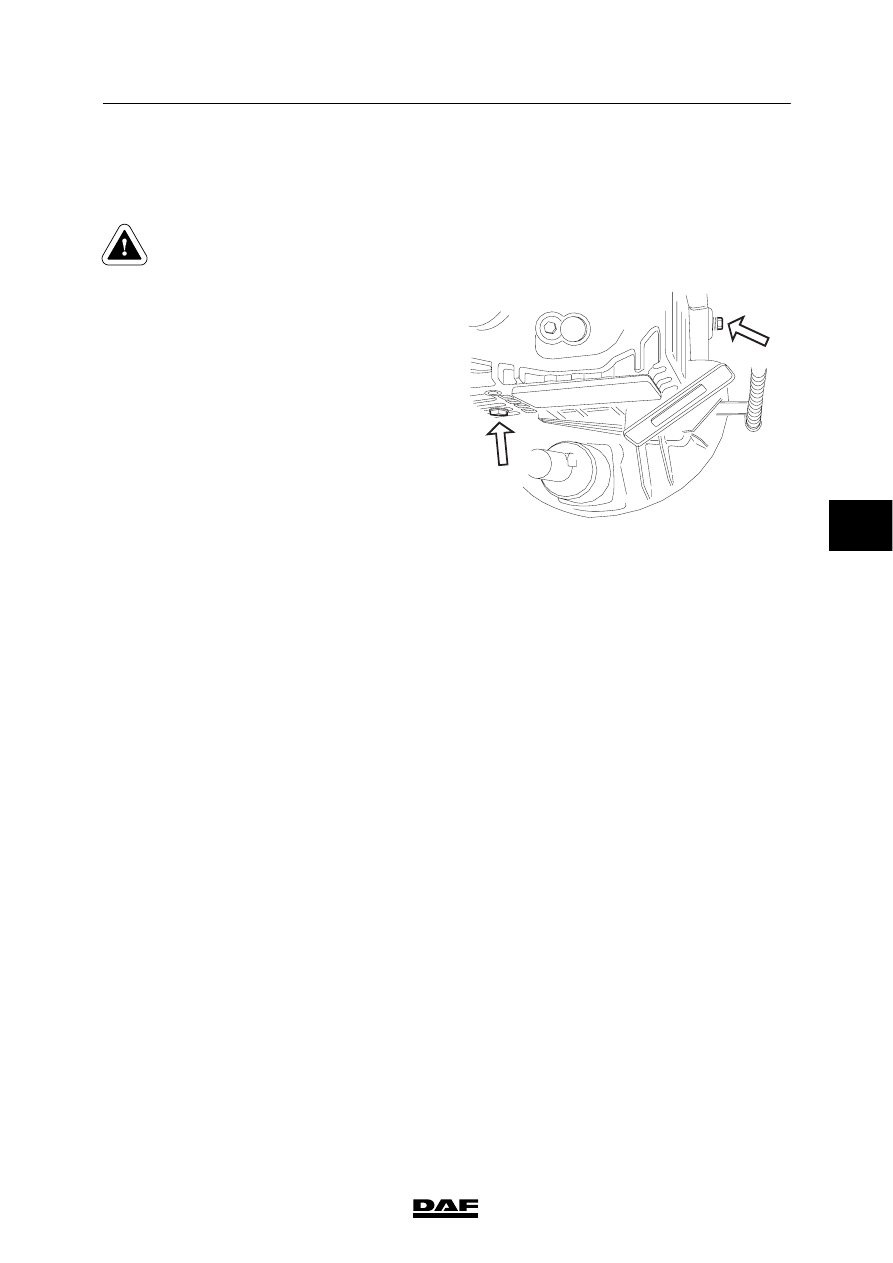

4.
Fit the spring pins and the locking pin.
5.
Apply sealant to the sealing cap. Install the
springs, rings, and the sealing cap. Fit the
circlip.
6.
Put the gearbox into neutral and install a
new gasket in the selector shaft housing
and fit it to the gearbox housing.
Tighten the attachment bolts to the
specified torque. See “Technical data”.
7.
Fit the shift control and check that all
switches function properly.
