DAF CF65, CF75, CF85 Series . Manual - part 213

©

 200351

2-1

General

CE-ENGINE LUBRICATION SYSTEM

ΧΦ65/75/85 series

2

4

2. GENERAL

2.1 SYSTEM DESCRIPTION, LUBRICATION SYSTEM

General

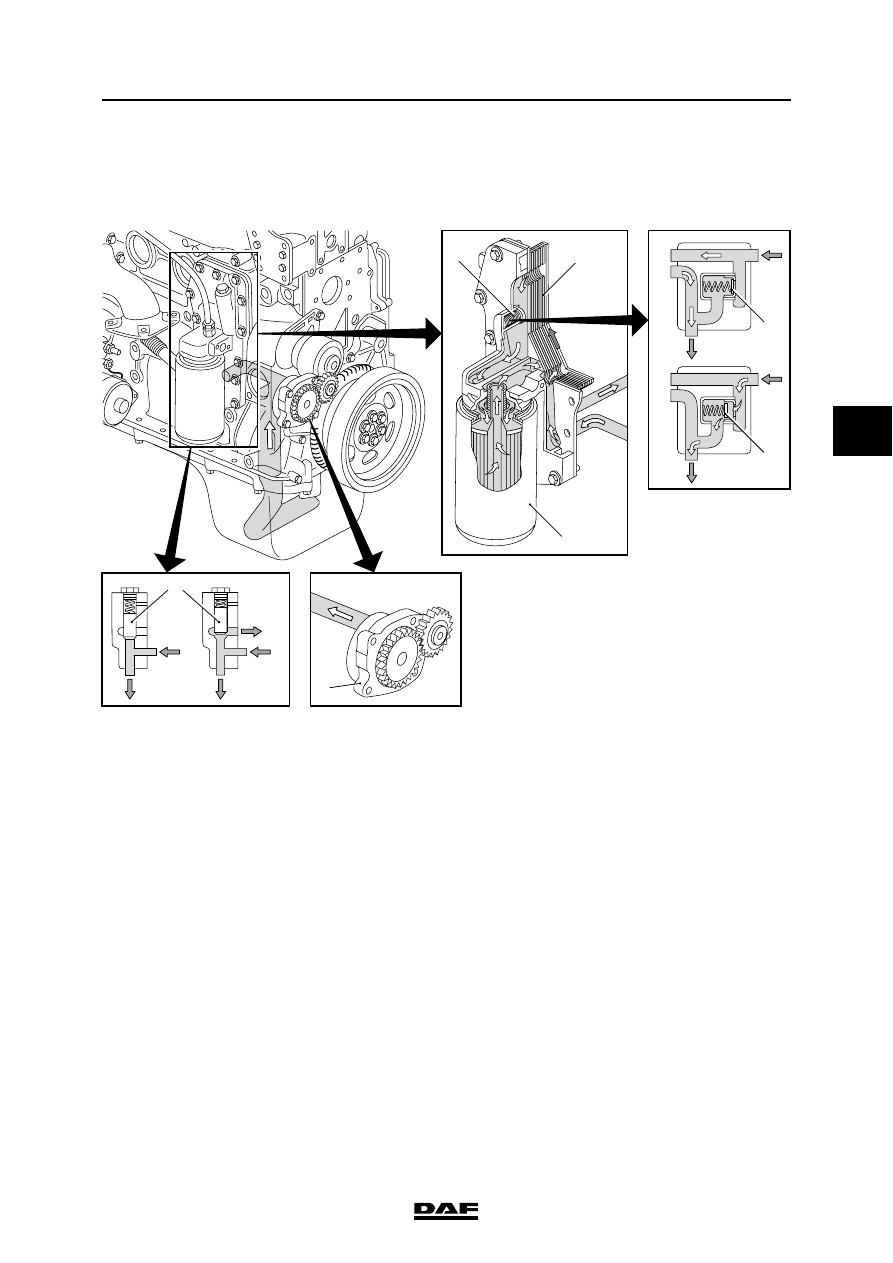

The lubricating oil pump (1) is directly driven by
the crankshaft via an idler gear.
The lubricating oil pump draws the oil from the oil
sump, and pumps it via the oil cooler (2) and the
lubricating oil filter (3) to the main oil channel in
the cylinder block. From the main oil channel, the
lubricating oil is further distributed to the various
components requiring lubrication.

Oil cooler
The oil cooler (2) is connected to the cooling
system. The oil cooler warms up the lubricating
oil in a "cold" engine and cools it in a "warm"
engine.

M201120

B

A

B

A

C

E

F

D

5

E

F

F

A

D

5

3

5

2

4

1

A

From oil pump

B

To oil cooler

C

To lubricating oil pump

D

From oil cooler

E

To oil filter

F

To main oil channel

CE-ENGINE LUBRICATION SYSTEM

2-2

©

 200351

General

4

ΧΦ65/75/85 series

2

Pressure limiting valve
A pressure limiting valve (4) is fitted in the oil
cooler housing.
When the pressure set for the pressure limiting
valve has been reached, the valve opens and
allows the excess lubricating oil to be discharged
to the supply side of the lubricating oil pump.

Oil filter
The oil is cleaned in the disposable oil filter (3). A
pressure relief valve (5) fitted in the oil cooler
housing opens if the pressure in the filter
becomes too high as a result of contamination or
cold oil. The oil then passes through the filter
unfiltered.

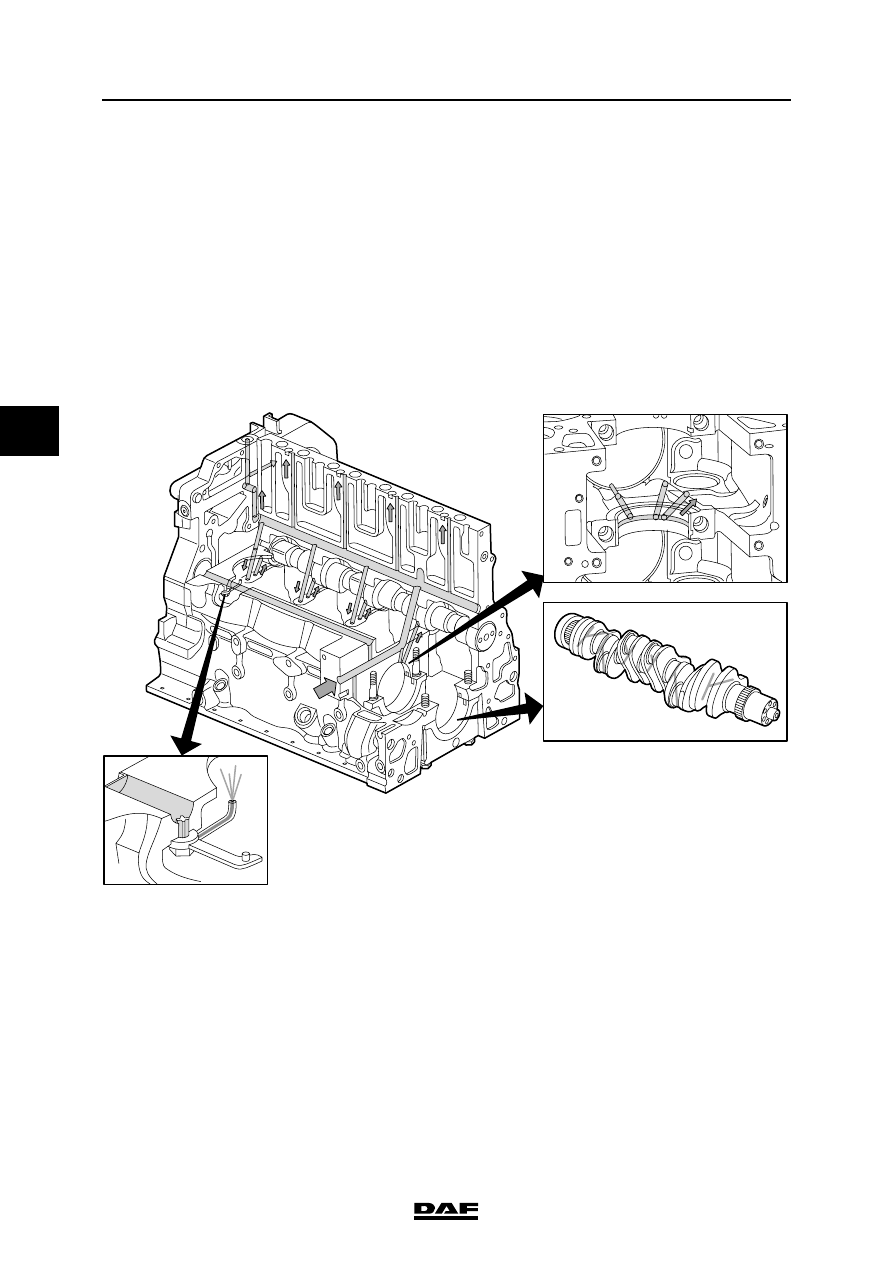

Main oil channel
From the main oil channel, lubricating oil is
supplied to the crankshaft main bearings (A) and
via an oil channel in the crankshaft also to the big-
end bearings.
From the main oil channel, lubricating oil is
pumped to the camshaft.

M201260

A

B

©

 200351

2-3

General

CE-ENGINE LUBRICATION SYSTEM

ΧΦ65/75/85 series

2

4

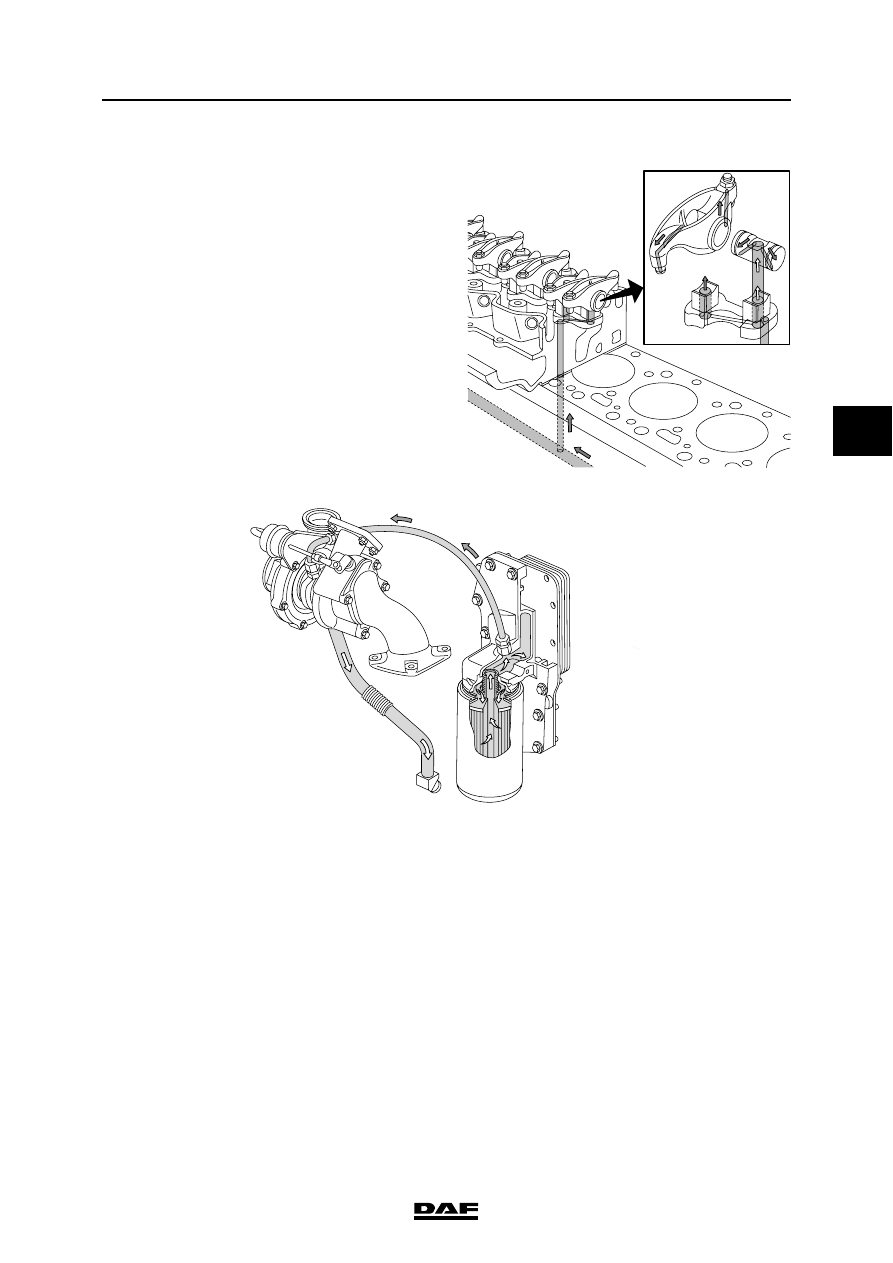

Cylinder head
From the main oil channel, vertical oil channels
pass through the cylinder block to the cylinder
head. This bore is continued in the cylinder head
to supply lubricating oil to the rockers.

Piston and gudgeon pin
The pistons are lubricated by oil nozzles (B).
In addition to its lubricating function, the
lubricating oil has an important cooling function.
A hole has been drilled at the top of the
connecting rod, through which the oil that the oil
nozzles spray against the piston head may reach
the upper big-end bearing.

Turbocharger
The turbocharger is lubricated via an oil pipe from
the oil filter.
The oil discharge pipe from the turbocharger is
connected to the cylinder block, from where the
oil returns to the oil sump.
The oil returning from the air compressor flows
from the front of the air compressor to the timing
gear, and from there to the oil sump.

Air compressor
The air compressor is supplied with oil from an oil
channel in the timing gear case connected to the
main oil channel.
The oil returning from the air compressor flows
from the front of the air compressor to the timing
gear case, and from there to the oil sump.

M201123

M201122
