4.11 REMOVAL AND INSTALLATION, STARTER MOTOR

Removing the starter motor
1.

Remove both battery leads from the battery
terminals.

2.

Remove the electrical connections from the
starter motor.

3.

Remove the attachment nuts from the starter
motor and remove the starter motor.

4.

Check the starter pinion for damage.

Installing the starter motor
1.

Clean the contact surfaces of the starter
motor and the flywheel housing.

2.

Install the starter motor in the flywheel
housing and tighten the attachment nuts to
the specified torque. See "Technical data".

3.

Fit the electrical connections of the starter
motor.

4.

Reconnect both leads to the battery
terminals.

CE ENGINE

4-18

©

 200351

Removal and installation

2

ΧΦ65/75/85 series

2

4.12 REMOVAL AND INSTALLATION, POLY-V-BELT

Removing the poly-V-belt
1.

Remove the battery terminal clamp from the
negative terminal of the starter battery and
break the contact.

2.

Put a ratchet with a

3

/

8

" socket (A) in the arm

(B) of the belt tensioner and release the belt
so that it can be removed from the belt
pulleys. Carefully let the belt tensioner
expand to the stop.

3.

Remove the poly-V-belt (C), lifting it over the
fan.

Installing the poly-V-belt
1.

Inspect the belt pulleys for damage, rust and
grease deposits. Clean or replace the belt
pulleys if necessary.

2.

Pull the poly-V-belt over the fan.

3.

Place a ratchet with a

3

/

8

" socket in the arm

of the belt tensioner and push the belt
against the spring pressure so that it can be
placed on all belt pulleys. Carefully let the
belt tensioner spring back until the belt is
tensioned.

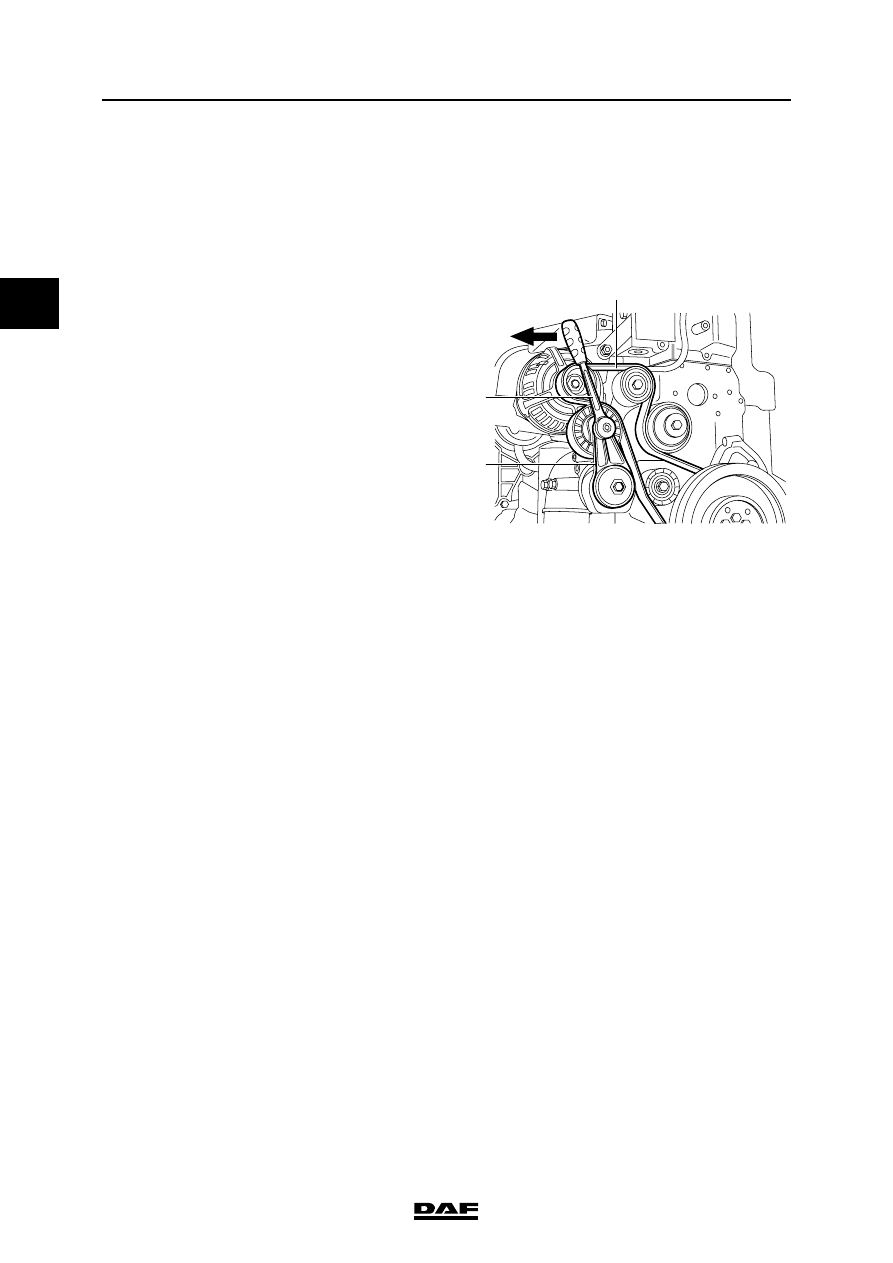

M201083

A

B

C

©

 200351

4-19

Removal and installation

CE ENGINE

ΧΦ65/75/85 series

2

2

4.13 REMOVAL AND INSTALLATION, ALTERNATOR

Removing the alternator
1.

Remove both battery leads from the battery
terminals.

2.

Remove the alternator electrical
connections.

3.

Remove the poly-V-belt.

4.

Remove the attachment bolts from the
alternator and remove the alternator.

Installing the alternator
1.

Fit the alternator and tighten the attachment
bolts to the specified torque. See "Technical
data".

2.

Fit the poly-V-belt.

3.

Fit the electrical connections of the
alternator.

4.

Reconnect both leads to the battery
terminals.

CE ENGINE

4-20

©

 200351

Removal and installation

2

ΧΦ65/75/85 series

2

4.14 REMOVAL AND INSTALLATION, FLYWHEEL

Removing the flywheel
1.

Remove the gearbox.

2.

Remove the clutch release assembly and the
clutch plate.

3.

Remove the attachment bolts from the
flywheel.

4.

To guide the flywheel during removal, fit two
threaded ends - each approx. 90 mm - to the
now-empty bolt holes.

5.

Place two bolts in the circumference of the
flywheel and carefully pull the flywheel free.

Installing the flywheel
1.

Clean the flywheel housing.

2.

Clean the crankshaft flange and attachment
bolts.

3.

Clean the rear of the flywheel and inspect it.
See "Inspection and adjustment".

4.

Fit the flywheel.

5.

Apply a drop of engine oil to the attachment
bolts and install them. Tighten the
attachment bolts in a crosswise sequence to
the specified torque. See "Technical data".

6.

Fit the clutch plate and the clutch release
assembly.

7.

Fit the gearbox.
