DAF CF65, CF75, CF85 Series . Manual - part 195

©

 200351

3-7

Inspection and adjustment

CE ENGINE

ΧΦ65/75/85 series

2

2

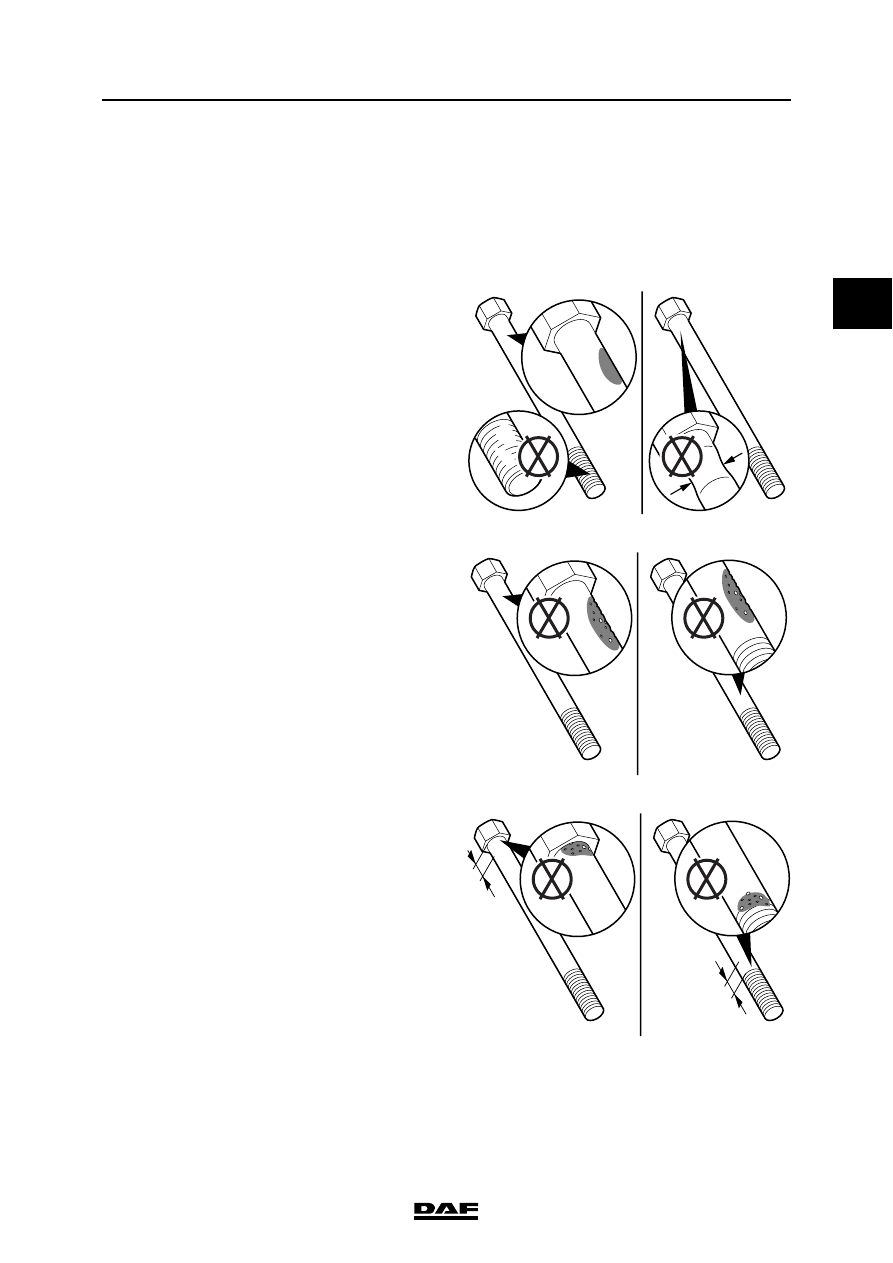

3.4 CHECKING CYLINDER HEAD BOLTS

Cylinder head bolts can be re-used provided they
satisfy a number of conditions. If a cylinder head
bolt does not meet one or more of these
conditions, new cylinder head bolts must be
used.

1.

Check cylinder head bolts for damaged
screw threads, corroded surfaces and
thinning as a result of overstretching.

2.

Check the dimensions of visible pitting on the
cylinder head bolt, see "Technical data".

3.

Check the cylinder head bolt for visible
corrosion or pitting immediately under the
bolt head and directly above the start of the
screw thread, see "Technical data".

M201248

OK

OK

M201249

OK

OK

M201250

OK

A

A

OK

CE ENGINE

3-8

©

 200351

Inspection and adjustment

2

ΧΦ65/75/85 series

2

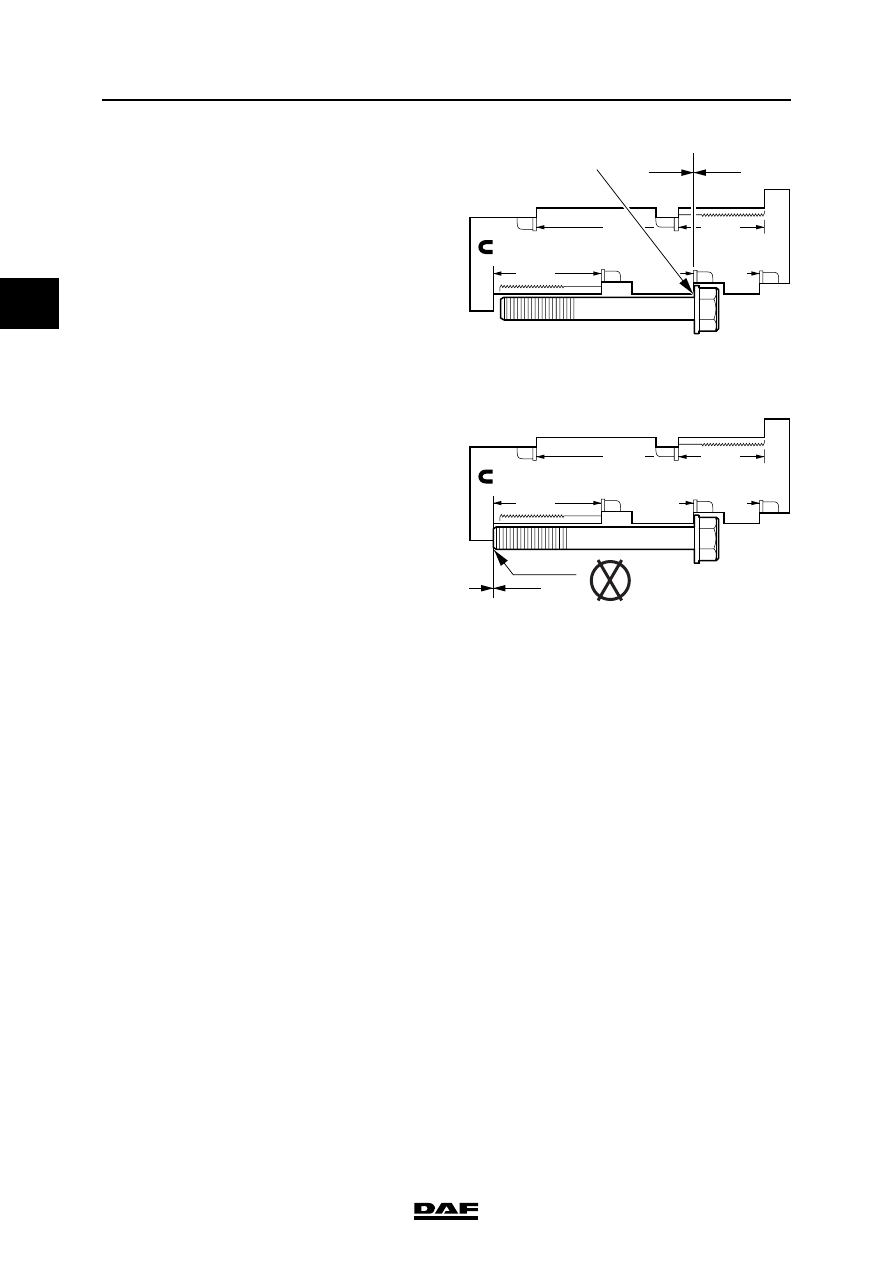

4.

Check the free length of the cylinder head
bolt. Use the special tool  (DAF no. 1329477)
for this purpose. Place the bolt head against
the abutting surface.

5.

The end of the bolt must not touch the gauge.

M201251

Cylinder Head Capscrew Length Gauge

   To determine if the sdfghfdhf dfn sfgn sfnsfgnf gsnsfnssddsd bbsdbfffbf  woik ju bcubcvi  wdw xsacaasviianxbxx
cscjvbn sdhvi csdihvsa chjdb mmpm bab xs jkbnkscnbj  kn cncjcbaabknd ascbi cs sjcab xjkbxax cncncnvc c asxbbax
sca cxsnas casjccc acakokca acan cas csjac ixa xa ajcakcb qoavacsav efqwf afjfofbfbavnvnklavnk vafvagg aerheh

ggh kjcy dqfbb

    asha sdf c

     ooj  vjv aqsbb a

           xa vmpm

  sdfsdj  odv aql
bdfdbsdbn d ad

     ooj  vjv gweg
murvsa pm fer

    gewreh adga p
       cd wfwg k

B

B

D

C

C

M201252

Cylinder Head Capscrew Length Gauge

   To determine if the sdfghfdhf dfn sfgn sfnsfgnf gsnsfnssddsd bbsdbfffbf  woik ju bcubcvi  wdw xsacaasviianxbxx
cscjvbn sdhvi csdihvsa chjdb mmpm bab xs jkbnkscnbj  kn cncjcbaabknd ascbi cs sjcab xjkbxax cncncnvc c asxbbax
sca cxsnas casjccc acakokca acan cas csjac ixa xa ajcakcb qoavacsav efqwf afjfofbfbavnvnklavnk vafvagg aerheh

ggh kjcy dqfbb

    asha sdf c

     ooj  vjv aqsbb a

           xa vmpm

  sdfsdj  odv aql
bdfdbsdbn d ad

     ooj  vjv gweg
murvsa pm fer

    gewreh adga p
       cd wfwg k

B

B

D

C

C

OK

©

 200351

3-9

Inspection and adjustment

CE ENGINE

ΧΦ65/75/85 series

2

2

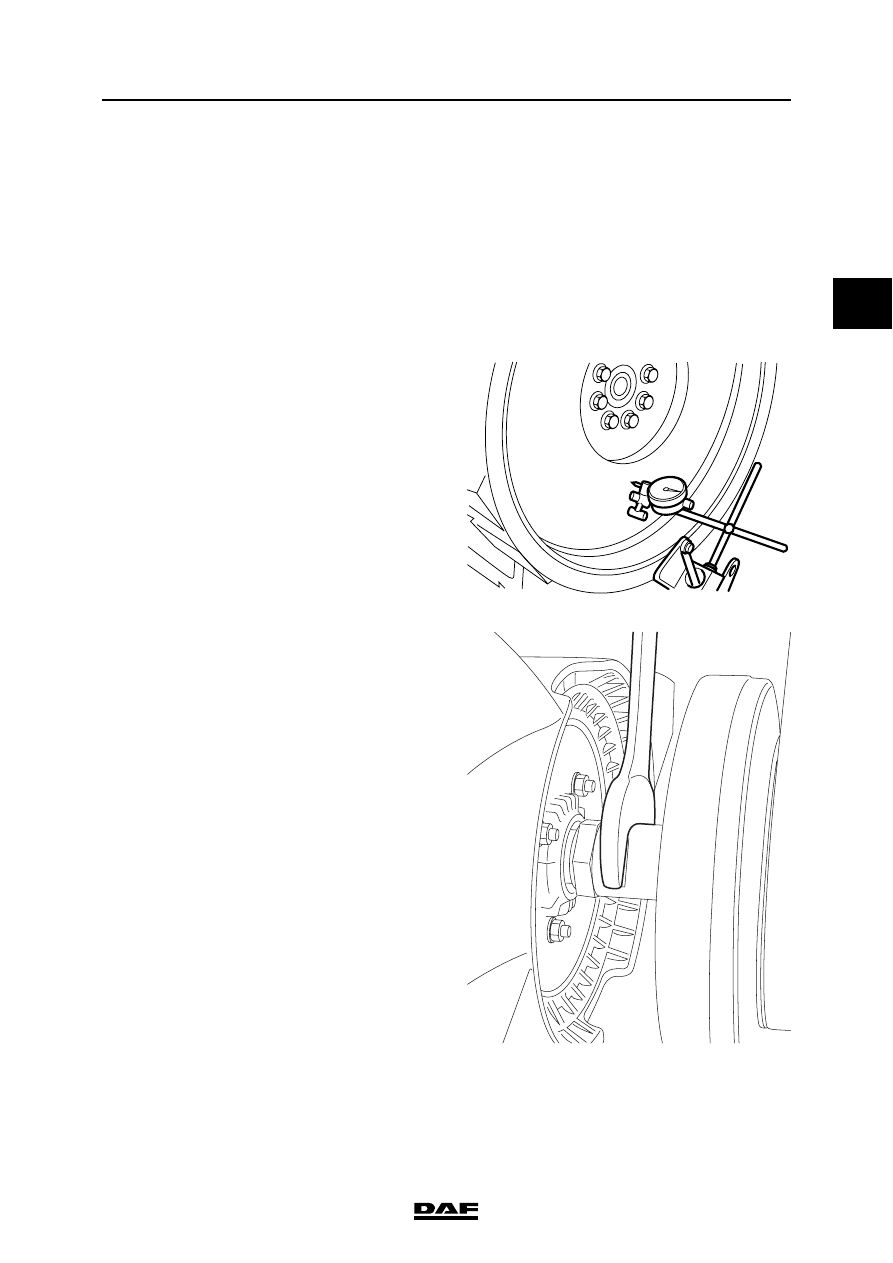

3.5 INSPECTION, FLYWHEEL

If cracks are visible on the flywheel, on the
contact surface of the clutch plate, it must be
replaced.

Checking flywheel run-out
1.

Clean the flywheel.

2.

Place a metal strip on the edge of the
flywheel housing to fit a dial gauge.

3.

Place the dial gauge on the metal strip.

4.

Place the stylus of the dial gauge as close as
possible to the outer edge of the flywheel.

5.

Set the dial gauge to "0".

6.

Use an open-end spanner on the fan shaft to
crank the engine through 360

|, and measure

the maximum dial gauge reading. Compare
the reading with the technical data. See
"Technical data".

M200230

M201318

CE ENGINE

3-10

©

 200351

Inspection and adjustment

2

ΧΦ65/75/85 series

2

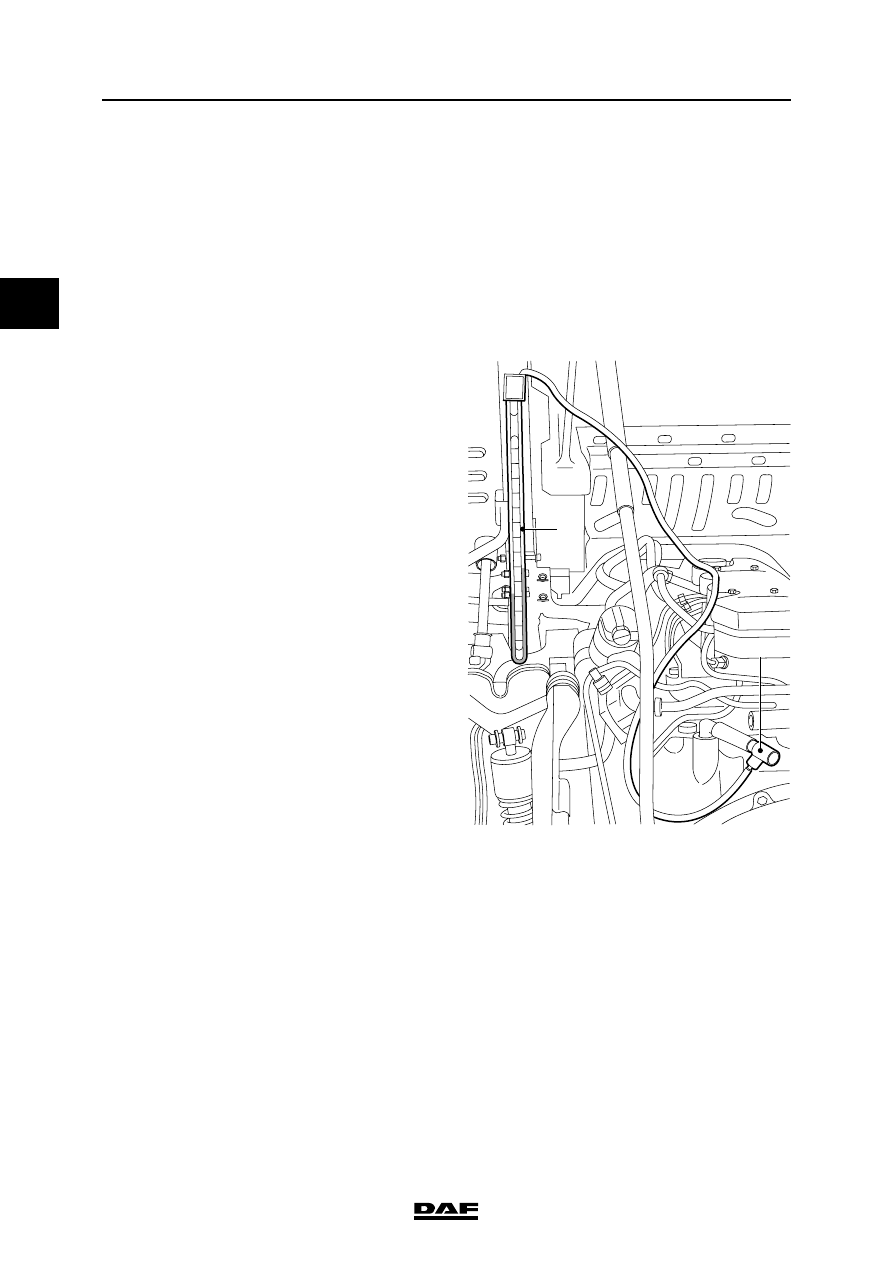

3.6 INSPECTION, ENGINE OIL SUMP PRESSURE

}

Be careful when working on an
engine at operating temperature.

The oil sump pressure is measured to quickly
check the cylinder seals. The readings obtained
are an indication of the leakage from all cylinders.

1.

Bring the engine up to operating
temperature.

2.

Turn off the engine and fit the special tool
(DAF no. 1240080) (1) to the crankcase
breather hose.

3.

Fit the special tool with a water pressure
gauge  (DAF no. 1240081) (2) using a hose
and start the engine.

4.

Using the water pressure gauge, measure
the oil sump pressure at idling speed and
compare the measured reading with the
technical data. See "Technical data".

1

2

M201316
