9-1

XE-engine lubrication system

TECHNICAL DATA

ΧΦ65/75/85 series

2

0

9. XE-ENGINE LUBRICATION SYSTEM

9.1 GENERAL

Oil pressure

Oil filter

Oil cooler

Oil consumption

Example:
Average measured fuel consumption: 30 litres /
100 km = 300 litres / 1000 km
Maximum admissible engine oil consumption:
0.3% x 300 = 0.9 litres / 1000 km
- Engine oil consumption = 0.9 litres / 1000 km is
permitted
- Engine oil consumption > 0.9 litres / 1000 km;
check the engine using the diagnostics table. See
"Diagnosis".

Oil pressure at engine idling speed

1 bar (warm engine)

Oil pressure at full-load engine speed

3.5 - 4.5 bar

Type

filter element

Number

1

Installation in the oil circuit

full flow

Opening pressure of bypass valve at a pressure
difference of

2.5

≥ 0.3 bar

Coolant test pressure maximum

2.5 bar

Maximum admissible engine oil consumption

0.3% of the average fuel consumption

TECHNICAL DATA

9-2

©

 200351

XE-engine lubrication system

0

ΧΦ65/75/85 series

2

9.2 TIGHTENING TORQUES

The tightening torques specified in this paragraph
are different from the standard tightening torques
cited in the overview of the standard tightening
torques. The other threaded connections not
specified must therefore be tightened to the
torque cited in the overview of standard
tightening torques.

When attachment bolts and nuts are replaced, it
is important - unless stated otherwise - that these
bolts and nuts are of exactly the same length and
property class as those removed.

Lubricating oil strip/rocker seats

Oil pan

Oil pump

Strainer

Lubricating oil filter

(1) Use Loctite 243 to secure
(2) Use Loctite 572 to secure

Bypass pressure regulator

Oil cooler

Centrifugal oil filter

Attachment bolts

110 Nm

Clamp attachment bolts

25 Nm

Oil drain plug

60 Nm

Oil level sensor

60 Nm

Attachment bolts for oil pump housing sections

30 Nm

Attachment bolts connecting oil pump to main
bearing cap

60 Nm

(1)

Oil delivery pipe attachment bolts

30 Nm

(1)

Idler gear central bolt

60 Nm

(1)

Bracket attachment bolts

30 Nm

(1)

Lubricating oil filter housing attachment bolts

50 Nm

(2)

Filter element screw cap

40 Nm

Plug

80 Nm

Attachment bolts connecting oil cooler to cylinder
block

50 Nm

Coolant supply pipe union

90 Nm

Plug, adjustable banjo connection

90 Nm

Banjo bolt, adjustable banjo connection

90 Nm

Central bolt

20 Nm

©

 200351

9-3

XE-engine lubrication system

TECHNICAL DATA

ΧΦ65/75/85 series

2

0

Oil nozzle

Main bearing caps

Big-end bearing caps

(1) Apply a drop of oil to thread and contact surface.
(2) Connecting rod bolts are to be used once and tightened

as instructed. When fitting the connecting rod in the
engine, apply a drop of oil to the threads and contact
surfaces of the connecting rod bolts.

Oil nozzle banjo bolt

30 Nm

Main bearing cap attachment bolts

(1)

150 Nm + 120

 angle tightening

1

5

4

3

2

1

M2 01 285

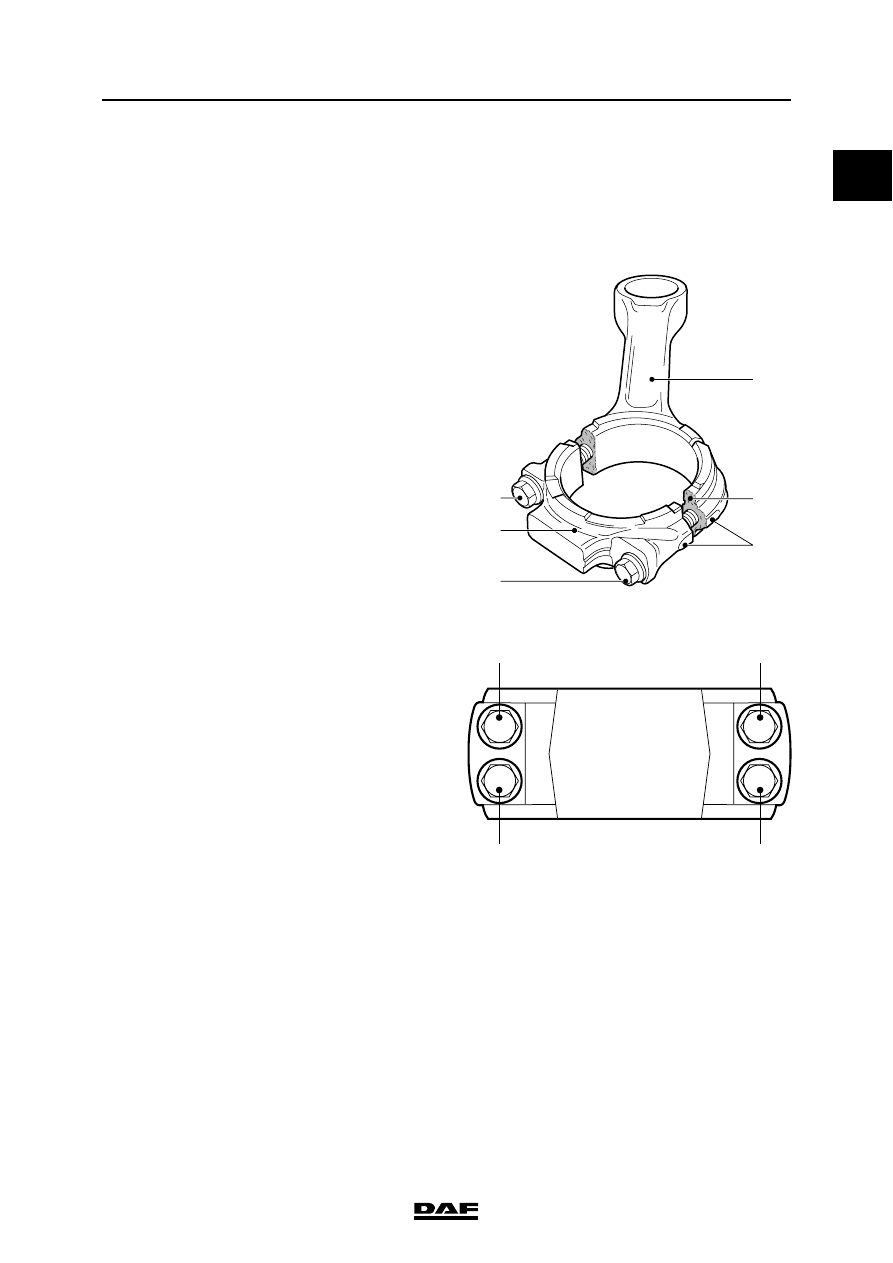

Attachment bolts (1),
cracked big-end
bearing caps

(2)

1

st

 phase

100 Nm

2

nd

 phase

175 Nm

≥ 15 Nm

3

rd

 phase

60

 angular

displacement

1

4

3

2

M200661

Attachment bolts,
big-end bearing
caps

(2)

1

st

 phase, sequence

1-2-3-4

35 Nm

2

nd

 phase, sequence

4-3-2-1

45 Nm

3

rd

 phase, sequence

1-2-3-4

60

 angular

displacement

TECHNICAL DATA

9-4

©

 200351

XE-engine lubrication system

0

ΧΦ65/75/85 series

2

9.3 FILLING CAPACITIES

Lubrication system
Total capacity, including oil cooler and oil filter

approx. 35 litres

Oil sump capacity, maximum level

approx. 30 litres

Oil pan capacity, minimum level

approx. 22 litres
