2. GENERAL

2.1 GENERAL

-

Seat repairs must be carried out by trained
technicians only.

-

The illustrations in this manual usually
represent the left-hand seat or the left-hand
side. For the right-hand seat or right-hand
side, repairs are carried out in a similar way.

-

After each repair, a functional test must be
carried out; in the case of pneumatic repairs,
also carry out an air-tightness test.

-

Do not lean on the seat if the back rest has
been fully folded forwards.

-

The routes of the air pipes and cables must
be restored and their connections must be
restored to the original positions.

-

Also keep to the proper colour position when
installing the air pipes.

-

Air pipes and cables must not be kinked.

-

In the case of transport and storage, ensure
that the seat is placed on its longitudinal
slides. Air pipes must not be kinked in this
case.

SEATS

2-2

©

 200346

General

7

ΧΦ65/75/85 series

1

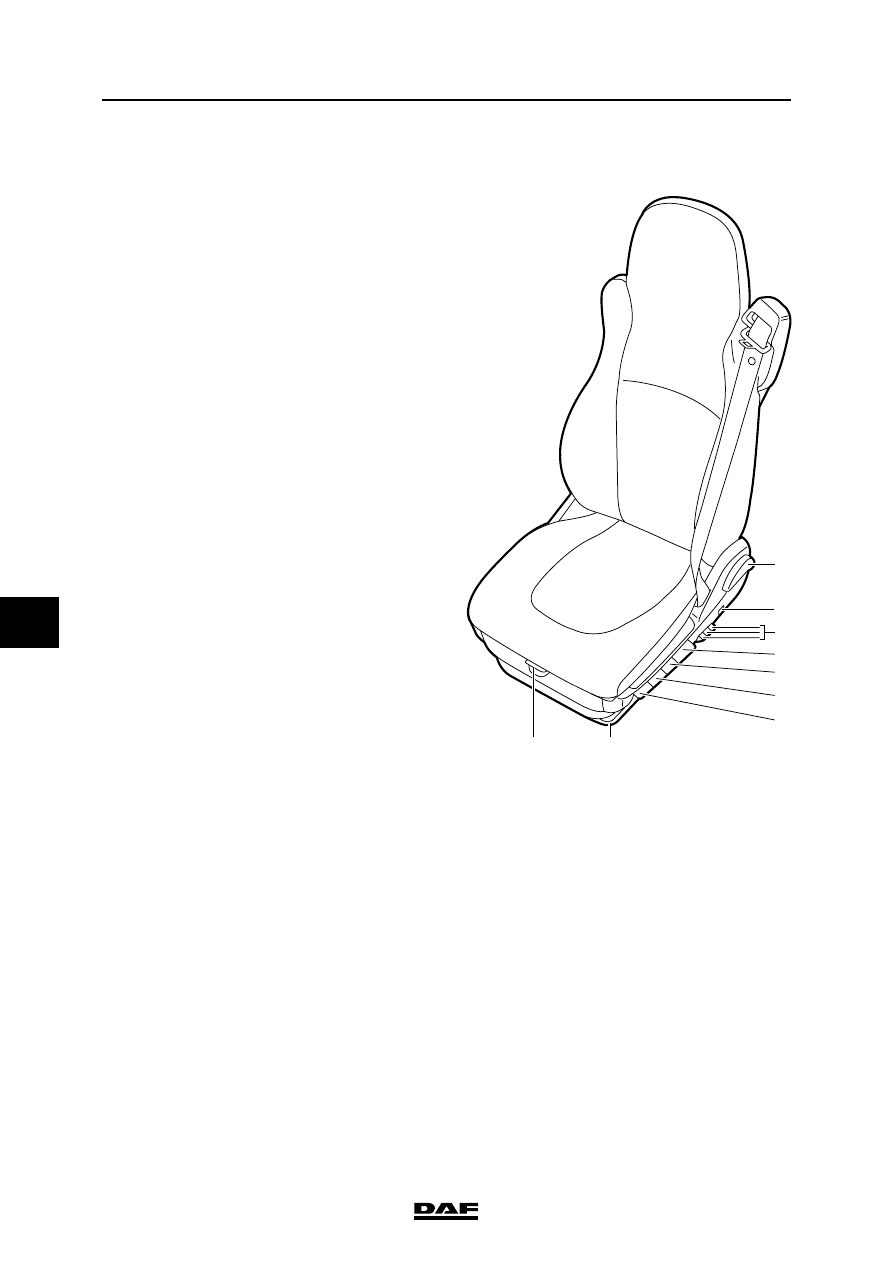

2.2 OPERATION

Legend

K1 01 658

A

C
D

E

F

G

I

B

H

A.

Back rest adjustment handle

B.

Switch for seat heating

C.

Operating valve for lumbar support

D.

Seat height adjustment control

E.

Seat angle adjustment control

F.

Vertical damping adjustment control

G. Operating valve for entry/exit aid
H.

Seat position adjustment bracket

I.

Seat squab adjustment handle

©

 200346

2-3

General

SEATS

ΧΦ65/75/85 series

1

7

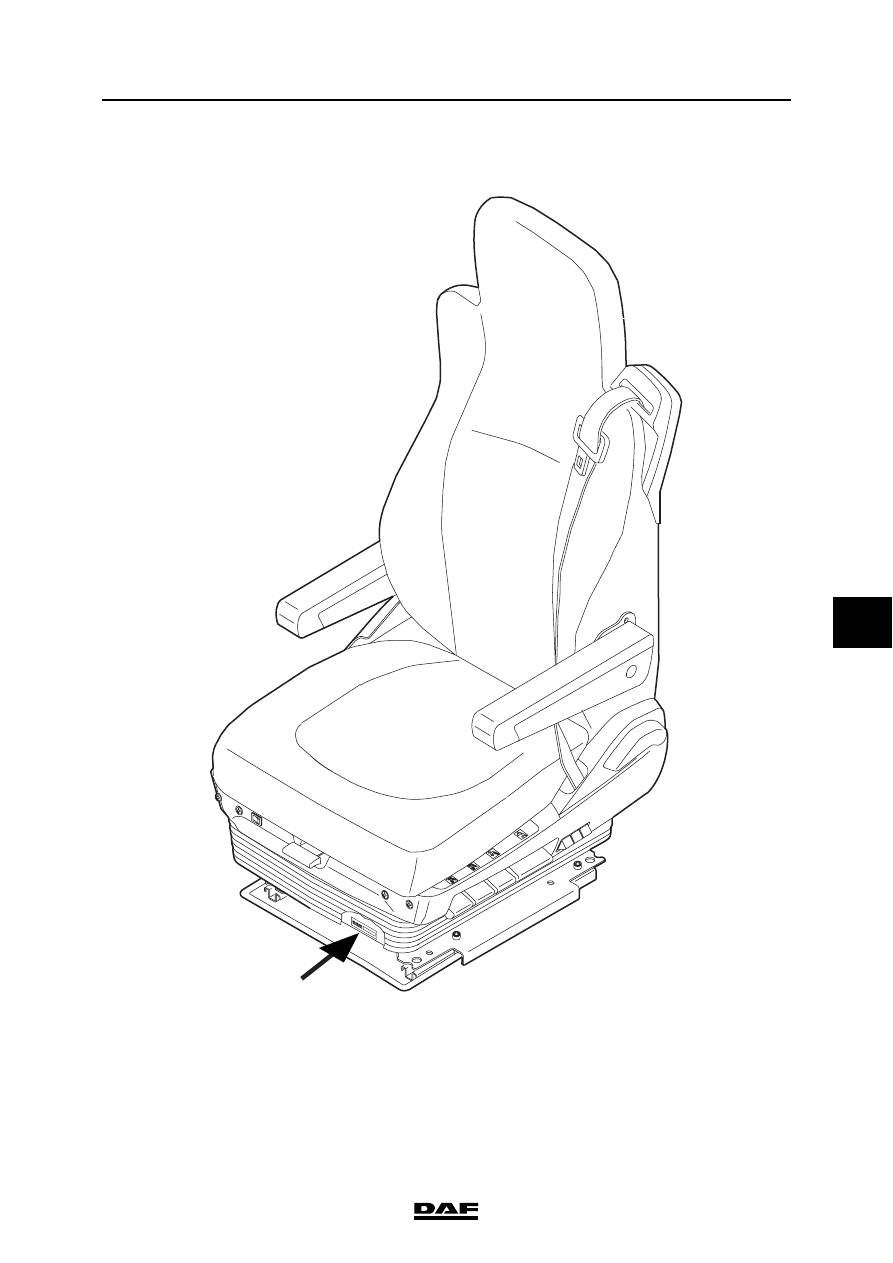

2.3 SERIAL/TYPE PLATE OF SEAT

The serial number (A) and the DAF part number
of the seat are listed on the type plate, located at
the front of the seat underneath the dust boot.
The DAF part number is also located on the label
at the side of the seat.

K100483

A

SEATS

2-4

©

 200346

General

7

ΧΦ65/75/85 series

1

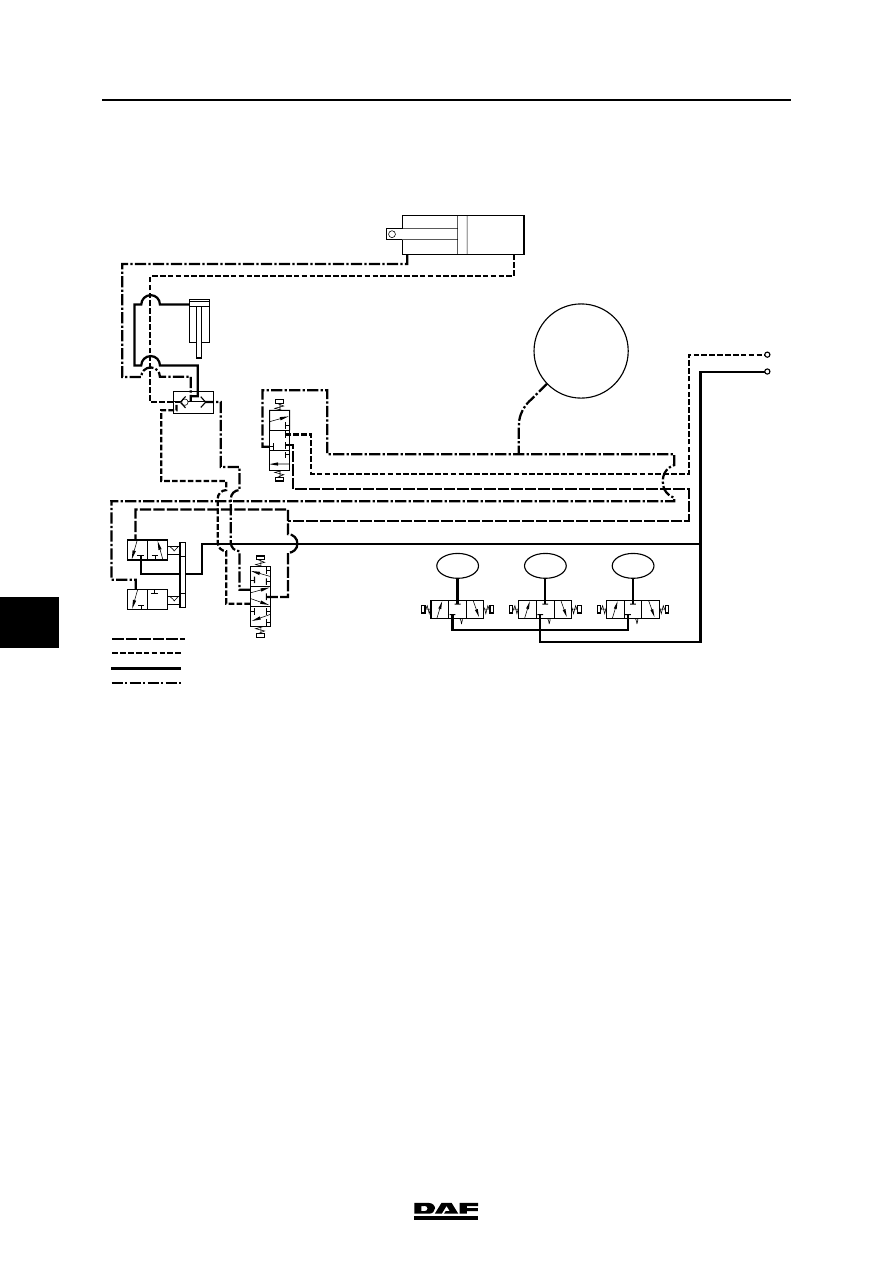

2.4 SYSTEM DESCRIPTION, AIR-SPRUNG SEAT

Legend

IPS

IPS

IPS

F

G

B

C

H

A

Rd
Gr
Bl
Br

D

E
P

25

13

16

18

27

26 28

17

14

12

5

4

8

7

6

3

E

19

9

10

11

1

2

K100482

A.

Valve for entry/exit aid

B.

Control unit of the height control valve

C.

Switch valve

D.

Height control valve

E.

Height control valve

F.

Adjustment cylinder

G. Air bellows
H.

Valve for pneumatic lumbar support

Rd Red
Gr Grey
Bl

Black

Br

Brown
