Removal and installation

CAB SUSPENSION

ΧΦ65/75/85 series

1

5

1.

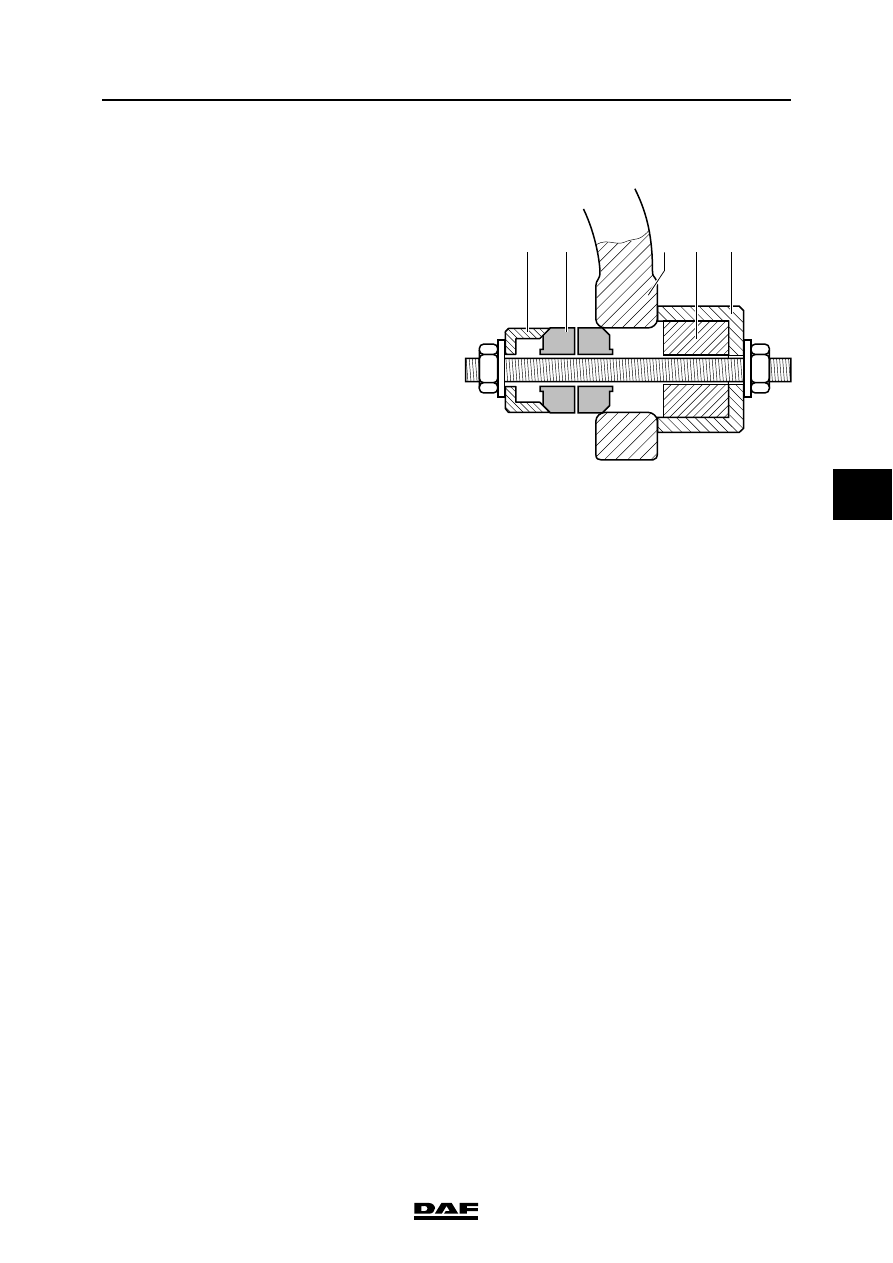

Fit the distance ring (B), which is part of the
puller, in puller (A), special tool
(DAF no. 1329486).

2.

Using puller (A), force the silentblock (1) into
the cab stabiliser (2) up to distance ring (B).

Note:
Immediately stop forcing when the
silentblock touches distance ring (B) to
prevent the inner sleeve of the silentblock
from being damaged (upset).

3.

Fit the cab support.

K1 01 412

A

1

A

B

2

CAB SUSPENSION

4-10

©

 200346

Removal and installation

5

ΧΦ65/75/85 series

1

4.5 REMOVAL AND INSTALLATION, COIL SPRING FRONT SUSPENSION

}

When working on the cab
suspension provide extra supports
for the cab to avoid the risk of being
trapped.

Removing coil spring front suspension
1.

Remove the corner pieces around the
headlights and the vehicle grille.

Note:
Do not raise the cab more than 10 cm
because of the available length of piping and
cables.

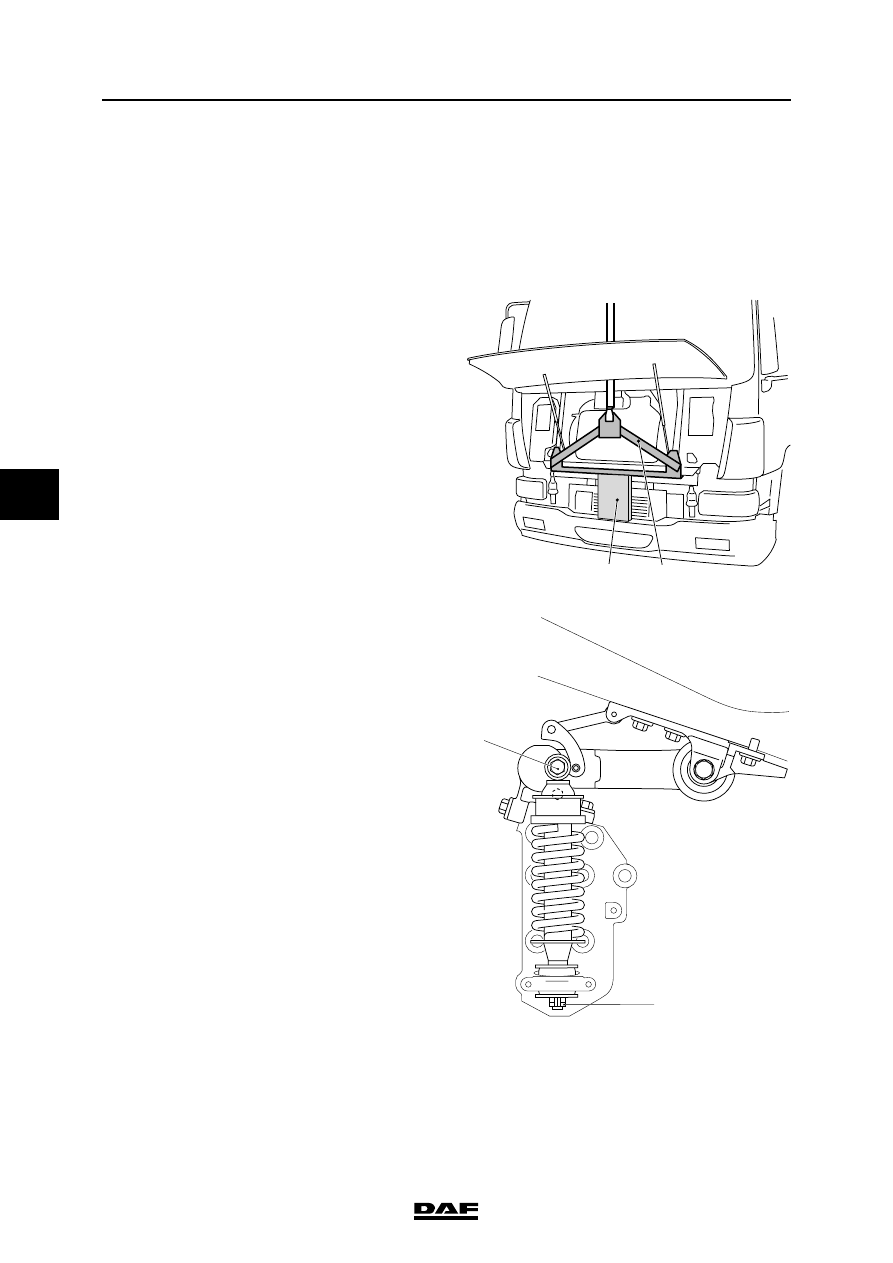

2.

Place the hoist yoke (A) (DAF no. 1329487)
and lift the cab at the front.

}

Place a block (B) or similar support
under the cab before working
underneath it.

3.

Remove the attachment nut (B) at the
bottom.

4.

Remove the attachment bolt (A) at the top.

5.

Remove the spring element.

K1 01 063

A

B

A

B

K1 01 092

©

 200346

4-11

Removal and installation

CAB SUSPENSION

ΧΦ65/75/85 series

1

5

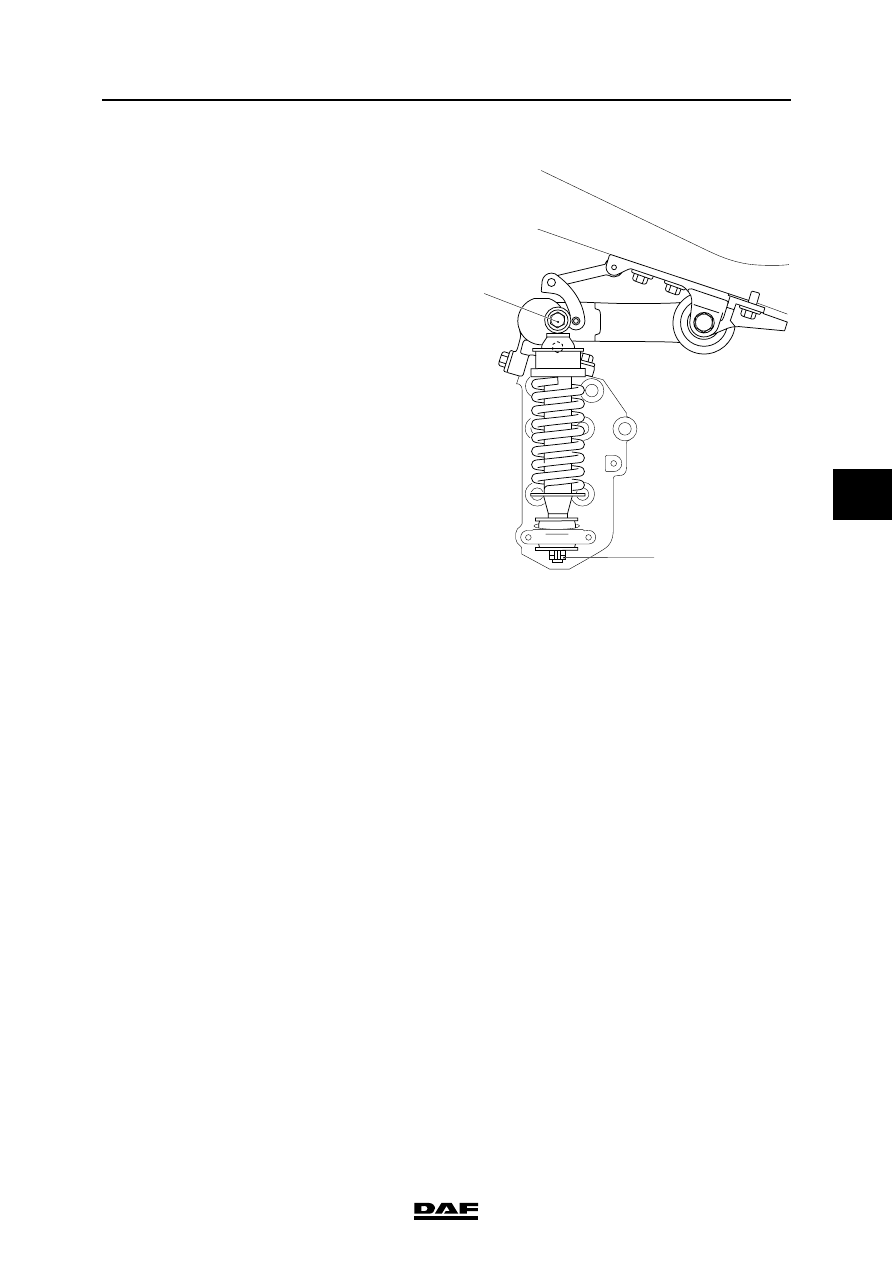

Installing coil spring front suspension
1.

Put the spring element in place. Fit the
attachment bolt (A) at the top and tighten it to
the specified tightening torque, see
"Technical data".

2.

Remove the block (or support)

3.

Lower the cab carefully and fit the
attachment nut (B) at the bottom. Tighten the
attachment nut to the specified torque, see
"Technical data".

4.

Remove the lifting yoke.

5.

Fit the corner pieces and the vehicle grille.

A

B

K1 01 092

CAB SUSPENSION

4-12

©

 200346

Removal and installation

5

ΧΦ65/75/85 series

1

4.6 REMOVAL AND INSTALLATION, REAR COIL SPRING SUSPENSION

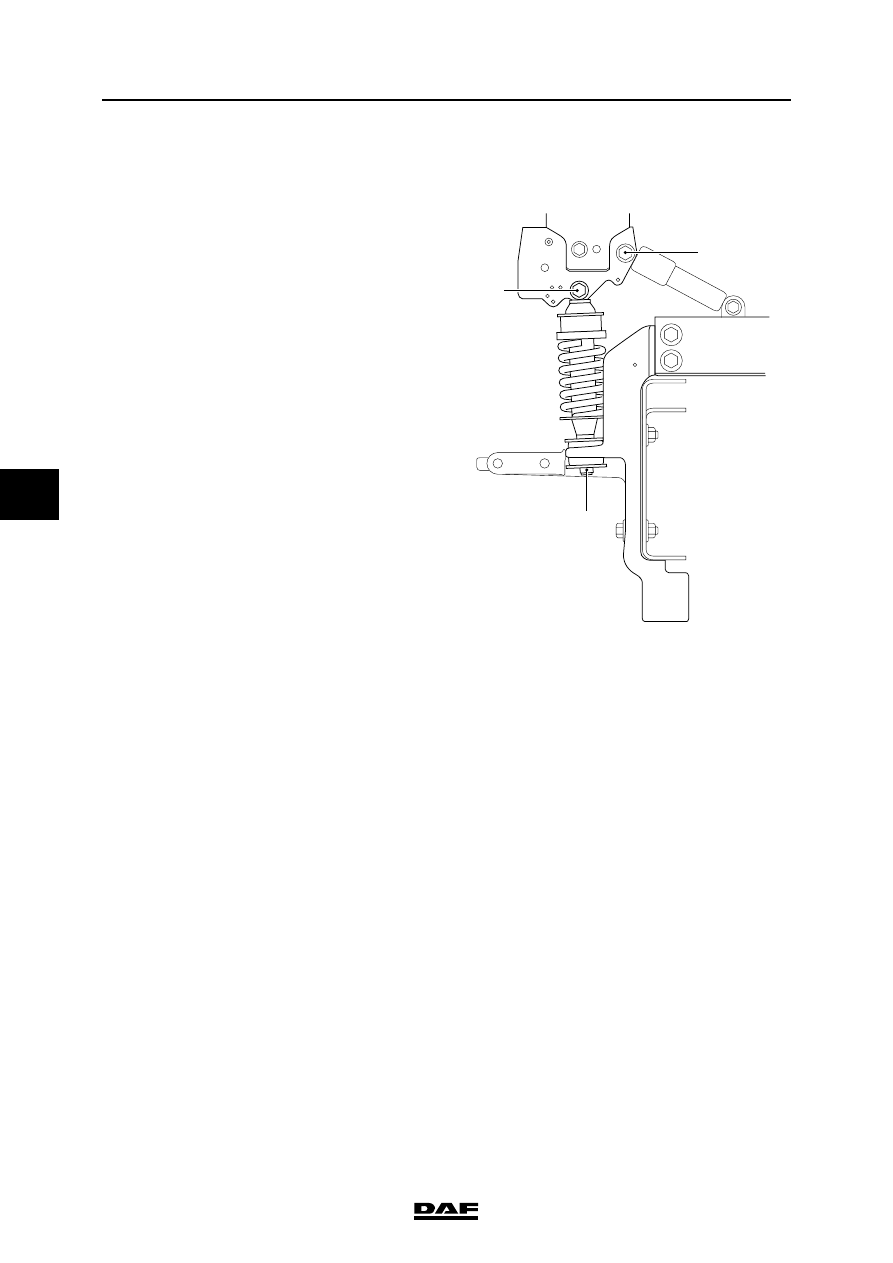

Removing rear coil spring suspension
1.

Tilt the cab forward.

2.

Remove attachment bolt (B) from the
horizontal damper.

3.

Remove attachment bolt (A) from the spring
element at the top.

4.

Lay the cab locking mechanism to one side.

5.

If the vehicle is equipped with a day cab,
remove the attachment bolt at the bottom.
If the vehicle is equipped with a sleeper cab,
remove the attachment nut (C) at the bottom.

6.

Remove the spring element.

Installing rear coil spring suspension
1.

Put the spring element in place.

2.

If the vehicle is equipped with a day cab, fit
the attachment bolt at the bottom. Tighten
the bolt to the specified torque. See
"Technical data".
If the vehicle is equipped with a sleeper cab,
fit the attachment nut (C) at the bottom.
Tighten the nut to the specified tightening
torque, see "Technical data".

3.

Fit the cab locking mechanism. Fit
attachment bolt (A) but do not tighten it yet.

4.

Fit attachment bolt (B) of the horizontal
damper. Do not yet tighten the bolt to the
specified tightening torque.

5.

Tilt the cab back.

6.

Tighten attachment bolt (B) of the horizontal
damper to the specified tightening torque,
see "Technical data".

7.

Tighten attachment bolt (A) of the cab
locking mechanism to the specified
tightening torque, see "Technical data".

K1 01 114

A

B
