DAF CF65, CF75, CF85 Series . Manual - part 133

©

 200346

2-3

General

CAB SUSPENSION

ΧΦ65/75/85 series

1

5

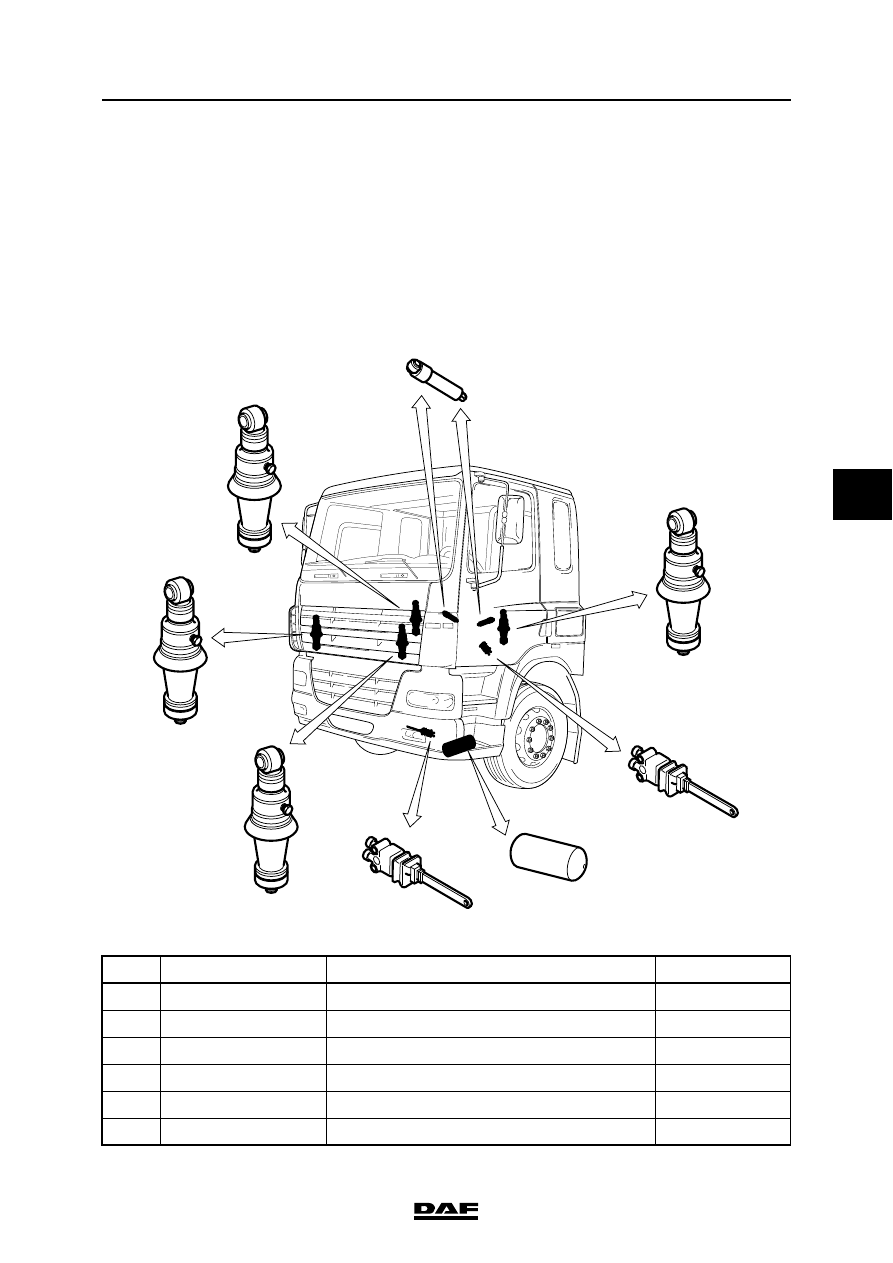

2.2 OPERATION OF THE CAB AIR SUSPENSION

The day cab has air suspension at the front as an
option.
The sleeper cab has air suspension all round as
an option.

The air suspension consists of an air bellows with
an internal shock absorber.
The system is equipped with height control
valves.

Legend

3

1

4

4

5

5

6

2

K1 00 922

Item

Description

Location

Note

1

Height control valve

Cab, rear left

2

Air reservoir

Front left behind bumper

Capacity 5.5 litres

3

Height control valve

Front left behind bumper

4

Spring element

Left- and right-hand sides under cab front

5

Spring element

Left- and right-hand sides under cab rear

6

Horizontal damper

Left- and right-hand sides under cab rear

CAB SUSPENSION

2-4

©

 200346

General

5

ΧΦ65/75/85 series

1

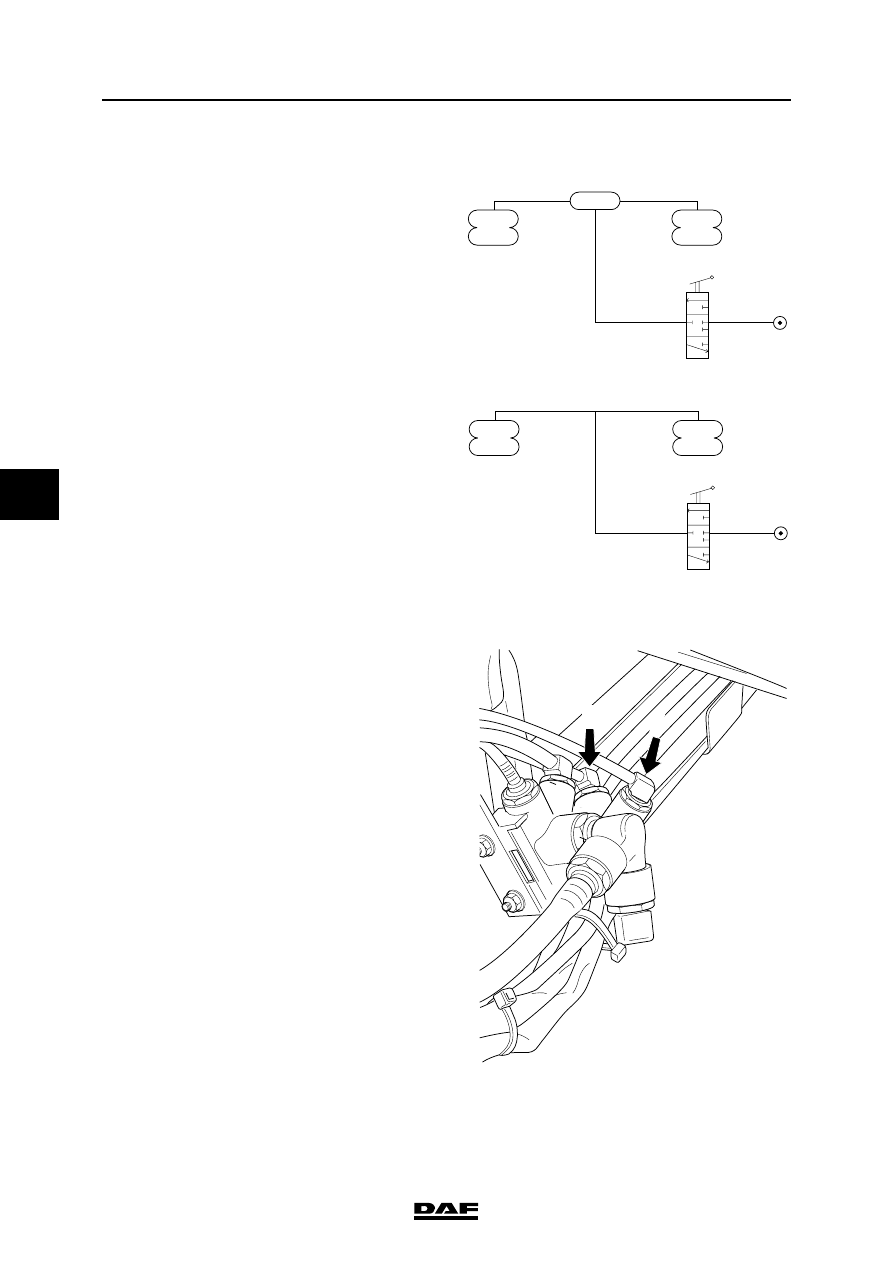

Pneumatic diagram of front cab suspension
A = Connection for cab suspension, front

Pneumatic diagram of rear
B = Connection for cab suspension, rear

Connection of cab suspension spring
elements
1 = Cab spring elements, front
2 = Cab spring elements, rear

5,5 ltr

2

1

A

K1 00 930

2

B

1

K1 00 938

1

2

K1 01 129

©

 200346

2-5

General

CAB SUSPENSION

ΧΦ65/75/85 series

1

5

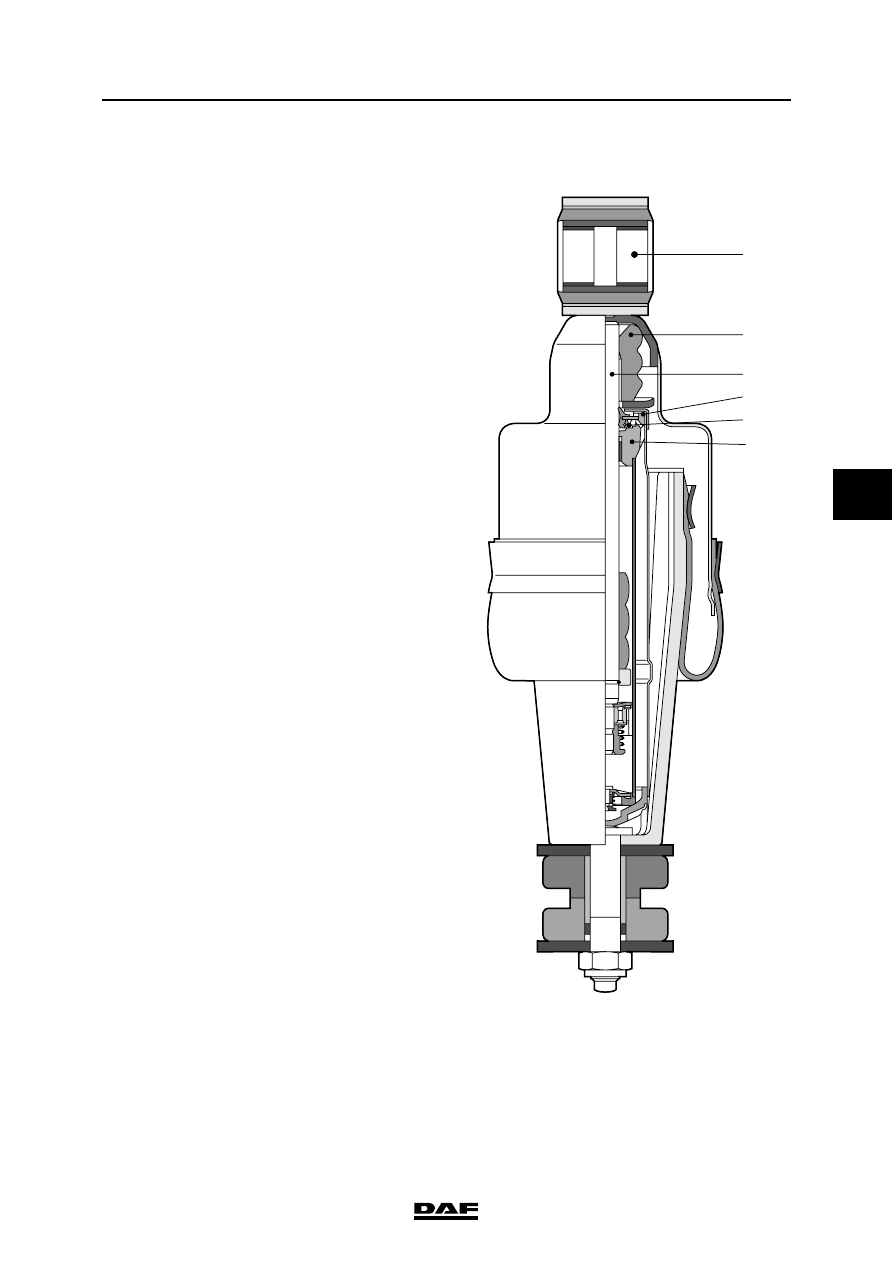

2.3 SECTIONAL DRAWING OF AIR SUSPENSION ELEMENT

1.

Fixing ring

2.

Rebound-rubber

3.

Piston rod

4.

Flange seam seal

5.

Sealing ring

6.

Rod guides

1

2

3
4

5
6

K1 01 451

CAB SUSPENSION

2-6

©

 200346

General

5

ΧΦ65/75/85 series

1
