DAF CF65, CF75, CF85 Series . Manual - part 121

©

 200346

3-3

Inspection and adjustment

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

2.

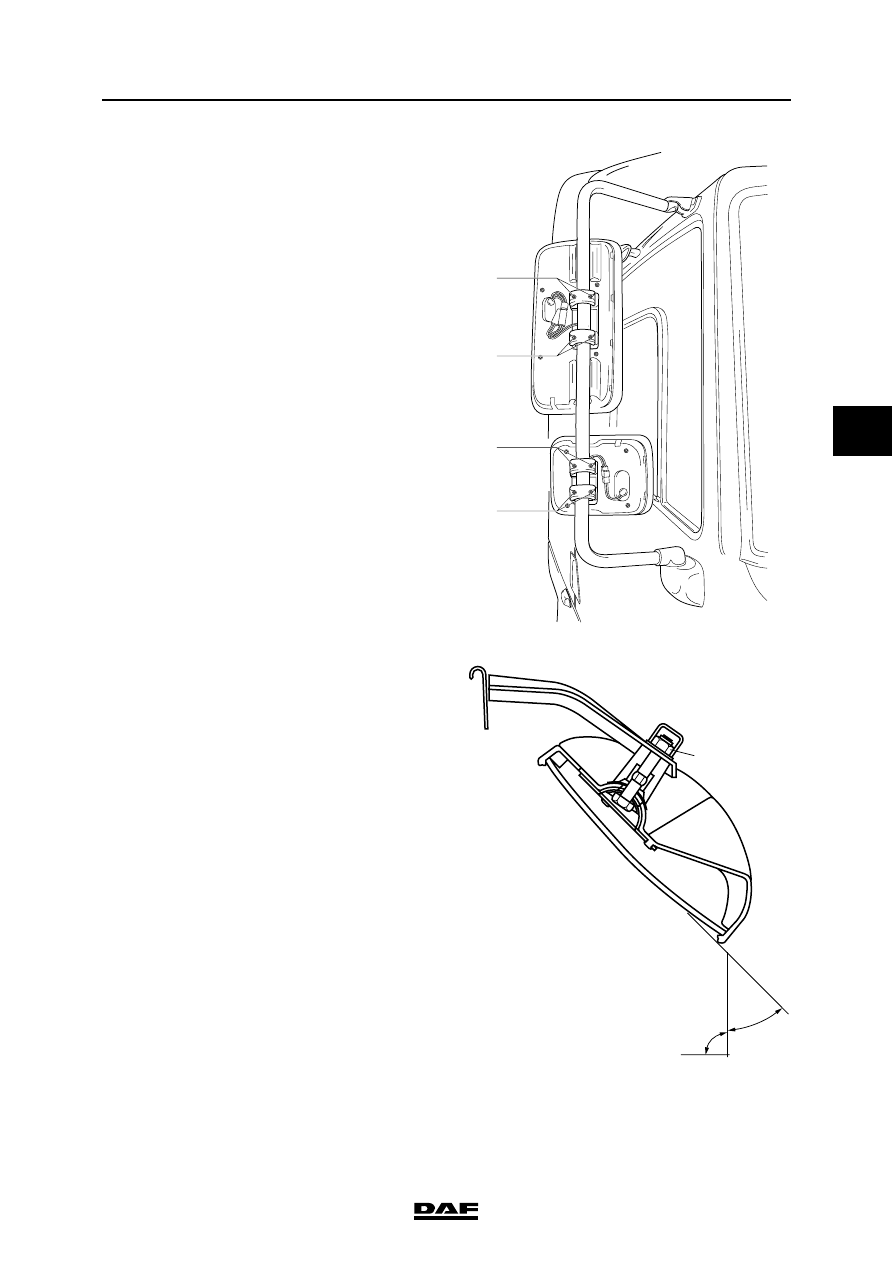

Unscrew the clamping bracket bolts (1). This
allows the mirrors to move freely over the
bracket.

3.

Position the mirror at the proper height and
angle (see 'Technical data').

4.

Tighten the clamping bracket bolts (1).

Adjusting the pavement mirror
1.

Remove the cap of adjusting nut (C) at the
top of the mirror.

2.

Slacken the nut a few turns until the mirror
can move freely.

3.

Adjust the mirror until it forms a right angle
(angle A) to the floor (angle B = 45

|).

Lengthways the mirror should run parallel to
the side of the vehicle.

4.

Tighten the bolts to the specified tightening
torque. See "Technical data".

1

1

1

1

K1 01 095

B

A

C

K100236

EXTERNAL CAB COMPONENTS

3-4

©

 200346

Inspection and adjustment

4

ΧΦ65/75/85 series

1

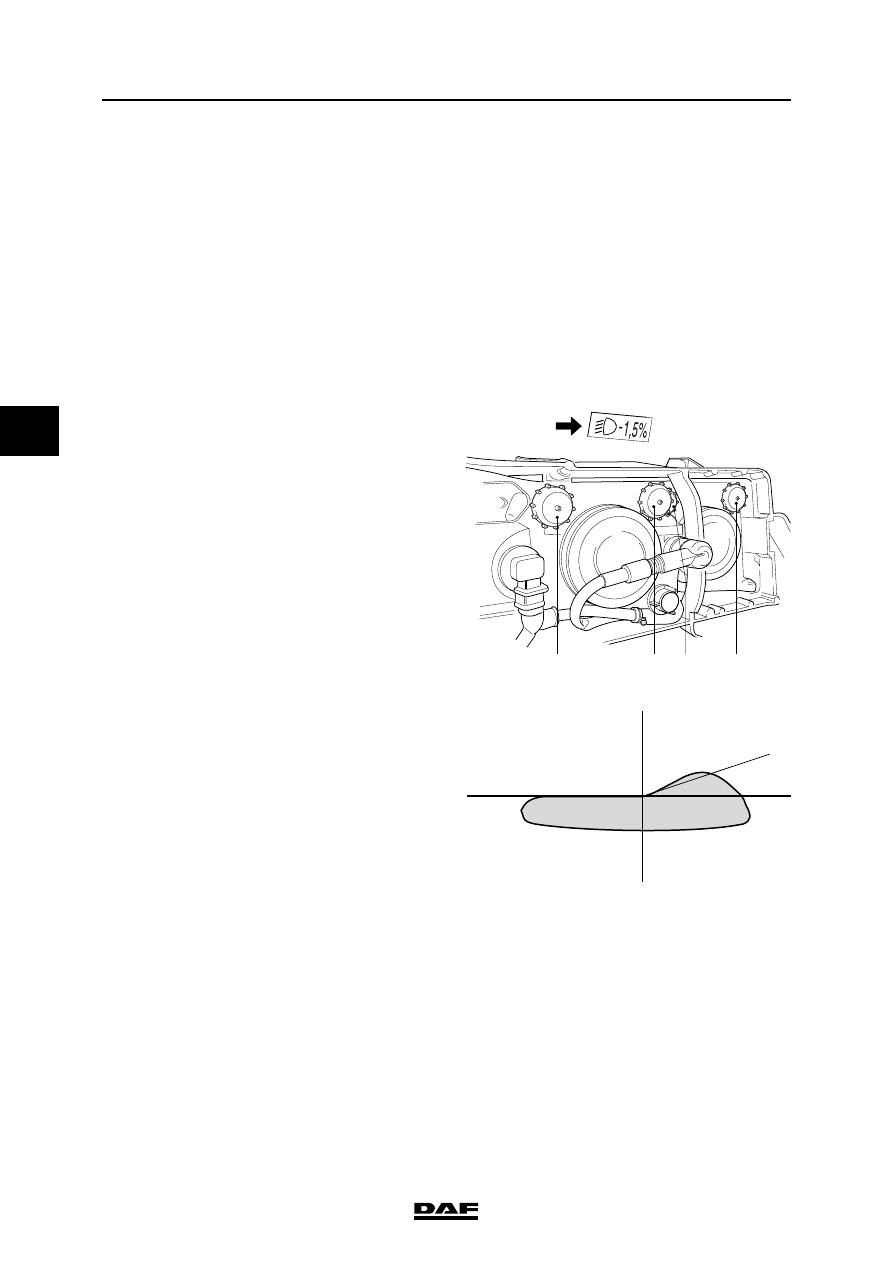

3.3 INSPECTION AND ADJUSTMENT, HEADLIGHTS

Note:
Use adjustment equipment to check and adjust
the headlights.

Adjusting the headlights
1.

Prior to adjusting the headlights, check that:
-

the vehicle is unladen and the tyres are
inflated to the specified pressure.

-

the vehicle is standing on a flat and level
surface.

-

the height adjustment of the headlights
inside the cab is in "0" position.

2.

The headlight is adjustable by means of four
knurled knobs at the back of the headlight
housing; main beam and dipped beam are
separately adjustable:
-

To adjust the dipped beam horizontally
turn knob 1.

-

To adjust the dipped beam vertically
turn knob 2.

-

To adjust the main beam vertically turn
knob 3.

-

To adjust the main beam horizontally
turn knob 4.

The specified height adjustment is also
shown on a sticker on the inside of the corner
section around the headlight.

3.

As clear headlight glass is used the image of
the asymmetrical light beam deviates
somewhat from the usual image. The beam
of light is not a straight line that slants
upwards, but is slightly convex.

4.

Adjust the headlight so that the intersection
of the convex and horizontal light beam
coincides with the intersection of the
asymmetric diagonal and horizontal
adjustment line. It does not make any
difference if the convex beam is above the
asymmetric diagonal.

1

2

3

4

K1 01 354

K1 01 473

©

 200346

4-1

Removal and installation

EXTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

4

4. REMOVAL AND INSTALLATION

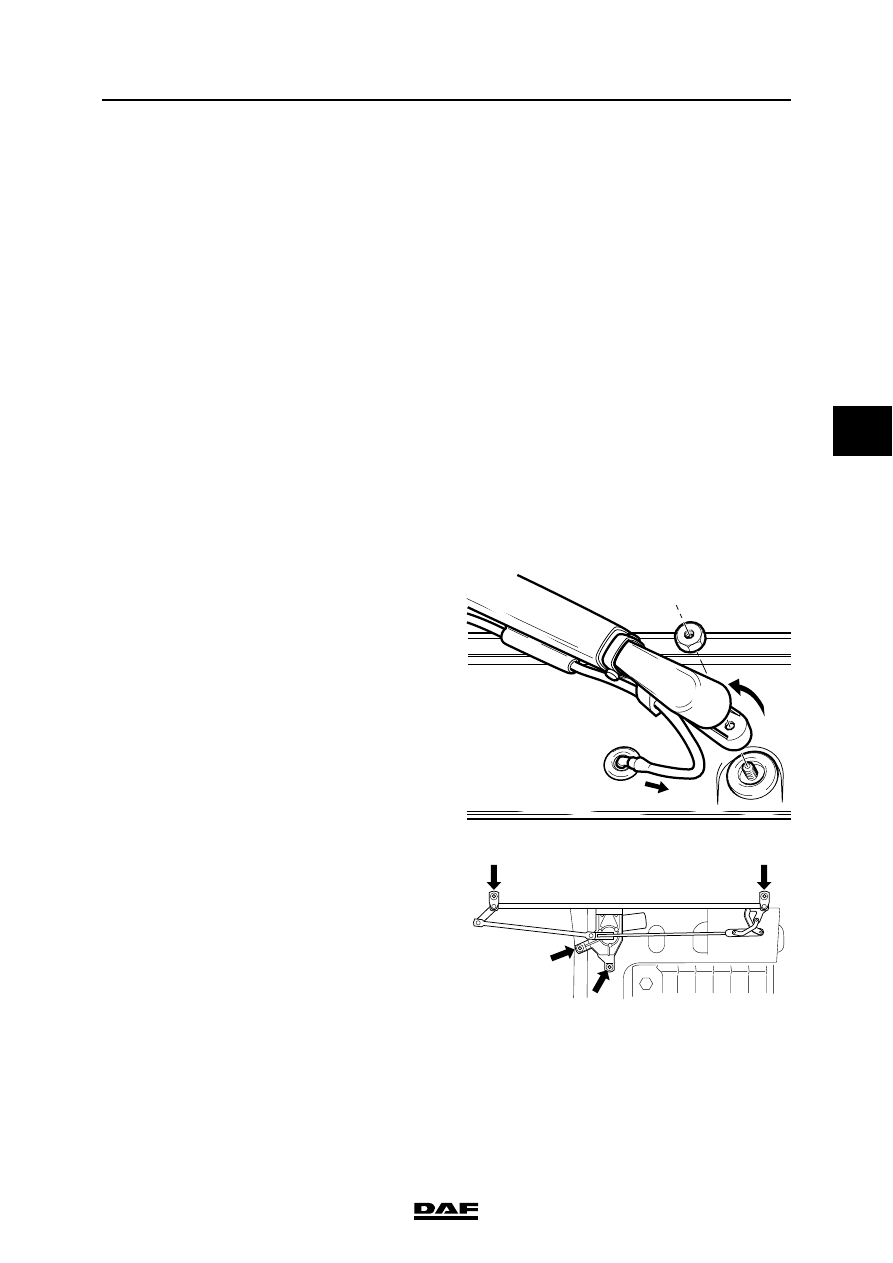

4.1 REMOVAL AND INSTALLATION, WINDSCREEN WIPER SYSTEM

When replacing the wiper linkage, the following
points must be observed.

If the balls of the wiper linkage are worn, replace
them as well as the wipers.

Use the proper tools when removing the old
wipers to avoid damaging the seals.

When installing new wipers, use the specified
grease. See "Technical data".

When fitting new wipers, never hit the sealing
covers on the wipers with a hammer or other hard
object. The covers are only 1 mm thick and might
be damaged.

If the motor spindle shows axial play, replace the
motor. This play will cause excessive wear to the
wiper linkage.

Removing windscreen wiper system
1.

Open the windscreen wiper arm covers.

2.

Remove the attachment nuts of the
windscreen wiper arms.

3.

Remove the windscreen washer fluid hoses
and remove the windscreen wiper arms.

4.

Remove the cab grille.

5.

Remove the corner pieces.

6.

Remove the windscreen wiper panel.

7.

Unplug the connector of the windscreen
wiper system.

8.

Remove the attachment bolts from the
windscreen wiper system and remove the
entire system.

K1 00 654

K1 01 038

EXTERNAL CAB COMPONENTS

4-2

©

 200346

Removal and installation

4

ΧΦ65/75/85 series

1

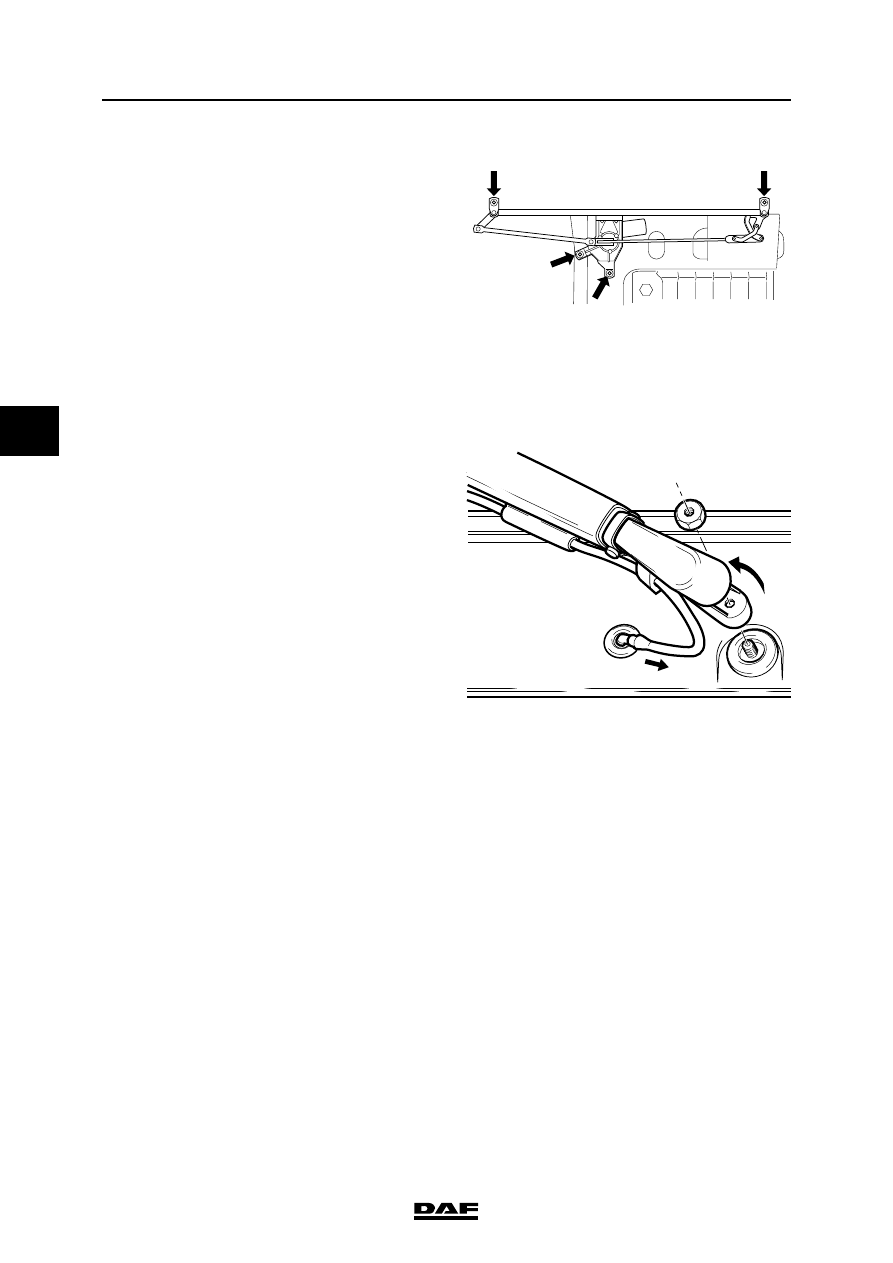

Installing windscreen wiper system
1.

Install the complete windscreen wiper
system and secure it using the attachment
bolts.

2.

Attach the connector of the windscreen wiper
motor.

3.

Position the windscreen wiper panel.

4.

Fit the corner pieces.

5.

Fit the cab grille.

6.

Put the windscreen wiper motor in the
neutral position by turning it on and off
quickly using the switch in the cab.

7.

Fit the windscreen wiper arms.

8.

Tighten the attachment nuts of the
windscreen wiper arms to the specified
torque, see "Technical data".

9.

Fit the windscreen washer fluid hoses.

10. Close the covers.

K1 01 038

K1 00 654
