DAF CF65, CF75, CF85 Series . Manual - part 1125

©

 200518

3-9

Inspection and adjustment

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ65/65 (II) series

5

3.9 CHECKING THE POLY V-BELT

1.

Check the poly-V-belt for damage and signs

of serious wear.

2.

Check the pulleys for damage, rust and

grease deposits.

Clean or replace the belt pulleys if

necessary.

Note:

Pay special attention to the plastic pulleys and

the water pump pulley.

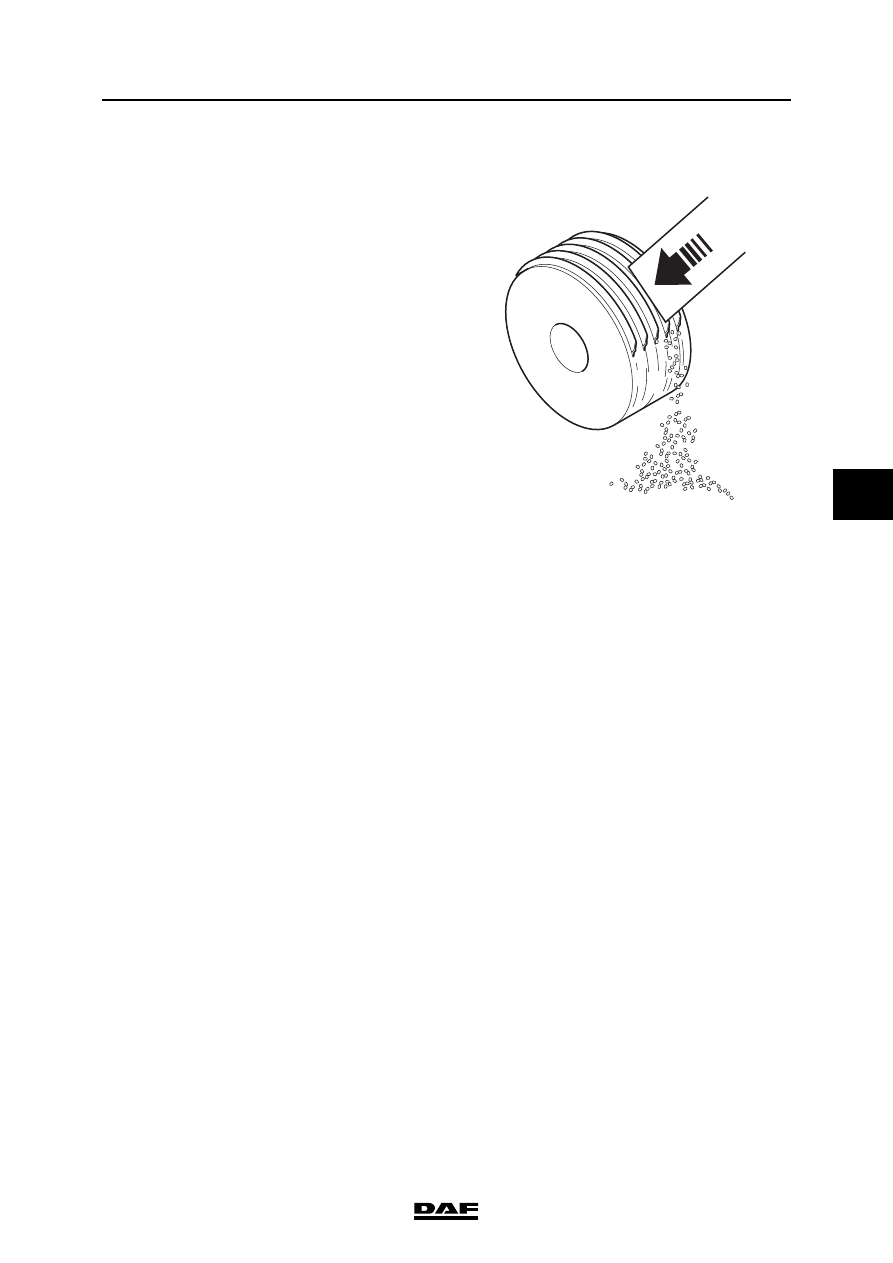

Dirt can be scraped off the pulleys quite easily.

Take care not to damage the pulleys.

G000374

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-10

©

 200518

Inspection and adjustment

5

ΧΦ65/65 (II) series

3.10 CHECKING THE COOLANT FREEZING POINT

When the coolant is hot, there is an

overpressure in the cooling system.

Carefully remove the filler cap to

release the overpressure.

Do not remove the filler cap when the

engine is running.

Coolant is a toxic fluid. Contact with

the skin should therefore be

avoided.

In the event of contact with the skin:

remove with paper or a cloth, wash

with soap and water. If irritation

persists, consult a doctor.

If swallowed: DO NOT induce

vomiting. Rinse mouth, drink two

glasses of water and consult a

doctor.

In the event of inhalation: get some

fresh air and rest.

In order to avoid damaging the

cylinder block, do not top up a warm

engine with coolant.

1.

Check the anti-freeze content of the coolant.

Fill the cooling system with anti-freeze, if this

has not been done yet. Always use only

coolants that meet DAF specifications.

2.

Consult the manufacturer’s instructions for

the correct anti-freeze mixing ratio.

Preferably, use 40% anti-freeze on an

ethylene glycol base. At this percentage, not

only good frost protection, but also good

corrosion protection is guaranteed.

}

%

O

o

M2016

C

100

0

90

10

80

20

70

30

60

40

50

50

40

60

30

70

20

80

10

90

-80

-70

-60

-50

-40

-30

-20

0

-10

0

100

2

H

Ethyleenglycol

©

 200518

3-11

Inspection and adjustment

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ65/65 (II) series

5

3.11 CHECKING FOR FUEL LEAKS

1.

Visually inspect all hose connections and

fuel system components for leaks.

3.12 CHECKING THE COMPONENTS AND HOSE CONNECTIONS FOR LEAKS

1.

Check all hose connections and cooling

system components for leaks.

2.

Check the hose connections and inlet

system components.

3.13 CHECKING THE EXHAUST SYSTEM

1.

Visually inspect the exhaust system for

leaks.

2.

Check the exhaust suspension points.

3.

Check that no heat transfer (due to

accumulated dirt, for example) can take

place to the exhaust system area, such as

pipes, components etc.

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-12

©

 200518

Inspection and adjustment

5

ΧΦ65/65 (II) series

3.14 CHECKING THE RADIATOR AND INTERCOOLER FOR FOULING

1.

Visually inspect the radiator and intercooler

for fouling If necessary, clean the radiator

and intercooler, see "Cleaning".

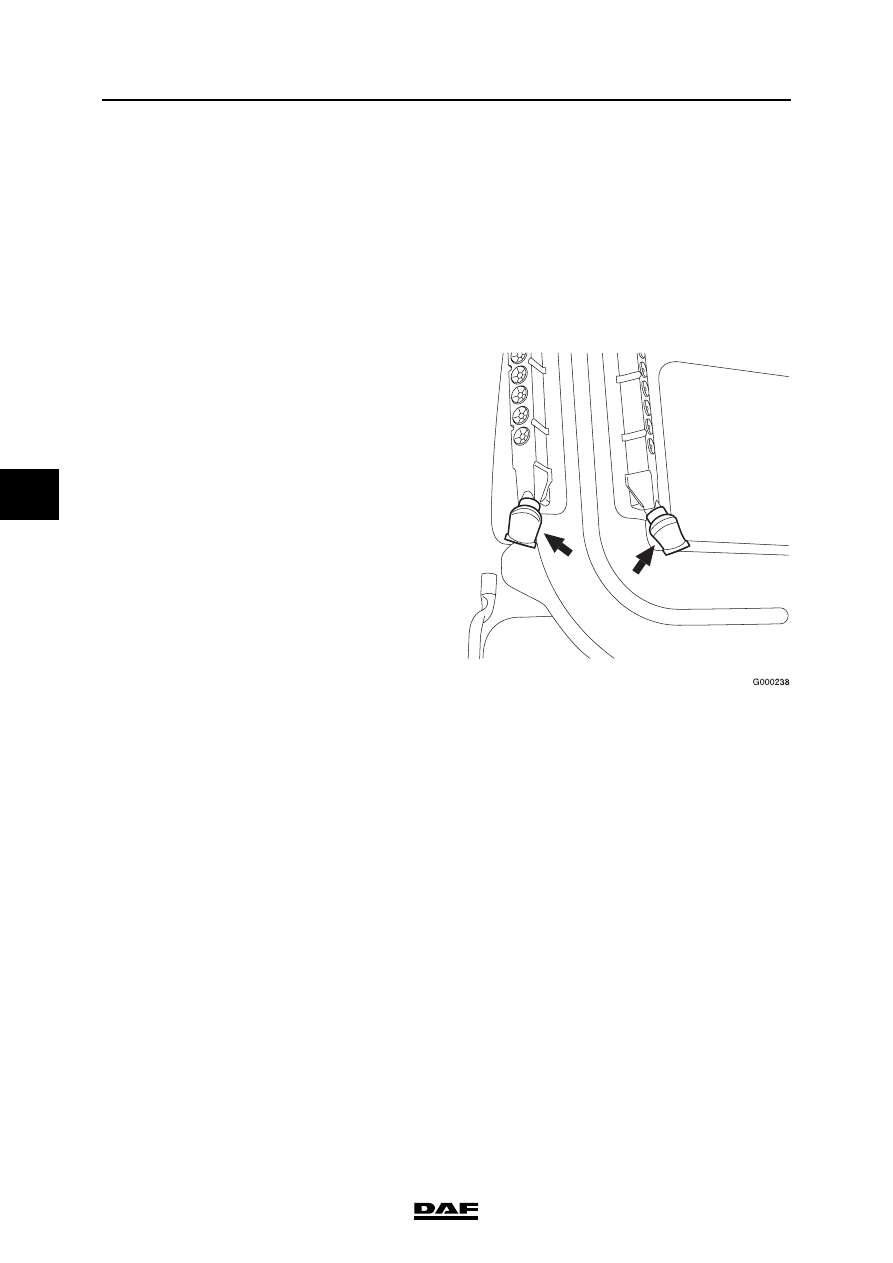

3.15 CHECKING THE AIR INLET DUST TRAPPING VALVE

1.

Check the condition of the rubber valves.
