DAF CF65, CF75, CF85 Series . Manual - part 1059

©

 200424

2-5

Removal and installation

TRAILING AXLES

ΧΦ65/75/85 series

8

8

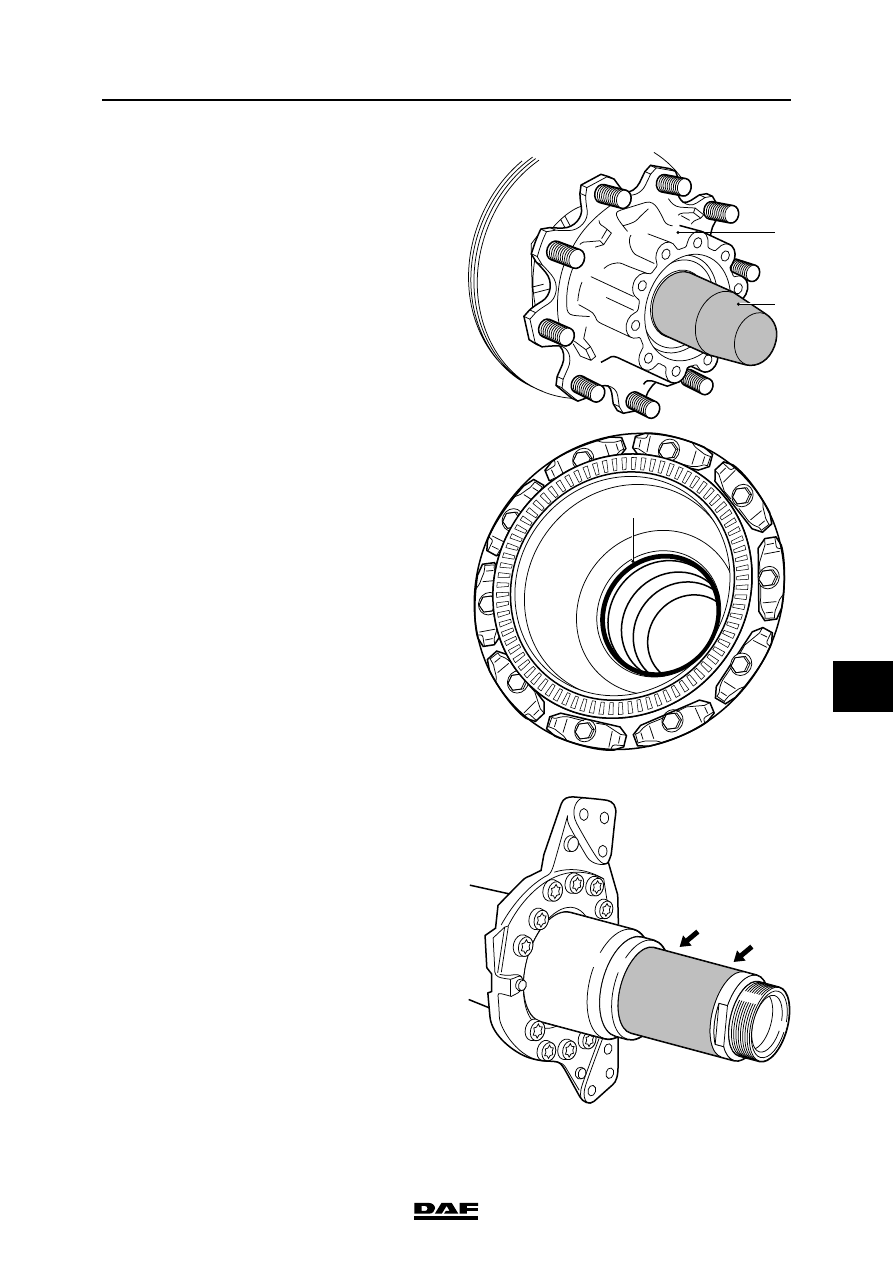

7.

Install the guide sleeve (A), which is part of

the special tool set (DAF no. 1329496), on

the axle journal.

8.

Attach the wheel hub unit (5) securely to a

movable lifting device.

9.

Slide the wheel hub unit (5) from the axle

journal using the lifting device.

Take care that the wheel hub unit (5) does

not rest on the guide bush (A) as the latter is

not strong enough to take the weight of the

wheel hub unit (5).

10. Remove the O-ring (6) from the wheel hub

unit (5).

Installing the wheel hub
1.

Check the axle journal thread carefully for

damage.

You must never fit a wheel hub on an

axle journal with a damaged thread.

2.

Fit the O-ring (6) into the wheel hub unit (5).

3.

Apply a thin and even layer of the prescribed

lubricant to the axle journal, see "Technical

data".

Note:

Do not overlubricate the axle journal. While

fitting the wheel hub unit, the excess grease

will collect at the backside of the wheel hub.

When the vehicle is used in daily operation,

this anti-corrosion agent can leak out so that

it looks as if the oil seal leaks.

5

A

A8 00 411

6

A8 00 412

}

A8 00 344

TRAILING AXLES

2-6

©

 200424

Removal and installation

8

ΧΦ65/75/85 series

8

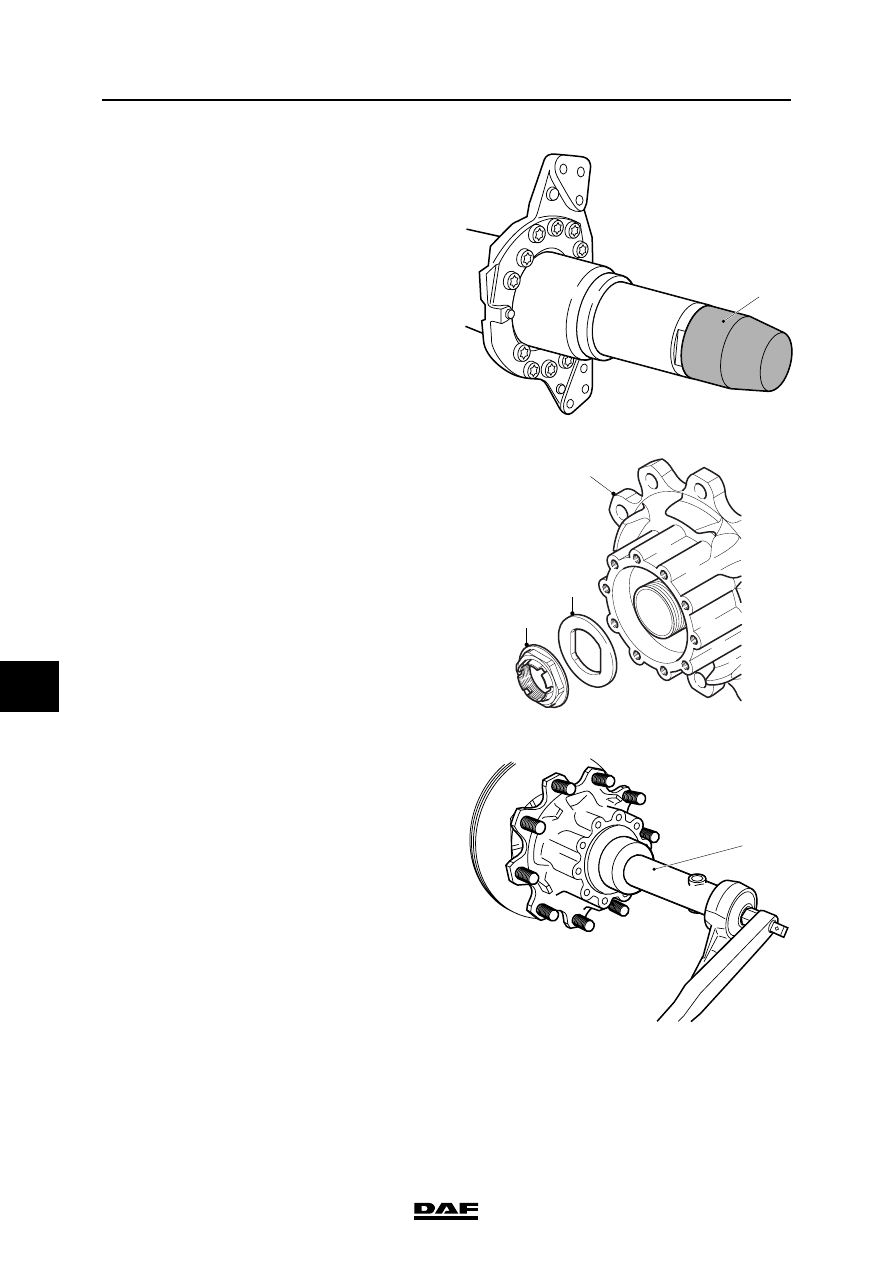

4.

Install the guide sleeve (A), which is part of

the special tool set (DAF no. 1329496), on

the axle journal.

5.

Attach the wheel hub unit (5) securely to a

movable lifting device.

6.

Position the wheel hub unit (5) exactly in

front of the axle journal using the movable

lifting device. Slide the wheel hub unit (5) on

the axle journal.

Take care that the wheel hub unit (5) does

not rest on the guide bush as the latter is not

strong enough to take the weight of the

wheel hub unit (5).

7.

Fit the thrust washer (4).

8.

Replace the hub nut (3). Apply a few drops of

oil to the abutting surface of the hub nut (3).

Fit the hub nut (3).

9.

Fit the hub nut (3) using the hub nut wrench

(A), which is part of the special tool set

(DAF no. 1329496) and a torque amplifier.

Tighten the hub nut (3) in the specified

manner using a torque amplifier, see

"Technical data".

10. Thoroughly clean the sealing surfaces of the

wheel hub and the hub cap.

11. Apply a sealant to one of the sealing

surfaces.

12. Fit the hub cap.

13. Fit the brake calliper.

14. Put the wheels back on.

A

A8 00 343

3

4

5

A8 00 413

A

A8 00 405

©

 200424

2-7

Removal and installation

TRAILING AXLES

ΧΦ65/75/85 series

8

8

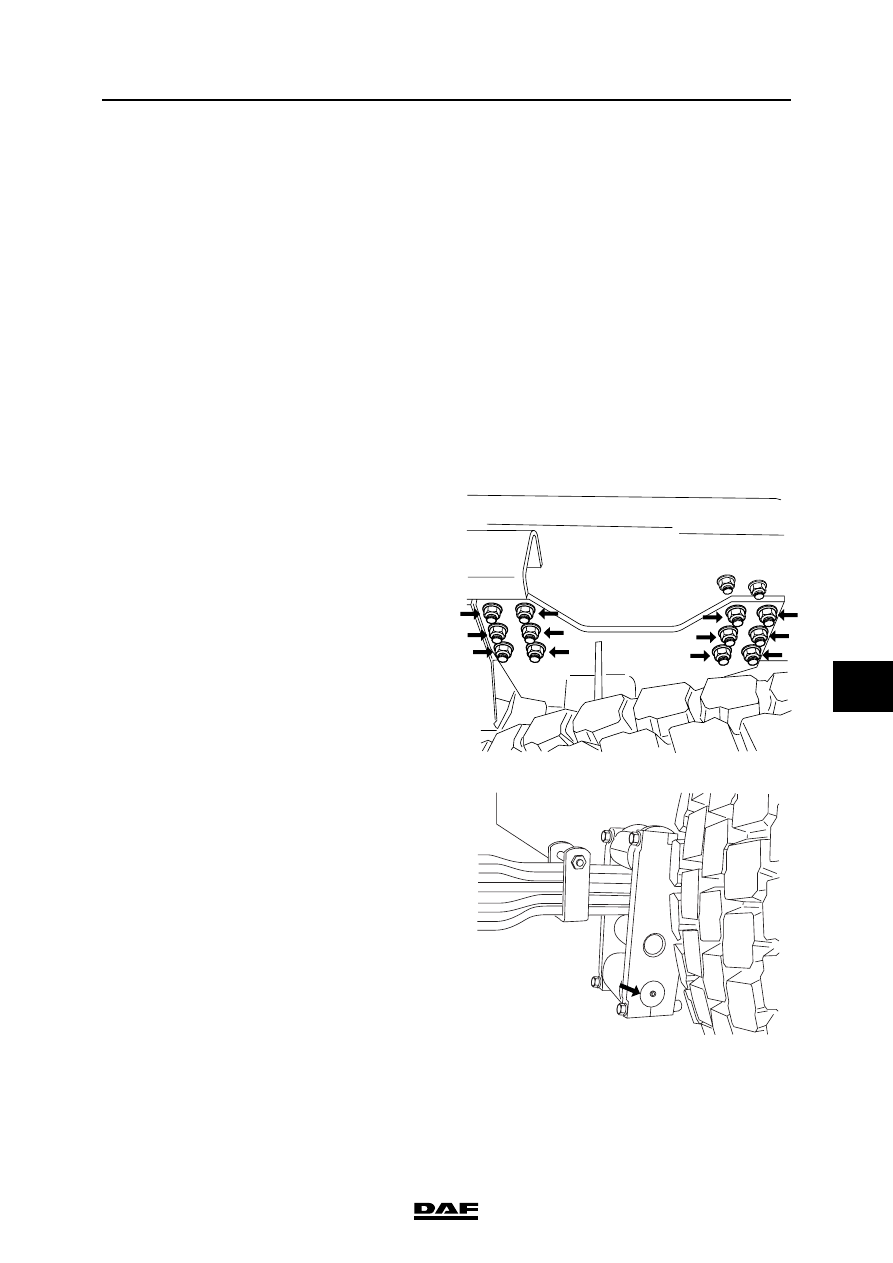

2.3 REMOVAL AND INSTALLATION, TRAILING AXLE

Removing the trailing axle
1.

Remove the wheels from the trailing axle.

2.

Loosen the shock absorbers at the top and

depress these as far as possible.

3.

Remove the brake pipes and the cabling of

the disc brakes.

4.

(Temporarily) fit the outer wheels of the

trailing axle.

5.

Lower the trailing axle.

6.

Safely lift the chassis rear until the

attachment bolts holding the bearing

supports to the chassis can be removed.

7.

Remove the attachment bolts holding the

bearing supports to the chassis.

8.

Lift the chassis until the bearing supports are

clear of the chassis and the bottom pins of

the shackles are within reach.

9.

Place a wooden block right and left between

the chassis member and the axle housing of

the driven axle.

10. Place suitable supports under the yokes

where the shackle is attached.

11. Remove the lower pins from the shackles.

A8 00 408

A8 00 409

TRAILING AXLES

2-8

©

 200424

Removal and installation

8

ΧΦ65/75/85 series

8

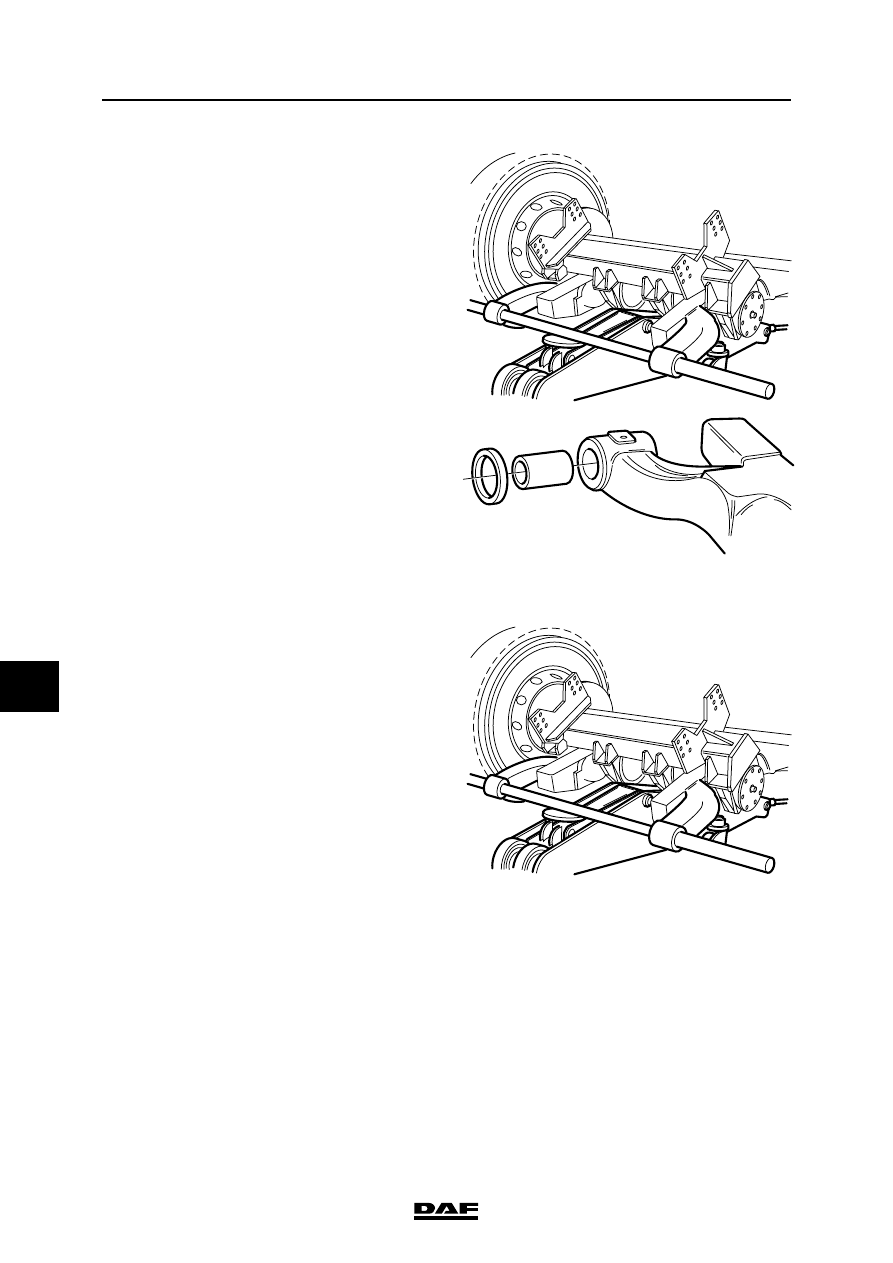

12. Insert a solid piece of pipe through the eye of

every yoke.

13. Position a trolley jack in the middle of the

pipe, supporting it.

14. Remove the supports and slowly lower the

pipe and the yokes.

15. Roll the trailing axle from under the chassis.

16. Slowly lower the chassis onto the wooden

blocks.

17. Take the rings out of the eyes of the yokes if

necessary.

Installing the trailing axle
1.

Fit the rings in the eyes of the yokes.

2.

Raise the chassis. Support the chassis in a

safe way.

3.

Insert a solid piece of pipe through the eye of

every yoke.

4.

Move the trailing axle under the chassis

using a trolley jack. Align the trailing axle and

the chassis.

A8 00 406

A800208

A8 00 406
