Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

2.

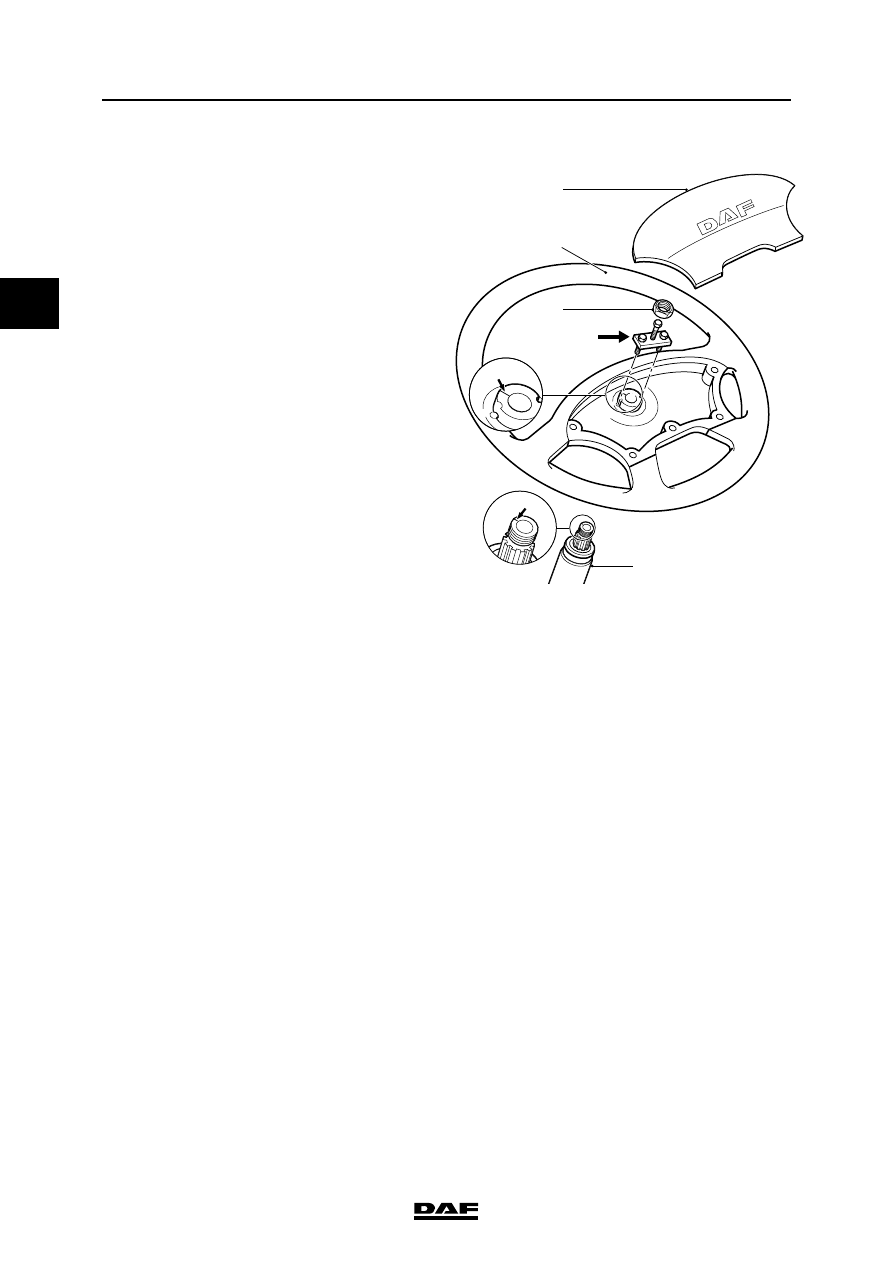

Remove the cover plate (1) from the steering
wheel (2).

3.

Remove the attachment nut (3) of the
steering wheel.

4.

Fit the special tool, steering wheel puller (A),
to the steering wheel using its two outer
bolts. Screw in the central bolt of the steering
wheel puller until the steering wheel is
released.

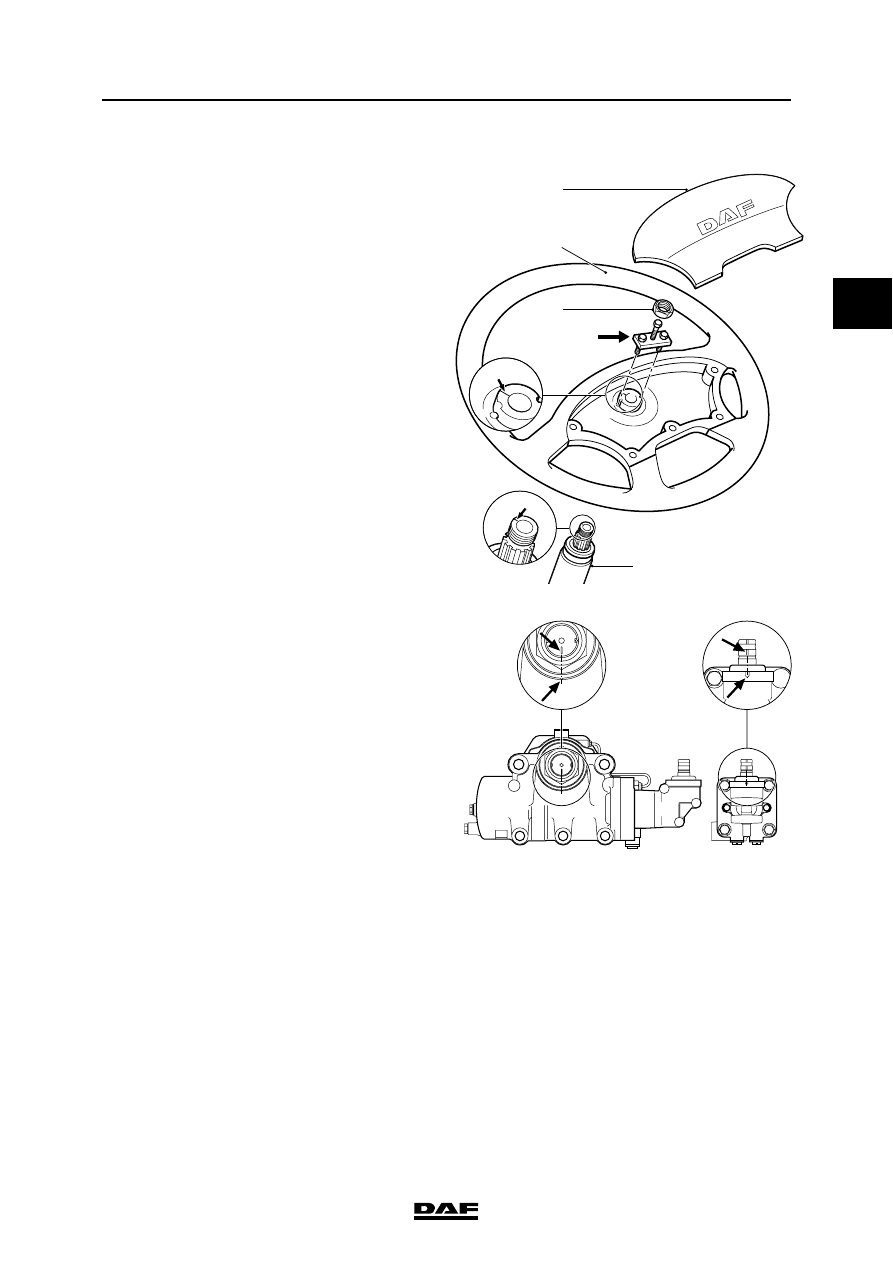

Installing steering wheel
1.

Check whether the steering gear is still in the
central position using the marks on the
steering box or the steering gear.

K1 01 144

1

3

4

2

A

B

B

S7 00 024

INTERNAL CAB COMPONENTS

4-16

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

2.

Fit the steering wheel (2) on the steering
shaft (4) so that the marks on the steering
wheel and the steering shaft "align", (see the
arrows B) in the drawing.

3.

Fit the steering wheel attachment nut (3).
Tighten the nut to the specified tightening
torque, see "Technical data".

4.

Fit the cover plate (1).

K1 01 144

1

3

4

2

A

B

B

©

 200346

4-17

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

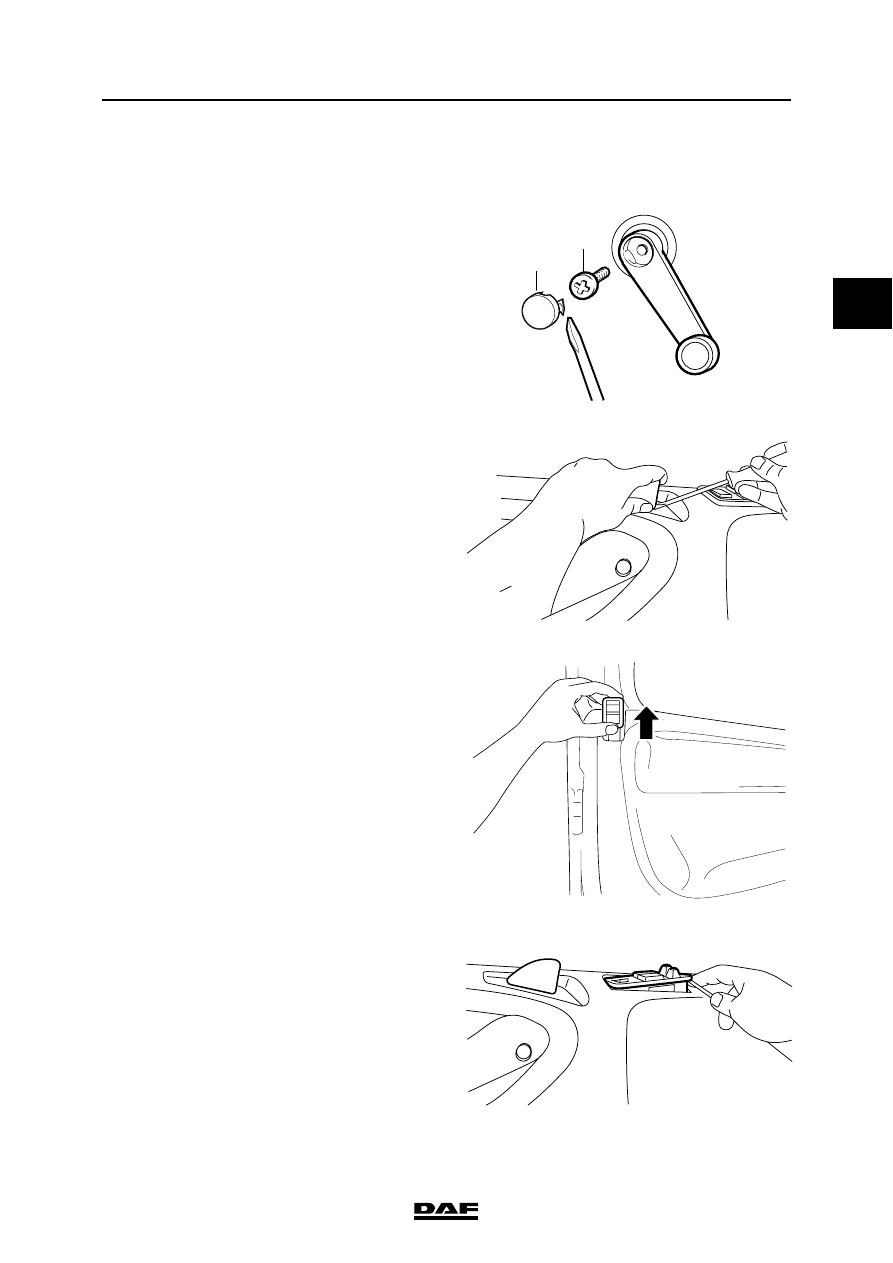

4.12 REMOVAL AND INSTALLATION, DOOR PANEL

Removing door panel
1.

If a manual window mechanism is fitted,
remove the cover (1) using a sharp
screwdriver.

2.

If a manual window mechanism is fitted,
remove the attachment bolt (2) and remove
the handle.

3.

Remove the door knob by lifting it (open
door) and pressing the locking clip
underneath the knob. Pull the knob off the
mechanism.

4.

Remove the alignment plate for the door lock
by pushing it upward slightly with a small
screwdriver. The alignment plate can then be
pulled from the panel by hand.

5.

Remove the control panel from the door
panel (electric window and mirror). Mark the
position of the connectors and remove them.

1

2

K1 00 913

K1 01 024

K1 01 025

K1 01 026

INTERNAL CAB COMPONENTS

4-18

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

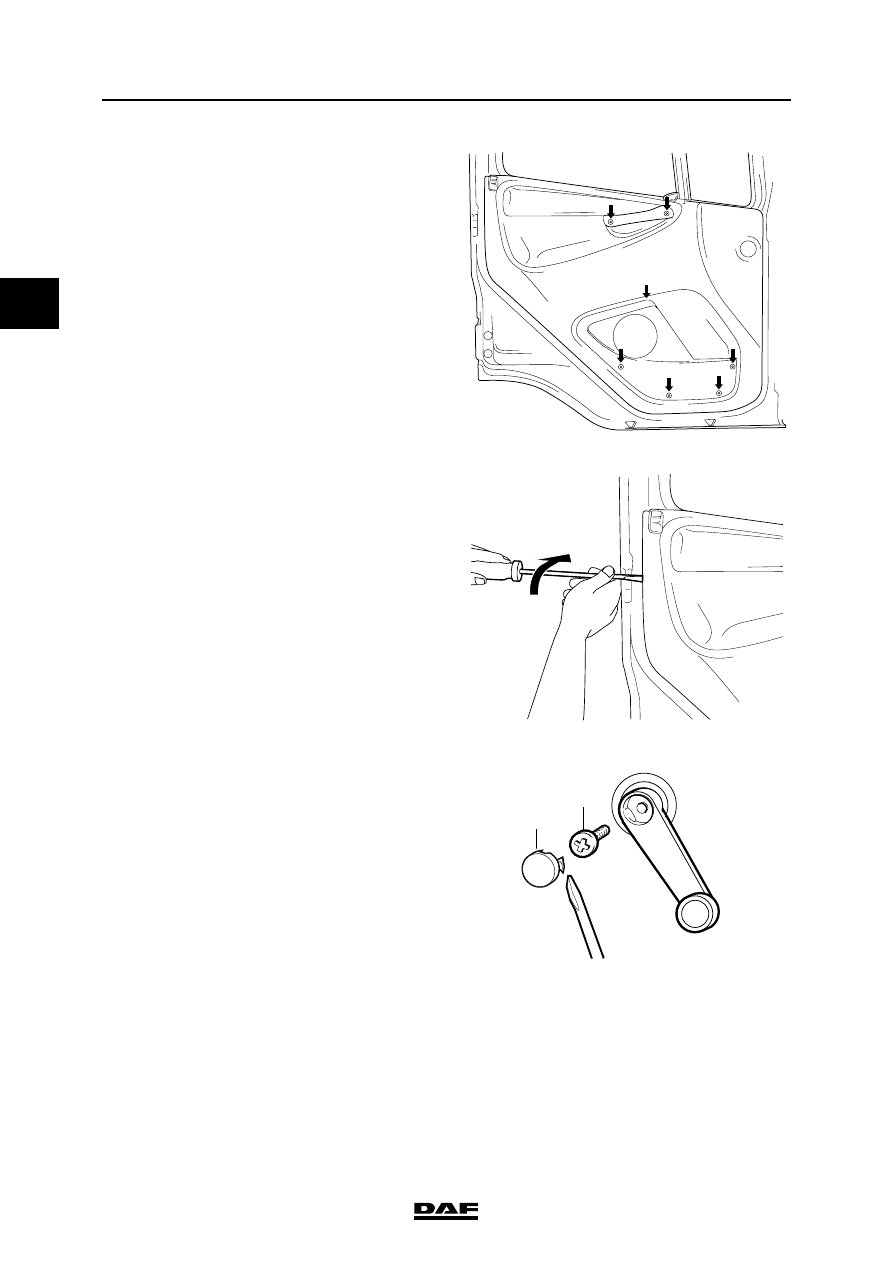

6.

Remove the cover from the speaker and
remove the fixing bolts from the door panel.

7.

Stick a screwdriver into the openings on the
sides of the panel and pull the spring clips
from the clamping sleeves. Avoid damaging
the paintwork.

Installing door panel
1.

Put the door panel in place (push into place)

2.

Fit the door panel attachment bolt.

3.

Fit the handle and secure it using the
attachment bolts.

4.

Fit the speaker cover.

5.

Fit the unlocking handle on the door lock
(push into place).

6.

If applicable, fit the control for the window
mechanism. Fit the attachment bolt (2) and
the cover (1).

7.

Replace the connectors for the control panel
and fit the control panel in the door panel
(push into place).

K1 01 336
