5.12 REMOVAL AND INSTALLATION, FUEL RETURN OVERFLOW VALVE

When removing the fuel return

overflow valve valve, fuel will

escape. Collect the fuel and avoid

the risk of fire.

Dirt in the fuel system can lead to

significant damage to parts of the

system. Prevent this by cleaning the

parts before disassembly and then

sealing all open connections.

Removing the fuel return overflow valve
1.

To prevent dirt from entering, first clean the

area around the fuel return connection.

2.

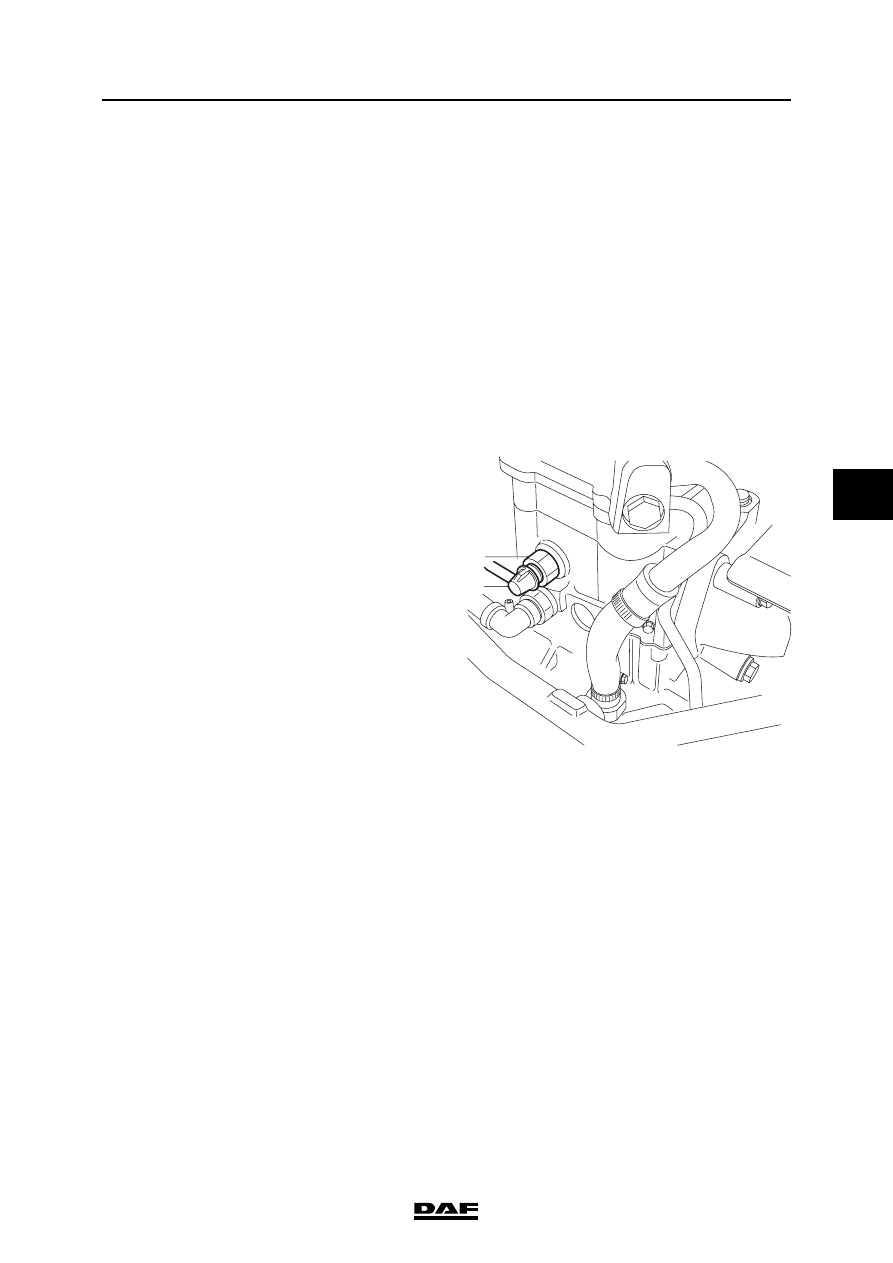

Remove the fuel return pipe (1) on the fuel

return overflow valve (2) and plug the pipe.

3.

Remove the fuel return overflow valve and

collect the escaping fuel.

Installing the fuel return overflow valve
1.

Install the fuel return overflow valve. Haal het

brandstofretour-overstroomventiel aan met

het voorgeschreven aanhaalmoment, zie

hoofdgroep "Technische gegevens".

2.

Connect the quick-release couplings of the

fuel return pipe to the fuel return overflow

valve.

3.

Start the engine and check the fuel system

for leaks.

}

}

1

2

i400502

CE ENGINE FUEL SYSTEM

5-24

©

 200416

Removal and installation

5

ΛΦ45/55 series

4

5.13 REMOVAL AND INSTALLATION, LOW-PRESSURE FUEL PIPES

When removing the low-pressure

fuel pipes, fuel will escape. Collect

the fuel and avoid the risk of fire.

Dirt in the fuel system can lead to

significant damage to parts of the

system. All open connections must

therefore be sealed.

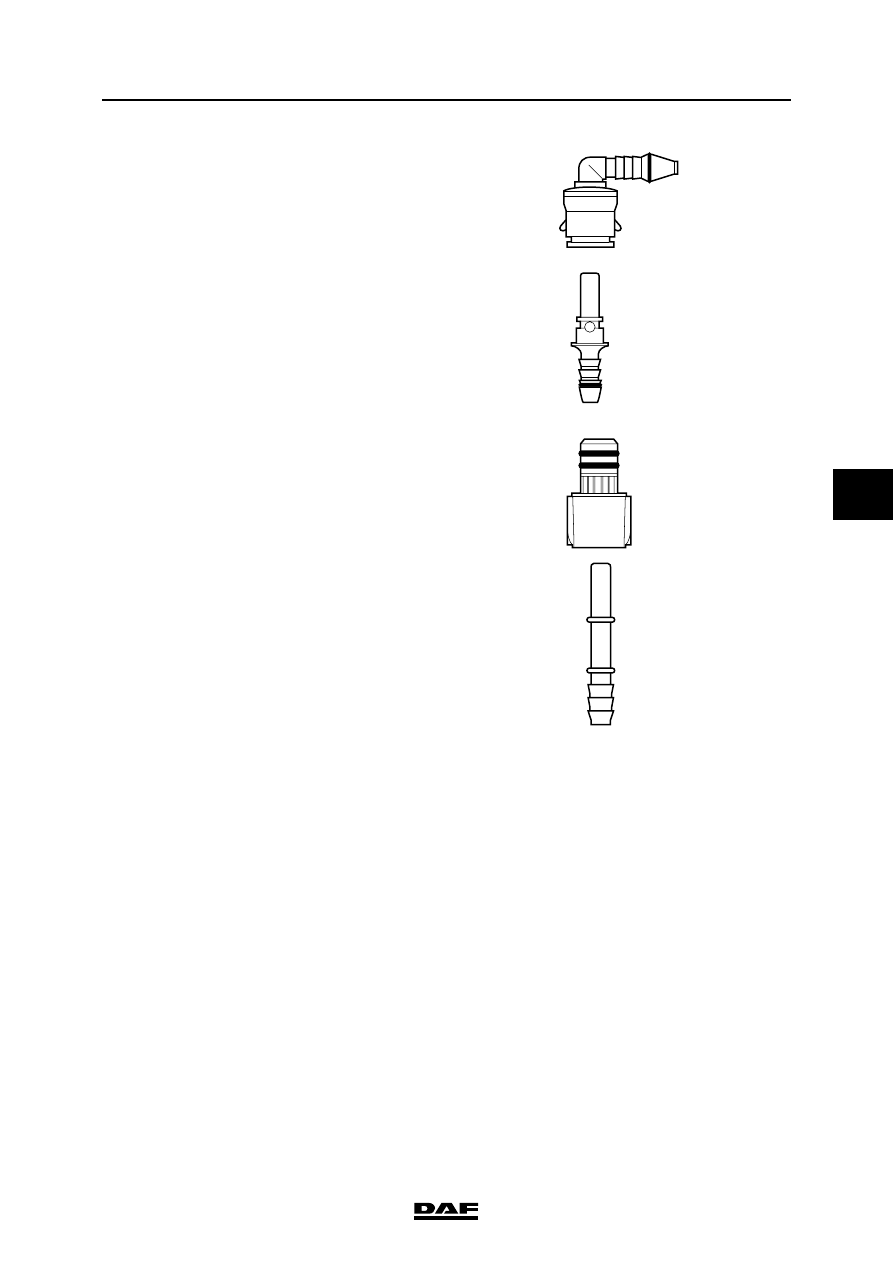

The low-pressure fuel pipes may have two

different types of quick-release coupling.

VOSS quick-release coupling

}

}

i400881

©

 200416

5-25

Removal and installation

CE ENGINE FUEL SYSTEM

ΛΦ45/55 series

4

5

John Guest quick-release coupling

i400882

i400884

CE ENGINE FUEL SYSTEM

5-26

©

 200416

Removal and installation

5

ΛΦ45/55 series

4

Low-pressure fuel pipes fitted with VOSS

quick-release couplings

Removing low-pressure fuel pipes

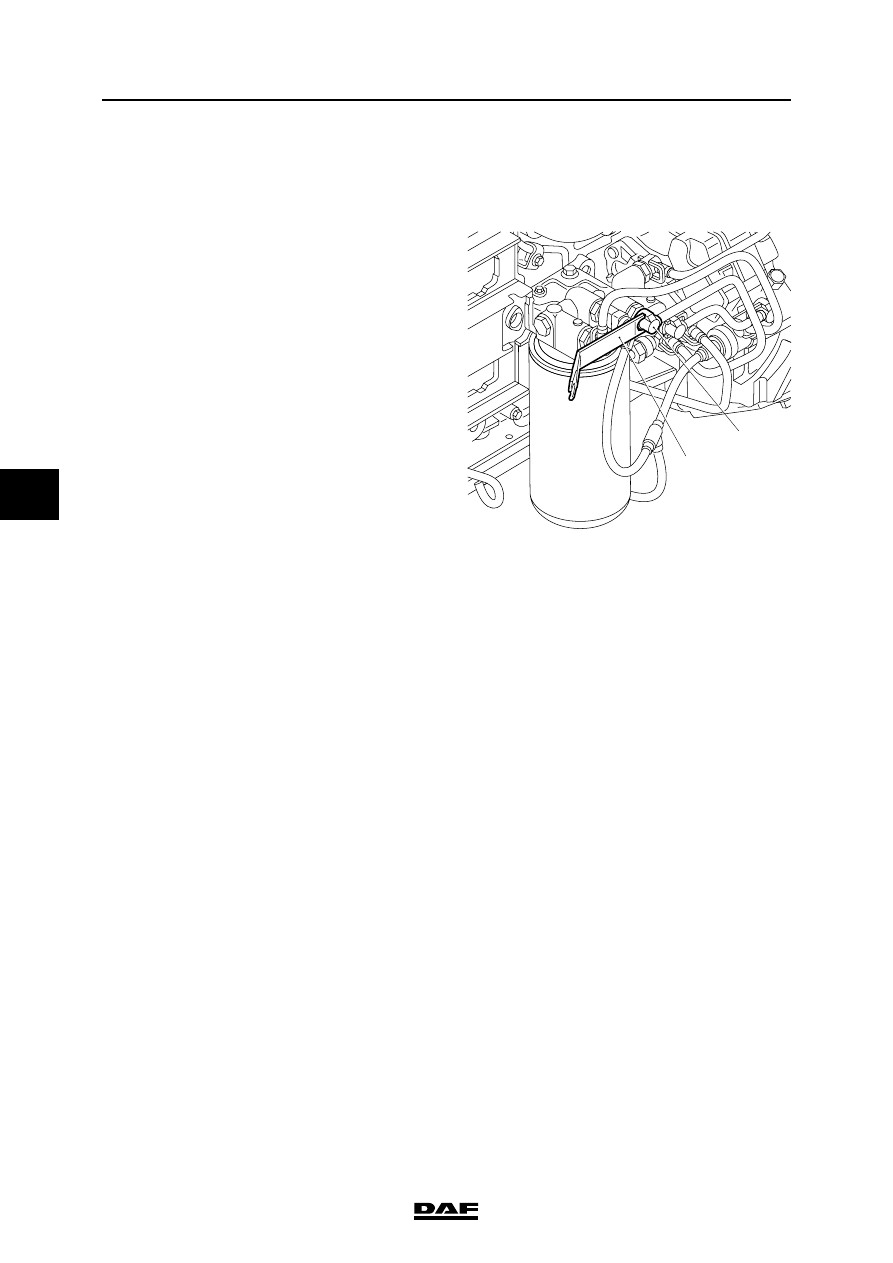

1.

Disconnect the fuel pipe (2) by inserting the

special tool (1)(DAF no. 1329470) into the

quick-release coupling and removing the

pipe from the coupling.

2.

Remove the special tool from the quick-

release coupling.

3.

Plug the openings.

Fitting low-pressure fuel pipes
1.

Clean the quick-release coupling parts and

apply a thin layer of clean engine oil to the O-

ring.

2.

Fit the pipe on the quick-release coupling of

the component and push the pipe onto it until

a clear resistance can be felt and the quick-

release coupling audibly clicks.

3.

Bleed the fuel system. See "Inspection and

adjustment".

4.

Start the engine and check the fuel system

for leaks.

i400473

1

2
