DAF LF45, LF55 Series. Manual - part 312

©

 200416

2-9

General

CE ENGINE FUEL SYSTEM

ΛΦ45/55 series

4

5

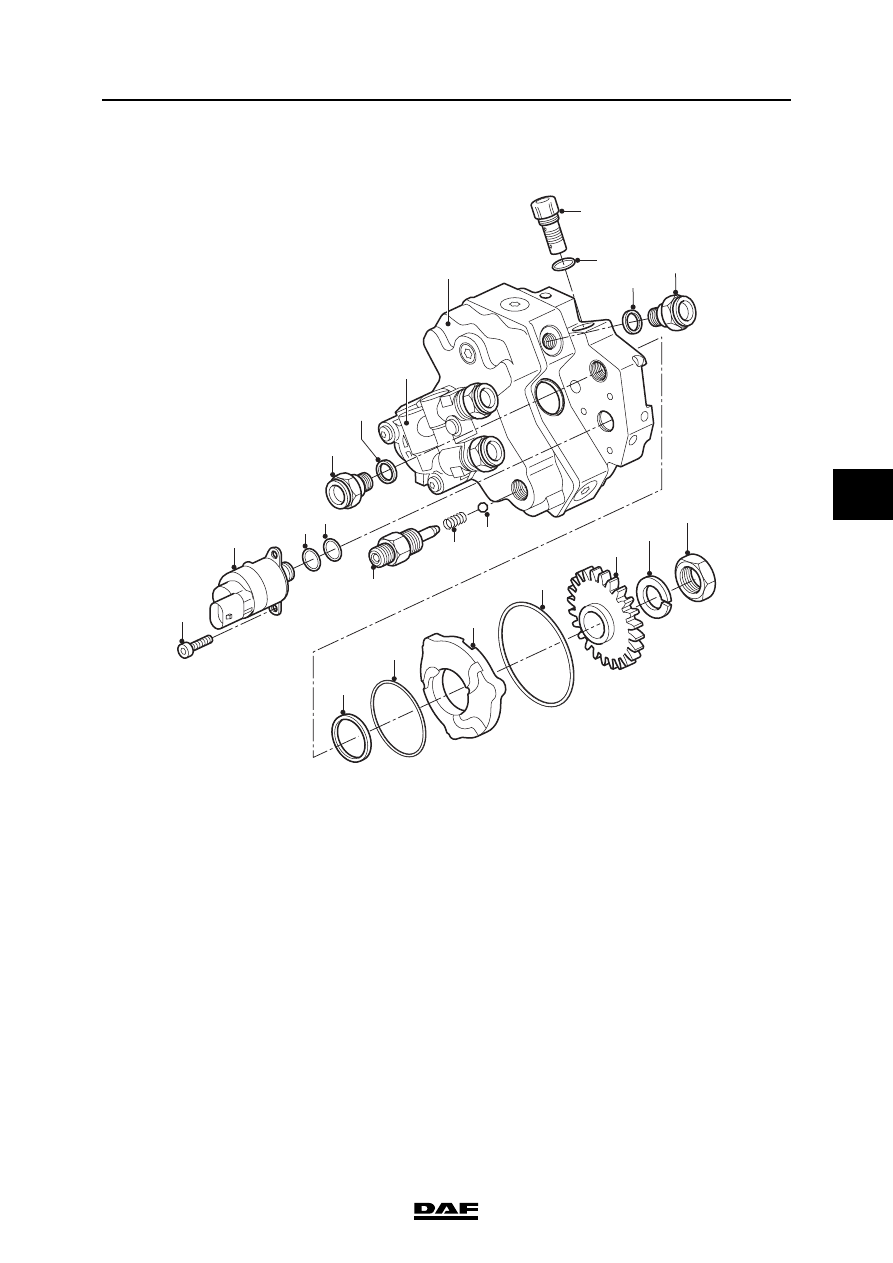

2.3 OVERVIEW DRAWING, FUEL PUMP

1.

Attachment bolt

2.

Fuel pump control solenoid valve

3.

O-ring

4.

O-ring

5.

Fuel pipe connection

6.

Copper ring

7.

Lift pump

8.

High-pressure pump

9.

Circulation valve

10. O-ring

11. Copper ring

12. Fuel pipe connection

13. High-pressure pipe connection

14. Spring

15. Ball

16. Oil seal

17. O-ring

18. Adapter ring

19. O-ring

20. Gear wheel

21. Sealing ring

22. Nut

17

16

18

19

20

13

14

15

2

3

4

1

5

7

8

6

21

9

10

11

12

22

i400766

CE ENGINE FUEL SYSTEM

2-10

©

 200416

General

5

ΛΦ45/55 series

4

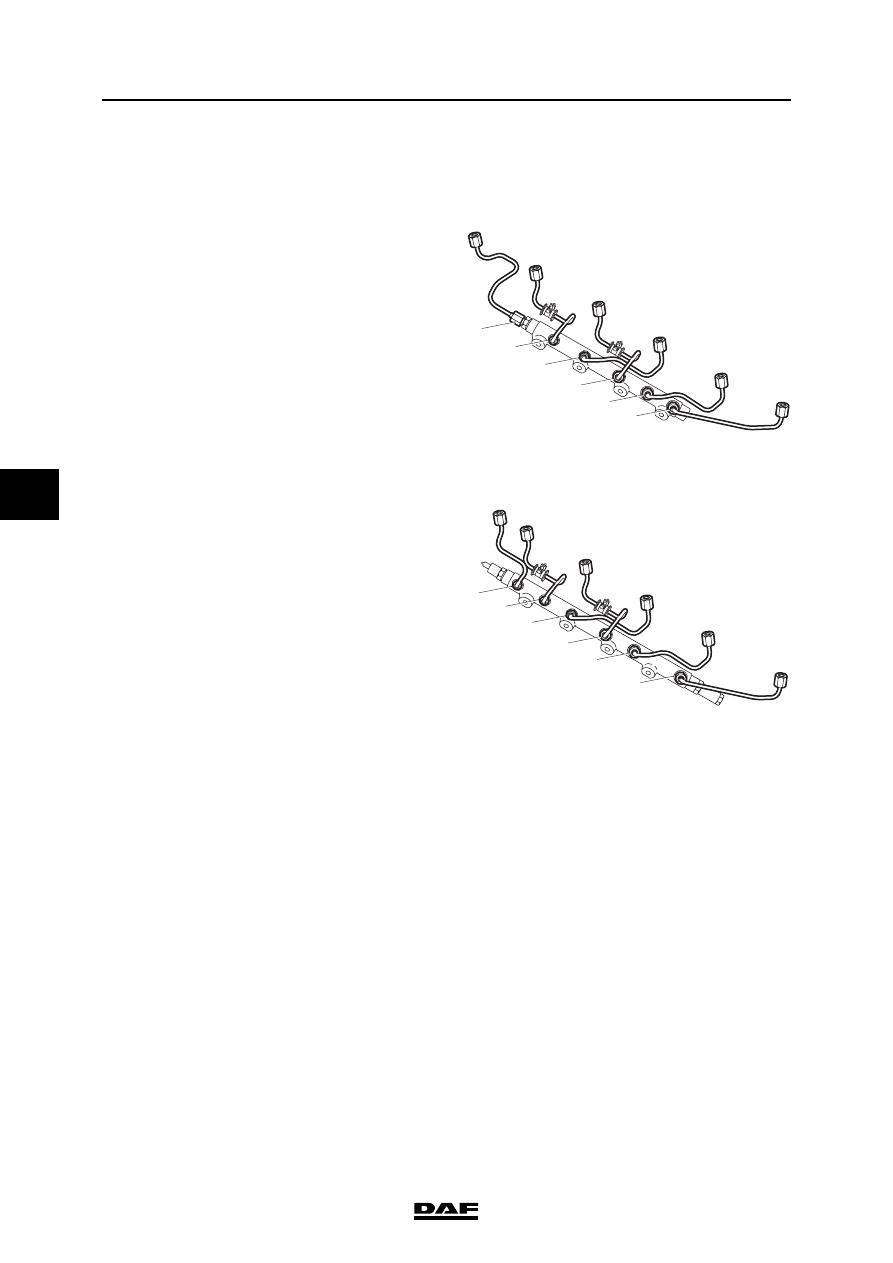

2.4 OVERVIEW DRAWING, FUEL RAIL

Overview drawing, fuel rail, production date <
2003-21 (chassis number < 0L248550)
The figure shows the connections to the injector

pipes. The numbers indicate the cylinder number

of the connection.

Overview drawing, fuel rail, production date



2003-21 (chassis number

 0L248550)

The figure shows the connections to the injector

pipes. The numbers indicate the cylinder number

of the connection.

1

2

4

3

5

6

i400765

1

2

4

3

5

6

i400874

©

 200416

2-11

General

CE ENGINE FUEL SYSTEM

ΛΦ45/55 series

4

5

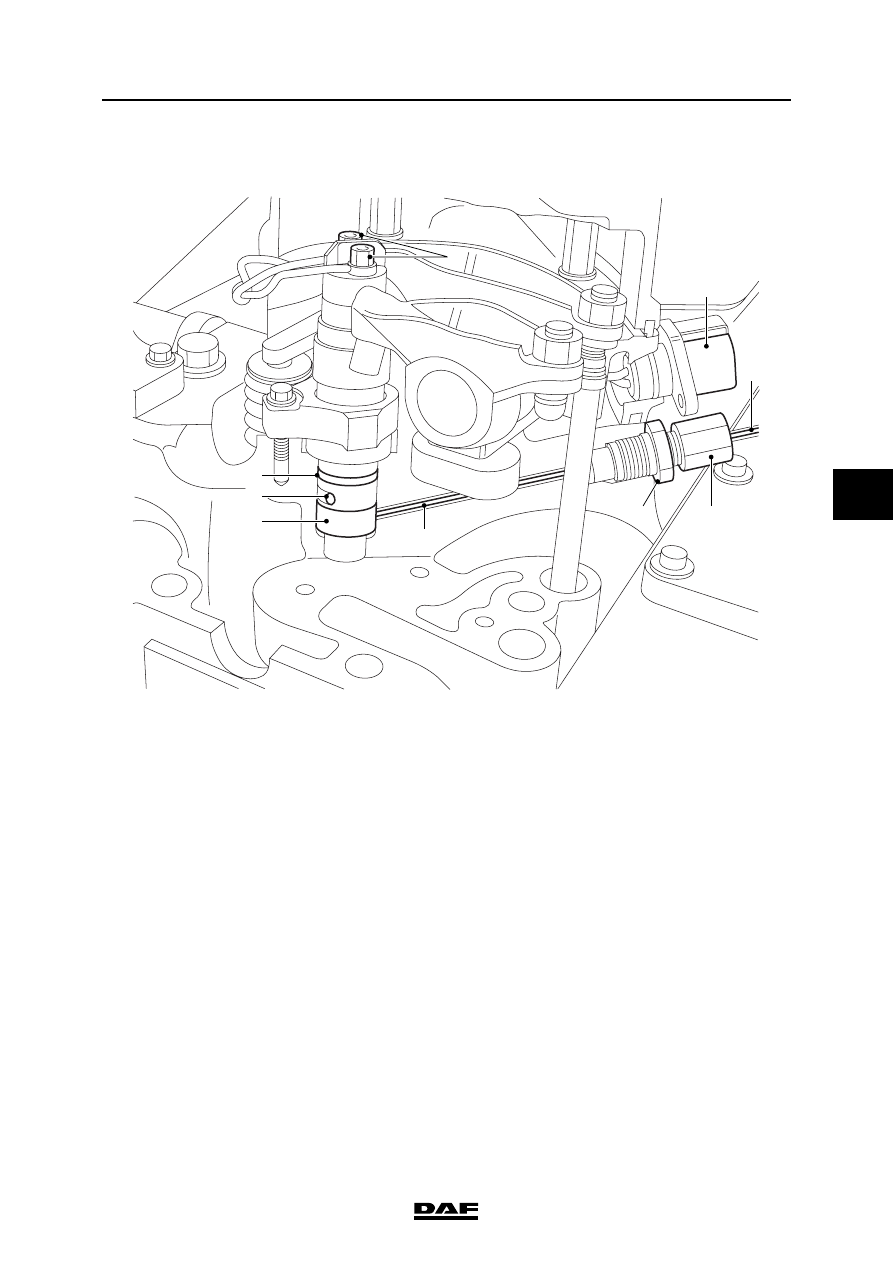

2.5 OVERVIEW DRAWING, FUEL SYSTEM, CYLINDER HEAD

i400653

5

1

1

2

4

8

7

6

9

3

1.

Injector pipe

2.

Union

3.

Nut

4.

Fuel supply pipe

5.

Connector to injectors

6.

O-ring

7.

Return opening

8.

Injector

9.

Electrical connection

CE ENGINE FUEL SYSTEM

2-12

©

 200416

General

5

ΛΦ45/55 series

4
