DAF LF45, LF55 Series. Manual - part 229

©

 200508

1-3

General

MECHANICAL GEARBOX CONTROL

ΛΦ45/55 series

3

2

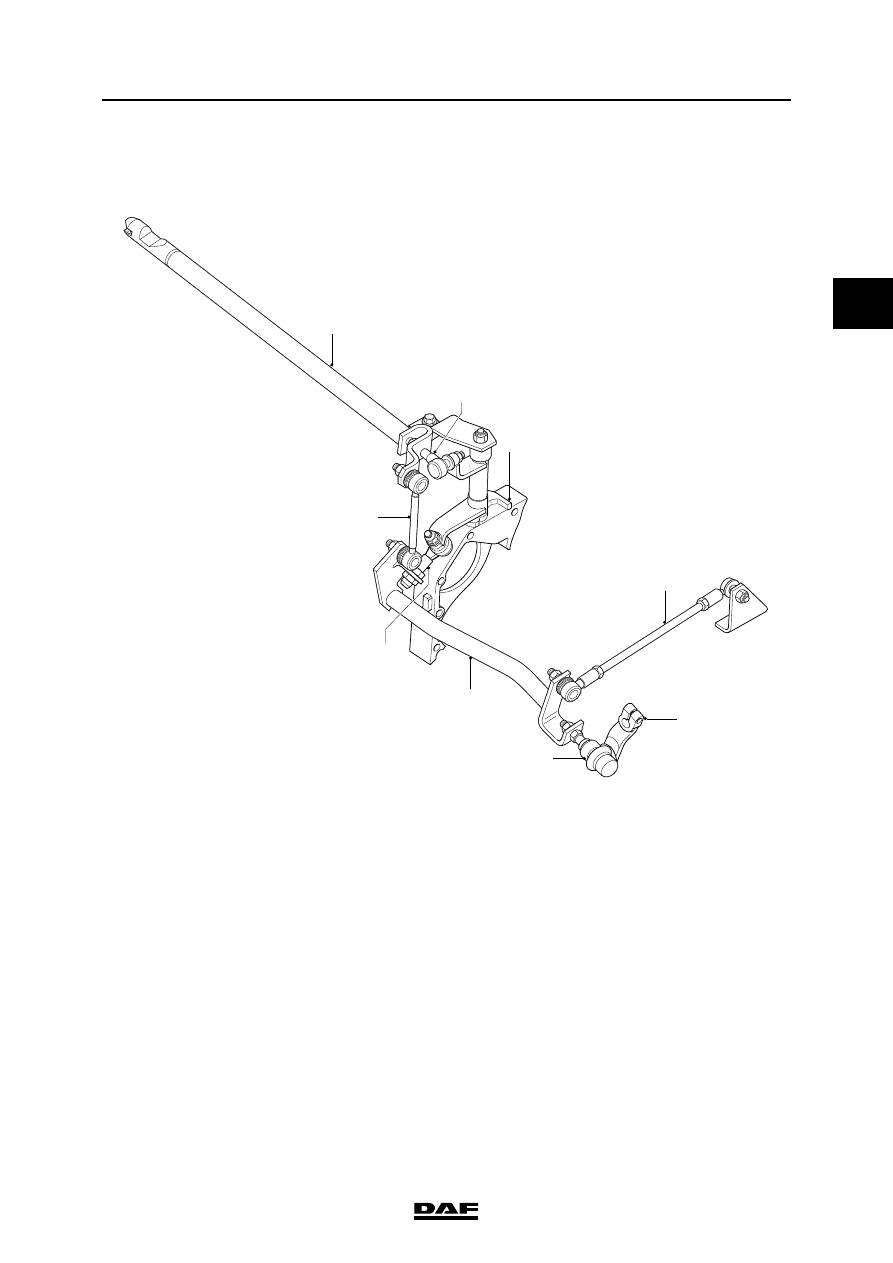

1.3 OVERVIEW DRAWING, OPERATING MECHANISM, 4 ADJUSTMENT

OPTIONS

V3 00 566

1

2

3

4

5

6

7

8

9

1.

Control rod underneath the cab

2.

Ball joint

3.

Bracket

4.

Torque rod

5.

Gearbox lever

6.

Ball joint

7.

Control rod behind the cab

8.

Ball joint

9.

Torque rod

MECHANICAL GEARBOX CONTROL

1-4

©

 200508

General

2

ΛΦ45/55 series

3

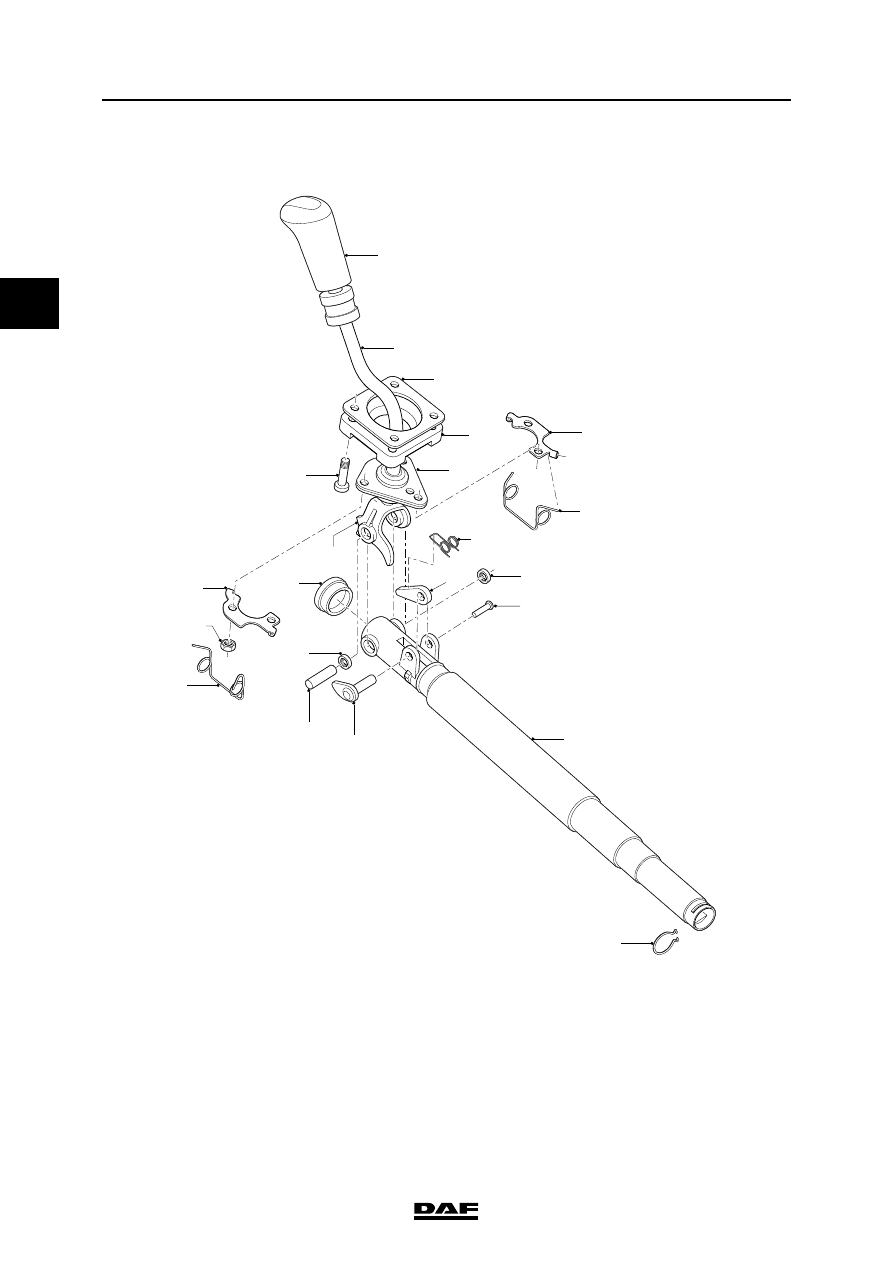

1.4 OVERVIEW DRAWING, GEAR LEVER UNIT

V3 00 568

1

2

3

4

5

6

7

8

9

10

11

14

15

10

16

17

6

5

13

12

19

18

1.

Switch button

11.

Clamping pin

2.

Gear lever

12.

Telescopic control rod

3.

Attachment plate

13.

Retainer clip

4.

Vibration damper

14.

Pawl

5.

Spring holder

15.

Axle

6.

Centring spring

16.

Plug

7.

Bearing housing

17.

Gear lever pawl

8.

Spring

18.

Attachment nut

9.

Control rod pawl

19.

Attachment bolt

10.

Needle bearing

©

 200508

1-5

General

MECHANICAL GEARBOX CONTROL

ΛΦ45/55 series

3

2

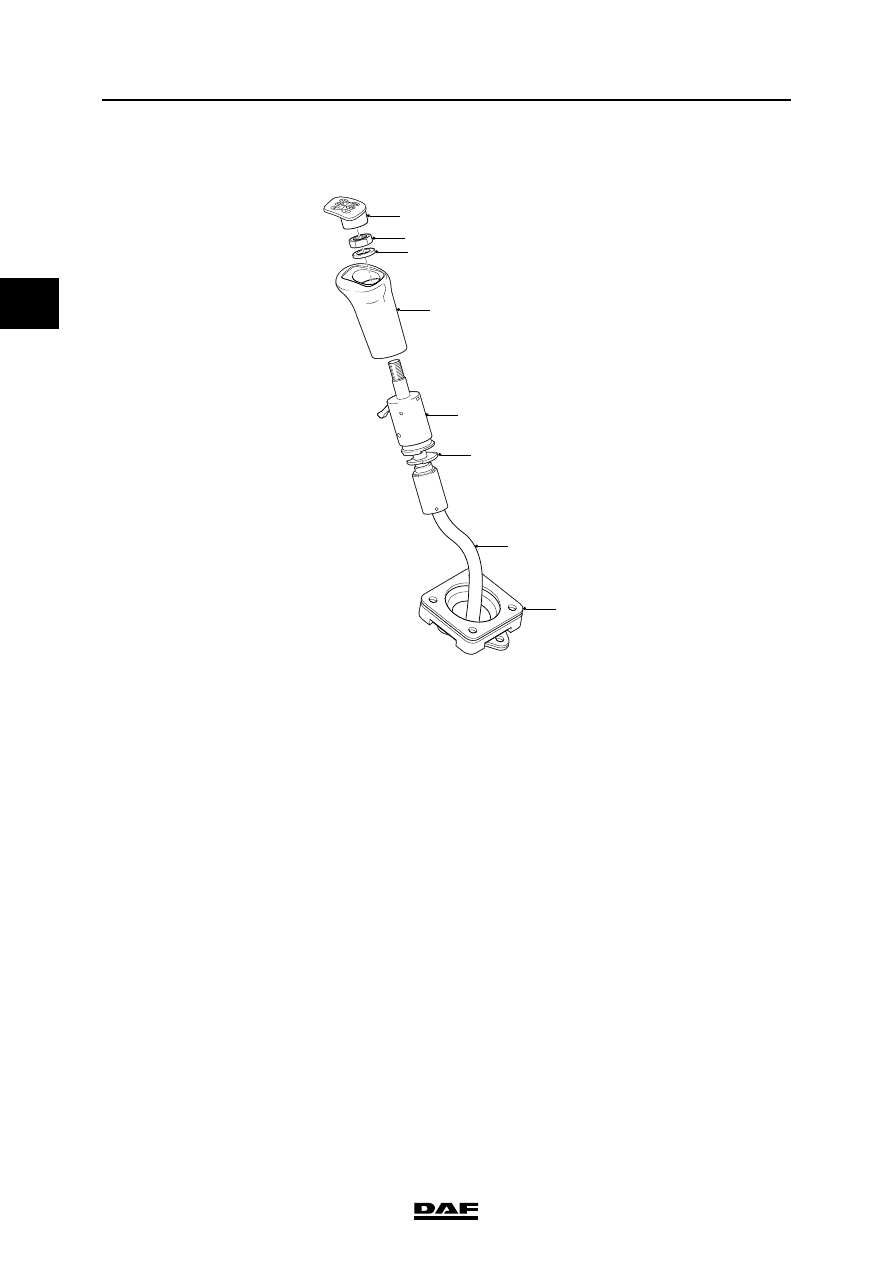

1.5 OVERVIEW DRAWING, ZF GEARBOX GEAR LEVER

V3 00 569

1

2

3

1.

Switch button

2.

Gear lever

3.

Bearing housing

MECHANICAL GEARBOX CONTROL

1-6

©

 200508

General

2

ΛΦ45/55 series

3

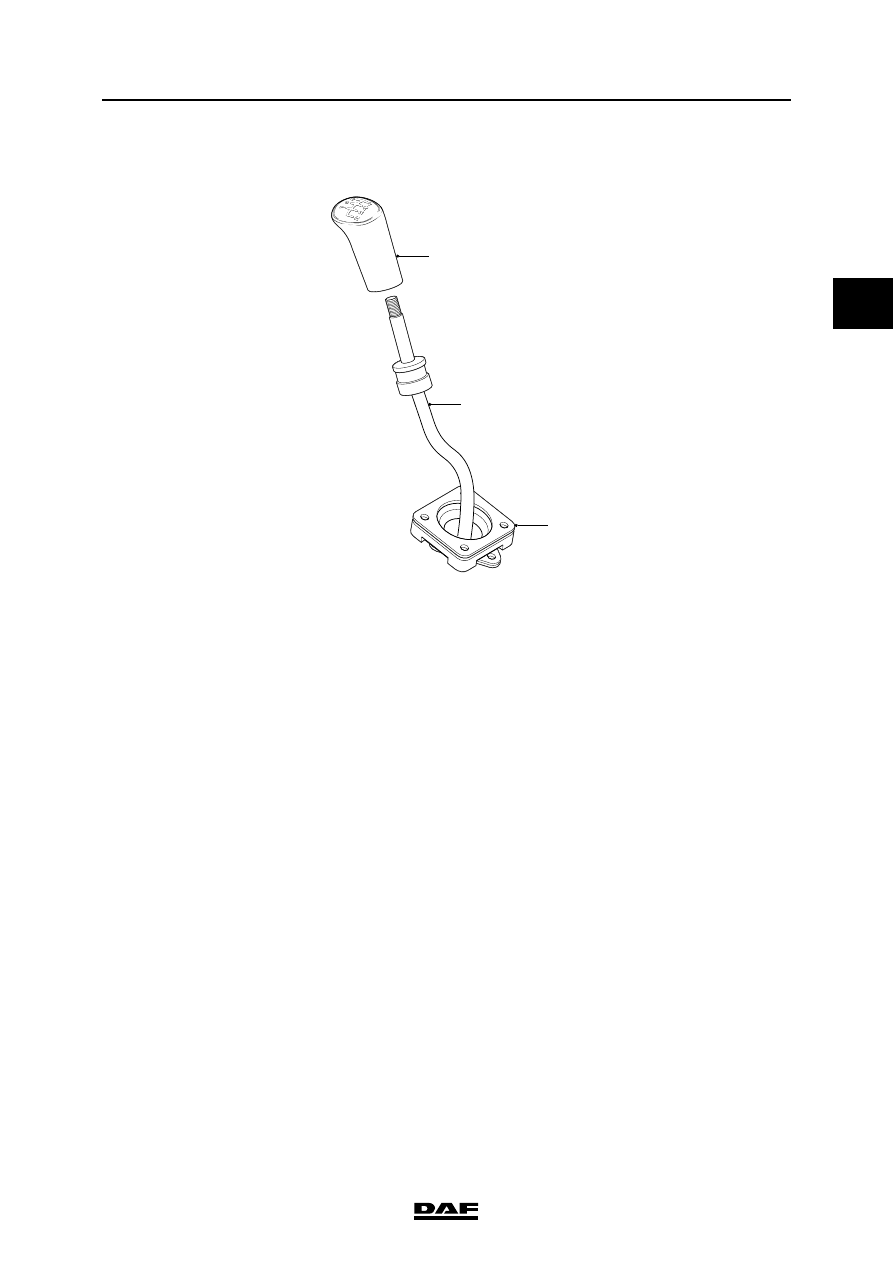

1.6 OVERVIEW DRAWING, EATON GEAR LEVER

V3 00 572

1

2

3

4

5

6

7

8

1.

Cover plate

2.

Attachment nut

3.

O-ring

4.

Switch button

5.

Range group operating switch

6.

Clamping plate

7.

Gear lever

8.

Bearing housing
