DAF LF45, LF55 Series. Manual - part 154

©

 200505

4-9

CE engine

TECHNICAL DATA

ΛΦ45/55 series

2

0

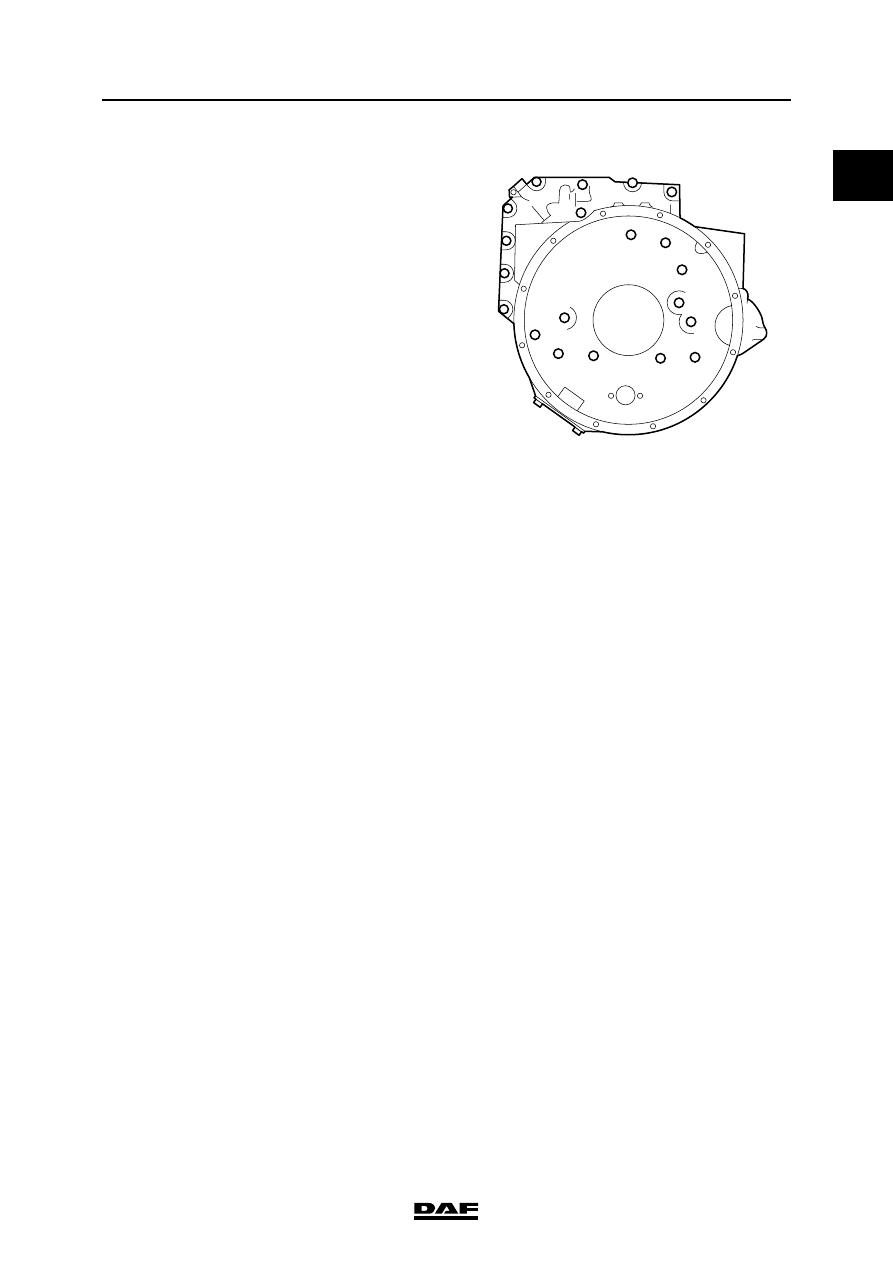

Flywheel housing

(1) Tighten the attachment bolts in the order indicated

Engine mounting, front

Engine mounting, rear

Engine hanger brackets

M201080

20

7

11

1

14

19

17

15

13

10

18

12

16

6

4

9

3

5

8

2

M10 attachment

bolts

49 Nm

(1)

M12 attachment

bolts

85 Nm

(1)

Engine bracket attachment bolts/nuts

110 Nm

Bolts attaching engine bracket to chassis

110 Nm + 90

 angular displacement

Bolts attaching engine bracket to engine

110 Nm + 60

 angular displacement

Bolts attaching support to engine bracket

170 Nm + 90

 angular displacement

Front engine hanger bracket attachment bolts

77 Nm

Rear engine hanger bracket attachment bolts

43 Nm

TECHNICAL DATA

4-10

©

 200505

CE engine

0

ΛΦ45/55 series

2

©

 200505

5-1

CE engine cooling system

TECHNICAL DATA

ΛΦ45/55 series

2

0

5. CE ENGINE COOLING SYSTEM

5.1 GENERAL

Thermostat

Header tank pressure cap

Pressure-testing cooling system

Cleaning cooling system

Thermostat opening temperatures:
thermostat opens at

approx. 81

C

thermostat fully open at

approx. 94

C

Full thermostat opening at

14.3 mm

Pressure relief valve opening pressure

approx. 0.75 bar

Vacuum relief valve opening pressure

approx. 0.1 bar

Test pressure

0.5 - 0.7 bar

Product

name

Properties

Applications

DAF

number

RP

cleaner

Cleaning time 45 min. with engine

running

Cleaning cooling system

1334996

TECHNICAL DATA

5-2

©

 200505

CE engine cooling system

0

ΛΦ45/55 series

2

5.2 TIGHTENING TORQUES

The tightening torques stated in this section are

different from the standard tightening torques

stated in the overview of the standard tightening

torques. The other threaded connections not

specified must therefore be tightened to the

torque stated in the overview of standard

tightening torques.

When attachment bolts and nuts are replaced, it

is important that - unless stated otherwise - these

bolts and nuts are of exactly the same length and

property class as those removed.

Coolant pump

Thermostat housing

Radiator

5.3 FILLING CAPACITIES

Attachment bolts

24 Nm

Attachment bolts

10 Nm

Attachment nuts

89 Nm

Cooling system capacity

approx. 22 litres
