DAF LF45, LF55 Series. Manual - part 112

1

LF45/55 series

Removal and installation

CAB HEATING

3-11

8.

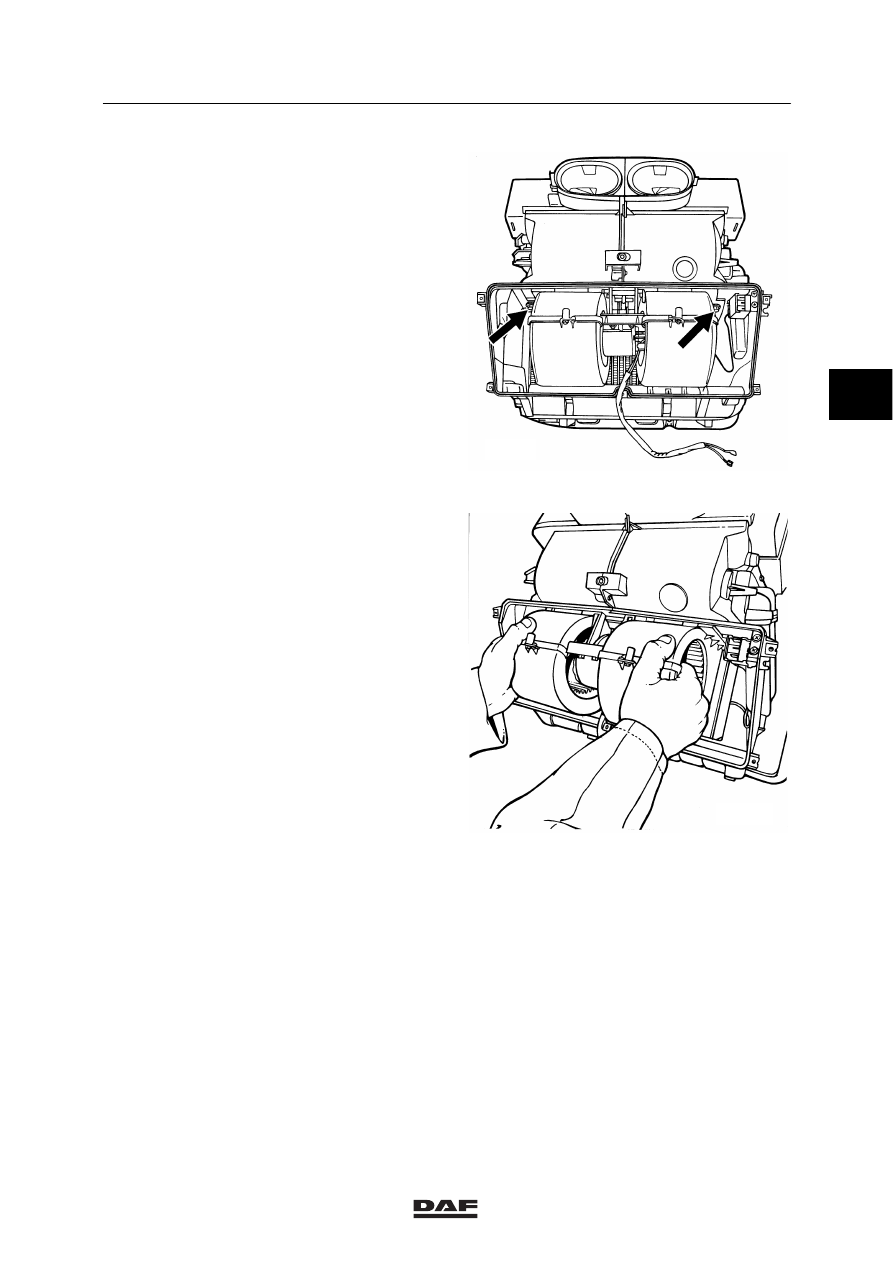

Remove the heater motor attachment bolts.

K1 00 955

9.

Remove the heater motor.

K1 00 956

Installing the heater motor
1.

Install the heater motor and secure it with
the attachment bolts.

2.

Fit the connectors to the series resistor.

3

ǹ 0210

1

CAB HEATING

Removal and installation

LF45/55 series

3-12

3.

If applicable, fit the connectors to the air
conditioning thermostat.

4.

Fit the cover and secure it with the
attachment screws.

5.

Fit the connectors to the cover.

6.

Fit the dashboard panel to the engine
tunnel.

3

ǹ 0210

1

LF45/55 series

Removal and installation

CAB HEATING

3-13

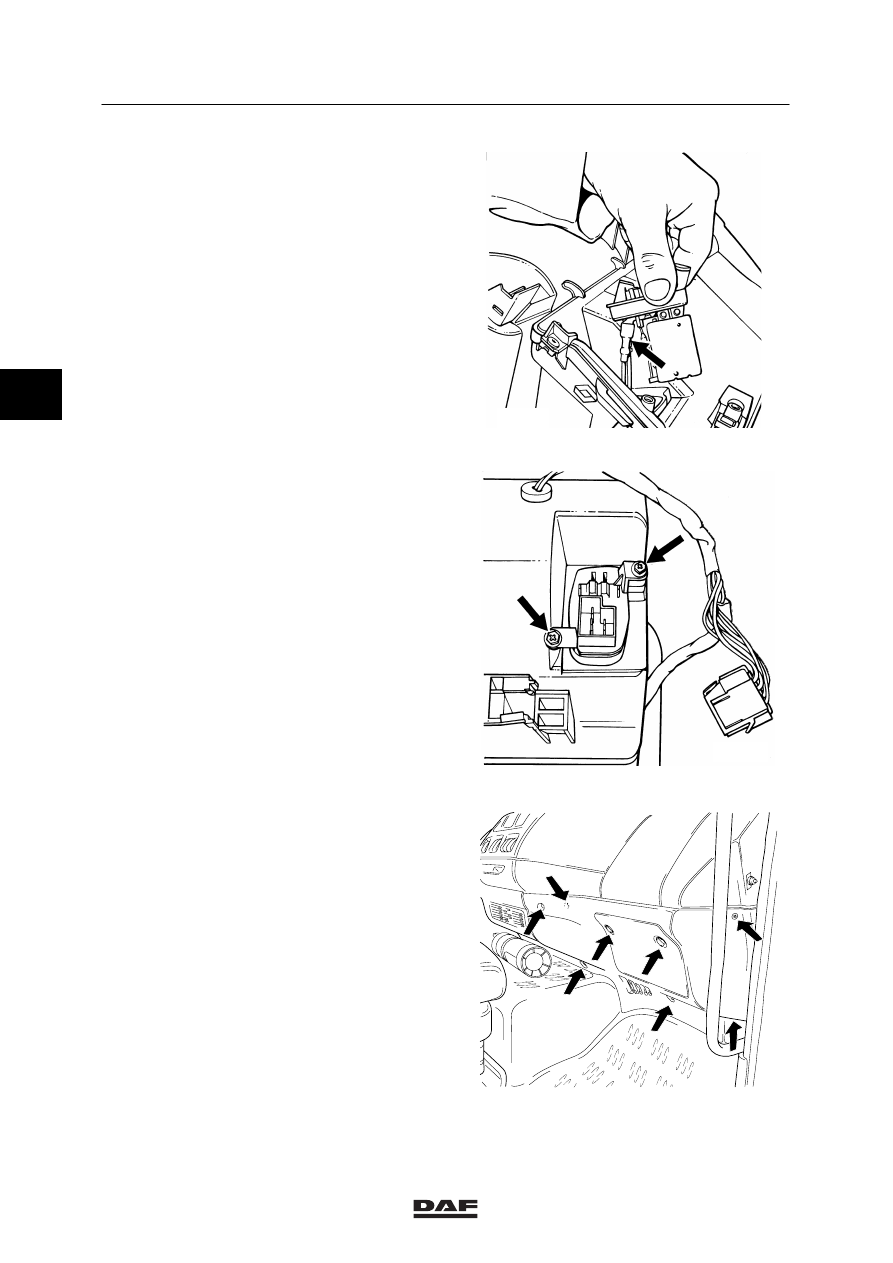

3.5 REMOVAL AND INSTALLATION, SERIES RESISTOR

Removing the series resistor.
1.

Remove the fire extinguisher, if applicable.

2.

Remove the dashboard panels on the
underside.

K1 01 133

3.

Remove the attachment screws from the
series resistor and remove the series
resistor from the cover.

K1 00 957

4.

Detach the connectors from the series
resistor and remove the series resistor.

K1 00 958

3

ǹ 0210

1

CAB HEATING

Removal and installation

LF45/55 series

3-14

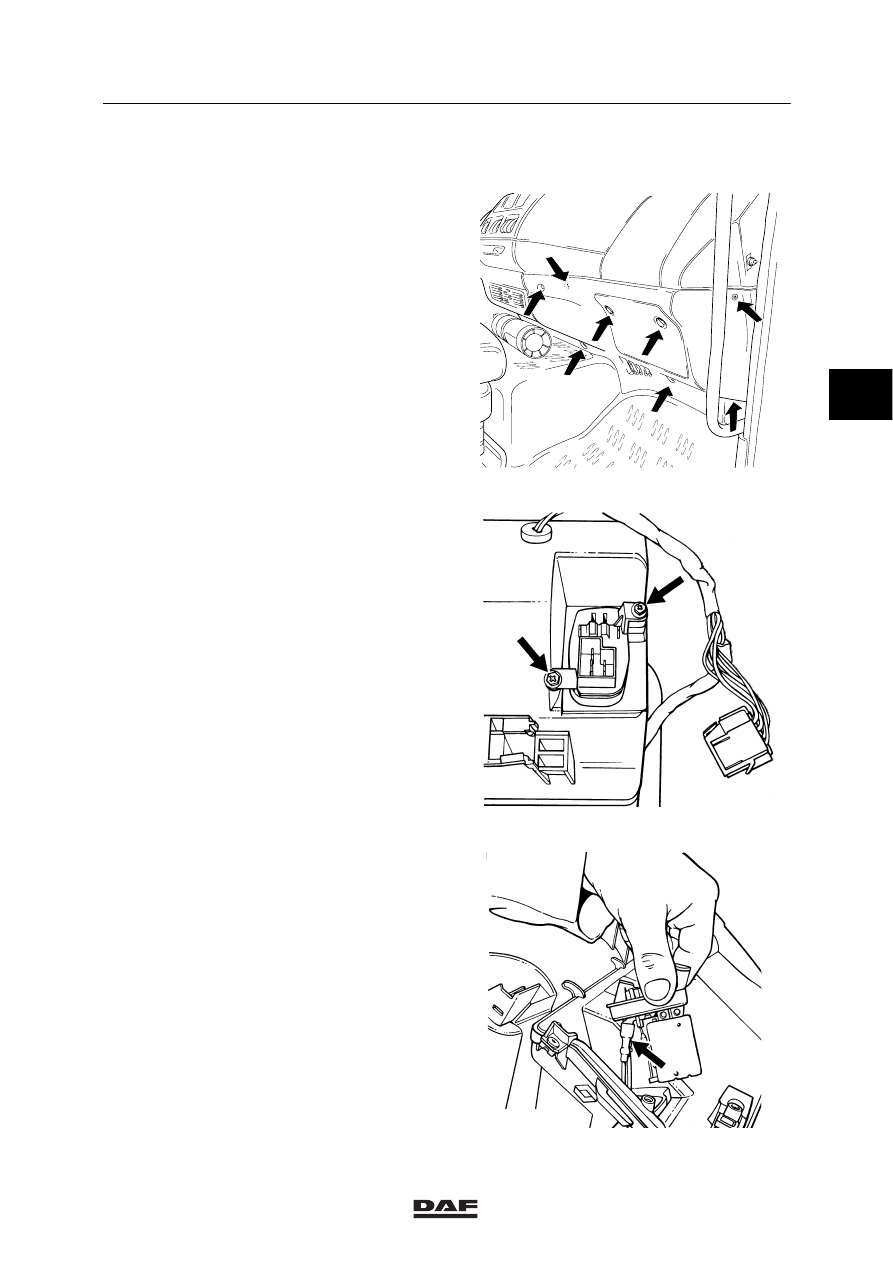

Installing the series resistor
1.

Fit the connector to the series resistor.

K1 00 958

2.

Fit the resistor and secure it using the
attachment screws.

K1 00 957

3.

Fit the connector to the cover.

4.

Fit the dashboard panels on the underside.

K1 01 133
