4.7 REMOVAL AND INSTALLATION, EXTERIOR MIRRORS COMPLETE WITH
BRACKET
Model without integrated bracket
Removing exterior mirrors complete with
bracket

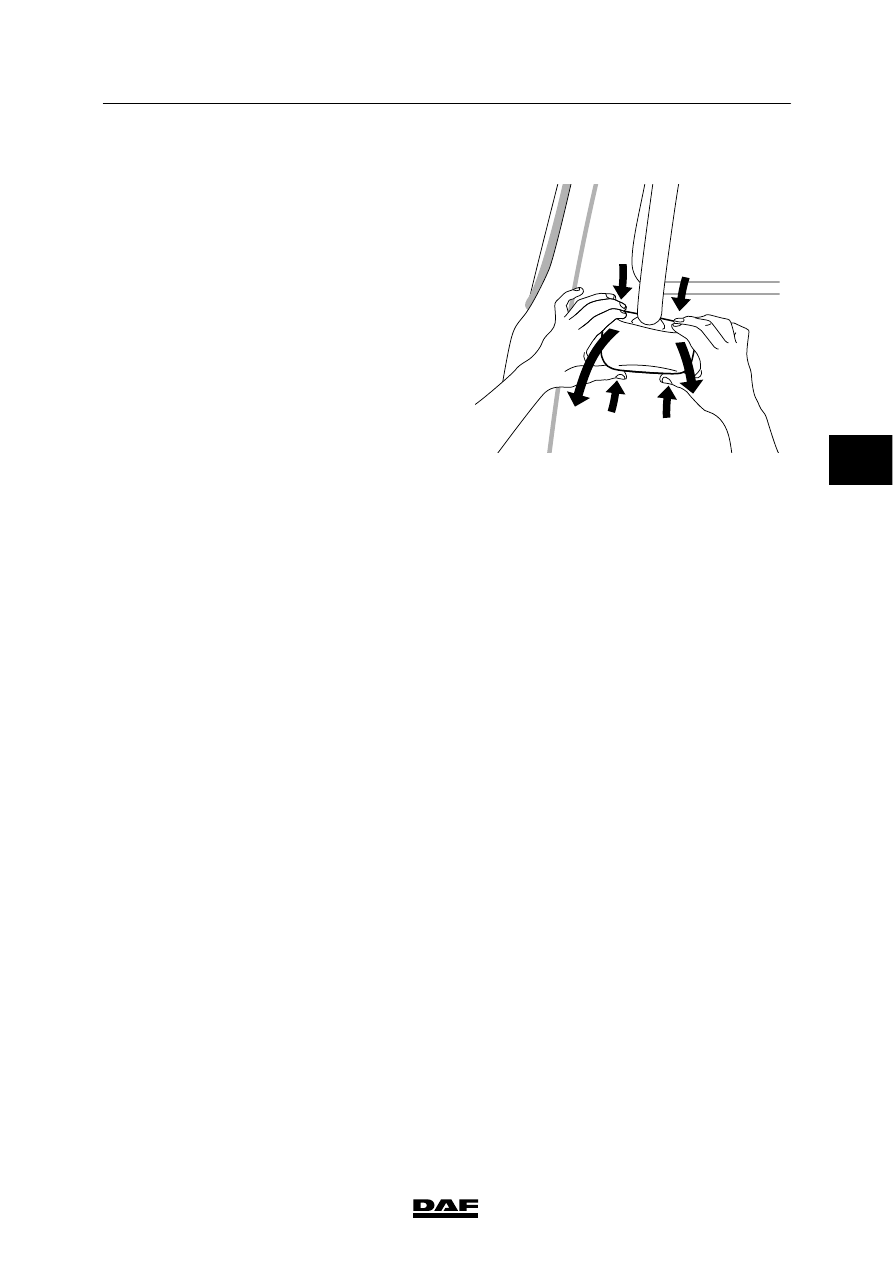

1.

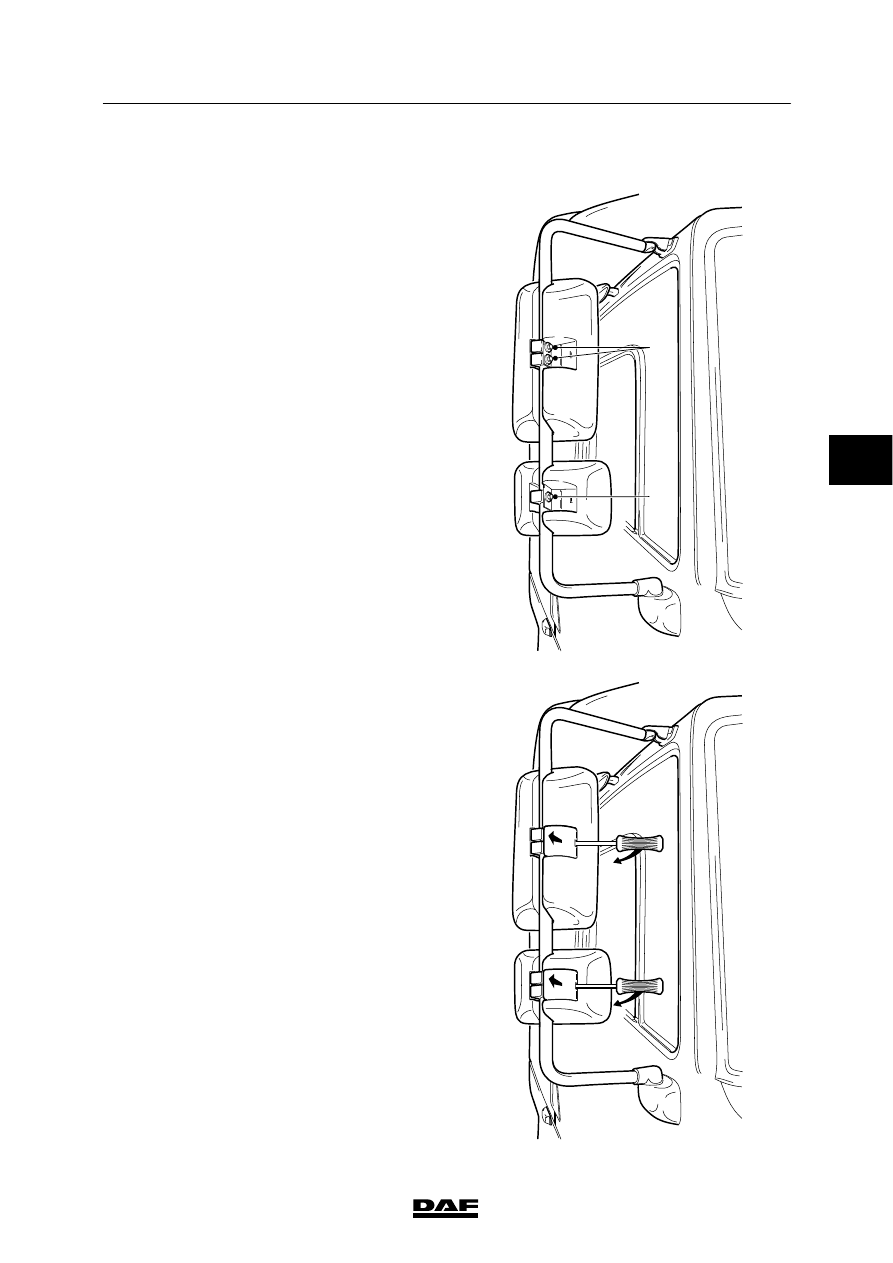

Remove the caps of the exterior mirror
bracket.

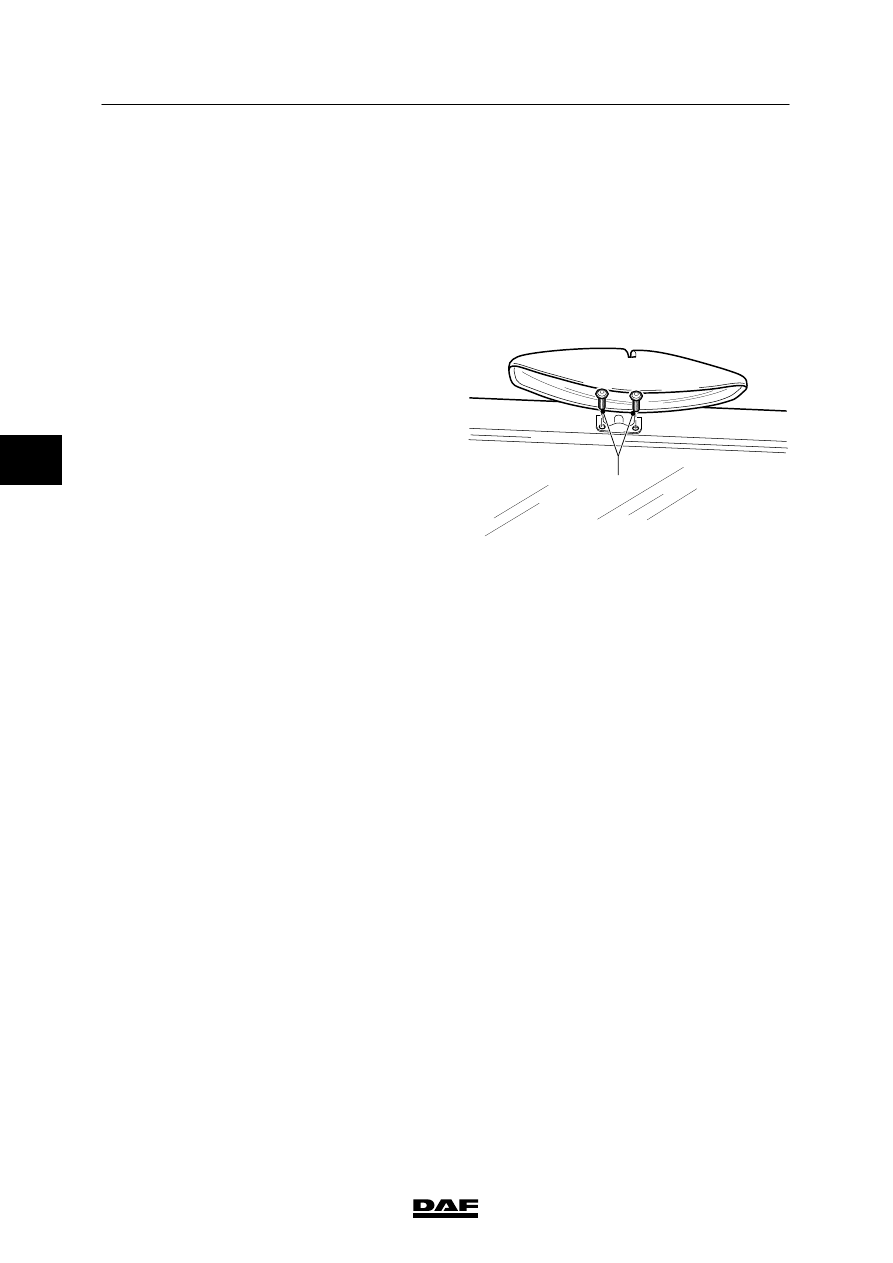

2.
Remove the attachment bolts of the exterior
mirror bracket and take the exterior mirrors
complete with bracket and shim off the door.
3.
Disconnect the exterior mirror heating and
mirror adjustment connectors. When
disconnecting the connectors make sure the
door wiring harness does not slip back
through the hole in the door. Should this
nevertheless happen and if you are unable
to reach the wiring harness through the
hole, disassemble the door upholstery and
guide the wiring harness through the
opening again.
Installing exterior mirrors complete with
bracket
1.
Connect the exterior mirror connectors.
Note:
Apply silicone sealant (all round) to the
threaded holes for the attachment bolts of
the exterior mirror bracket. The purpose of
this is to prevent water from penetrating the
door.
2.
Fit the exterior mirrors complete with
bracket and shim to the door.
3.
Fit the caps.
