INTERNAL CAB COMPONENTS

Removal and installation

4-32

4.26 REMOVAL AND INSTALLATION OF ROOF CONSOLE COMPONENTS IN

SUPER SPACE CAB TO INSTALL ACCESSORIES

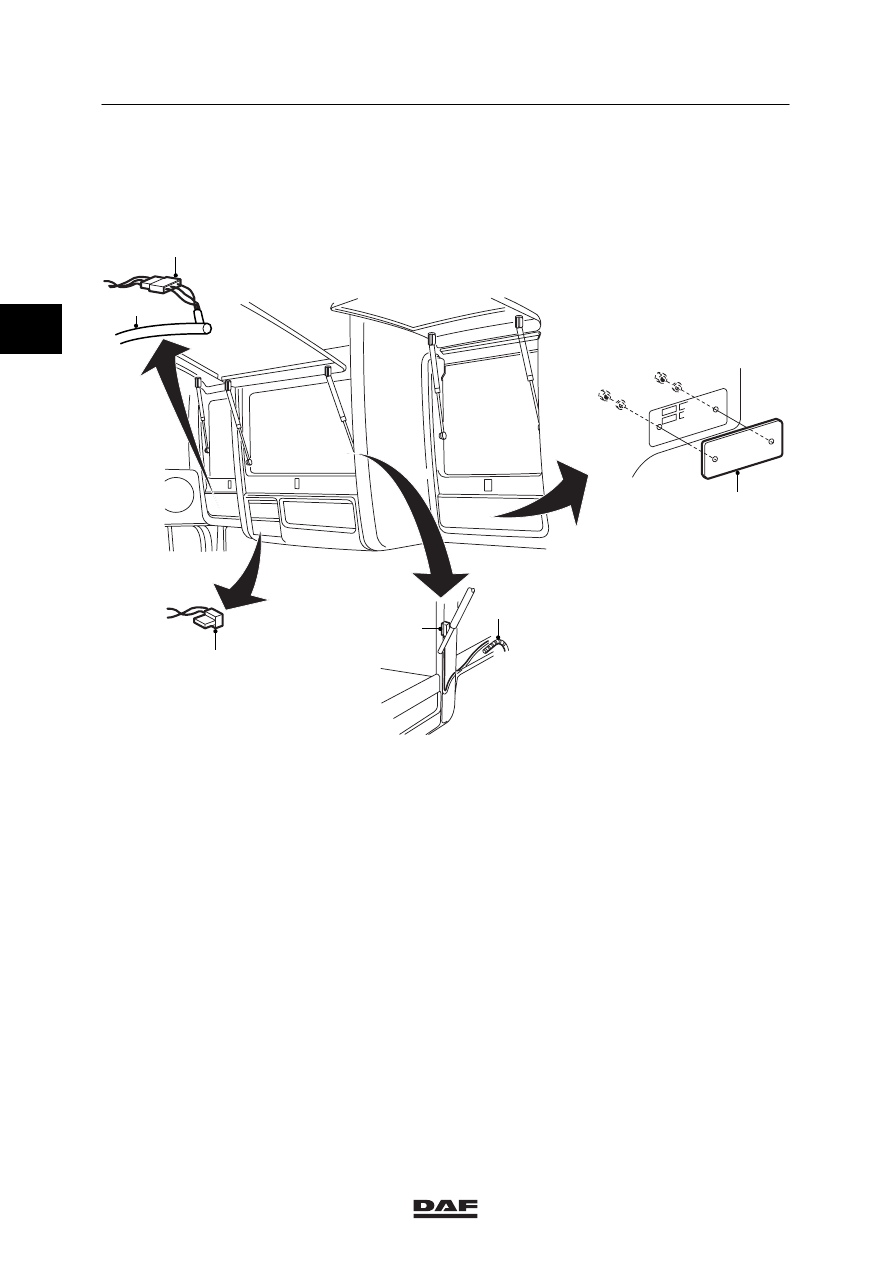

Overview drawing

K100470

A

B

C

D

F

E

Legend
A

24 volt (40 A)-connector (for microwave,
TV, etc.).

B

Passage tube

C

12 volt-connector for audio equipment (e.g.
CB transmitter)

D

Cover plate for additional switches
Air duct for air horn

F

Central roof console connector

Note:
Several facilities have been pre-installed in the
roof console to facilitate the installation of
accessories.

2

ᓻ 0209

1

Removal and installation

INTERNAL CAB COMPONENTS

4-33

Removing roof console components in
Super Space Cab to install accessories

Central storage cabinet
In the right-hand post (on co-driver’s side), the
central storage cabinet has been equipped with
a cable and connector (A) for high-capacity
accessories.

This cable is safeguarded by a 40A fuse in the
central fuse box.

Two installation openings, covered by plates,
have been provided in the central storage
cabinet on driver’s side for installation of
additional audio equipment, such as a CB
transmitter or a CD player. There is a 12 volt
connector (C) behind the lower plate.

Storage cabinet on driver’s side
An air pipe (E) is provided on the driver’s side
for the installation of an air horn.
To access this pipe, the bottom plate must be
removed from the cabinet. To do so, remove the
upholstery to expose the screws. This is also the
location of the central connector (F) for the roof
console.

Use double-sided tape to fasten the upholstery.

Storage cabinet on the co-driver’s side
Underneath the floor of the storage cabinet
there is a vacant passage (B) for the connection
of additional accessories. This passage runs
through the door post and ends under the
central fuse box.

Additional switches for accessories
To facilitate the installation of additional switches
in the roof console, spaces have been provided
behind the two cover plates on both the driver’s
and the co-driver’s side, in which switches will
fit.

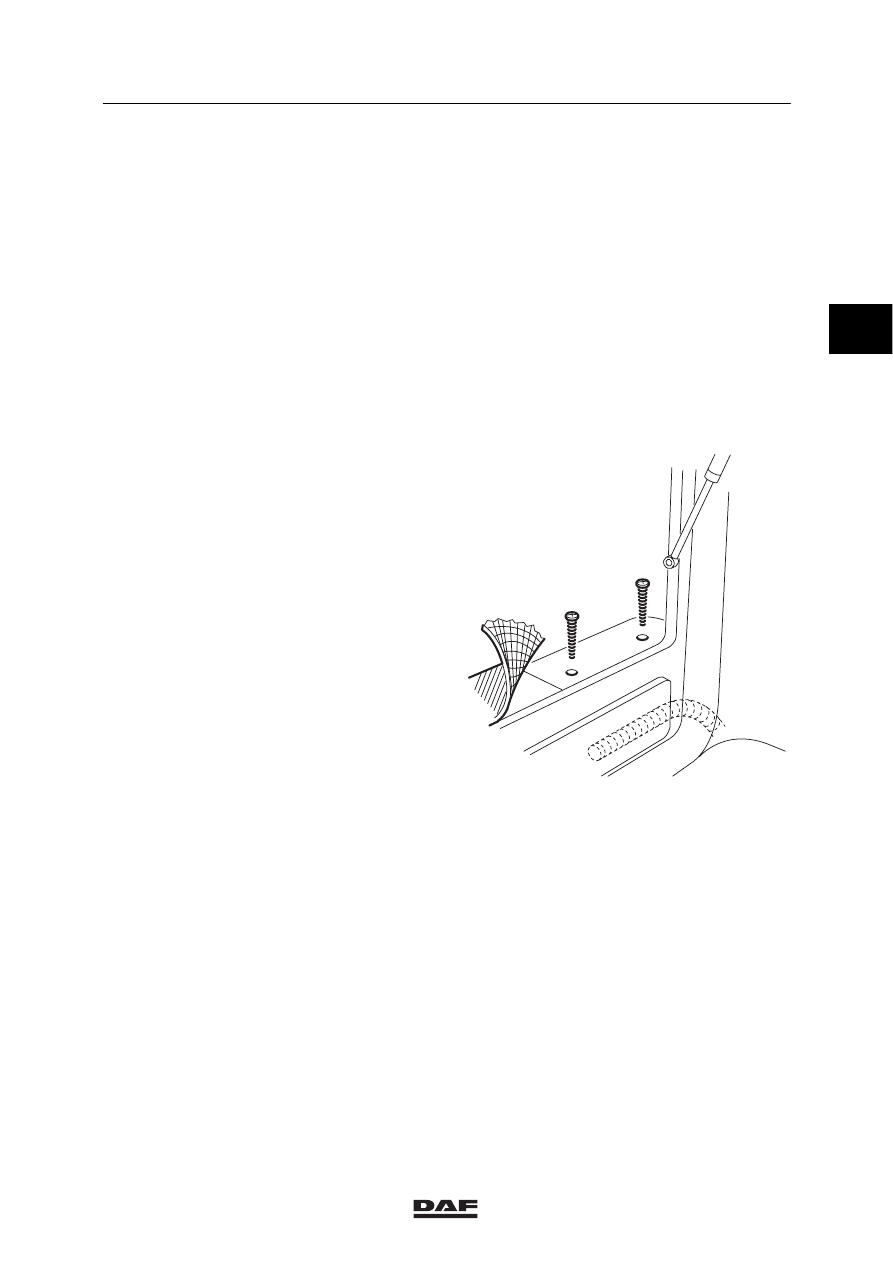

1.

Remove the floor from the storage cabinet
to enable installation of the switches.

2.

Remove the two attachment nuts from the
inside.

K100471

2

ᓻ 0209

1

INTERNAL CAB COMPONENTS

Removal and installation

4-34

2

ᓻ 0209

1
