MODIFICATIONS TO THE ELECTRICAL INSTALLATION
Modifications to the electrical installation from chassis number 0E473500
3-50

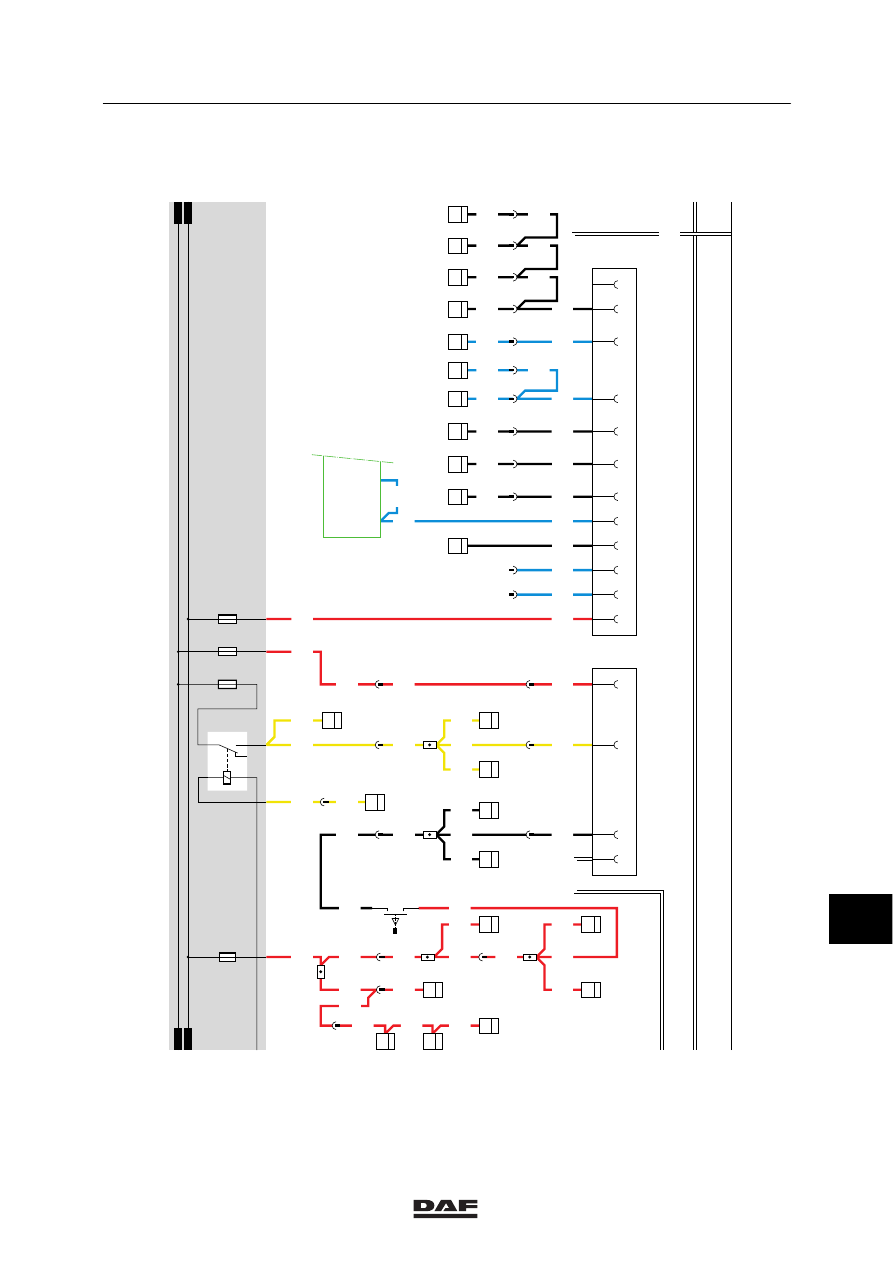

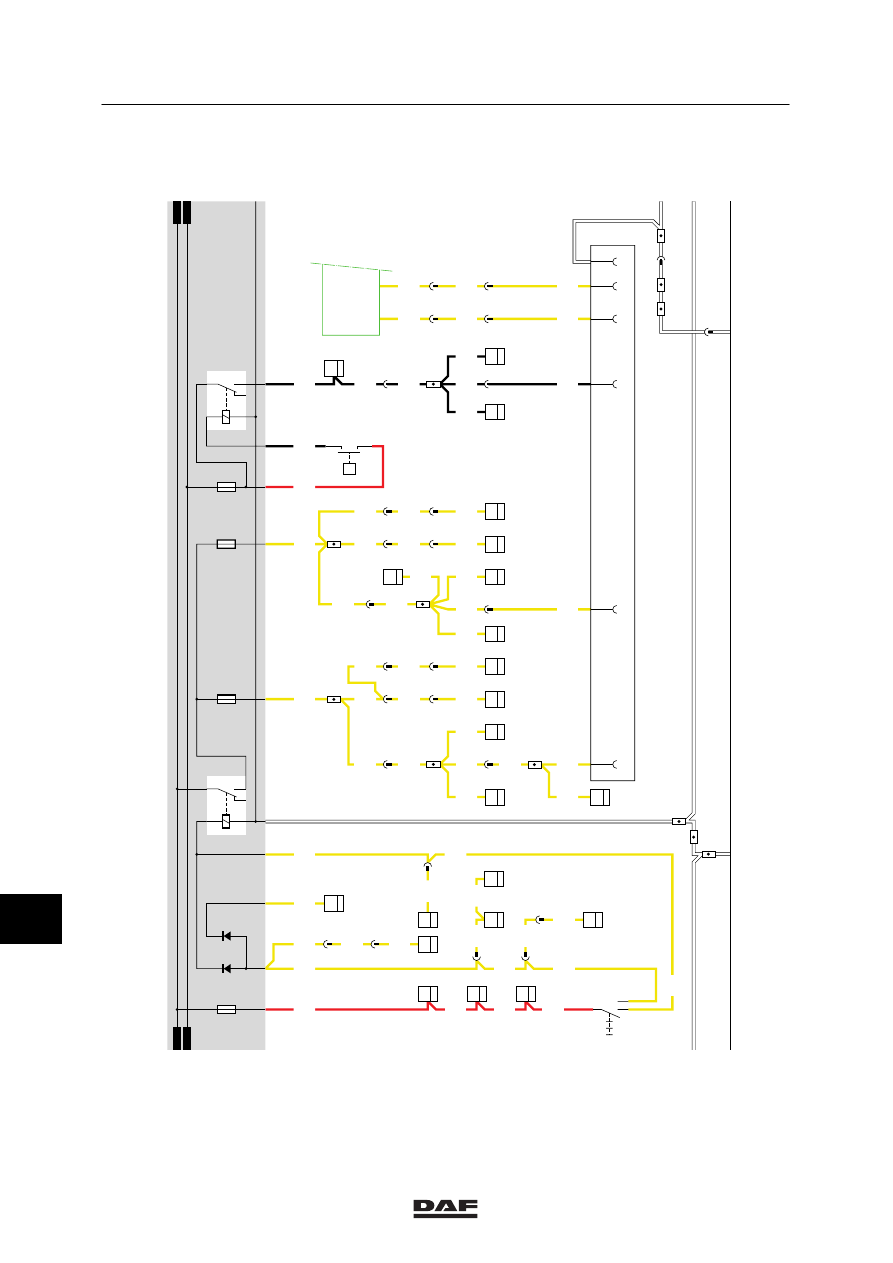

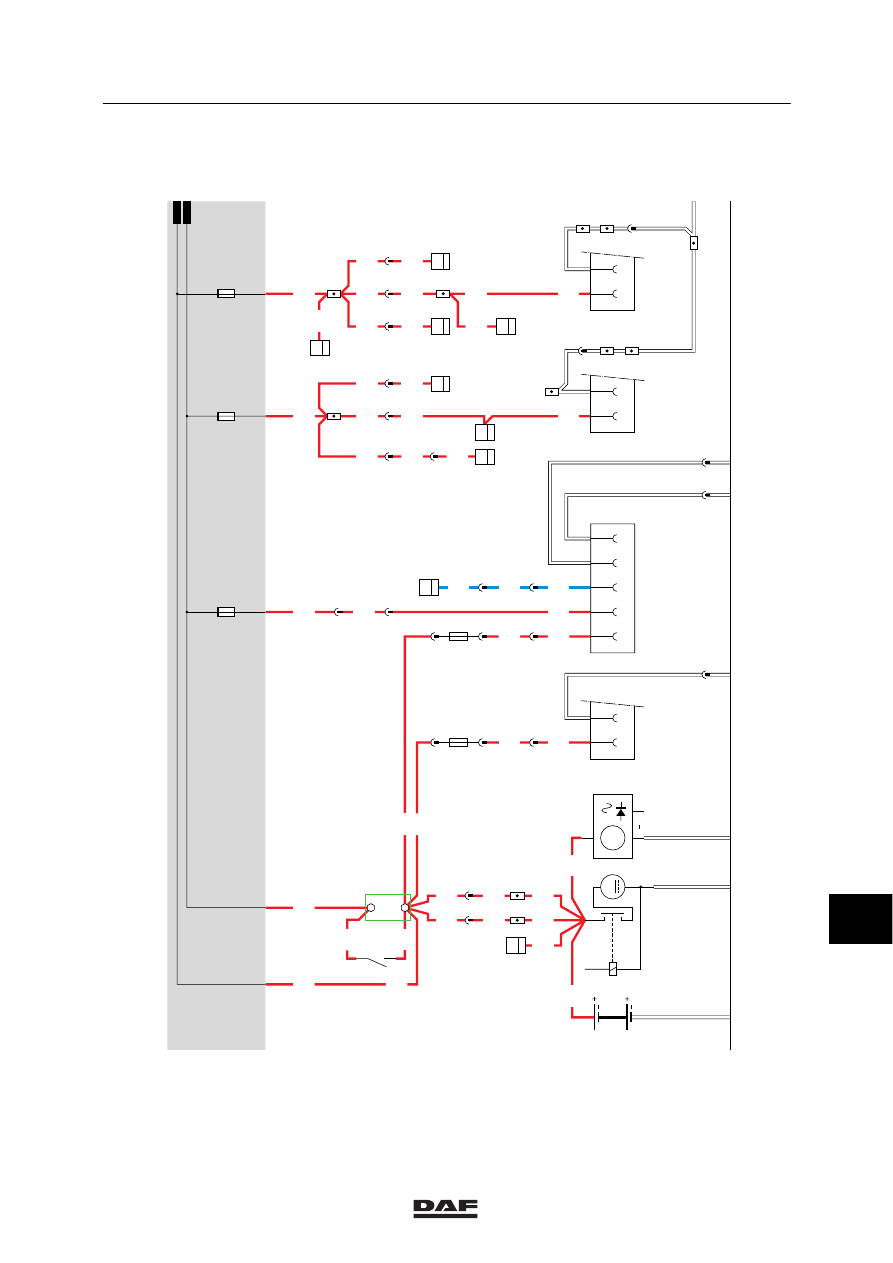

CONNECTOR SOCKET FOR REMOTE
CONTROL CONNECTION UPEC (A046)
Pin 1
is connected to point 87 of relay for
ECS power supply (G126) through wire
1297 and fuse E194.
Pin 2
is connected directly to pin 21 of the
UPEC electronic unit (D814) through
wire 3039.
Pin 3
is connected directly to point 5 of relay
for UPEC remote control (G321)
through wire 4100.
Pin 4
is connected directly to pin 8 of switch
for the windscreen wipe/wash
intermittent wipe/E-gas/UPEC vehicle
speed/engine speed (C776) and to pin
34 of the UPEC electronic unit (D814)
through wire 4691.
Pin 5
is connected directly to pin 9 of the
switch for windscreen wipe/wash
intermittent wipe/E-gas/UPEC vehicle
speed/engine speed (C776) and to pin
32 of the UPEC electronic unit (D814)
through wire 4692.
Pin 6
is connected directly to pin 7 of the
switch for windscreen wipe/wash
intermittent wipe/E-gas/UPEC vehicle
speed/engine speed (C776) and to pin
33 of the UPEC electronic unit (D814)
through wire 4693.
Pin 7
is connected to point 86 of the UPEC
engine stop relay (G328).
Pin 8
is connected directly to earth.
