Electrical installation
ELECTRICAL INSTALLATION
2-63

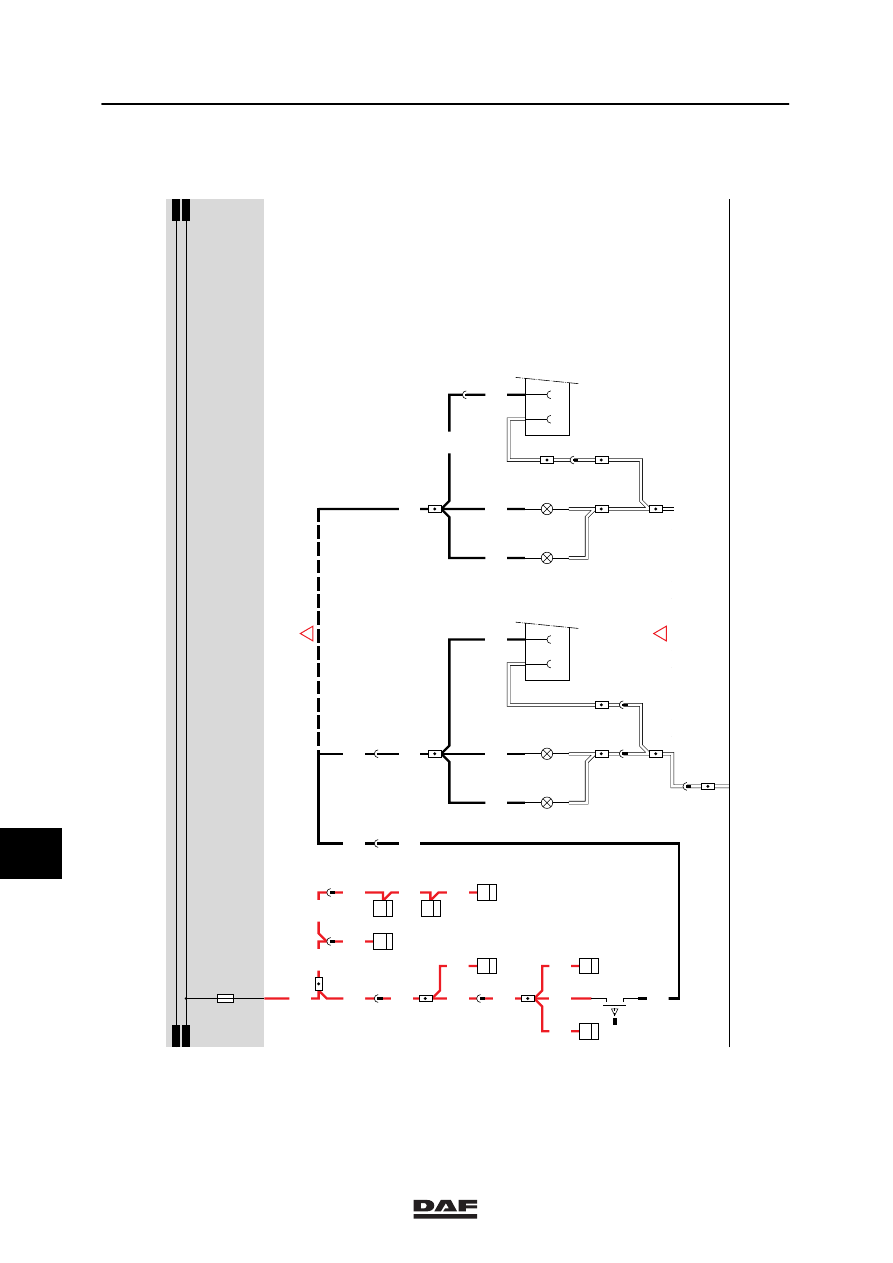

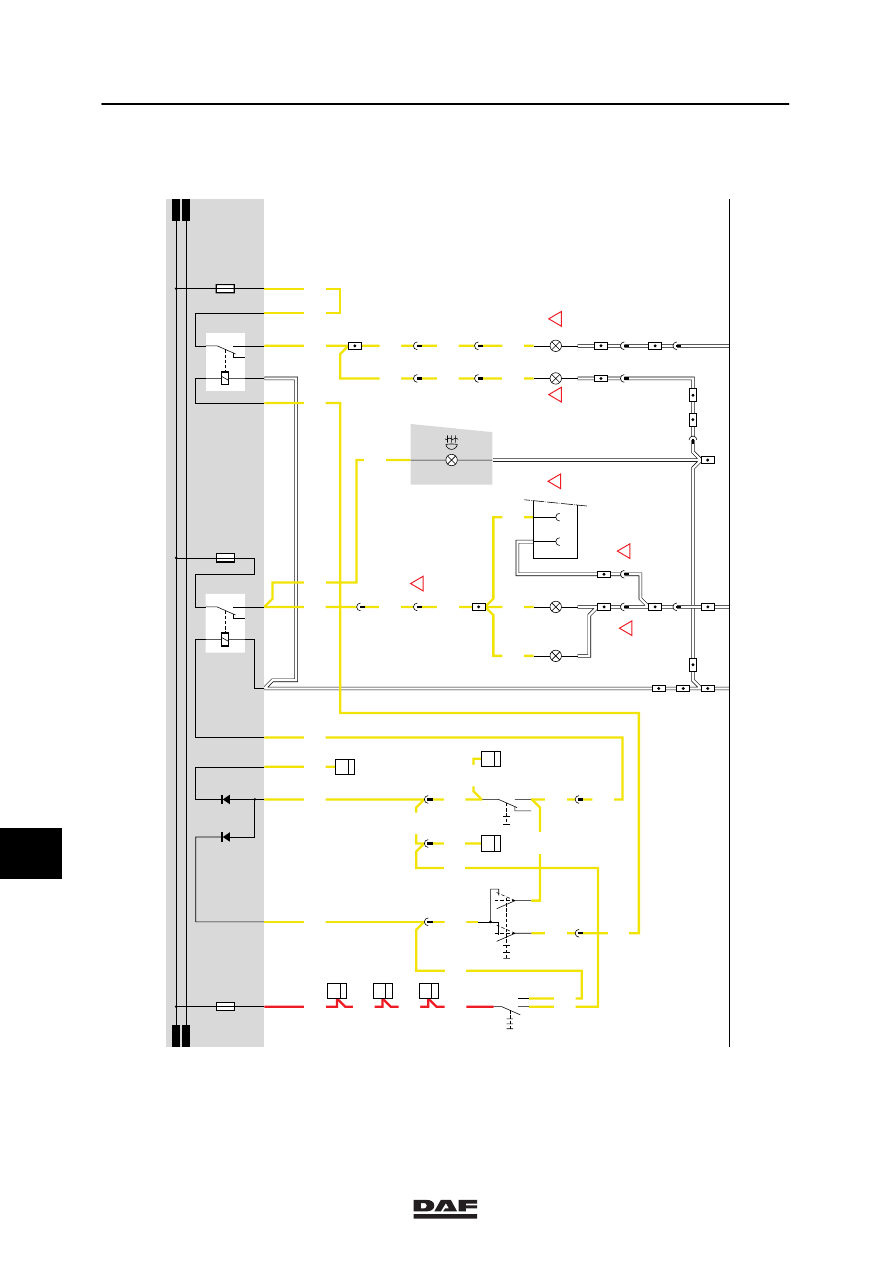

11. FRONT AND REAR FOG LIGHTS
There are two possible situations:
1
Rear fog lights only.
2
Both front and rear fog lights.
REAR FOG LIGHTS (standard)
If the lighting switch (C622) is switched into the
“dipped beam” position (connection between the
contacts 2 and 4), a voltage is applied to switch
(C773) through wire 2110. As a result, relay
G005 is activated. This ensures that a voltage is
applied via E010 through relay contacts 30 and
87 to the left and right rear fog lights.
If the front fog lights are also connected, the
situation changes as follows:
FRONT AND REAR FOG LIGHTS
If the lighting switch (C622) is switched into the
“parking light” position (connection between
contacts 2 and 1), a voltage is applied to contact
2 of switch C727 through wire 2100. If the first
position is now activated (connection between
contacts 2 and 6), relay G004 is activated. As a
result, a voltage is applied through E009, wire
2141, and contacts 30 and 87 of relay G004 to
the left and right front fog lights (C008 and C009
respectively). In this position the rear fog lights
cannot be activated.
If the second position is now activated
(connection between contacts 2 and 3), relay
G005 is also activated. As a result, a voltage is
applied through E010, contacts 30 and 87 of
relay G005 and wire 2152 to the left and right
rear fog lights (C024 and C025 respectively). In
this position both the front and rear fog lights
can be activated.
VARIANTS
Location
27,29,31 Connector 495 is only used in the case
of an FA. Connector 493 is used in the
case of an FT.
36
Connector A001 is only used in the
case of an FA. Connector A003 is
used in the case of an FT.
41,46
The left and right front fog lights (C008
and C009 respectively) are not
standard.
10
