F U S E S

D A S H B O A R D

FUSEBOXES

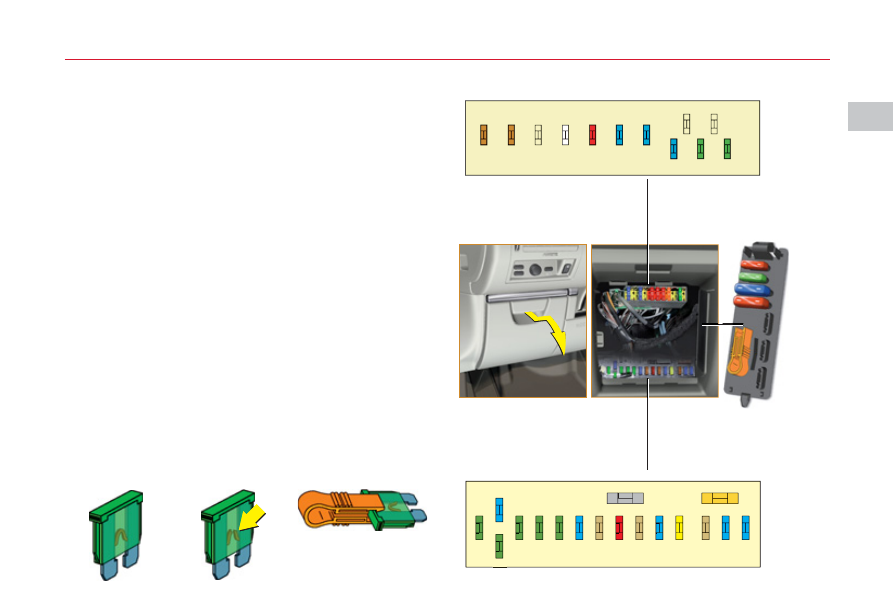

There are two fuseboxes under the dashboard, one in

the engine compartment and another in the boot under

the left hand wing trim.

Dashboard fuses

To access the fuses under dashboard:

1- Open the storage cover as wide as possible

without forcing.

2- To be able to open the cover to the maximum, pull

it on the right hand side.

3- Remove the protective trim located between the

fuses and the storage cover to access the fuses.

REPLACING A FUSE

Before replacing a fuse, you should ascertain the cause

of the fault and have it remedied. The numbers of the

fuses are indicated on the fusebox.
Replace the fuse that has blown with one of the

same rating (same colour).
Use the special pliers A placed on the fl ap close to the

fuseboxes. The fl ap also has spare fuses available.

Good

Bad

lacement fuses and

liers

Pliers A

Box B

128

TA B L E O F F U S E S

Ref.

Rating

Function

G 29

5 A

Defl ation detection – Changer for 6 CDs

G 30

5 A

Diagnostic socket

G 31

5 A

Telematics according to destination

G 32

25 A

Amplifi er

G 33

10 A

Hydraulic suspension system

G 34

15 A

Automatic gearbox

G 35

15 A

Front passenger’s heated seat

G 36

15 A

Driver’s heated seat

G 37

–

G 38

30 A

Driver’s electric seat

G 39

–

G 40

30 A

Passenger’s electric seat

DASHBOARD FUSES (BOX B)

129

TA B L E O F F U S E S

Ref.

Rating

Function

F 1

–

F 2

–

F 3

5 A

Airbags

F 4

10 A

Braking system – Active bonnet – Cruise contol/speed limiter – Photochromic rear view mirror – Diagnostic socket –

Multifunction screen inclination motor

g y

F 5

30 A

Front window – Sun roof

F 6

30 A

Rear window

F 7

5 A

Sun visor lighting – Glove box lighting – Interior lamps – Rear cigar-lighter

F 8

20 A

Controls at the steering wheel – Display – Opening of windows (Micro-descent) – Alarm – Radio

F 9

30 A

Front cigar-lighter

F 10

15 A

Boot relay unit – Trailer relay unit

F 11

15 A

Steering lock

F 12

15 A

Driver’s and front passenger’s seat belt warning lamp – Opening of windows (Micro-descent) – Electric seats – Parking

assistance – Audio system JBL

F 13

5 A

Active bonnet – Rain and brightness sensor – Windscreen wiper – Engine relay unit supply

F 14

15 A

Lane Departure Warning System – Air conditioning – Instrument panel – Head-up display – Airbags – Bluetooth

(Hands-free kit) – BHI relay

g y

F 15

30 A

Central locking – Child safety

F 16

SHUNT

–

F 17

40 A

Ventilation

DASHBOARD FUSES (BOX C)

130

F U S E S

U N D E R T H E B O N N E T

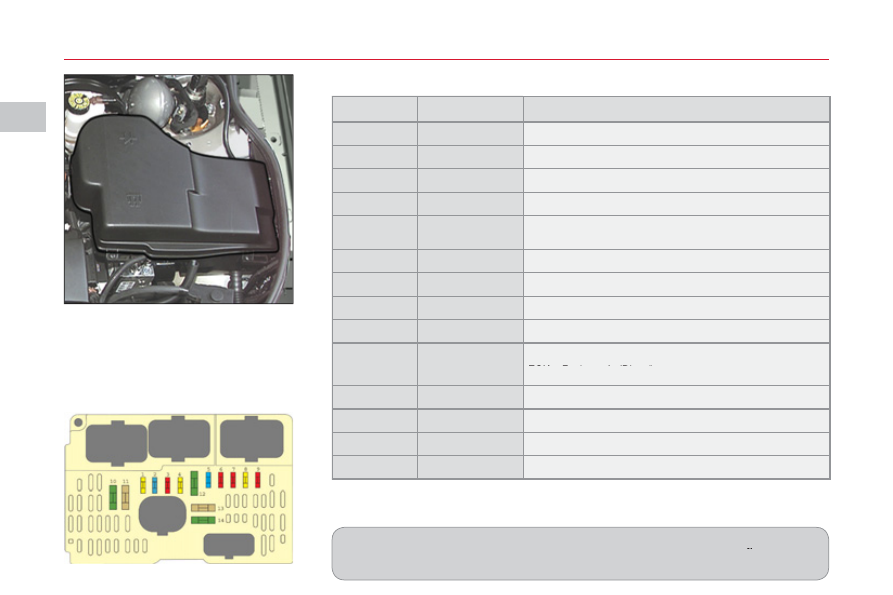

FUSEBOX

To access the fusebox in the engine

compartment, undo each screw a

1/4 turn.
After a repair, take care to reclose

the cover.

All work on the MAXI fuses, located in the fuseboxes, which

provide additional protection, must be done by a CITROËN dealer

or a qualifi ed workshop.

Ref.

Rating

Function

F 1

20 A

Engine ECU – Cooling fan

F 2

15 A

Horn

F 3

10 A

Screen wash pump

F 4

20 A

Headlamp wash

F 5

15 A

Preheating – Injection (Diesel)

F 6

10 A

Braking system

F 7

10 A

Automatic gearbox

F 8

20 A

Starter

F 9

10 A

Active bonnet – Xenon dual function directional headlamps

F 10

30 A

Injectors – Ignition coil – Engine

ECU – Fuel supply (Diesel)

F 11

40 A

Air conditioning (Blower)

F 12

30 A

Windscreen wiper

F 13

40 A

BSI

F 14

–

FUSES UNDER THE BONNET

131

G36

G37

G38

G39

G40

F U S E S I N T H E B O O T

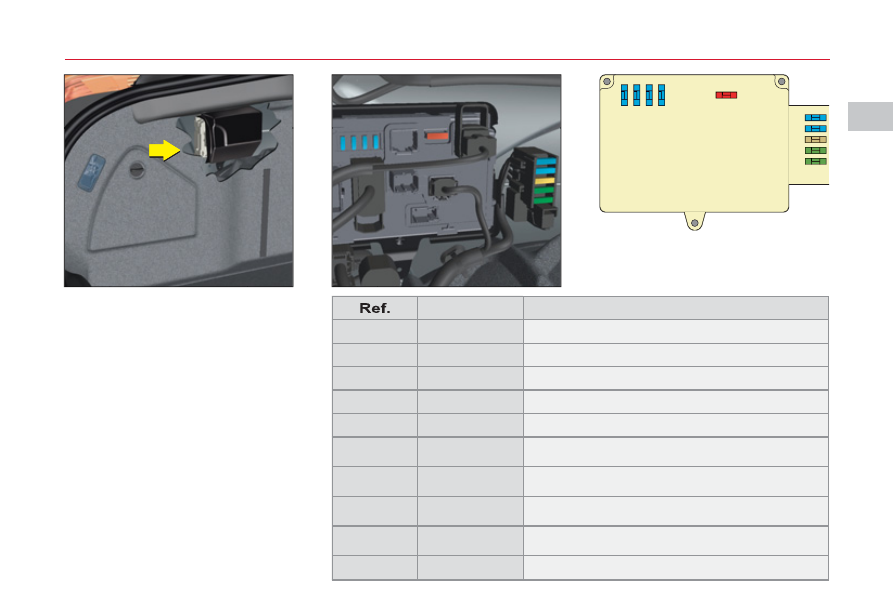

FUSEBOX

To access the fusebox located

under the left hand wing trim:

1. Move aside the trim on the

LH side. See "12 V battery:

Changing the battery".

2. Move aside the electrical cables

connecting to the fusebox.

3. Open the fusebox.

Rating

Function

F 1

15 A

Fuel fl ap

F 2

–

F 3

–

F 4

15 A

Speed-sensitive rear spoiler (defl ector)

F 5

40 A

Heated rear screen

G 36

15 A/25 A

Rear LH electric heated seat (Pack Lounge)/Benchseat

G 37

15 A/25 A

Rear RH electric heated seat (Pack Lounge)/Benchseat

G 38

30 A

Rear electric seat adjustments (Pack Lounge)

G 39

30 A

Cigar-lighter – Rear accessory socket

G 40

25 A

Electric parking brake

133

F U E L

If you should put in fuel that is not suitable for your vehicle's

engine type, it is imperative to have the tank drained before

you start the engine again.

While you are refuelling, the

engine must be stopped and the

ignition switched off.
When you are seeking to fi ll your

tank, do not persist after the

third cut-off; that could cause

your vehicle to malfunction.
Fuel must be added in quantities

of more than 5 litres to be recog-

nised by the fuel gauge.

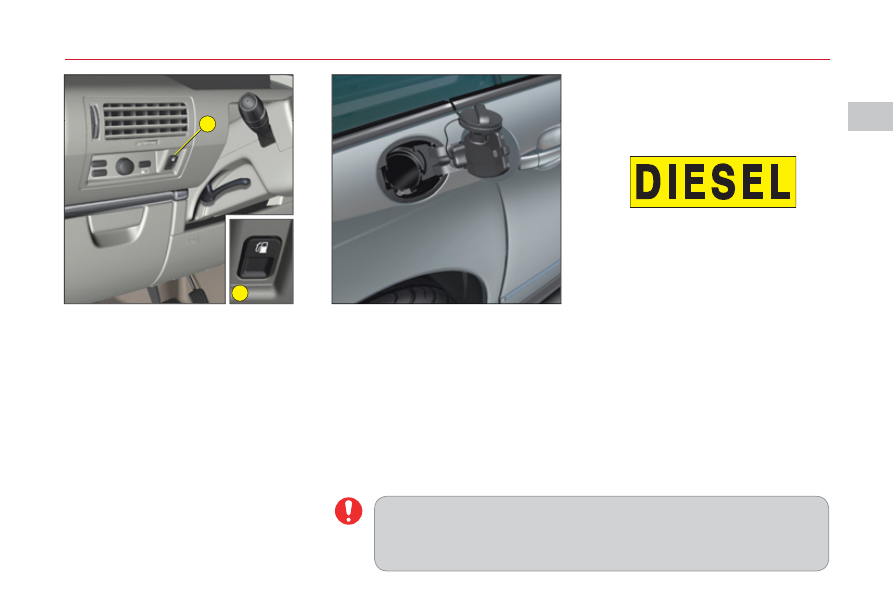

To open the fl ap, press button A.

Undo the cap and attach it to the

tab on the inside of the fl ap.
Opening the cap can trigger a vac-

uum. This results in a noise caused

by the sealing of the fuel circuit.
Note: The fuel fl ap is locked when

you lock your vehicle with the

remote control.

FUEL QUALITY

A label inside the fi ller fl ap tells you

which type of fuel to use.

Quality of the fuel used for

Diesel engines

The Diesel engines are perfectly

compatible with biofuels which

conform to current and future

European standards (Diesel fuel

which complies with standard EN

590 mixed with a biofuel which

complies with standard EN 14214)

which can be distributed at the

pumps (possible incorporation of

0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio)

fuel (vegetable or animal oils,

domestic fuel oil, etc.) is strictly

prohibited (risk of damage to the

engine and fuel circuit).

134

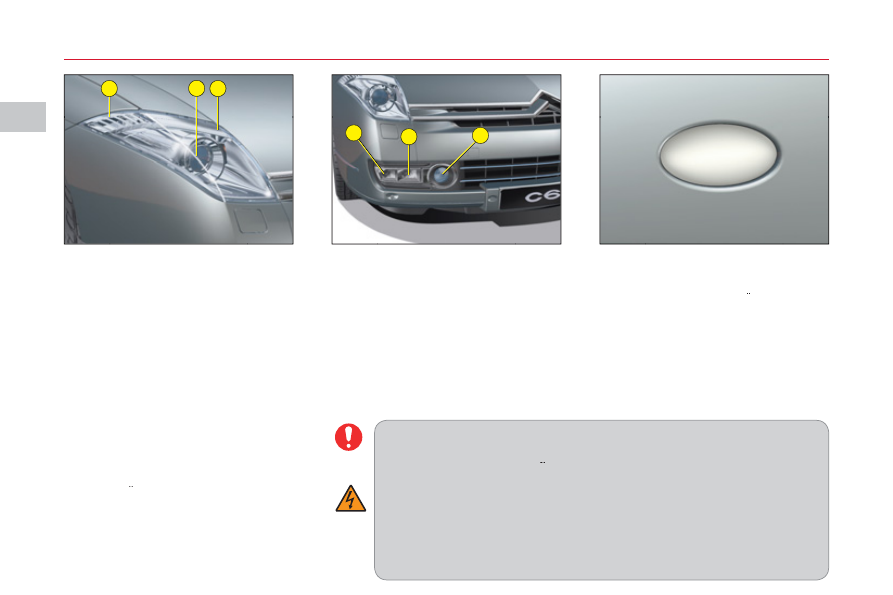

UPPER FRONT LENS

A Lateral lamp
B Dipped/main beam
C Sidelamp

Note: In some climatic condi-

tions, condensation can appear in

the lighting/signalling units. This

is normal and should disappear

after a while (when the functions

have been on for a few minutes for

example).
If this is not the case, contact a

CITROËN dealer or a qualifi ed

workshop.
For repairs to the front lamp units

and for bulb replacement, contact

a CITROËN dealer or a qualifi ed

workshop. The bulbs for lamps D

and E have a common bulb-

holder.

C H A N G I N G B U L B S

Your headlamps have Xenon bulbs.
Because of the risk of electrocution, we recommend that

you contact a CITROËN dealer or a qualifi ed workshop in the

event of a fault.
It is recommended to change both bulbs at the same time if

there is a failure of one of them.
Your vehicle is equipped with an active bonnet. To ensure the

correct operation of this safety equipment, contact a CITROËN

q pp

dealer or a qualifi ed workshop for the replacement of any part of

the front panel.

LOWER FRONT LENS

D Direction indicator
E Daytime-running lamp
F Front foglamp

SIDE REPEATER

To change the side repeater, push

towards the front or rear to unclip it

and contact a CITROËN dealer or

a qualifi ed workshop.

135

and change the bulbs.
Note: The tool for undoing the

screws is to be found in the toolbox

in the spare wheel. See "Changing

a wheel".

REAR CENTRAL LENS

A Reversing lamp
B Foglamp
The bulbs for lamps A and B have

a common bulb-holder. Contact

a CITROËN dealer or a qualifi ed

workshop.

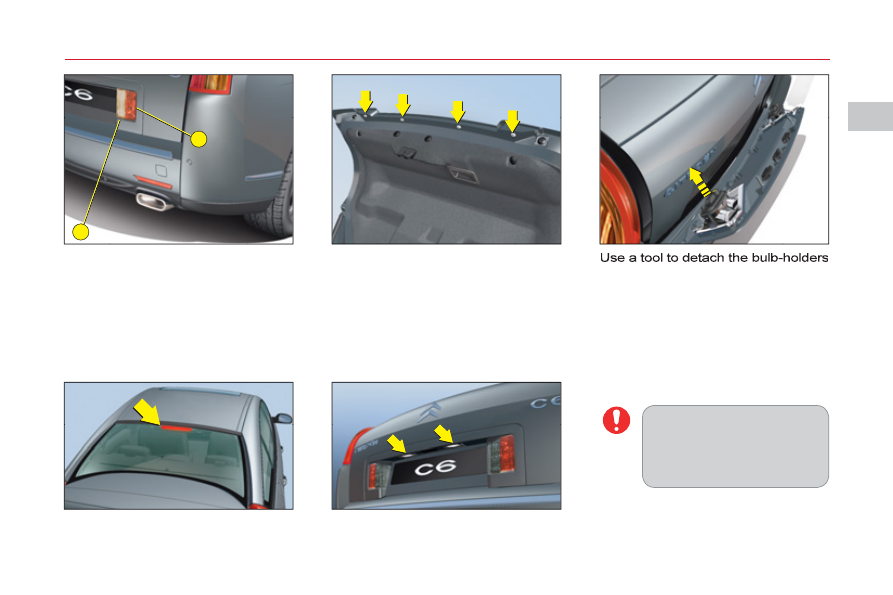

THIRD STOPLAMP

Contact a CITROËN dealer or a

qualifi ed workshop.

To gain access to the bulb-holders,

open the boot and undo the four

screws on the bodywork. Then lower

the boot lid in order to be able to pull

out the two rear lamp units, without

pulling on the electric cables.

NUMBER PLATE

Detach the transparent shield, then

pull out the bulb. Bulb: W 5 W.

After each operation,

check that the lamps

work.

C H A N G I N G B U L B S

136

C H A N G I N G B U L B S

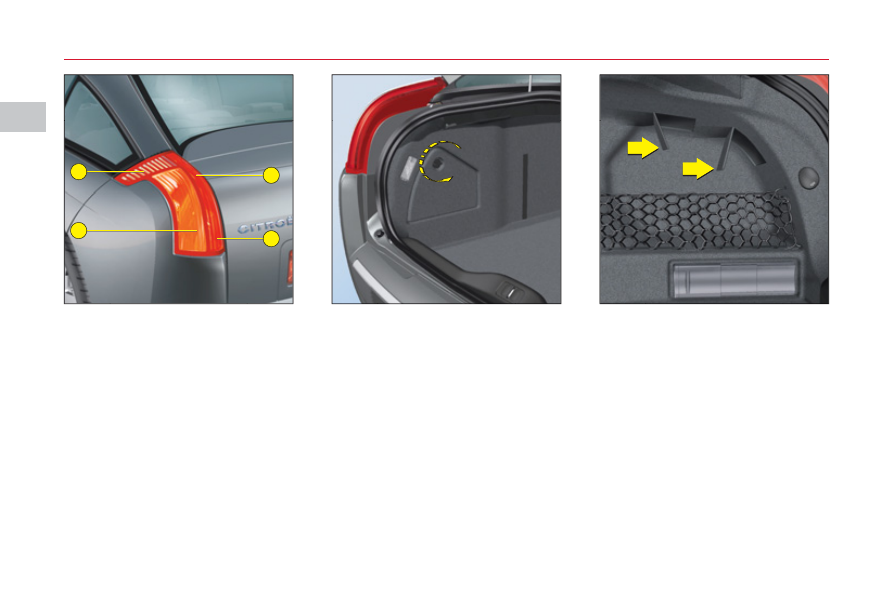

REAR LATERAL LENS

A Parking lamp.

Bulb: W 5 W.

B Stoplamp and parking lamp.

Bulb: P21 W/5 W.

C Direction indicator.

Bulb: P21 W cristal.

D Lateral lamp.

Bulb: W 5 W.

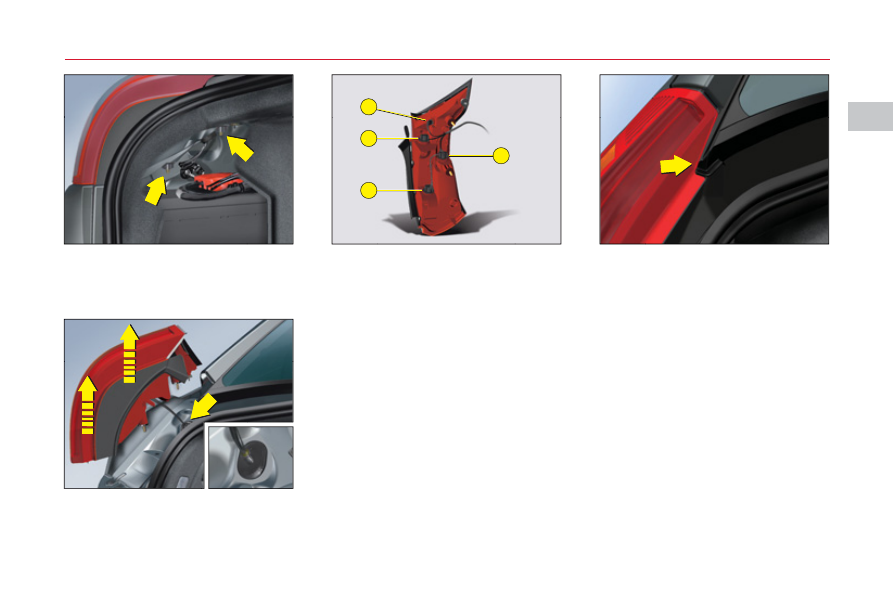

1. Open the rear LH fl ap or the two rear RH fl aps, by rotating the pins a

1/4 turn.

137

C H A N G I N G B U L B S

2. Use a tool to detach the two

lugs holding the lens.

3. Without touching the seal,

disengage the lamp unit

upwards and orient it so

that the bulbs are pointing

outwards.

5. Reposition the lens, fi rst

inserting the pin furthest

forward, then push.
Make sure that the rear screen

seals and the lamp units are

correctly located.

6. Secure the two lugs.

4. Replace bulbs that are faulty.

138

S A F E T Y R E C O M M E N D AT I O N S

It is recommended that towbar installation and removal be

done by a CITROËN dealer or a qualifi ed workshop.
If you are towing another vehicle, the latter must be free-

wheeling (gearbox in neutral).

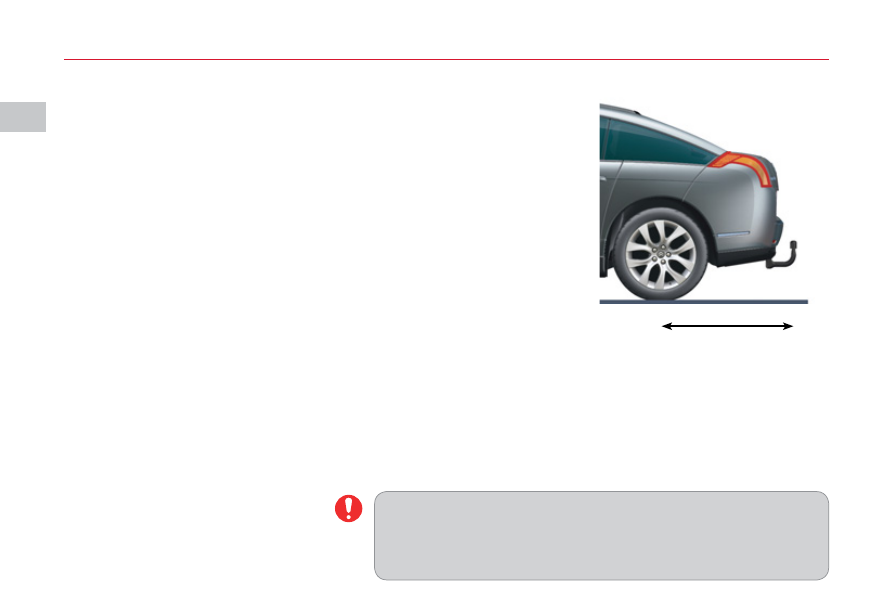

Dimensions (in metres):
A: 0.971

TOWBAR

(Boat, caravan, etc.)
It is recommended that towbar

installation and removal be done

by a CITROËN dealer or a quali-

fi ed workshop.
If you are climbing a steep gradient

and the engine gets excessively

hot, certain functions become una-

vailable (e.g. sequential control of

the automatic gearbox, the air con-

ditioning).
If you are towing, it is necesaary

to deactivate the parking assist-

ance by pressing the control on the

dashboard. See "Parking assist-

ance".
It is recommended that you remove

the towing ball, so that it does not

interfere with the functioning of the

proximity sensors, when you are

not using a trailer.

MAINTENANCE

if cleaning the vehicle with a high

pressure system

Your Piloted Defl ector has to

be closed.
It is not advisable to clean the

underside of the vehicle, for

fear of damaging the electric

parking brake.
As water may penetrate into

the vehicle interior via the door

apertures, do not target these

areas.
Do not direct at the headlamps,

lamps and their edges for too

long or you may damage their

coating and seals.

•

139

R O O F B A R S

Do not exceed the maximum permitted

load.
For the maximum distributed load on the

roof bars: see the chapter "General".

Recommendations:

Spread the load evenly, avoiding overloading on

one side.
Position the heaviest weight as low down as pos-

sible.
Tie the load down securely and add warning signs

if it is protruding.
Drive conservatively, as the vehicle will be more

vulnerable to side winds.
The stability of your vehicle may be altered.
Remove the roof rack or roof bars when you are

not using them.

•

IMPORTANT

For your safety and to avoid damage to the roof, you should use roof bars that are tested and approved by CITROËN

for the design of your particular vehicle.

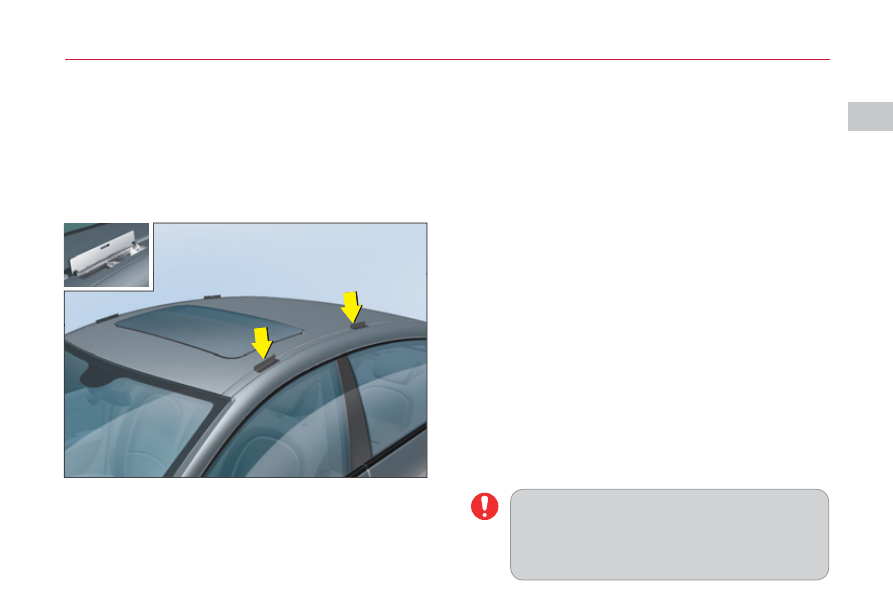

INSTALLATION

Four fi xing points are provided on your vehicle.

140

C O L D W E AT H E R S H I E L D

After fi tting

Before fi tting

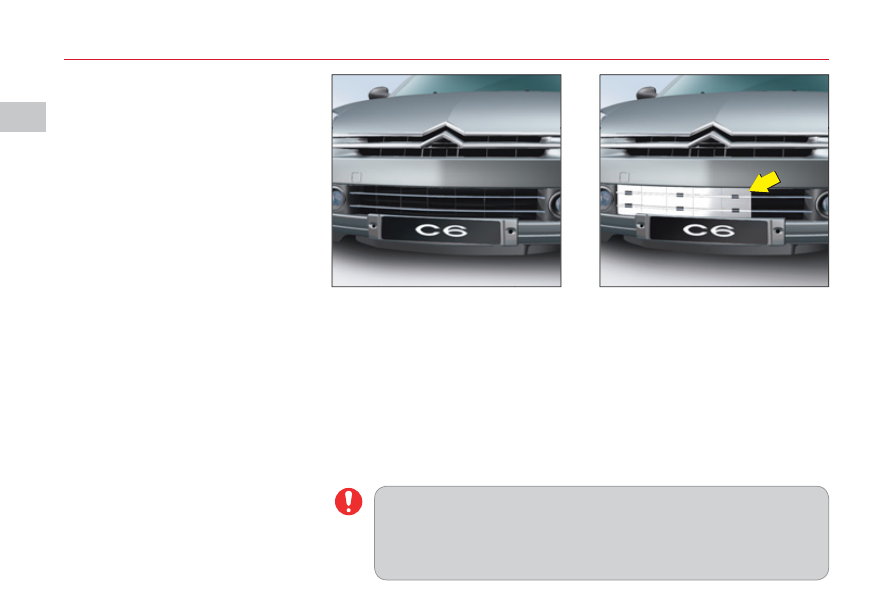

FITTING/REMOVAL OF THE

SNOW-GUARD

Fitting

Clip the snow-guard onto the ribs

of the bumper.

Removal

To detach the snow-guard, slide

the tool 4 into the recesses in the

snow-guard and lift.

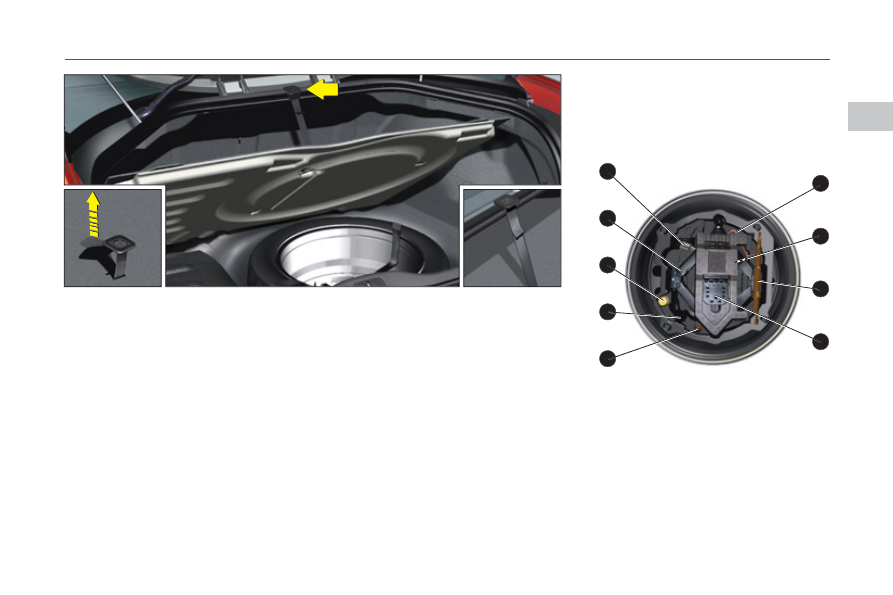

Note: The tool 4 is to be found

in the protection box in the spare

wheel. See "Changing a wheel".

The snow-guard delivered with the vehicle (according

to destination) should be fitted during the winter period,

but removed for the remainder of the year.
It is essential to remove it whenever the temperature is above

10 °C.

141

C H A N G I N G A W H E E L

ACCESS TO THE SPARE WHEEL

To access the spare wheel

1. Lift the boot fl oor by means of the strap.
2. Anchor the strap on the roof of the boot.
3. To remove the spare wheel, detach the belt then push the wheel

forwards so as to be able to lift it.

TO REPOSITION THE SPARE WHEEL

To put the spare wheel back in the boot

1. Position the spare wheel fl at in the boot, then pull it towards you.
2. Next place the toolbox inside the wheel, then secure the assembly with

the belt.

3. Release the strap to return the boot fl oor to its initial position.

Tyre pressures

Tyre pressures are indicated on the label which is positioned low down on

the front pillar. See "Vehicle identifi cation" and "User Precautions". (On this

label you will see a pressure for normal speeds and a pressure for high

speeds).

1. Handle
2. Jack
3. Tool for removing/refi tting the

wheel bolts

4. Tool for removing the anti-theft

bolt protector

5. Centring guide
6. Tool for removing foglamps

and reversing lamps

7. Handle extension
8. Towing eye
9. Movable chock

TOOLS

The tools are to be found in a pro-

tective holder inside the spare

wheel. Pull back the retaining strap

to have access.

142

Before positioning the jack, always adjust the vehicle's ground

clearance to the "maximum height" position and retain this

adjustment for as long as the jack is under the vehicle (do not

use the hydraulic adjustments).
Never get underneath the vehicle if it is supported only by the

jack.
The jack and all the tools are designed specifi cally for use on your

particular vehicle. Do not use them for any other applications.
Have the original wheel repaired and refitted as soon as

possible.
It is imperative not to exceed a speed of 80 km/h (50 mph) on

the spare wheel.

REMOVAL

1. Park the vehicle on stable, fi rm ground that is not slippery. Apply the

parking brake.

2. It is essential to make sure that the occupants have left the vehicle and

are in a place where their safety is guaranteed.

3. With the engine idling, adjust the ground clearance to maximum height.

See "Comfort" and "Ground clearance adjustment". Switch off the igni-

tion and engage fi rst gear or reverse gear depending on any slope (for

a vehicle with automatic gearbox, select position P).

4. Position the chock at the wheel that is diametrically opposite the one to

be replaced.

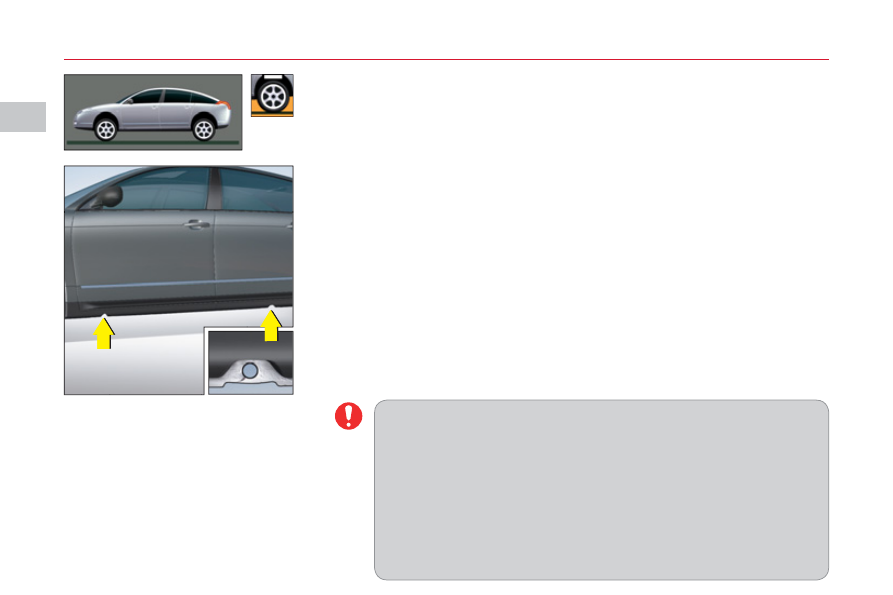

5. Position the jack at one of the four jacking-points provided on the sub-

frame close to the wheels, then use the handle to unwind the jack until

it reaches the ground.

6. Slide the removal tool 4 into the notch and lever vigorously to detach

the anti-theft bolt protector. See illustration. You can use the handle at

the extremity of the tool 4.

7. Slacken the wheel bolts.
8. Continue to extend the jack until the wheel is a few centimetres off the

ground.

9. Undo the bolts, remove the wheel.

C H A N G I N G A W H E E L

Citroen C6 (2011 year). Instruction - part 9
