In good or rainy weather, by both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or falling snow.
In these weather conditions, you should
switch on the foglamps and dipped
beam headlamps manually, as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the front and
rear foglamps when they are no longer
necessary.

Switching off the lighting when
switching off the ignition

When the ignition is switched off, all of the
lamps switch off immediately, except for
the dipped beam headlamps if automatic
guide-me-home lighting is activated.

Switching on the lighting
when switching on the
ignition

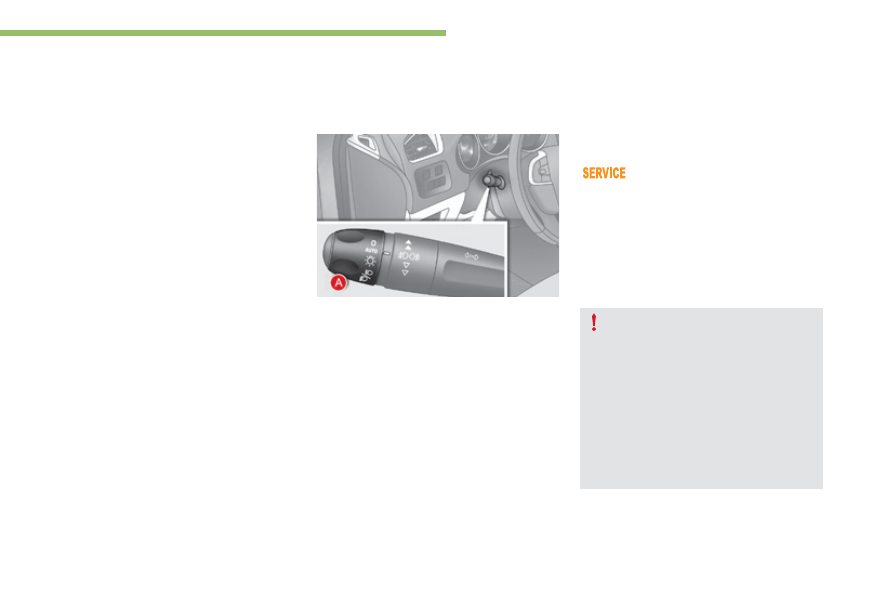

To reactivate the lighting control stalk,
turn the ring A to position "0" - lighting
off, then to the position of your choice.

When the driver's door is opened, a
temporary audible signal warns you that
the vehicle's lighting is on.
They switch off automatically after a
period which depends on the state of
charge of the battery (entry to energy
economy mode).

Lighting and visibility

128

C4-2_en_Chap04_eclairage-et-visibilite_ed02-2015

Parking lamps

Depending on version, within one minute

of switching off the ignition, operate the
lighting control stalk up or down depending
on the traffic side (for example: when
parking on the left; lighting control stalk
upwards; the right hand sidelamps are on).

This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the central position.

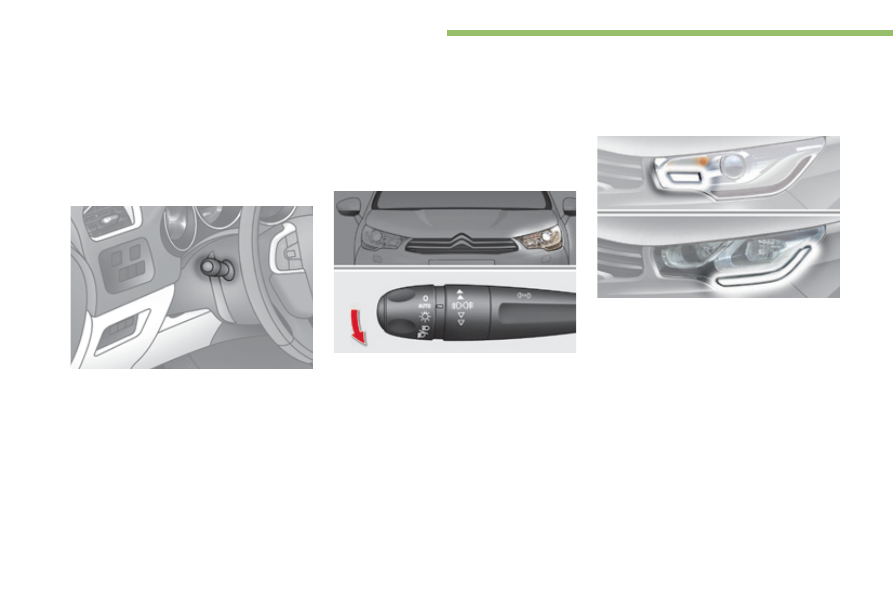

Manual guide-me-home
lighting

The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.

Switching on

With the ignition off, "flash" the headlamps

using the lighting stalk.

A further "headlamp flash" switches the

function off.

Switching off

The manual guide-me-home lighting switches
off automatically after a set time.

Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.

Daytime running lamps

Daytime lighting which comes on automatically
when the engine is started making the vehicle
more visible to other users.
This function is assured by dedicated lamps.

Lighting and visibility

129

C4-2_en_Chap04_eclairage-et-visibilite_ed02-2015

Automatic illumination of
headlamps

The sidelamps and dipped beam headlamps
are switched on automatically, without any
action on the part of the driver, when a low level
of external light is detected or in certain cases
of activation of the windscreen wipers.
As soon as the brightness returns to an
adequate level or after the windscreen wipers
are switched off, these lamps are switched off
automatically and the daytime running lamps
come on.

Activation

Turn ring A to the "AUTO" position. The

activation of the function is confirmed by
the display of a message.

Deactivation

Turn ring A to a position other than

"AUTO"

. The deactivation of the function is

confirmed by the display of a message.

Operating fault

In the event of a fault with the
sunshine sensor, the lighting come
on, this warning lamp is displayed
on the instrument panel and/or a
message appears in the screen,
accompanied by an audible signal.
Contact a CITROËN or a qualified
workshop workshop.

In fog or snow, the sunshine sensor
may detect sufficient light. Therefore,
the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.

Lighting and visibility

130

C4-2_en_Chap04_eclairage-et-visibilite_ed02-2015

Switching off

The welcome lighting switches off automatically
after a programmed time, when the ignition is
switched on or on locking the vehicle.

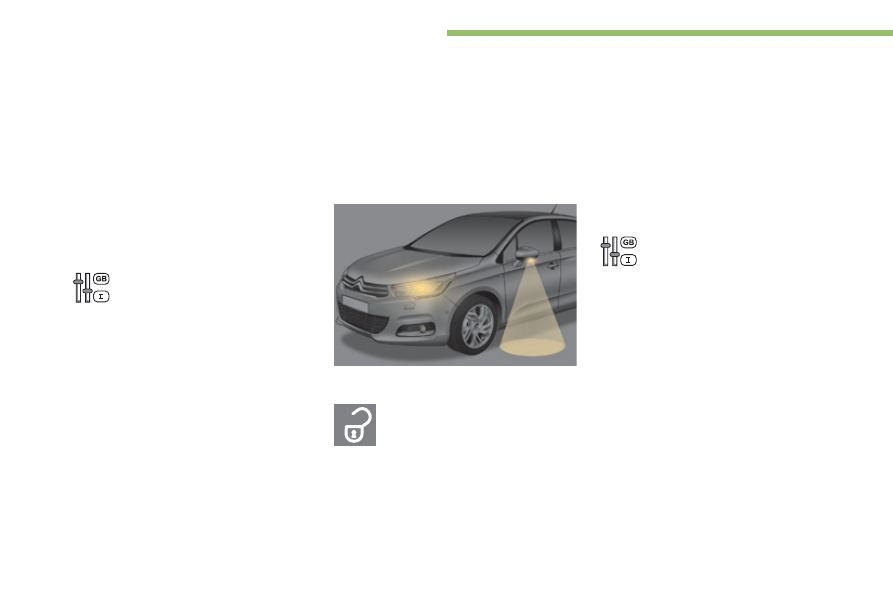

Welcome lighting

Switching on

Press the open padlock on the

remote control or one of the front
door handles with the "Keyless
Entry and Starting" system.

The remote switching on of the lighting makes
your access to the vehicle easier in poor light.
It is activated depending on the ambient light
level detected by the sunshine sensor.

The sidelamps and dipped beam headlamps,
as well as the side spotlamps, located under
the door mirrors, come on; your vehicle is also
unlocked.

Programming

Activation or deactivation, as well as
the duration of the lighting duration
for the welcome lighting can be set
via the vehicle configuration menu.

Automatic guide-me-home
lighting

When the automatic illumination of headlamps
functions is activated, if the ambient light level
is low the dipped beam headlamps remain on
when switching off the ignition.

Settings

Activation and deactivation, as
well as the duration of the guide-
me-home lighting can be set in the
vehicle configuration menu.

Lighting and visibility

131

C4-2_en_Chap04_eclairage-et-visibilite_ed02-2015

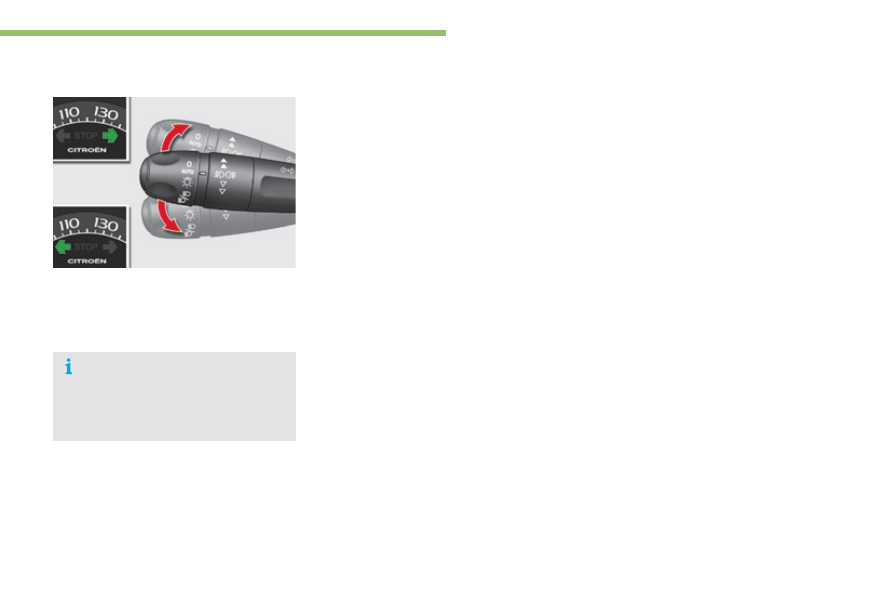

Direction indicators

Left: lower the lighting stalk passing the

point of resistance.

Right: raise the lighting stalk passing the

point of resistance.

Three flashes of the direction indicators

F Press briefly upwards or downwards,

without going beyond the point of
resistance; the direction indicators will
flash 3 times.

If you forget to cancel the direction
indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is above
40 mph (60 km/h).

On versions fitted with LED direction indicators,
the line of LEDs is illuminated sequentially.
The brightness of the daytime runnning lamps
is reduced during sequential operation of the
direction indicators.

Lighting and visibility

132

C4-2_en_Chap04_eclairage-et-visibilite_ed02-2015

To avoid causing a nuisance to other road
users, the height of the halogen headlamp
beams should be adjusted according to the
load in the vehicle.
0.

1 or 2 people in the front seats.

3 people.

5 people.

Intermediate setting.

5 people + maximum authorised load.

Intermediate setting.

Driver + maximum authorised load.

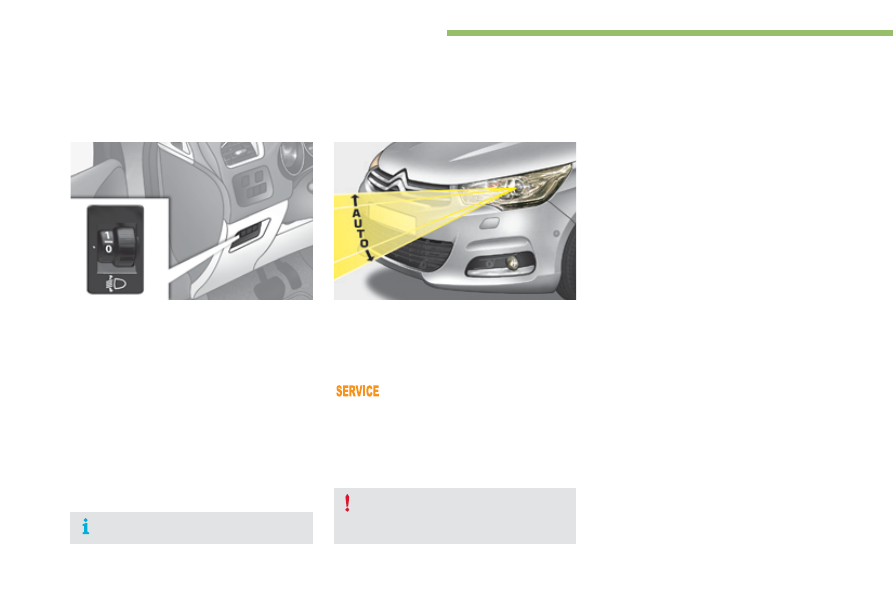

Headlamp beam height adjustment

Automatic adjustment of
xenon headlamps

This system adjusts the height of the xenon
headlamp beams automatically and when
stationary, according to the load in the vehicle, so
as to avoid causing a nuisance to other road users.

If a malfunction occurs, this
warning lamp is displayed in the
instrument panel, accompanied by
an audible signal and a message in
the screen.
The system then places your
headlamps in the lowest position.

Do not touch the xenon bulbs.
Contact a CITROËN dealer or a
qualified workshop.

The initial setting is position "0".

Manual adjustment of
halogen headlamps

Lighting and visibility

133

C4-2_en_Chap04_eclairage-et-visibilite_ed02-2015

Directional lighting

Programming

with directional lighting

without directional lighting

When the dipped or main beam headlamps
are on, this function, allows the light beams to
better follow the road.
The use of this function, coupled with the
xenon headlamps and the cornering lighting,
considerably improves the quality of your
lighting round bends.

Operating fault

If a fault occurs, this warning lamp
flashes in the instrument panel,
accompanied by a message in the
screen.

Contact a CITROËN dealer or a qualified
workshop.

This function is inactive:
-

when stationary or at low speeds,

- when reverse is engaged.

The system is activated or
deactivated in the vehicle
configuration menu.

The system is activated by default.
The state of the system stays in memory on
switching off the ignition.

Lighting and visibility

134

C4-2_en_Chap04_eclairage-et-visibilite_ed02-2015

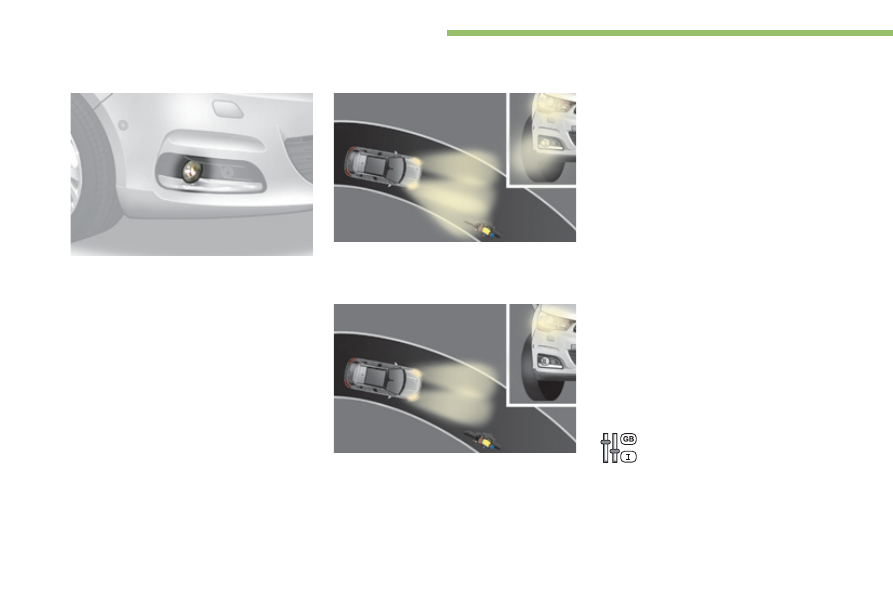

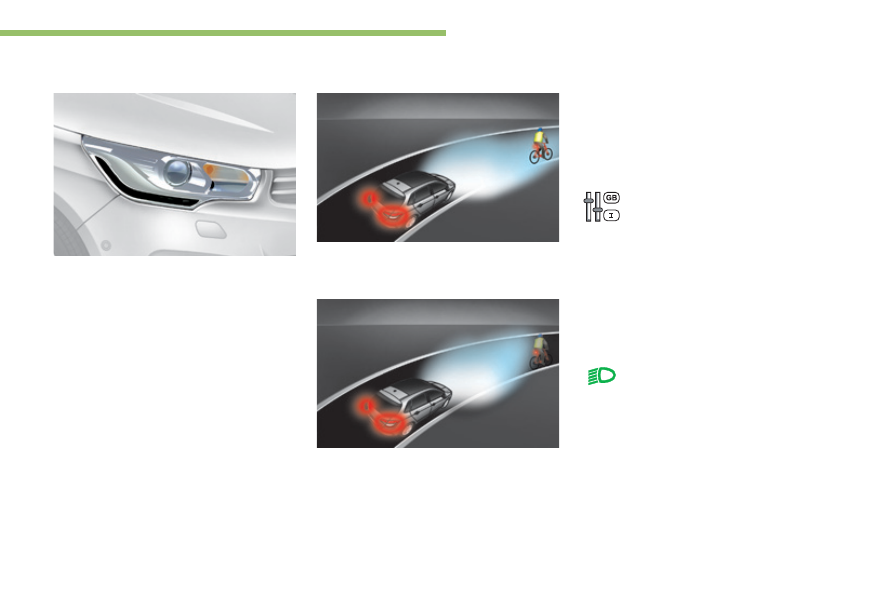

Cornering lighting

With dipped or main beams, this function
makes use of the beam from a front foglamp
to illuminate the inside of a bend, when the
vehicle speed is below 25 mph (approximately
40 km/h) (urban driving, winding road,
intersections, parking manoeuvres...).

with cornering lighting

without cornering lighting

Switching on

The system operates:
- when the corresponding direction indicator

is switched on,

or
- from a certain angle of rotation of the

steering wheel.

Switching off

The system does not operate:
- below a certain angle of rotation of the

steering wheel,

- above 25 mph (40 km/h),
- when reverse gear is engaged.

Programming

The system is activated or
deactivated in the vehicle
configuration menu.
The system is activated by default.

Lighting and visibility

135

C4-2_en_Chap04_eclairage-et-visibilite_ed02-2015

System for selection and control of the various
front and rear wiping modes for the elimination
of rain and cleaning the screens.

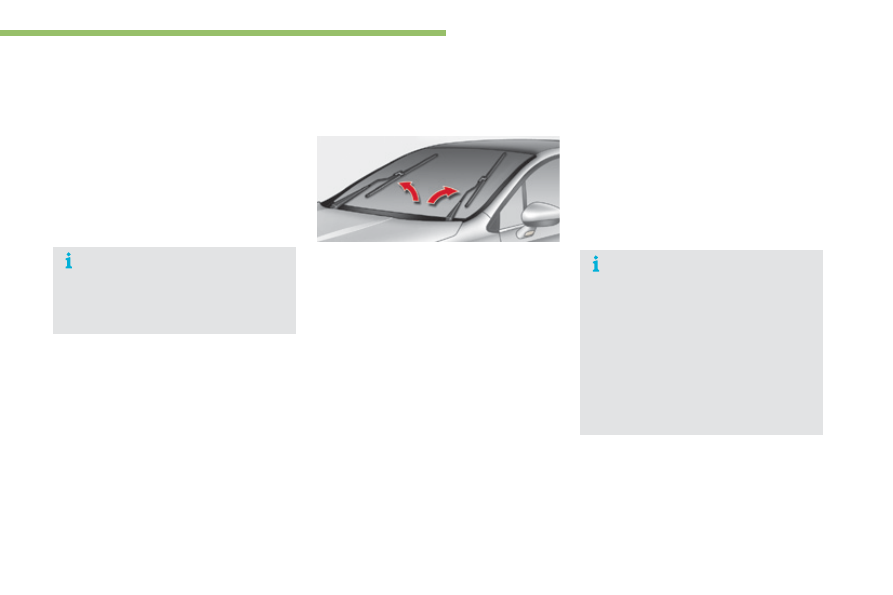

The vehicle's front and rear wipers are
designed to improve the driver's visibility
according to the climatic conditions.

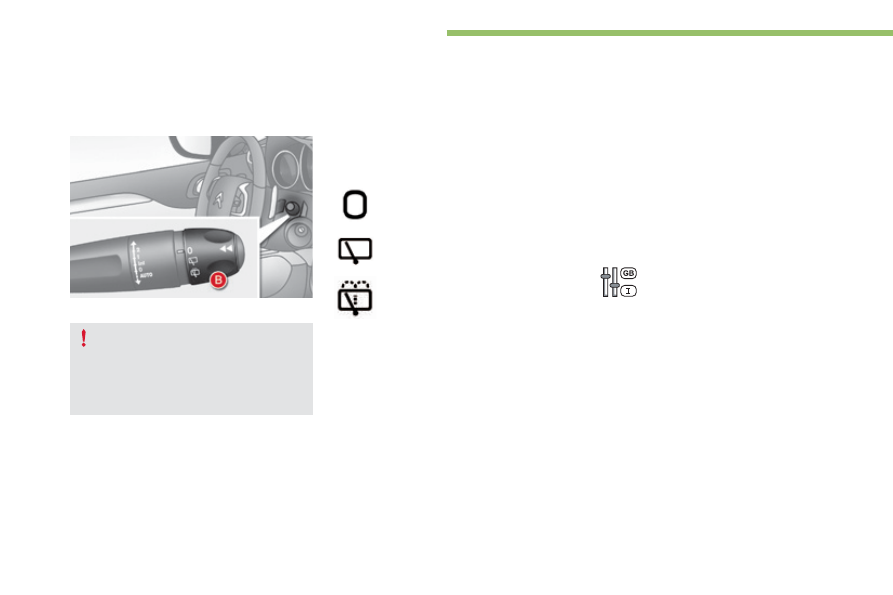

The wipers are controlled by means of stalk A
for the front and the ring B for the rear.

Programming

Various automatic wiper control modes are also
available depending on whether the following
options are fitted:
- automatic rain sensitive windscreen wipers,
- rear wiping on engaging reverse gear.

Model without AUTO wiping

Model with AUTO wiping

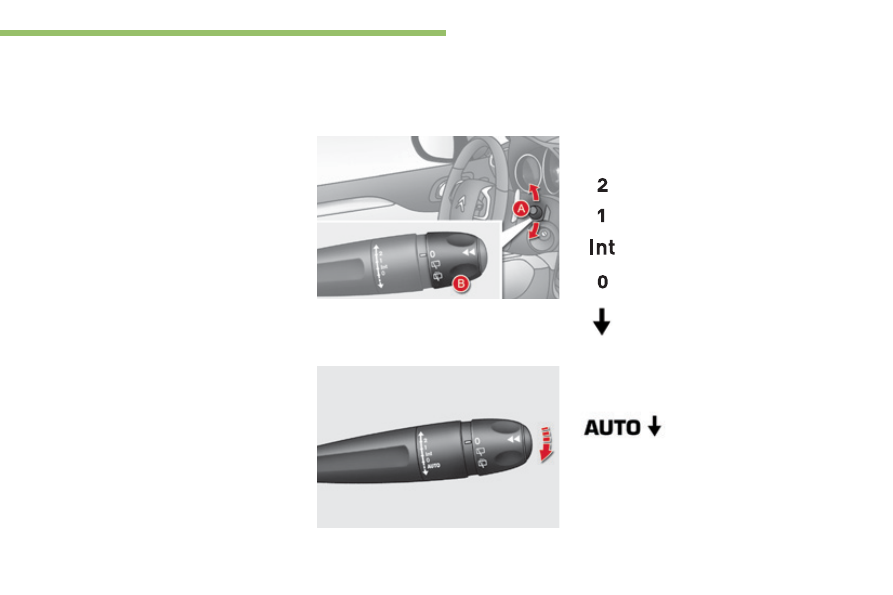

Windscreen wiper

Wiping speed control stalk: raise or lower the

stalk to the desired position.

Fast wiping (heavy rain).

Normal wiping (moderate rain).

Intermittent wiping (proportional to the
speed of the vehicle).

Park.

Single wipe (press downwards or pull
the stalk briefly towards you, then
release).

Automatic wiping (press
down, then release).

Wiper controls

Single wipe (pull the stalk briefly towards you).

Lighting and visibility

136

C4-2_en_Chap04_eclairage-et-visibilite_ed02-2015

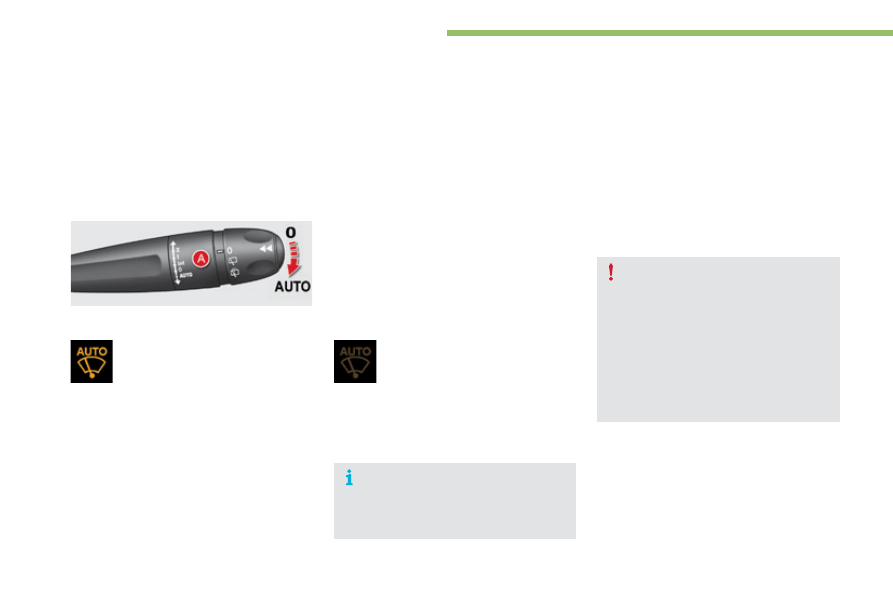

Automatic rain sensitive
windscreen wipers

Briefly push stalk A downwards.

Switching on

Switching off

Briefly push stalk A downwards
again.

The automatic rain sensitive
windscreen wipers must be reactivated
if the ignition has been off for more than
one minute.

The instruction is confirmed by a wiping cycle,
accompanied by illumination of this warning
lamp in the instrument panel and an activation
message.

The instruction is confirmed by this warning
lamp going off in the instrument panel and/or
the display of a deactivation message.

The windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.

Operating fault

If an automatic rain sensitive wiper malfunction
occurs, the wipers will operate in intermittent
mode.
Contact a CITROËN dealer or a qualified
workshop.

Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.

Lighting and visibility

137

C4-2_en_Chap04_eclairage-et-visibilite_ed02-2015

Special position of the
windscreen wipers

This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.

Any action on the wiper stalk in the minute

after switching off the ignition places the
blades vertically on the screen.

To park the blades again, switch on the

ignition and operate the wiper stalk.

To maintain the effectiveness of the flat
wiper blades, it is advisable to:
- handle them with care,
- clean them regularly using soapy

water,

- avoid using them to retain

cardboard on the windscreen,

- replace them at the first signs of

wear.

Windscreen and headlamp
wash

Low screenwash / headlamp

wash fluid level

On vehicle fitted with headlamp washers, the
low level of this fluid is indicated by gauge in
the reservoir filler neck under the bonnet.
Checking and topping up this fluid can should
be done with the engine off.
The level of this fluid should be checked
regularly, particularly during winter.
For more information on checking the
screenwash / headlamp wash level, refer to the
corresponding section.

Pull the windscreen wiper stalk towards

you. The windscreen wash then the
windscreen wipers operate for a fixed
period.

The headlamp washers only operate when the
dipped or main beam headlamps are on, with
the vehicle moving

To reduce the consumption of the fluid
by the headlamp washers, they operate
only with every seventh use of the
screenwash or every 25 miles (40 km)
during a given journey.

Lighting and visibility

138

C4-2_en_Chap04_eclairage-et-visibilite_ed02-2015

Rear wiper selection ring: turn the ring

to place the desired symbol against the
marking.

Rear wiper

Park.

Intermittent wipe.

Wash-wipe.

Reverse gear

When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.

The function is activated or
deactivated via the vehicle
configuration menu.
This function is activated by default.

Programming

If a significant accumulation of snow or
ice is present, or when using a tailgate
bicycle carrier, deactivate the automatic
rear wiper via the vehicle configuration
menu.

Turn the ring to its stop/the rear screen wash,
then the rear wiper operates for a set duration.

Safety

139

C4-2_en_Chap05_securite_ed02-2015

Hazard warning

lamps

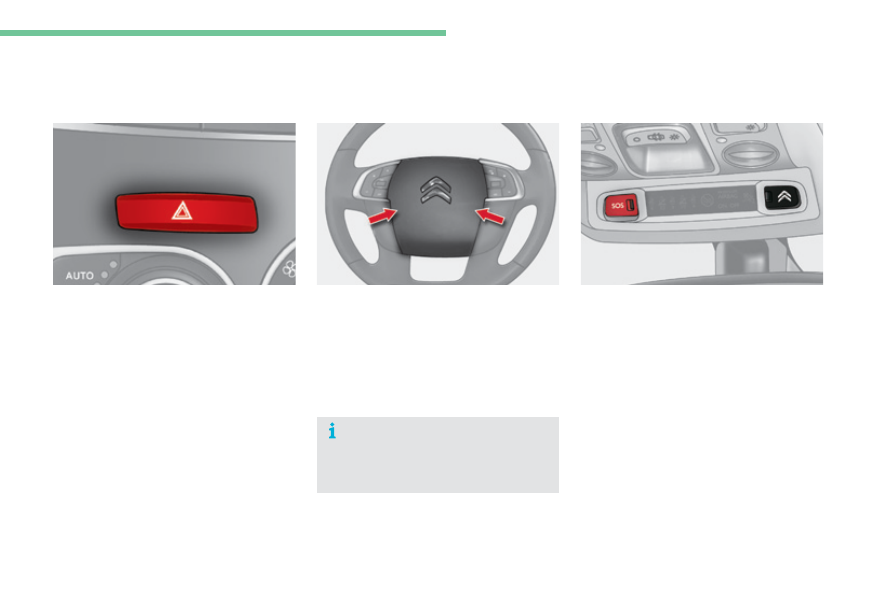

Visual warning by means of the direction
indicators to alert other road users to a vehicle
breakdown, towing or accident.
F Press this button, the direction indicators

flash.

They can operate with the ignition off.

Automatic operation of
hazard warning lamps

When braking in an emergency, depending on
the deceleration, the hazard warning lamps
come on automatically.
They switch off automatically the first time you
accelerate.
F

You can also switch them off by pressing

the button.

Horn

Audible warning system to alert other road
users to an imminent danger.
F

Press the central part of the multifunction

steering wheel.

Use the horn moderately and only in
situations allowed by the motoring
regulations in the country you are
driving in.

Emergency or

assistance call

This system allows you to make an emergency
or assistance call to the emergency services or
to the dedicated CITROËN service.

For more information on the use of this
function, refer to the "Audio and telematics"
section.

Safety

140

C4-2_en_Chap05_securite_ed02-2015

Group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:
-  anti-lock braking system (ABS),
-  electronic brake force distribution (EBFD),
-  emergency braking assistance (EBA).

Anti-lock braking system
and electronic brake force
distribution

Linked systems which improve the stability and
manoeuvrability of your vehicle when braking, in
particular on poor or slippery surfaces.

Activation

The anti-lock braking system comes into
operation automatically when there is a risk of
wheel lock.
Normal operation of the ABS may make itself
felt by slight vibration of the brake pedal.

Operating fault

If this warning lamp comes on,
accompanied by an audible signal
and a message in the screen, it
indicates a malfunction of the anti-
lock braking system which could
result in loss of control of the vehicle
when braking.
If this warning lamp comes on,
together with the STOP and ABS
warning lamps, accompanied by an
audible signal and a message in the
screen, it indicates a malfunction of
the electronic brake force distribution
which could result in loss of control of
the vehicle when braking.

Emergency braking
assistance

System which, in an emergency, enables you
to obtain the optimum braking pressure more
quickly, thus reducing the stopping distance.

Activation

It is triggered by the speed at which the brake
pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase in
braking efficiency.

You must stop as soon as it is safe to do so.
In either case, contact a CITROËN dealer or a
qualified workshop.

When braking in an emergency, press
very firmly without releasing the
pressure.

When braking in an emergency, press
firmly without releasing the pressure.

When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.

Braking assistance systems

Safety

141

C4-2_en_Chap05_securite_ed02-2015

Trajectory control systems

Anti-slip regulation (ASR)
and dynamic stability
control (DSC)

The anti-slip regulation (also known as traction
control) optimises traction to prevent skidding
of the wheels, by acting on the brakes of the
driving wheels and on the engine.
The electronic stability control acts on the
brake of one or more wheels and on the engine
to keep the vehicle on the trajectory required
by the driver, within the limits of the laws of
physics.

Activation

These systems are activated automatically
each time the vehicle is started.
They come into operation in the event of a grip
or trajectory problem.

This is indicated by flashing of this
warning lamp in the instrument panel.

Intelligent traction control
system ("Snow motion")

Deactivation

In extremely severe conditions (deep snow,
mud, ...), if you are unable to move off, it may
be useful to temporarily deactivate these
systems so that the wheels can spin freely and
allow the vehicle to move.

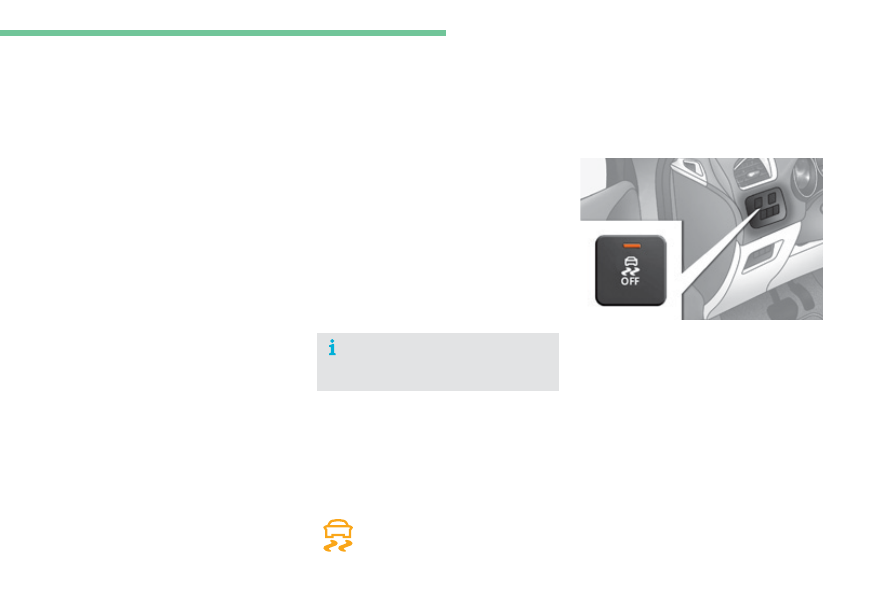

Press this button, located near the steering

wheel.

If the indicator lamp in the button comes on, this
indicates that these systems are deactivated.

Depending on version, your vehicle has a
system to help driving on snow: intelligent
traction control

This system detects situations of difficult
surface adhesion that could make it difficult to
move off or make progress on deep fresh snow
or compacted snow.
In these situations, the intelligent traction
control

limits the amount of wheel slip to

provide the best traction and trajectory control
for your vehicle.

It is recommended that the systems be
reactivated as soon as possible.

The use of snow tyres is strongly
recommended on surfaces offering low
levels of adhesion.

Safety

142

C4-2_en_Chap05_securite_ed02-2015

Reactivation

These systems are reactivated automatically
each time the ignition is switched back on or
from 30 mph (50 km/h).
F

Press this button again to reactivate them

manually.

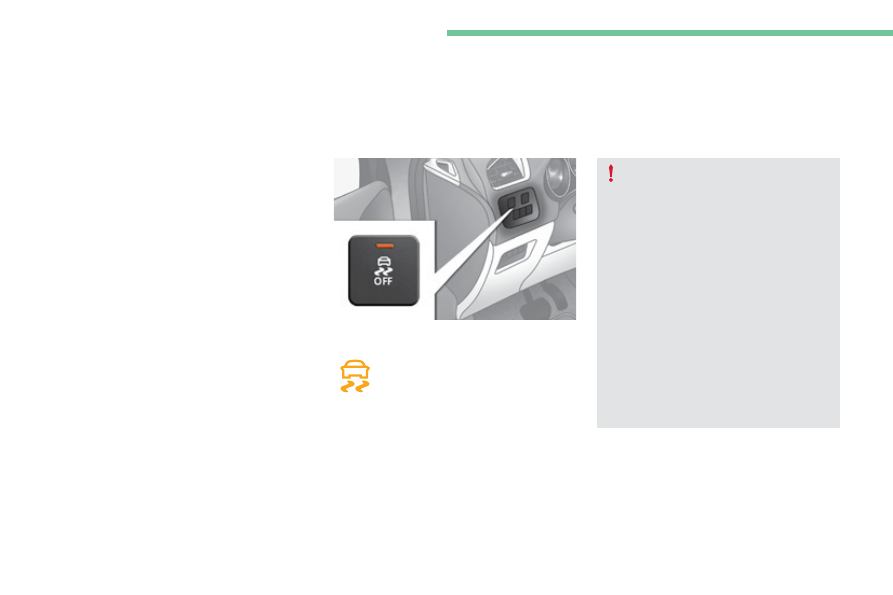

The illumination of the indicator
lamps in the instrument panel and
in this button, accompanied by an
audible signal and a message in the
screen, indicates a fault with these
systems.

Operating fault

The trajectory control systems offer
increased safety in normal driving, but
this should not encourage the driver to
take extra risks or drive at high speed.
The correct functioning of these
systems is assured provided that
manufacturer's recommendations are
observed on:
-  wheels (tyres and rims),
-  braking components,
-  electronic components,
-  assembly and repair procedures.
After an impact, have these systems
checked by a CITROËN dealer or a
qualified workshop.

Have it checked by a CITROËN dealer or a
qualified workshop.

Citroen C4 (2016 year). Instruction - part 9
